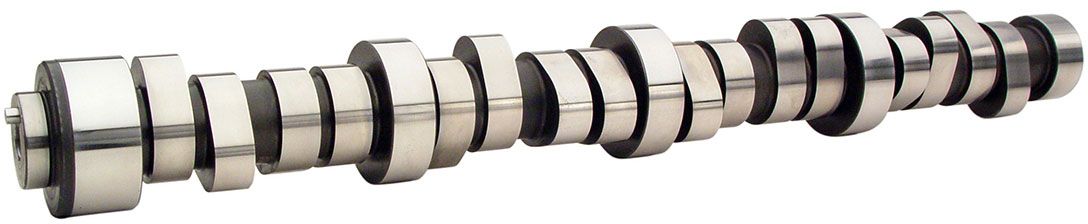

COMP XFI 224/228 Hydraulic Roller Camshaft suit Dodge Hemi 5.7L, 6.1L 2003-on (CO112-502-11)

CO112-502-11 - HYD ROLLER CAM, HEMI 5.7-6.1L

224/228@ .050", .547/550" Lift, 114° Lobe Seperation, 2000-6200 RPM

Part Number: CO112-502-11

The XFI 224/228 Hydraulic Roller Cam for Dodge HEMI 5.7L/6.1L 2003-2008 Needs AN extended rev limit and better exhaust. Strongest power over 2500 RPM. Requires custom tuning.
- Requires disabling of the MDS system and use of Non-MDS lifters
- Requires Custom Tuning
Engine Family: Dodge 5.7L and 6.1L HEMI (2003+)
RPM Operating Range: 2,000-6,200
Grind Number: 273H-14
Cam Type: Hydraulic Roller
Camshaft Series: Xtreme Fuel Injection
Usage: Street/Performance
Advertised Intake Duration: 273
Advertised Exhaust Duration: 277
Intake Duration at .050 Inch Lift: 224
Exhaust Duration at .050 Inch Lift: 228
Intake Valve Lift: 0.547
Exhaust Valve Lift: 0.55
Lobe Lift Intake: 0.342
Lobe Lift Exhaust: 0.346
Lobe Separation: 114
Intake Centerline: 117
Exhaust Close ATDC: 28
Intake Open BTDC: 20
Exhaust Open BBDC: 70
Intake Close ABDC: 74
Camshaft Gear Attachment: 1-Bolt
