Winters Center Section 10" Snub Nose - Superstock
3-inch shorter Snub Nose centre section
Winters Center Section 10" Snub Nose - Superstock
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
Description
Description

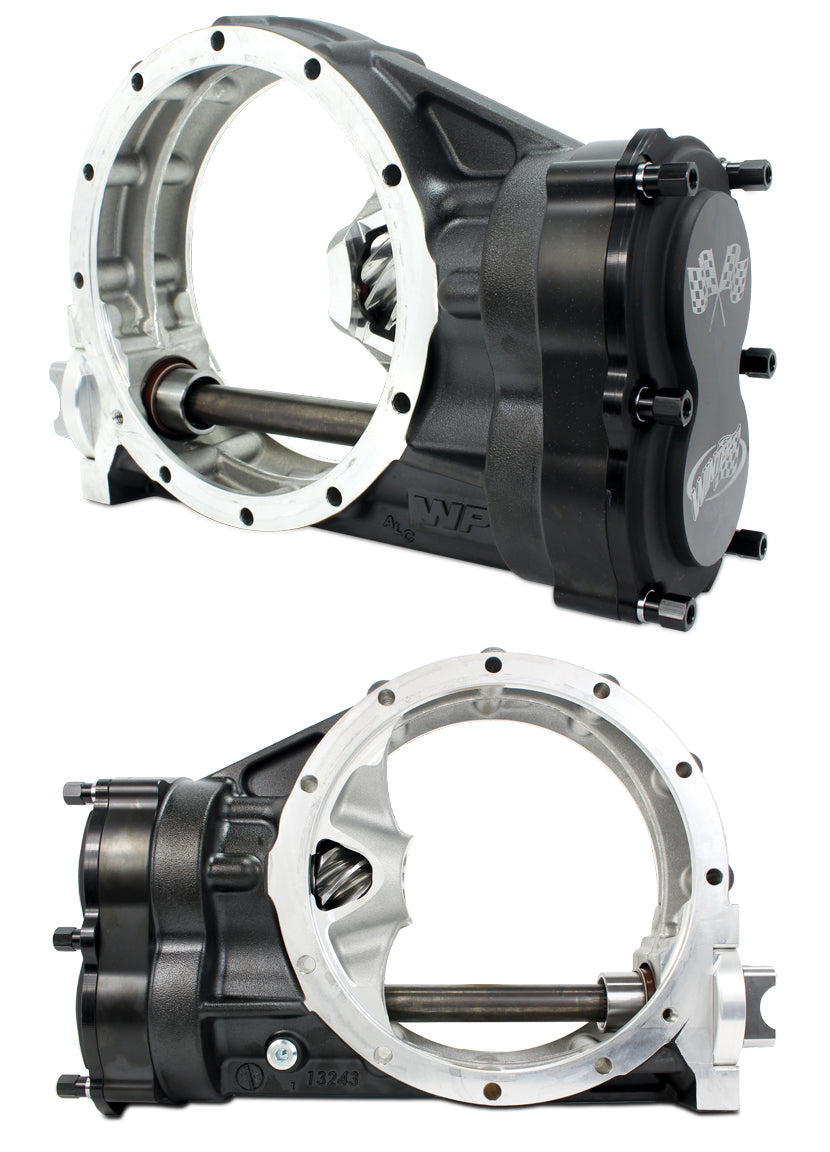

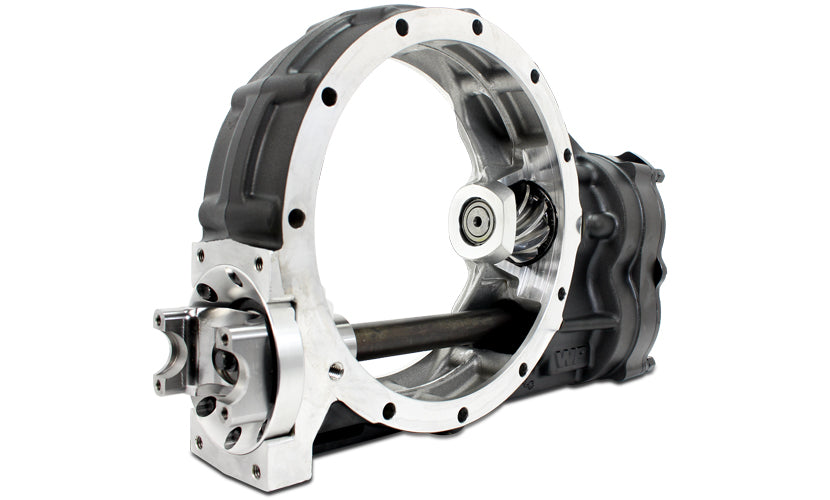

Complete Winters Performance Snub Nose 10-inch sprint-style quick-change centre section, manufactured using Winters’ Permanent Mold casting process.
The redesigned centre provides increased strength without adding unnecessary weight. Unlike conventional sand-cast quick-change housings, the Permanent Mold process uses H13 tool-steel moulds to produce a denser, stronger and more consistent alloy casting.
The Snub Nose design is 3 inches shorter than a standard centre section, providing additional clearance and a more compact driveline package. Ideal for Modified and other speedway applications.
Features:
- Permanent Mold alloy centre casing
- 10-inch quick-change design
- 3-inch shorter Snub Nose centre section
- Side bells
- Heat-treated lower shaft
- Bearing-supported billet steel yoke
- Floating lower shaft
- Additional bearing support at the lower change gears
- Pinion installed
- 4.86:1 ratio crown wheel supplied loose
- Bearings included
Simply install the crown wheel and fit your required axle to complete the assembly.
Please note: Axle not included.
View the Winters Permanent Mold manufacturing process
