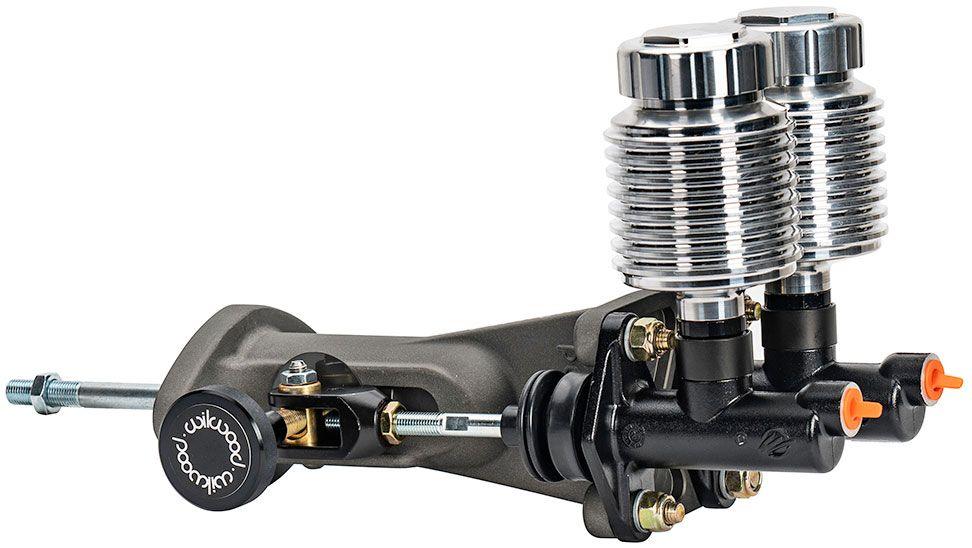

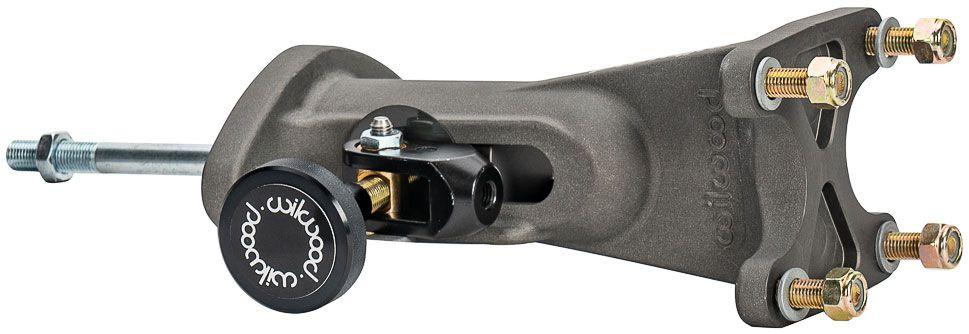

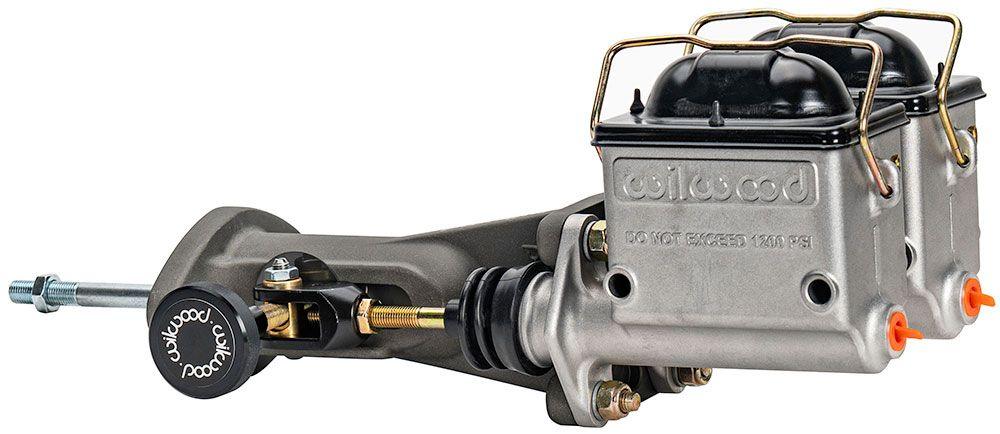

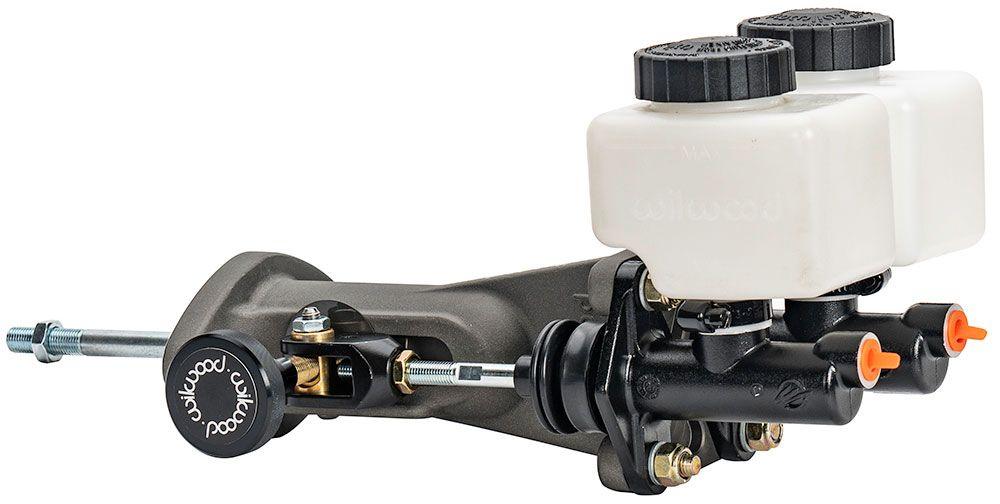

Wilwood Tandem Mount Balance Bar Assembly (WB340-16920)

Wilwood's Tandem Mount Balance Bar Assembly bolts in place of a typical horizontal bolt pattern tandem master cylinder and provides a sturdy mounting location for two race-type vertical bolt pattern master cylinders, with no custom fabrication needed. Providing The ultimate in brake bias control for performance and race vehicles is an adjustable balance bar with dual master cylinders. Ideal for modified street cars/trucks needing fast and easy brake bias adjustability to optimize braking for different performance driving situations and skillsets.

Bolts to firewall in place of tandem master cylinder and easily converts tandem master cylinder vehicles to a balance bar bias adjustable setup with individual master cylinders. Dual master cylinders allow better front-to-rear brake balance by utilizing differing bore sizes. Designed with oval mounting holes for 3.22" to 3.40" on center studs for a wide variety of vehicle fitments and mounts dual master cylinders with 2.25" on center vertical bolt holes from Wilwood and others.
