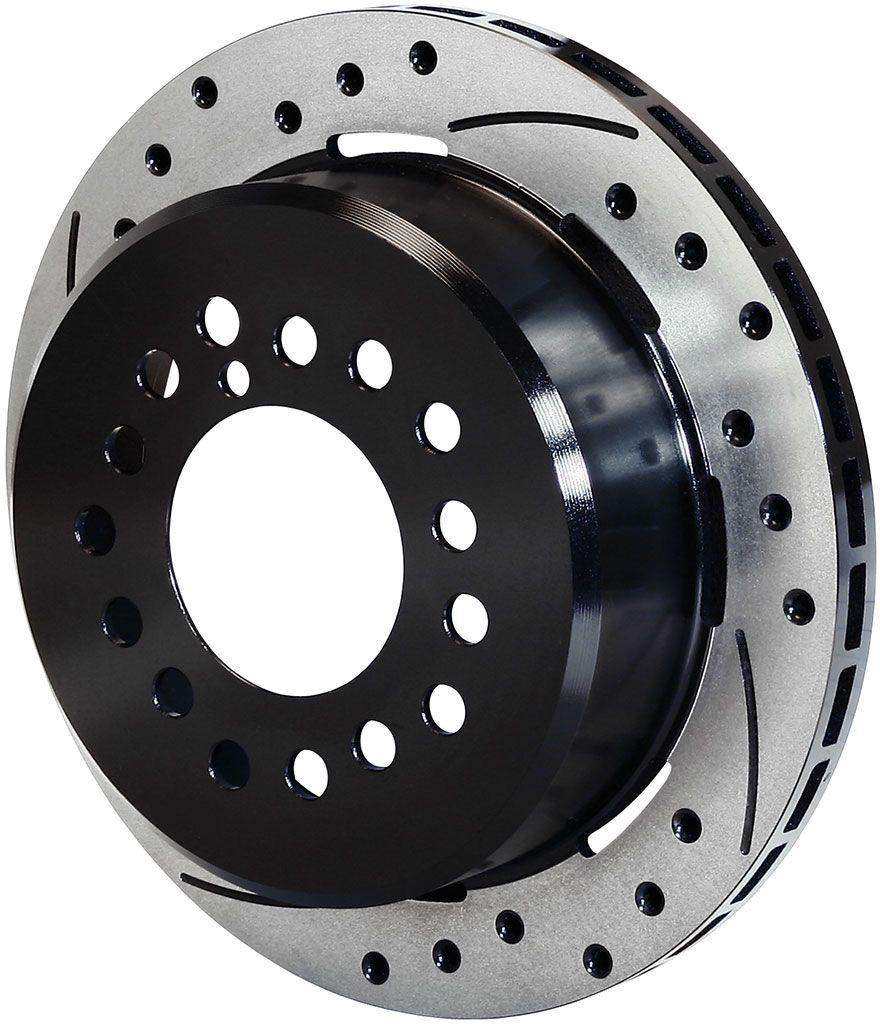

Wilwood SRP Disc/Drum Rotors for Internal Parking Brakes (L/H) 32 Vane (WB160-9813-BK)

WB160-9813-BK - SRP ROTOR DRILLED BLACK - LH

12.19" Dia, 0.81" Width, .52" Stud Hole, 1.91" Offset, 3.06" Centre Hole

Part Number: WB160-9813-BK

For custom, show, and high performance sport driving, SRP rotors offer the high tech look and improved performance of a directional cross-drill and face slot pattern. In addition to the aesthetic appeal, the venting and cleaning action of the hole and slot pattern helps to reduce pad glaze and minimise irregular pad build-up on the rotor faces. The results are a smoother engagement feel at the pedal and consistent response from the pads. Each rotor is precision machined to less than .001" tolerance for overall flatness, parallelism, and radial run-out on long grain carbon iron castings. The rotors are finished with a black electro coat (some are available with a zinc coating) to provide corrosion resistance.
Lug pattern - 5 on 4.50/4.75/5.00"
Shoe I.D - 7.24"
Face thickness - .18"
