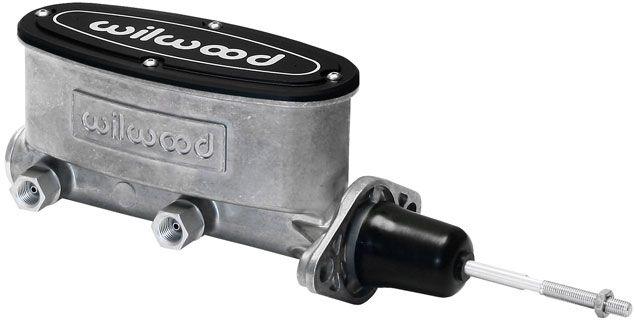

Wilwood Aluminium Tandem Master Cylinder (WB260-13375)

Wilwood’s 7/8" or 15/16"bore Tandem Aluminum Master Cylinders available in 3 finishes, plain, ball burnished, and black e-coat. These master cylinders are designed primarily for manual applications and include a pushrod. They’re designedfor mount flanges from 3.22†to 3.40†, common measurements for most domesticcars and trucks from the mid 1960s to present, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.10†with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OEtype master cylinders. We alsooffer a combination proportioning valve kit, whichincludes brackets and stainless lines specifically for use with this master cylinder, see PN 260-13190, or220-13189 for retrofit kit.
