Weiand | SKU:
7516
Weiand X-CELerator Intake - Ford Small Block V8 - 351C - 7516

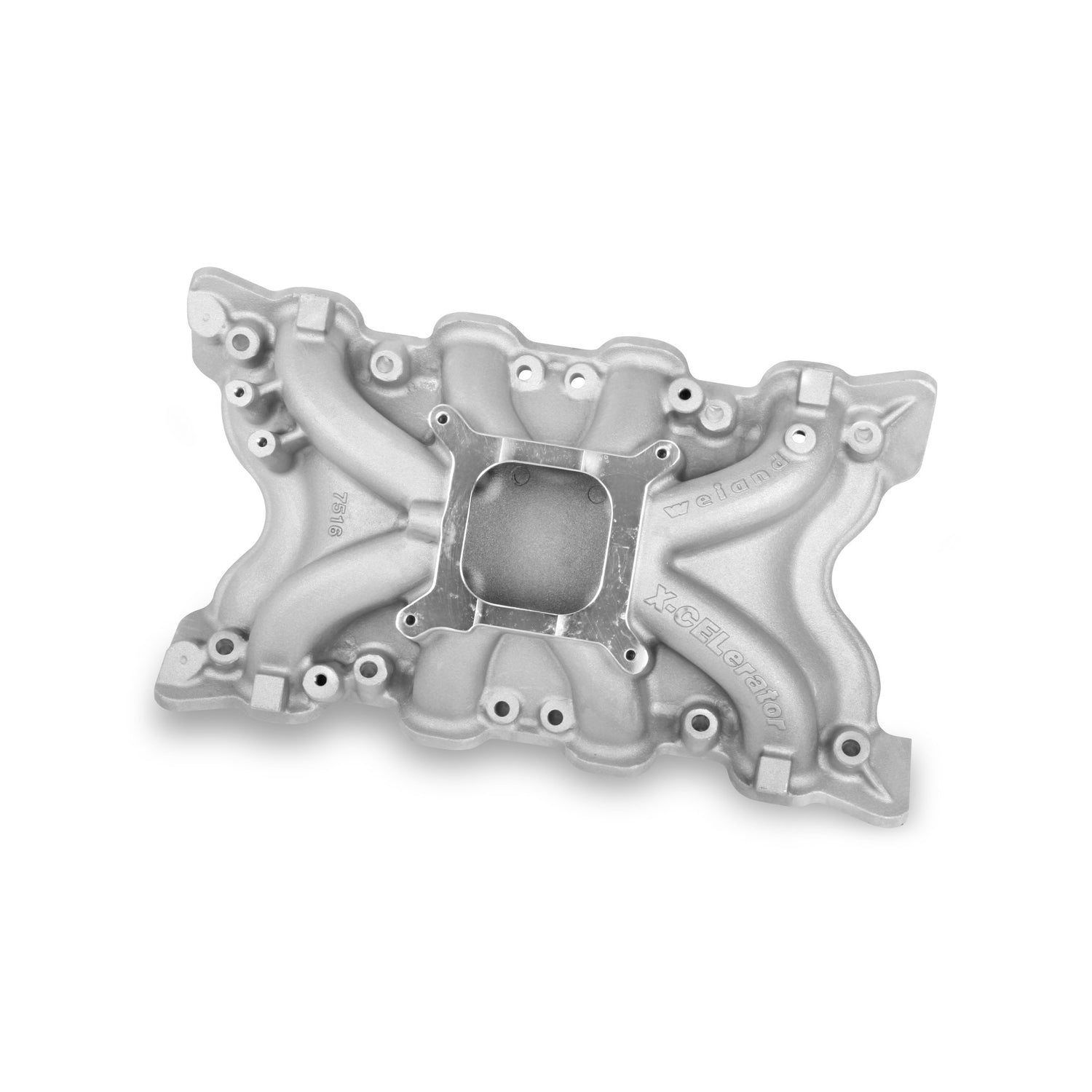

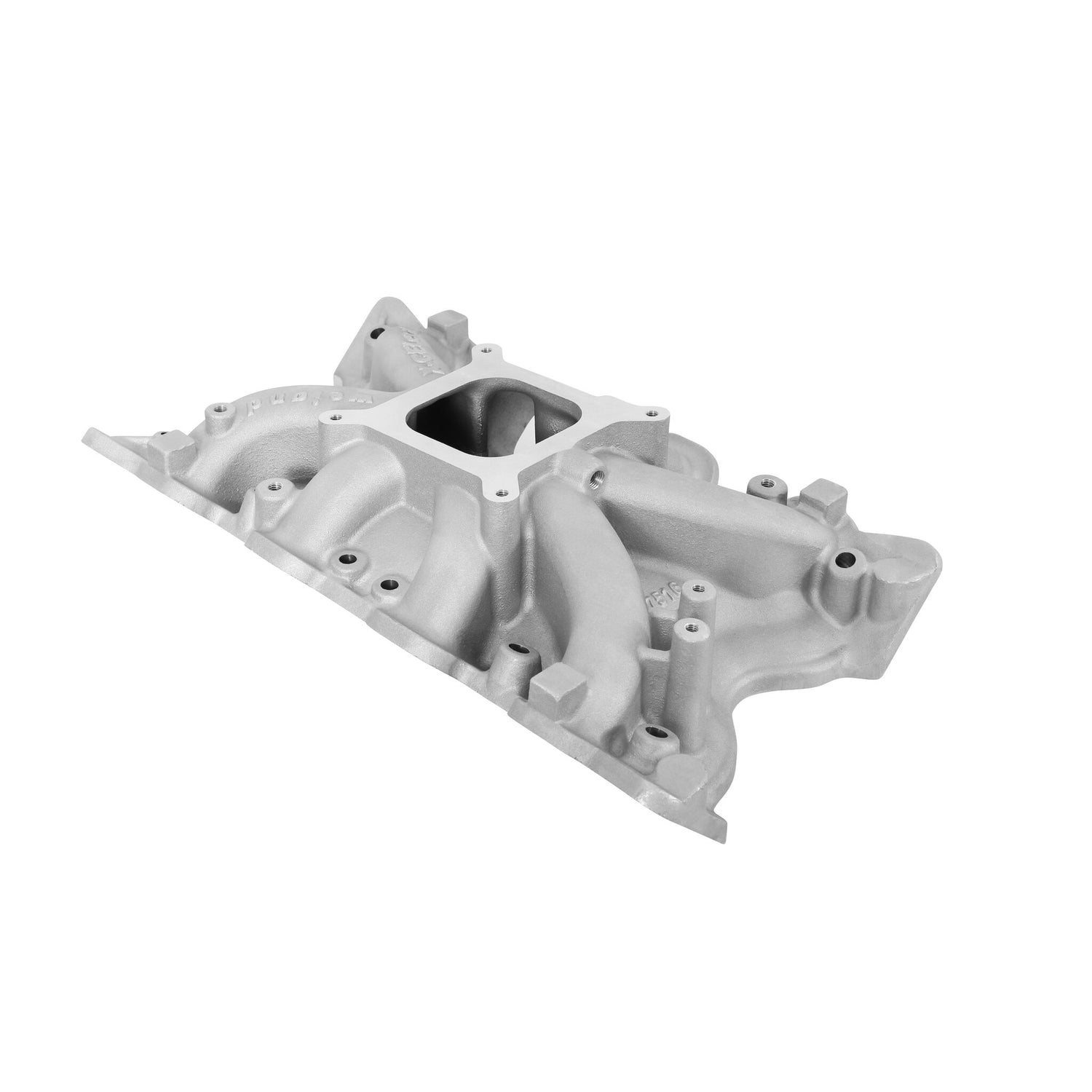

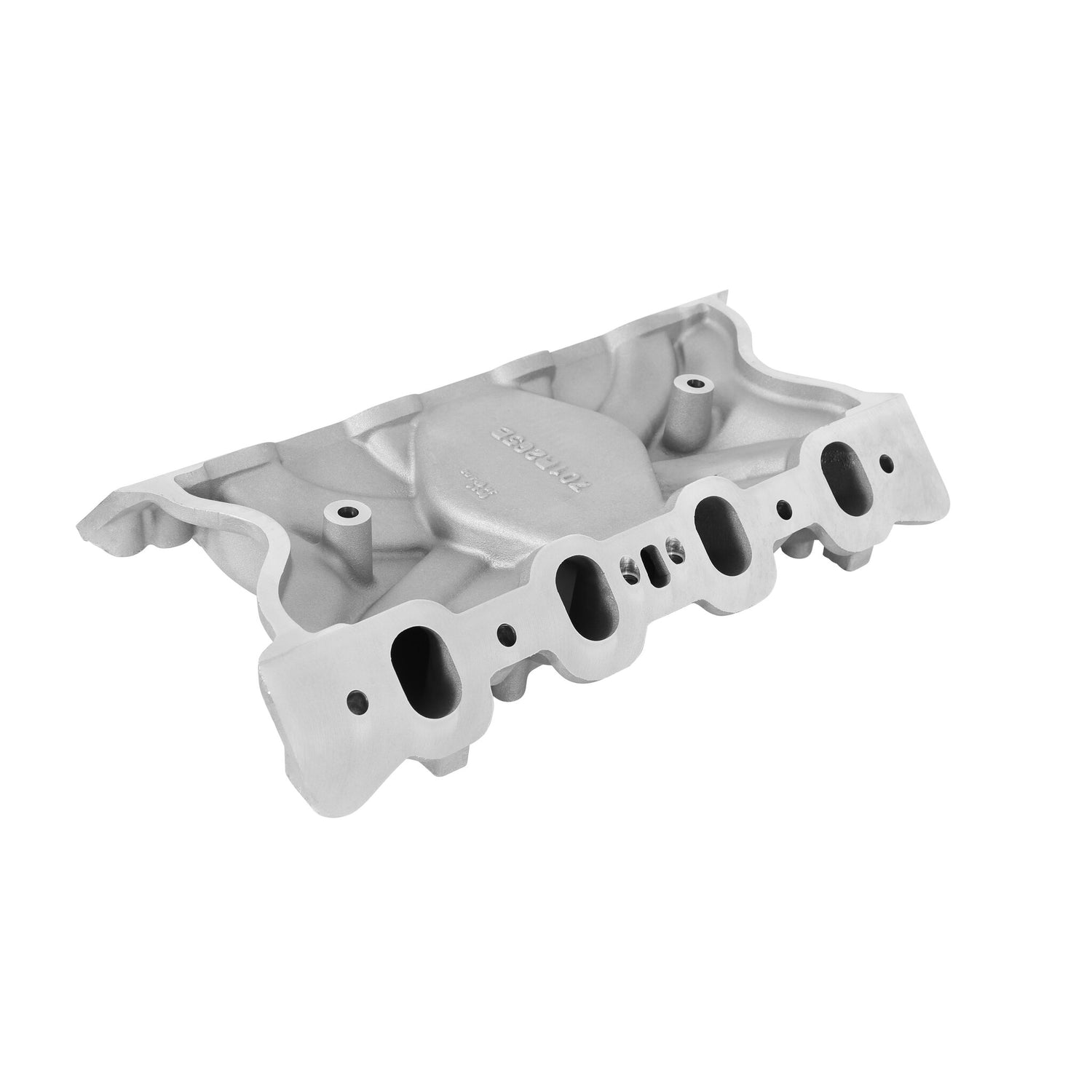

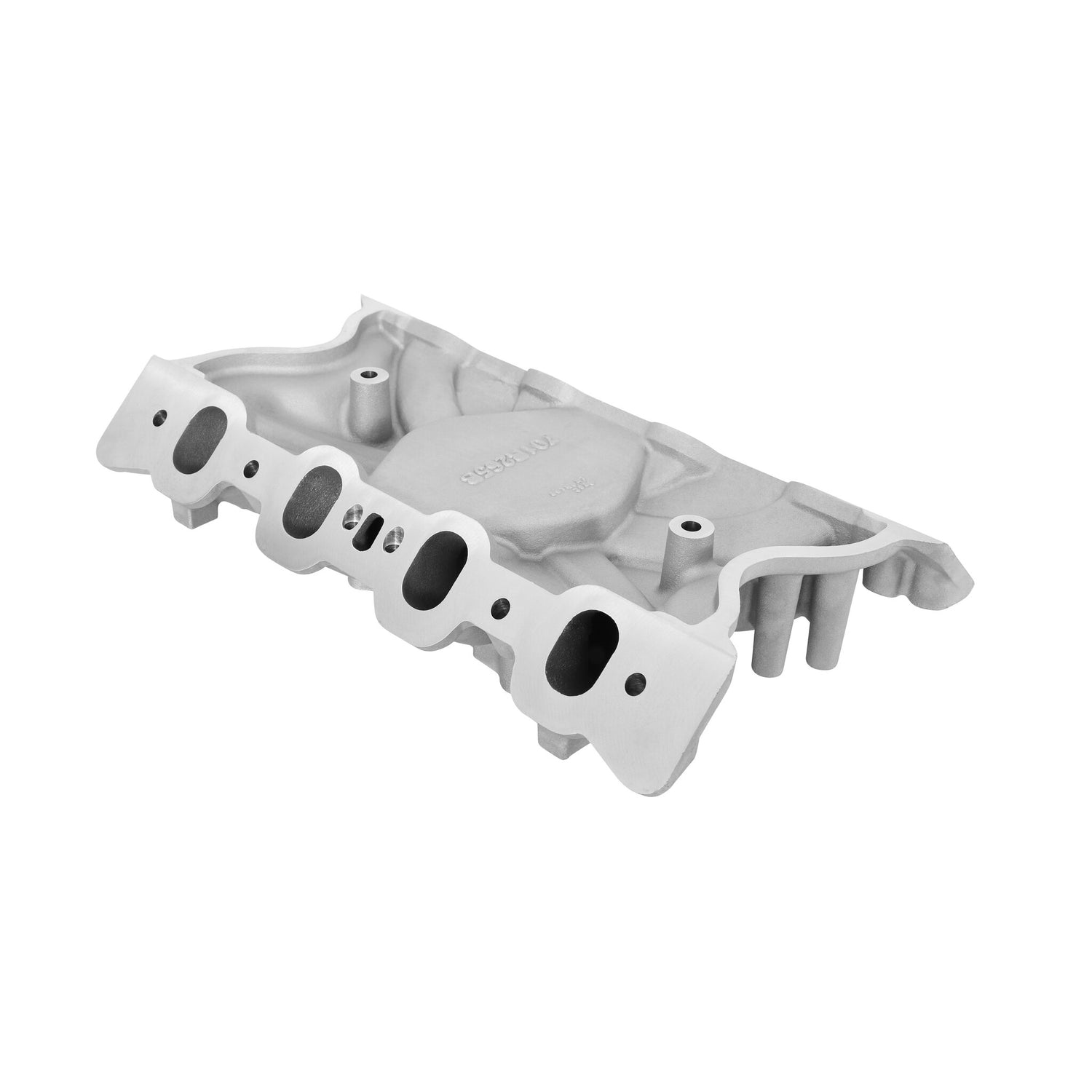

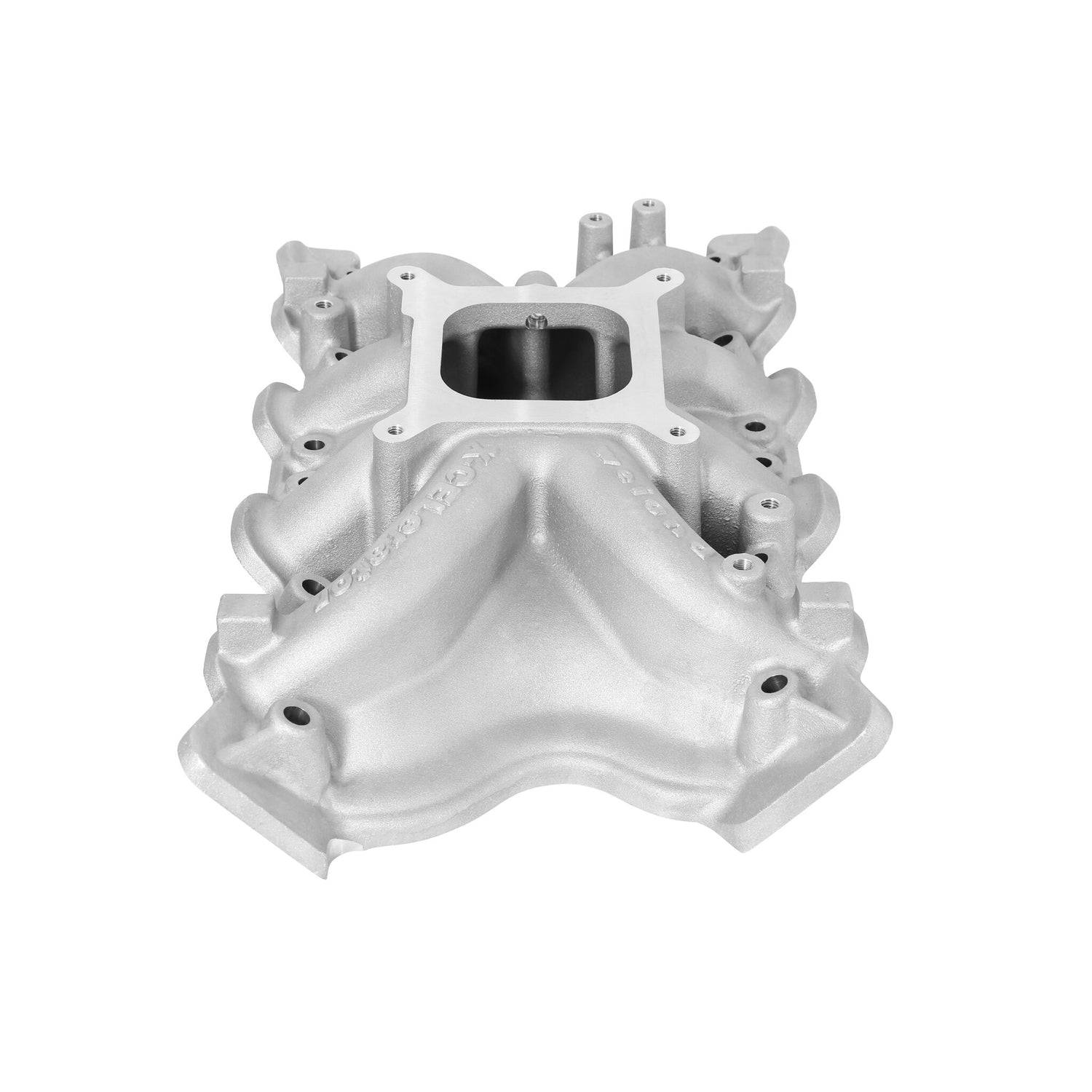

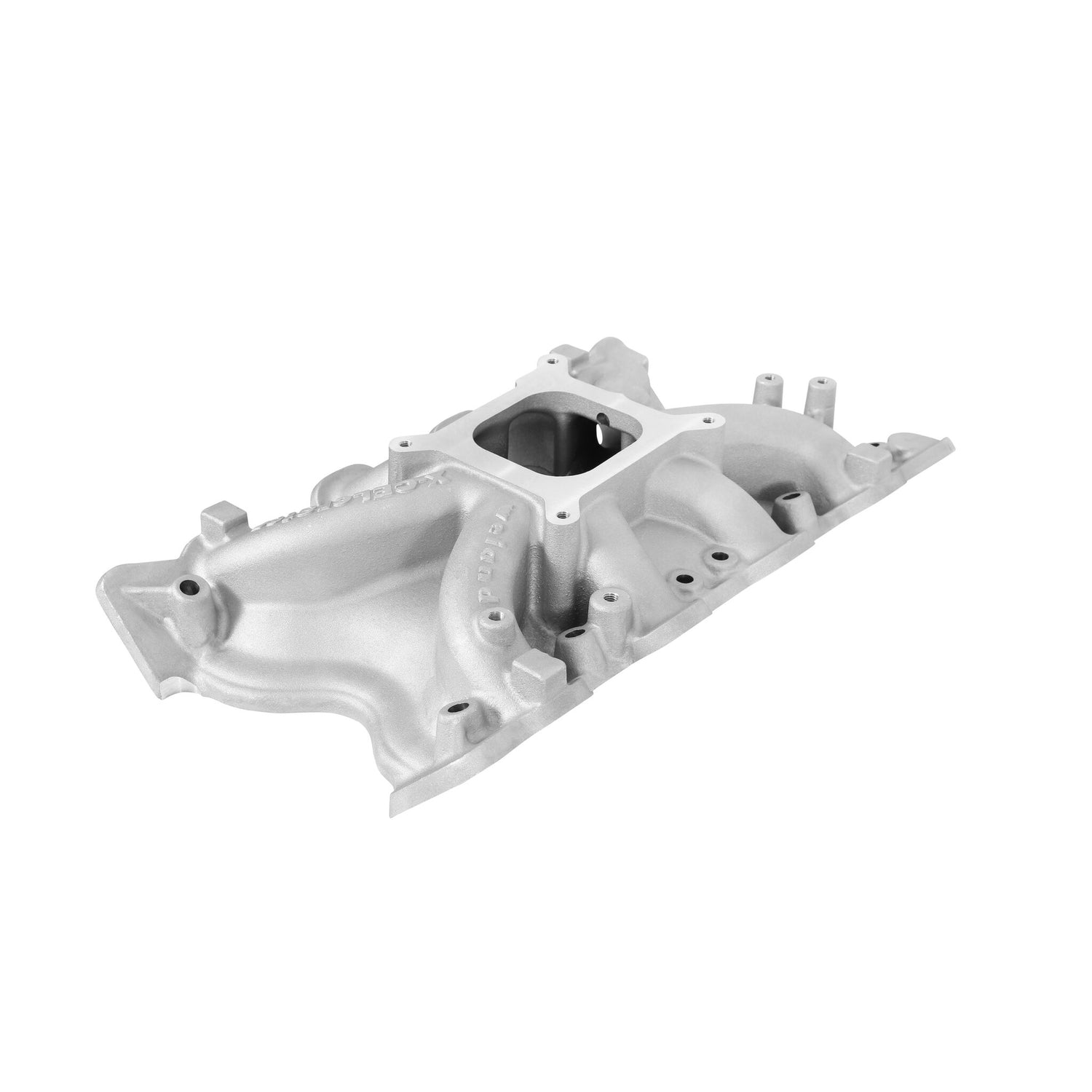

X-CELerator Intake Manifold for Ford 351 Cleveland V8 2V Head
Regular price
$1,096.20 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Weiand X-CELerator Intake - Ford Small Block V8 - 351C - 7516 is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
X-CELerator Intake Manifold for Ford 351 Cleveland V8 2V Head
Part Number: 7516
applications where increased torque and power is required in the mid and high rpm ranges. higher compression ratio, 280° or more of cam duration and headers with 1-5/8" primary tubes. Being a mid- to high-rpm manifold, a standard transmission, or an automatic transmission with a 3000 rpm stall converter, is highly recommended. The carburetor mounting pad is designed to accept current performance aftermarket carburetors. The WEIAND X-CELerator Series is the ultimate street/strip performance manifold for single 4V The WEIAND X-CELerator™ SERIES: 360°, single-plane, open plenum manifold designed primarily for high-performance street, drag, marine and oval track use. With an effective rpm range of 2000 to 6500 rpm, this series works best with a
Features and Benefits
• New updated casting design
• No EGR provision
• Port Size: 1.95” height 1.34" width
• Single Plane Design
• Square Carburetor Mounting Flange
• Power band: 1500-7000 RPM
• Height: Front 4.28", Rear 5.36"
Part Number: 7516
applications where increased torque and power is required in the mid and high rpm ranges. higher compression ratio, 280° or more of cam duration and headers with 1-5/8" primary tubes. Being a mid- to high-rpm manifold, a standard transmission, or an automatic transmission with a 3000 rpm stall converter, is highly recommended. The carburetor mounting pad is designed to accept current performance aftermarket carburetors. The WEIAND X-CELerator Series is the ultimate street/strip performance manifold for single 4V The WEIAND X-CELerator™ SERIES: 360°, single-plane, open plenum manifold designed primarily for high-performance street, drag, marine and oval track use. With an effective rpm range of 2000 to 6500 rpm, this series works best with a
Features and Benefits
• New updated casting design
• No EGR provision
• Port Size: 1.95” height 1.34" width
• Single Plane Design
• Square Carburetor Mounting Flange
• Power band: 1500-7000 RPM
• Height: Front 4.28", Rear 5.36"
Specifications
Specifications
-
Specifications
Basic Operating RPM Range 2000-6500 Brand Weiand Carburetor Flange 4150 Square Bore Carburetor Quantity 1 Carburetor Studs Included No Category Engine CNC Ported No Color Natural Construction Cast Cylinder Head Port Shape Oval Deck Height 8.2 EGR Port No Emission Code 3 Engine Ford Cleveland Flange Style 4150 Square Bore Front Maximum Height 4.28 Fuel Injectors Included No Fuel Rail(s) Included No Fuel System Type Carb Gasket Or Seal Included No Grade Type Performance Intake Port Gasket(s) Included No Manifold Type Low Rise Material Aluminum Nitrous Bung(s) Included No part type Engine Intake Manifold Plenum Finish Cast Product Type Intake Manifold Rear Maximum Height 5.36 Removable Runners No Removable Top/Lid No Single Or Dual Plane Type Single Sub Category Cylinder Block Components Throttle Body Bore Diameter 3.6 Throttle Body Gasket Included No Throttle Body Included No Vacuum Ports Yes Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
Instructions
