Weiand | SKU:
8124WND

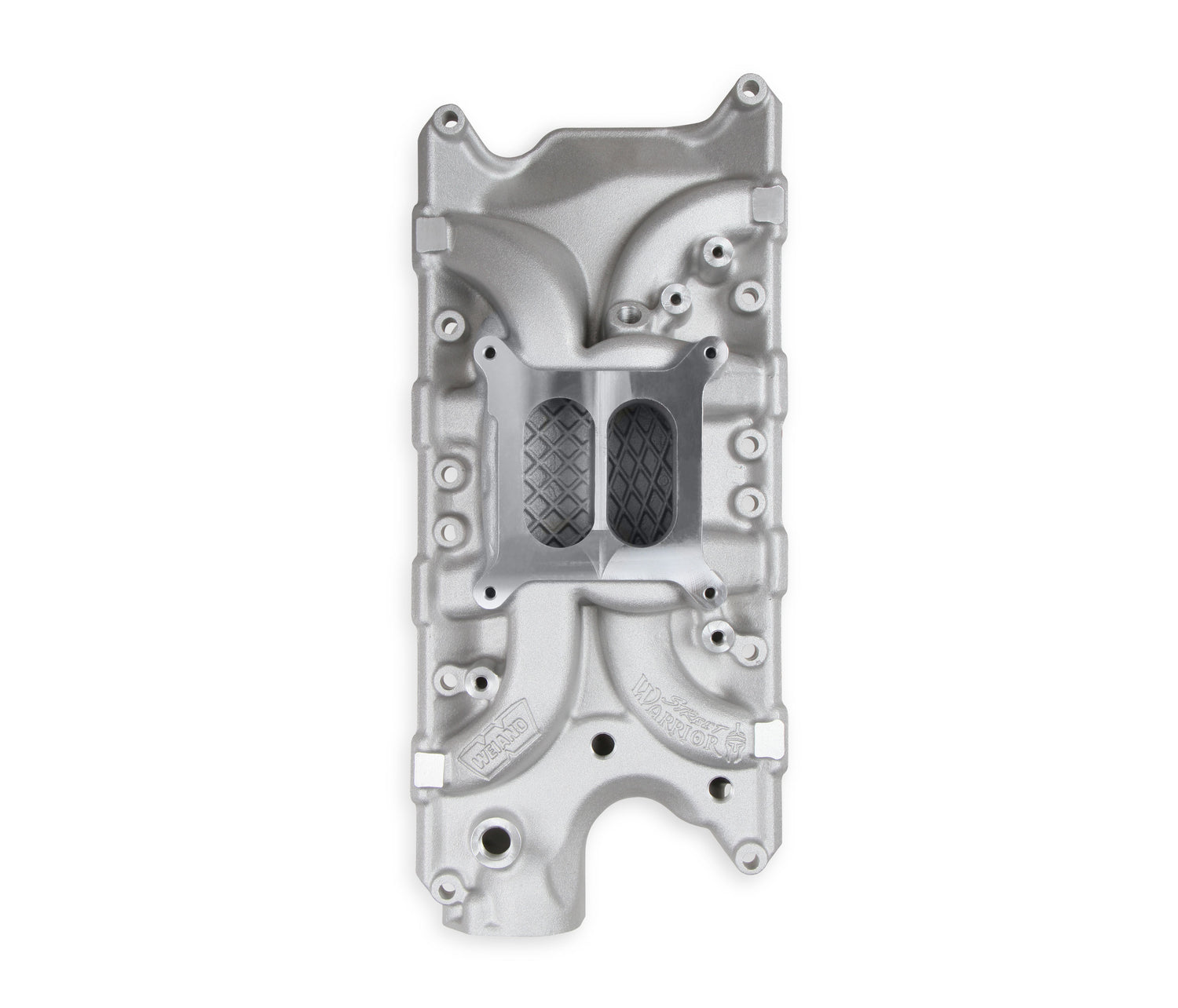

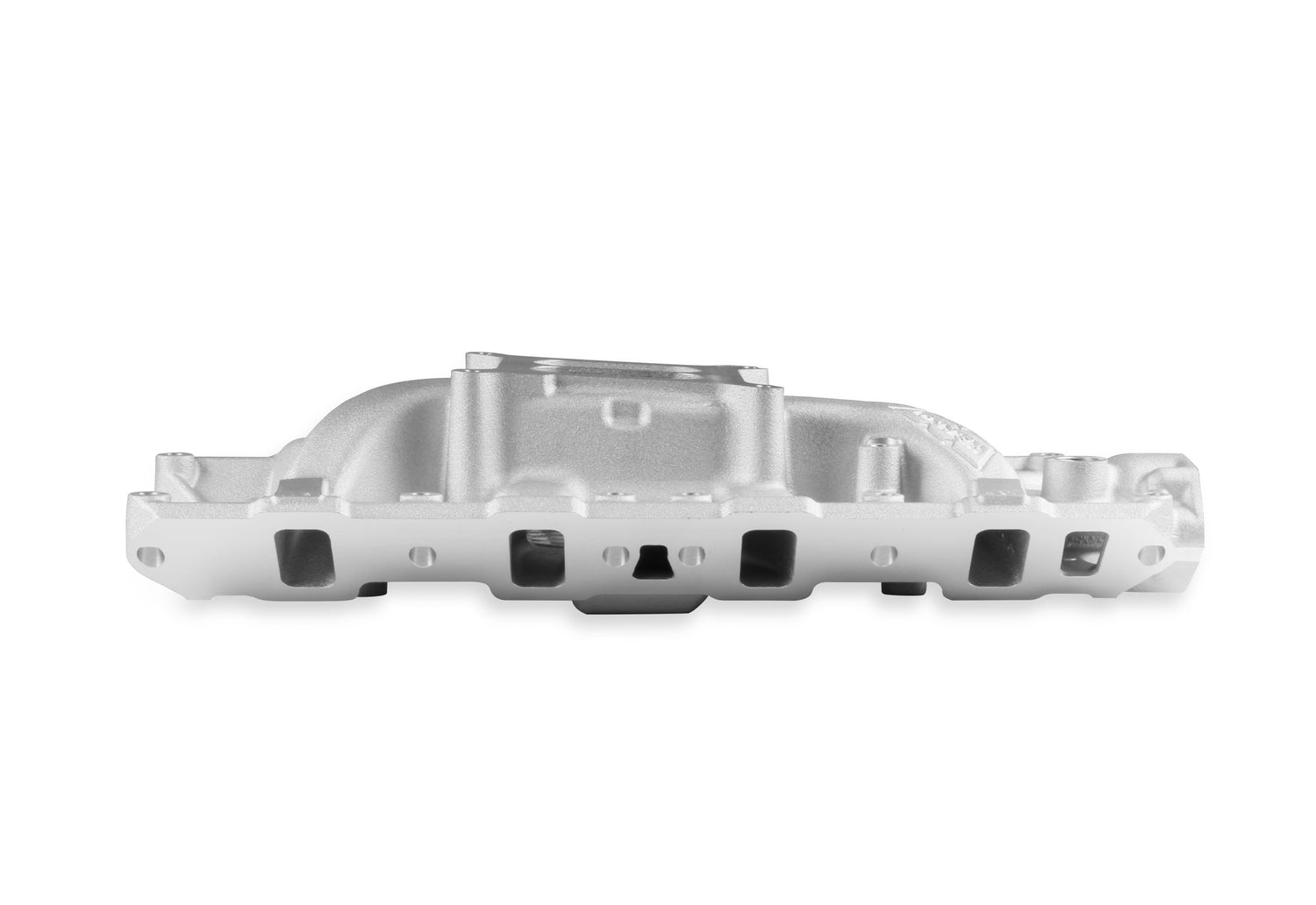

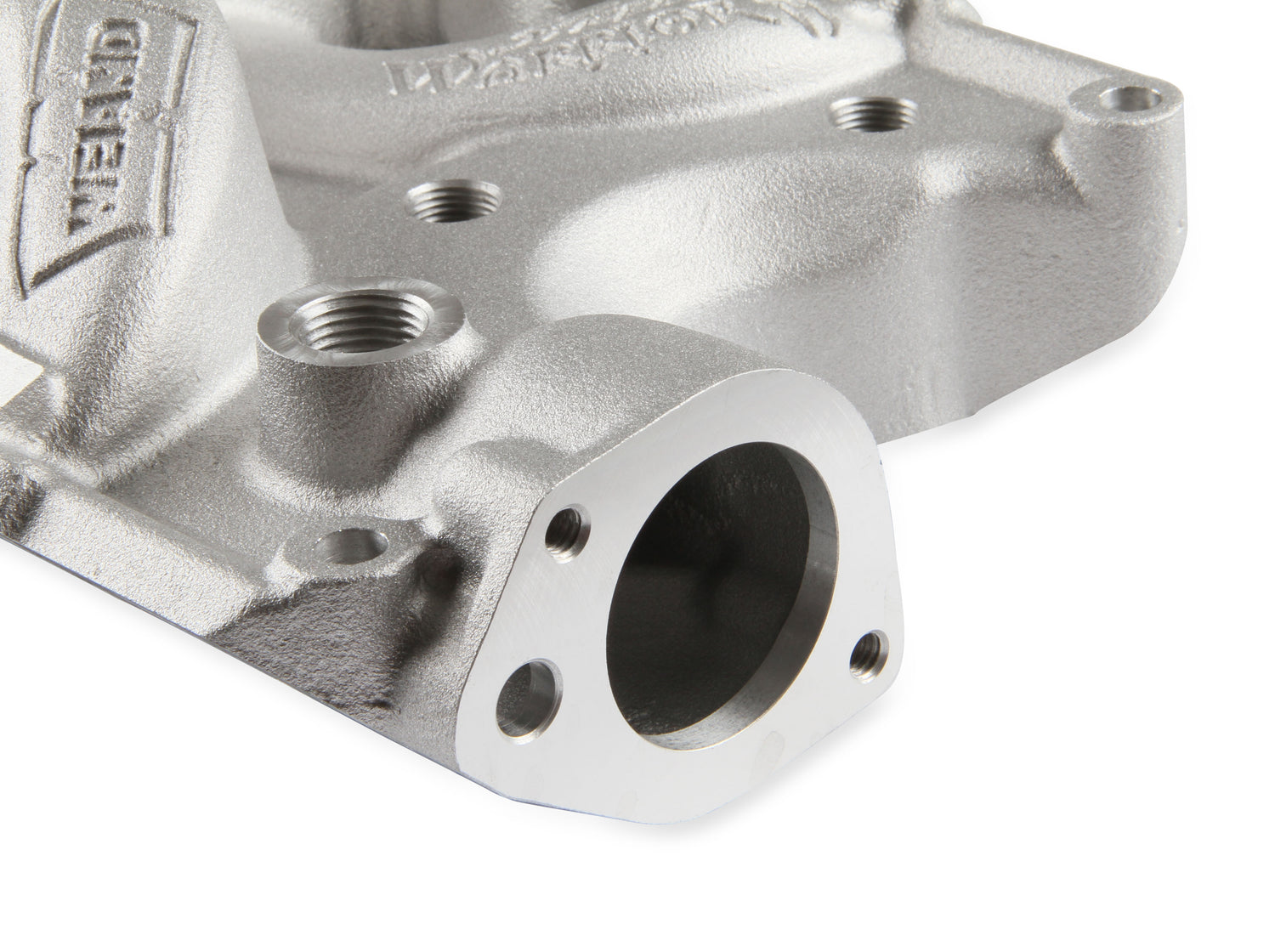

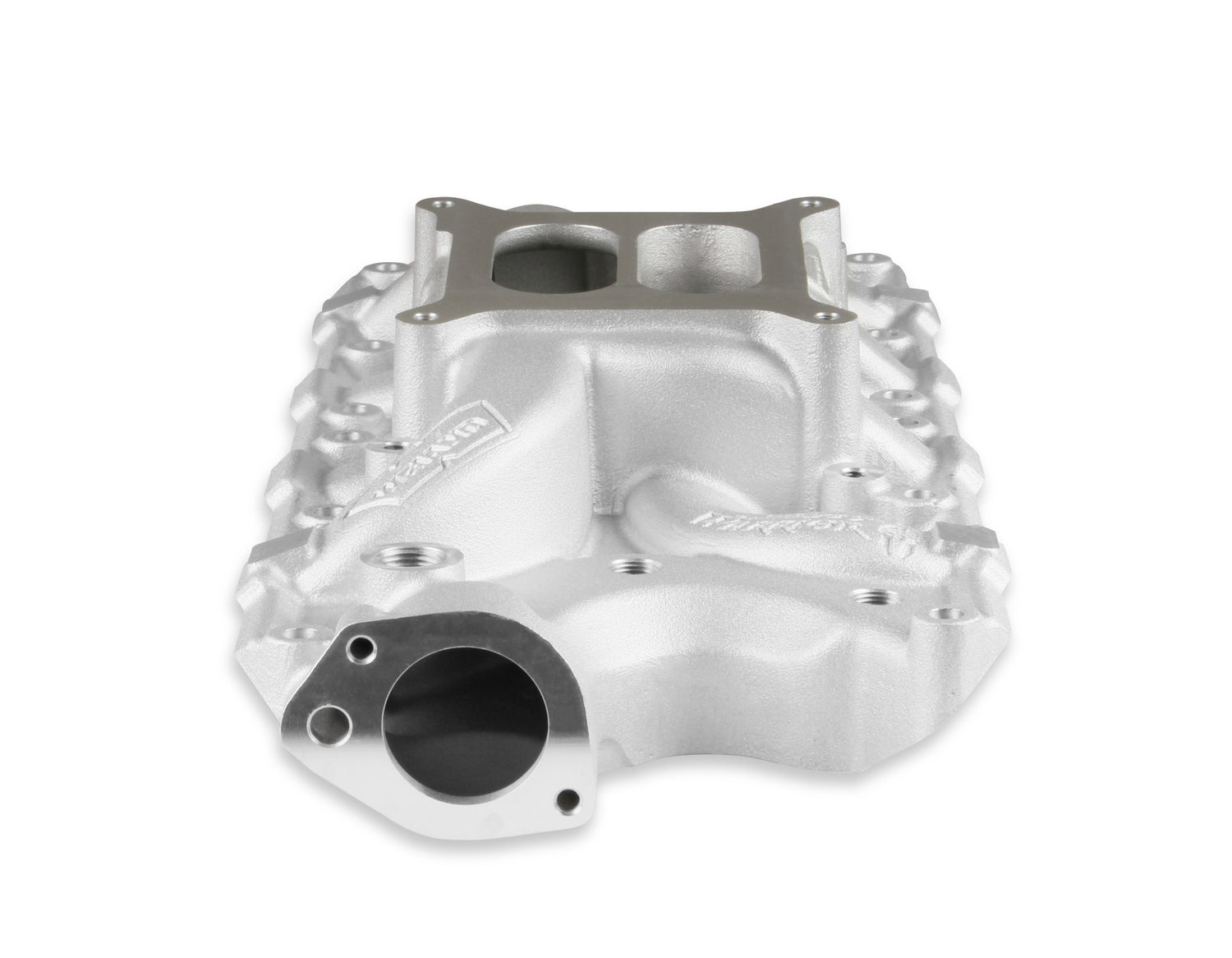

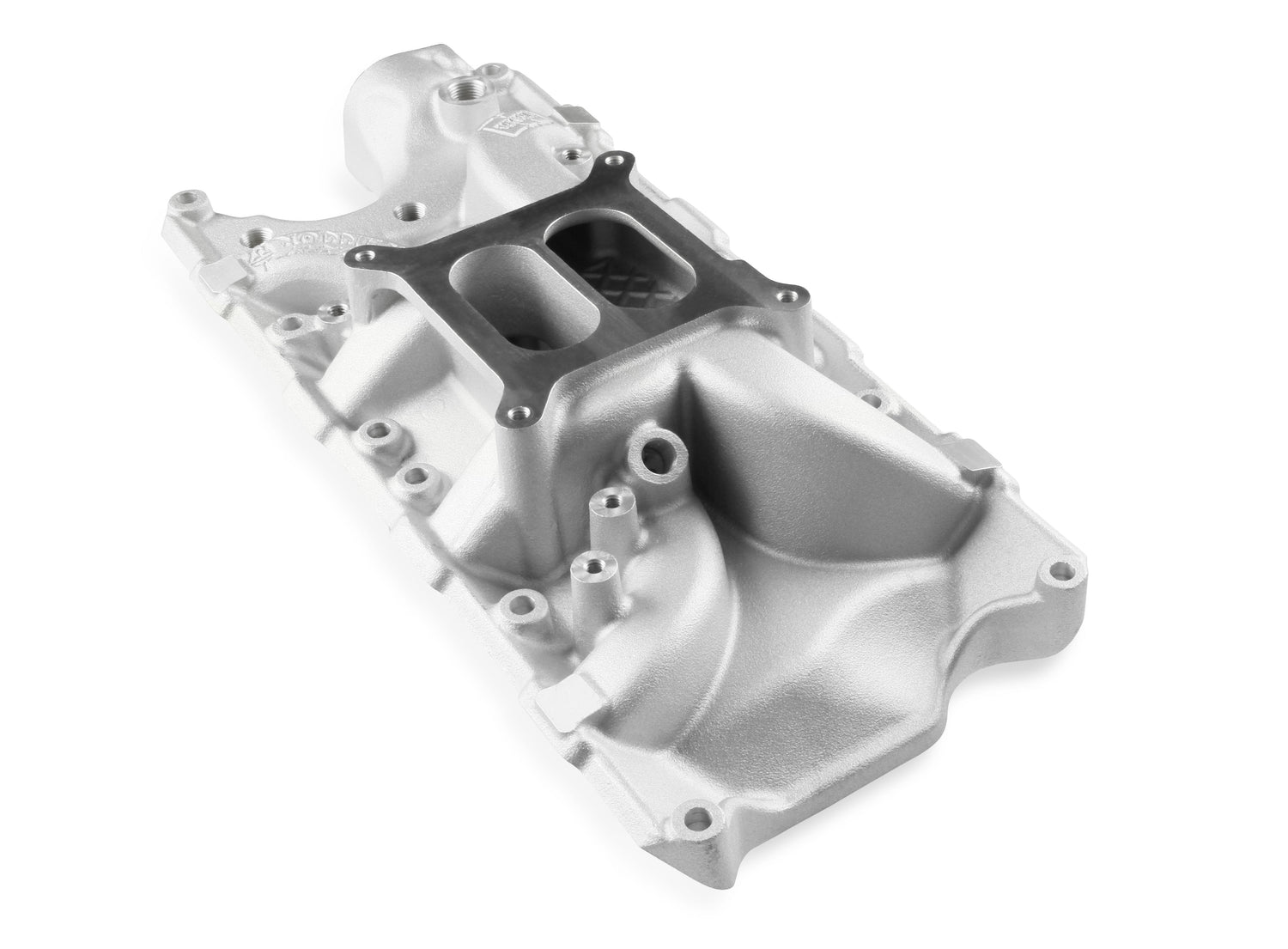

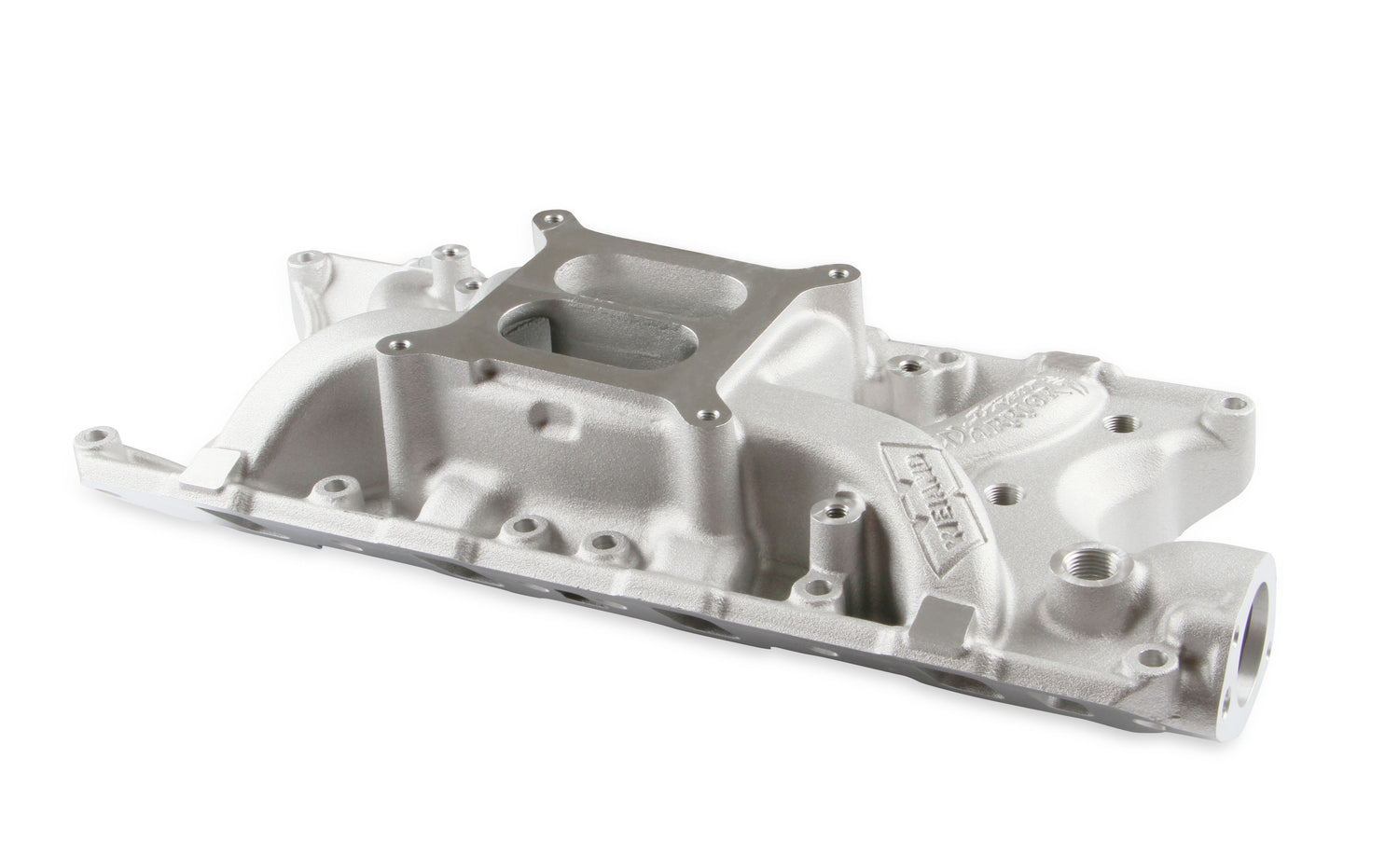

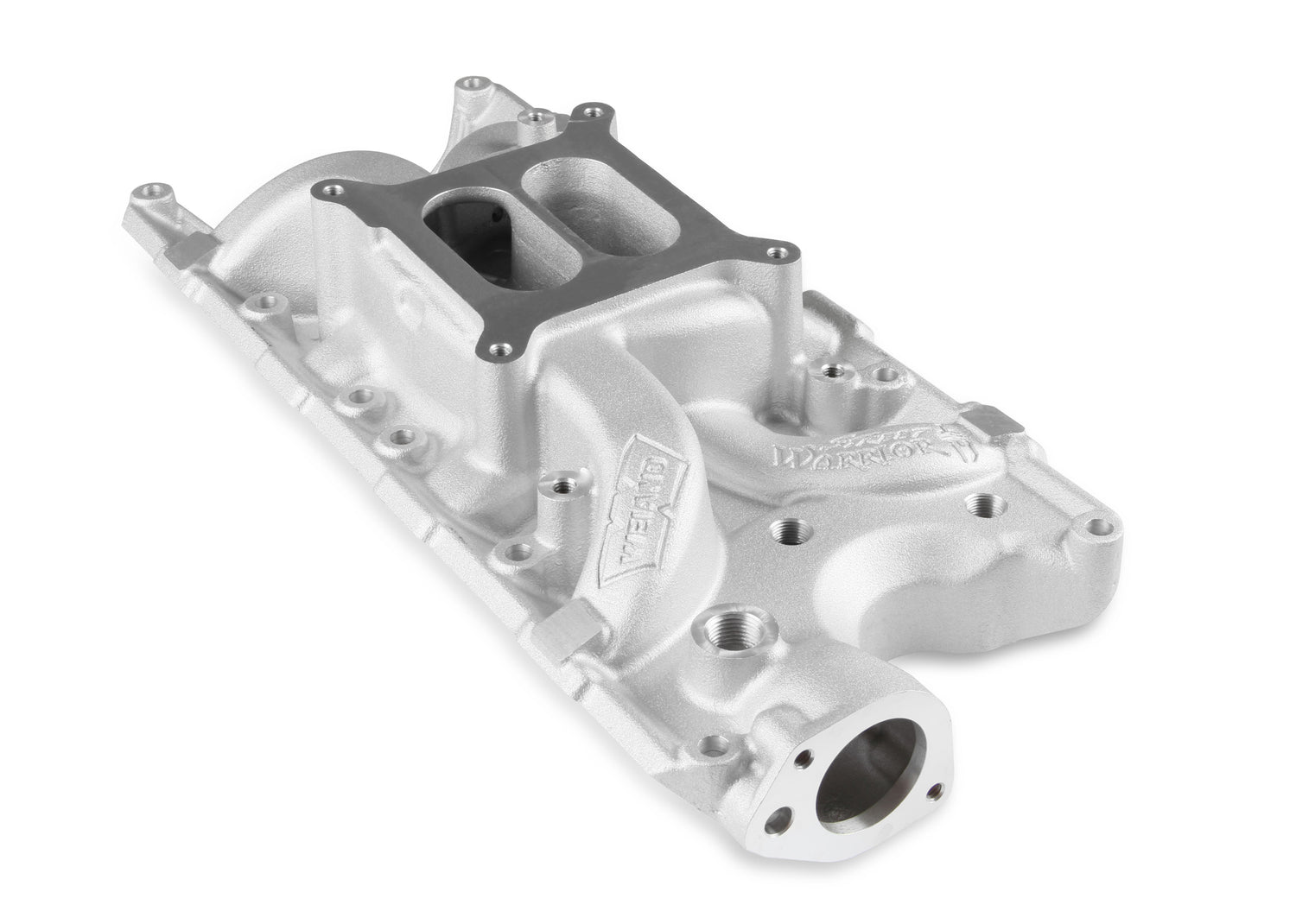

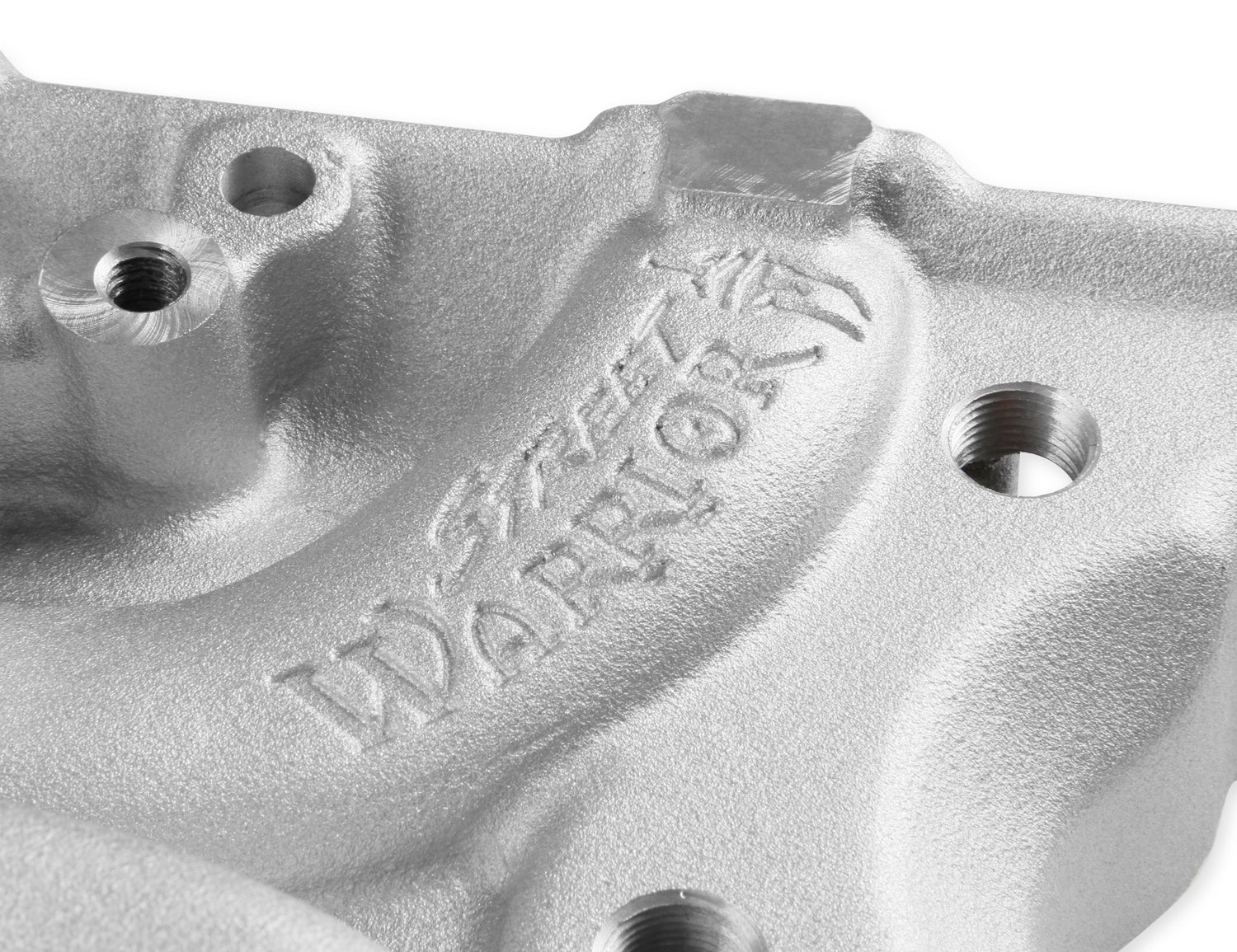

Weiand Street Warrior Intake Manifold - Ford Small Block V8 - 8124WND
Street Warrior™ Intake Manifold 289-302 Ford Small Block
Regular price
$610.70 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Weiand Street Warrior Intake Manifold - Ford Small Block V8 - 8124WND is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Street Warrior™ Intake Manifold 289-302 Ford Small Block
Part Number: 8124WND
Dyno testing of the new Weiand 8124 intake manifold found an additional 14 peak HP and 13lb/ft torque over brand E - p/n 2121. Average torque was increased by 9.5 and HP by 8.5 from 2,200 to 6,000 RPM! Testing was performed on a 302 with high flow 58cc heads, 268/279 dur/.522 lift Lunati cam P/N 51023, 600 cfm carb & 1-5/8" headers. Looking for the ultimate in a high-performance street intake manifold? A lot has changed in the performance world since the time many of the intake manifolds on the market were introduced 20+ years ago. With the popularity of larger stroker engines and more efficient cylinder head/cam designs has come a need for intake manifolds to support these larger displacements. Weiand recognized this and has developed a new line of Street Warrior™ intake manifolds designed with Computational Fluid Dynamics (CFD) to generate maximum horsepower and torque out of today's engines.
Features and Benefits
• Exhaust crossover for improved street drivability
• Height: Front 3.82", Rear 4.75"
• Permanent mold casting process for lighter, smoother & better looks
• Low Rise Dual Plane Design builds maximum torque for street performance engines
• Power band: Idle-5500 RPM
• Square Bore Carburetor Mounting Flange
• Port Size: 1.82” height 1.02" width
Has additional vacuum tap off of runner for brake boosters/AC. Recommended Mr. Gasket #5831 gasket. Holley Street Avenger™ carb series in 570 or 670 CFM & Universal Carburetor Installation Kit, P/N 20-124 are recommended accessories.
Part Number: 8124WND
Dyno testing of the new Weiand 8124 intake manifold found an additional 14 peak HP and 13lb/ft torque over brand E - p/n 2121. Average torque was increased by 9.5 and HP by 8.5 from 2,200 to 6,000 RPM! Testing was performed on a 302 with high flow 58cc heads, 268/279 dur/.522 lift Lunati cam P/N 51023, 600 cfm carb & 1-5/8" headers. Looking for the ultimate in a high-performance street intake manifold? A lot has changed in the performance world since the time many of the intake manifolds on the market were introduced 20+ years ago. With the popularity of larger stroker engines and more efficient cylinder head/cam designs has come a need for intake manifolds to support these larger displacements. Weiand recognized this and has developed a new line of Street Warrior™ intake manifolds designed with Computational Fluid Dynamics (CFD) to generate maximum horsepower and torque out of today's engines.
Features and Benefits
• Exhaust crossover for improved street drivability
• Height: Front 3.82", Rear 4.75"
• Permanent mold casting process for lighter, smoother & better looks
• Low Rise Dual Plane Design builds maximum torque for street performance engines
• Power band: Idle-5500 RPM
• Square Bore Carburetor Mounting Flange
• Port Size: 1.82” height 1.02" width
Has additional vacuum tap off of runner for brake boosters/AC. Recommended Mr. Gasket #5831 gasket. Holley Street Avenger™ carb series in 570 or 670 CFM & Universal Carburetor Installation Kit, P/N 20-124 are recommended accessories.
Specifications
Specifications
-
Specifications
Barrels 4 Basic Operating RPM Range Idle - 5500 Brand Weiand Carburetor Flange 4150 Square Bore Carburetor Quantity 1 Carburetor Studs Included No Category Intake Manifolds CNC Ported No Color Natural Construction Cast Cylinder Head Port Shape Rectangle Deck Height 8.2 EGR Port No Emission Code 3 Engine Ford Small Block Flange Style 4150 Square Bore Front Maximum Height 3.82 Fuel Injectors Included No Fuel Rail(s) Included No Fuel System Type Carb Gasket Or Seal Included No Grade Type Performance Intake Port Gasket(s) Included No Manifold Type Low Rise Material Aluminum Nitrous Bung(s) Included No part type Engine Intake Manifold Plenum Finish Polished Product Type Intake Manifold Rear Maximum Height 4.75 Removable Runners No Removable Top/Lid No Single Or Dual Plane Type Dual Sub Category Cylinder Block Components Throttle Body Bore Diameter 3.6 Throttle Body Gasket Included No Throttle Body Included No Vacuum Ports Yes Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
