Weiand | SKU:
8124P
Weiand Street Warrior Intake - Ford Small Block V8 - 8124P
Street Warrior™ Intake Manifold 289-302 Ford Small Block - Polished Finish
Regular price
$894.70 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Weiand Street Warrior Intake - Ford Small Block V8 - 8124P is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Street Warrior™ Intake Manifold 289-302 Ford Small Block - Polished Finish
Part Number: 8124P
A lot has changed in the performance world since the time many of the manifolds on the market were introduced 20+ years ago. With the popularity of larger stroker engines and more efficient cylinder head/cam designs has come a need for manifolds to support these larger displacements. Weiand recognized this and has developed a new line of Street Warrior™ manifolds designed with Computational Fluid Dynamics (CFD) to generate maximum horsepower and torque out of today's engines. Dyno testing of the new Weiand 8124 found an additional 14 peak HP and 13lb/ft torque over brand E – p/n 2121. Average torque was increased by 9.5 and HP by 8.5 from 2,200 to 6,000 RPM! Testing was performed on a 302 with high flow 58cc heads, 268/279 dur/.522 lift Lunati cam P/N 51023, 600 cfm carb & 1-5/8" headers. Looking for the ultimate in high performance street intakes?
Features and Benefits
• Low Rise Dual Plane Design builds maximum torque for street performance engines
• Polished Finish
• Exhaust crossover for improved street drivability

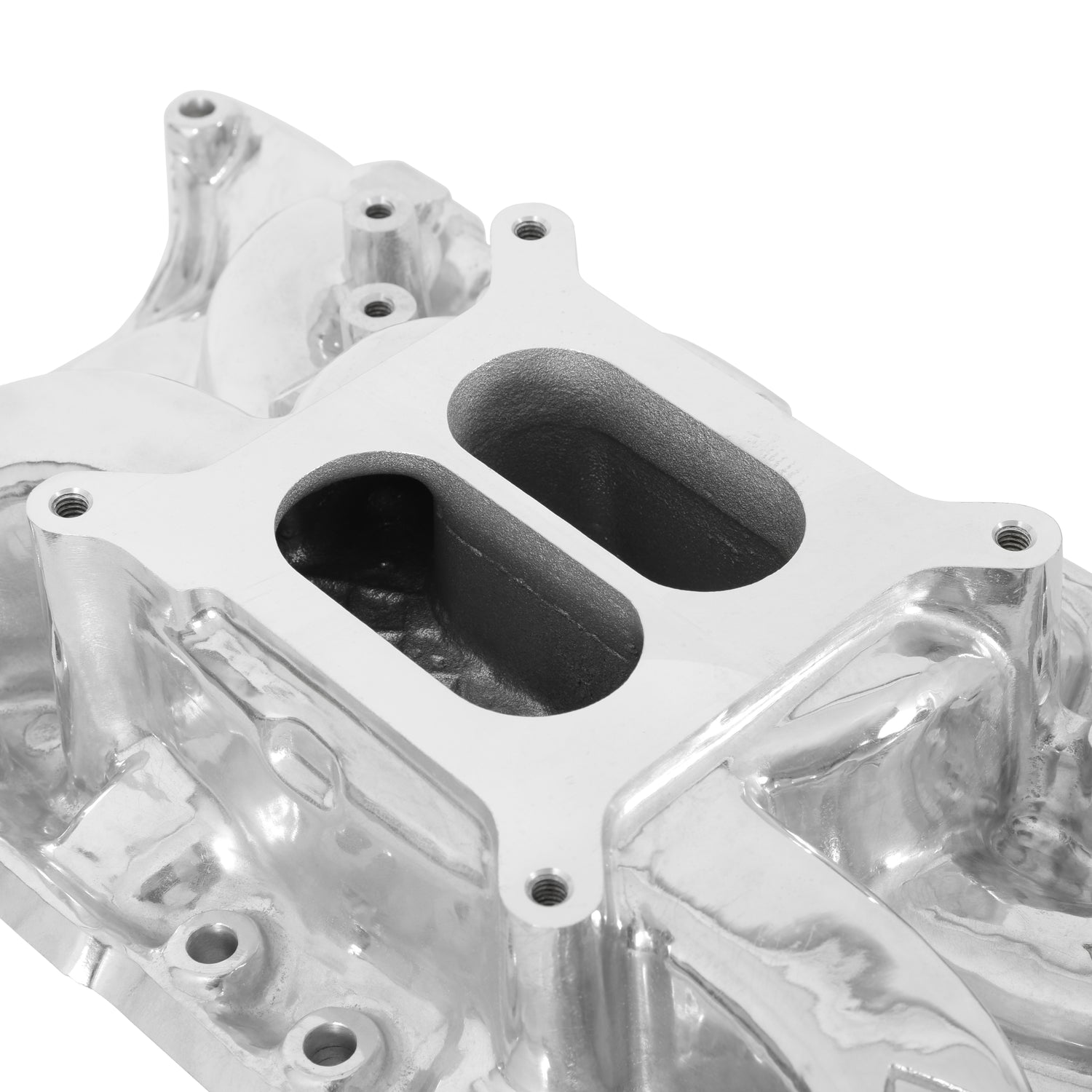

• Square Bore Carburetor Mounting Flange
• Height: Front 3.82", Rear 4.75"
• Port Size: 1.82” height 1.02" width
• Power band: Idle-5500 RPM
• Permanent mold casting process for lighter, smoother & better looks
Has additional vacuum tap off of runner for brake boosters/AC. Recommended Mr. Gasket #5831 gasket. Holley Street Avenger™ carb series in 570 or 670 CFM & Universal Carburetor Installation Kit, P/N 20-124 are recommended accessories.
Part Number: 8124P
A lot has changed in the performance world since the time many of the manifolds on the market were introduced 20+ years ago. With the popularity of larger stroker engines and more efficient cylinder head/cam designs has come a need for manifolds to support these larger displacements. Weiand recognized this and has developed a new line of Street Warrior™ manifolds designed with Computational Fluid Dynamics (CFD) to generate maximum horsepower and torque out of today's engines. Dyno testing of the new Weiand 8124 found an additional 14 peak HP and 13lb/ft torque over brand E – p/n 2121. Average torque was increased by 9.5 and HP by 8.5 from 2,200 to 6,000 RPM! Testing was performed on a 302 with high flow 58cc heads, 268/279 dur/.522 lift Lunati cam P/N 51023, 600 cfm carb & 1-5/8" headers. Looking for the ultimate in high performance street intakes?
Features and Benefits
• Low Rise Dual Plane Design builds maximum torque for street performance engines
• Polished Finish
• Exhaust crossover for improved street drivability
• Square Bore Carburetor Mounting Flange
• Height: Front 3.82", Rear 4.75"
• Port Size: 1.82” height 1.02" width
• Power band: Idle-5500 RPM
• Permanent mold casting process for lighter, smoother & better looks
Has additional vacuum tap off of runner for brake boosters/AC. Recommended Mr. Gasket #5831 gasket. Holley Street Avenger™ carb series in 570 or 670 CFM & Universal Carburetor Installation Kit, P/N 20-124 are recommended accessories.
Specifications
Specifications
-
Specifications
Barrels 4 Basic Operating RPM Range Idle - 5500 Brand Weiand Carburetor Flange 4150 Square Bore Carburetor Quantity 1 Carburetor Studs Included No Category Intake Manifolds CNC Ported No Color Polished Construction Cast Cylinder Head Port Shape Rectangle Deck Height 8.2 EGR Port No Emission Code 3 Engine Ford Small Block Flange Style 4150 Square Bore Front Maximum Height 3.82 Fuel Injectors Included No Fuel Rail(s) Included No Fuel System Type Carb Gasket Or Seal Included No Grade Type Performance Intake Port Gasket(s) Included No Manifold Type Low Rise Material Aluminum Nitrous Bung(s) Included No Plenum Finish Polished Product Type Intake Manifold Rear Maximum Height 4.75 Removable Runners No Removable Top/Lid No Single Or Dual Plane Type Dual Throttle Body Bore Diameter 3.6 Throttle Body Gasket Included No Throttle Body Included No Vacuum Ports Yes Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
