Weiand | SKU:
8120WND

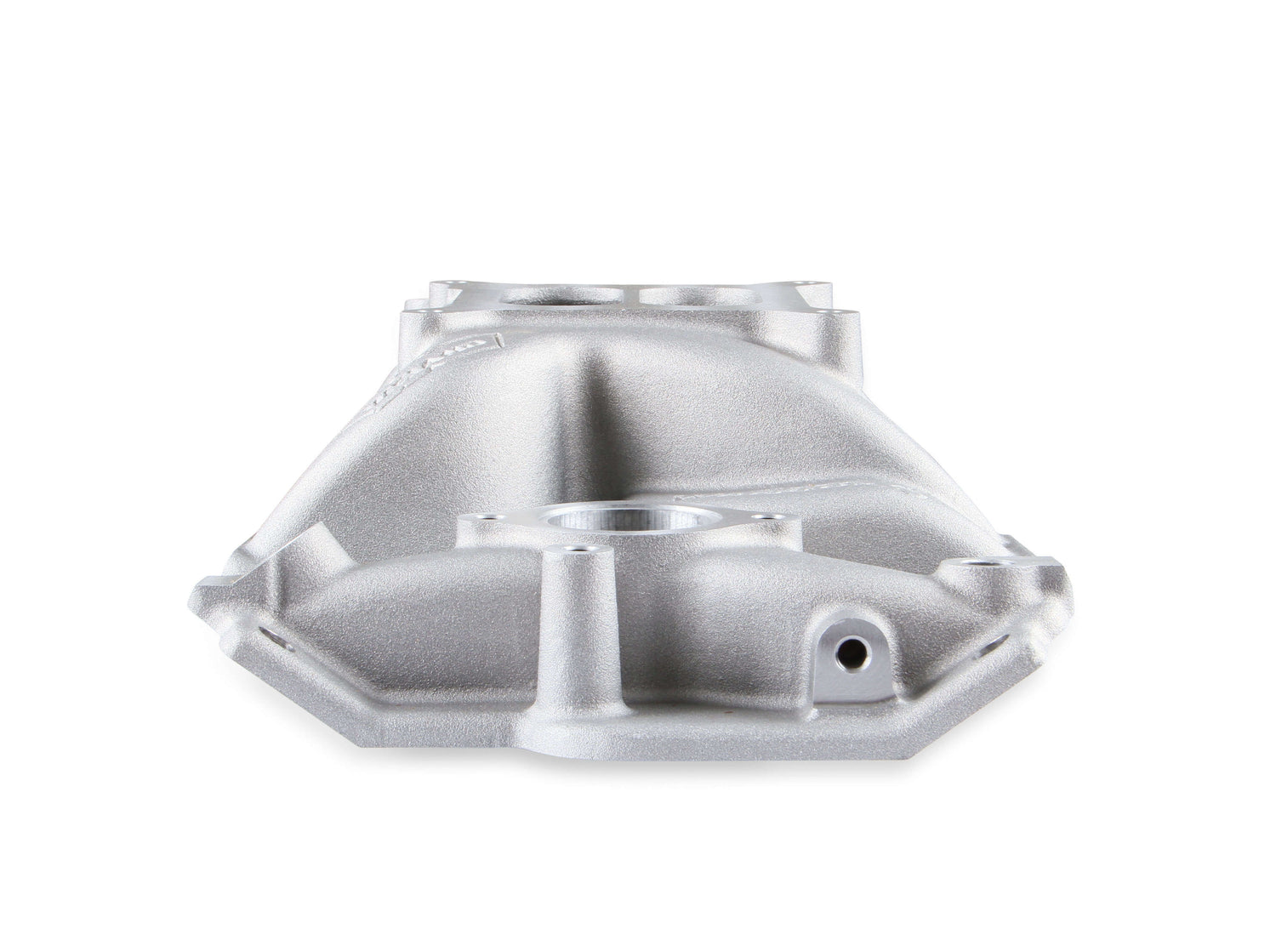

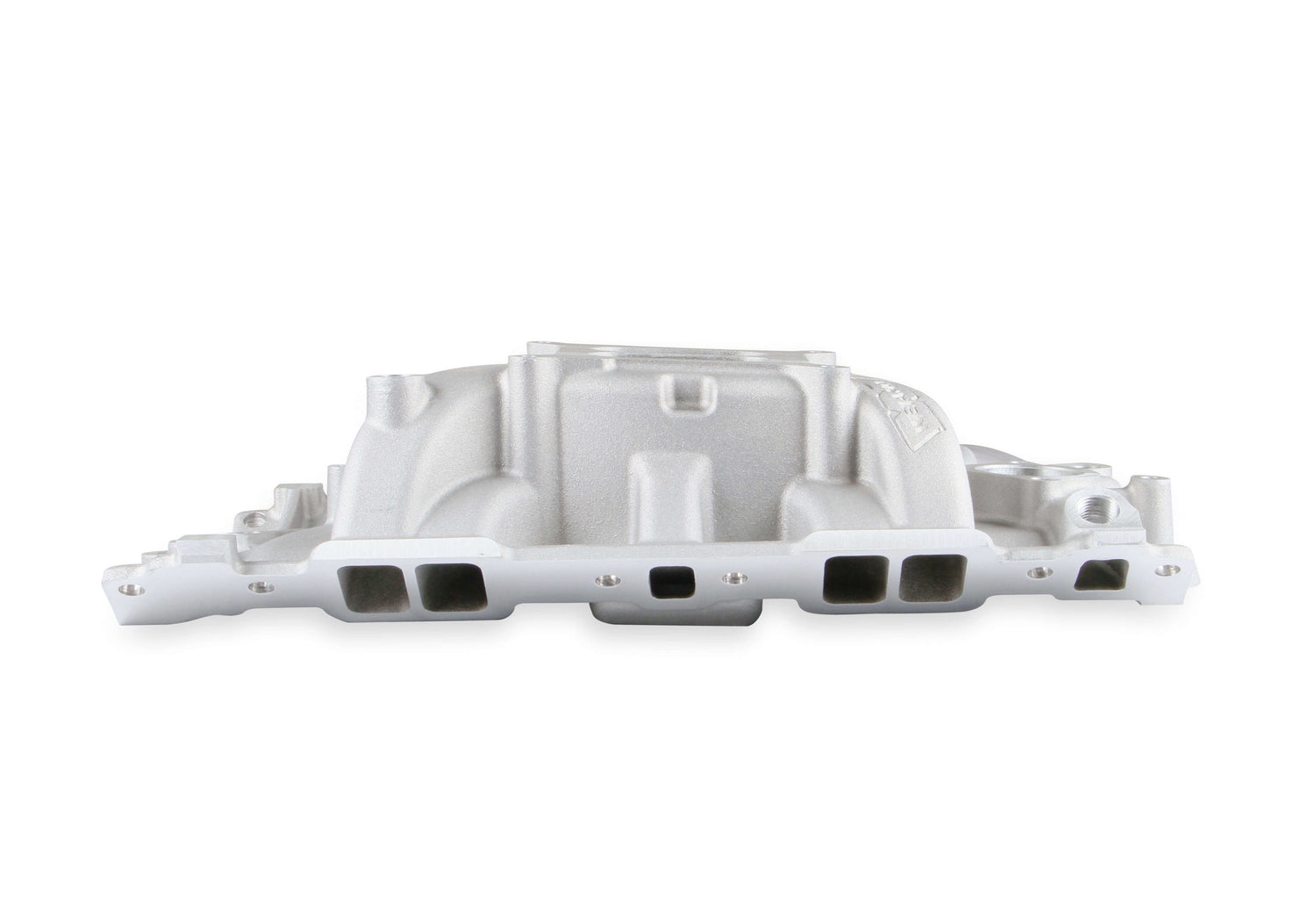

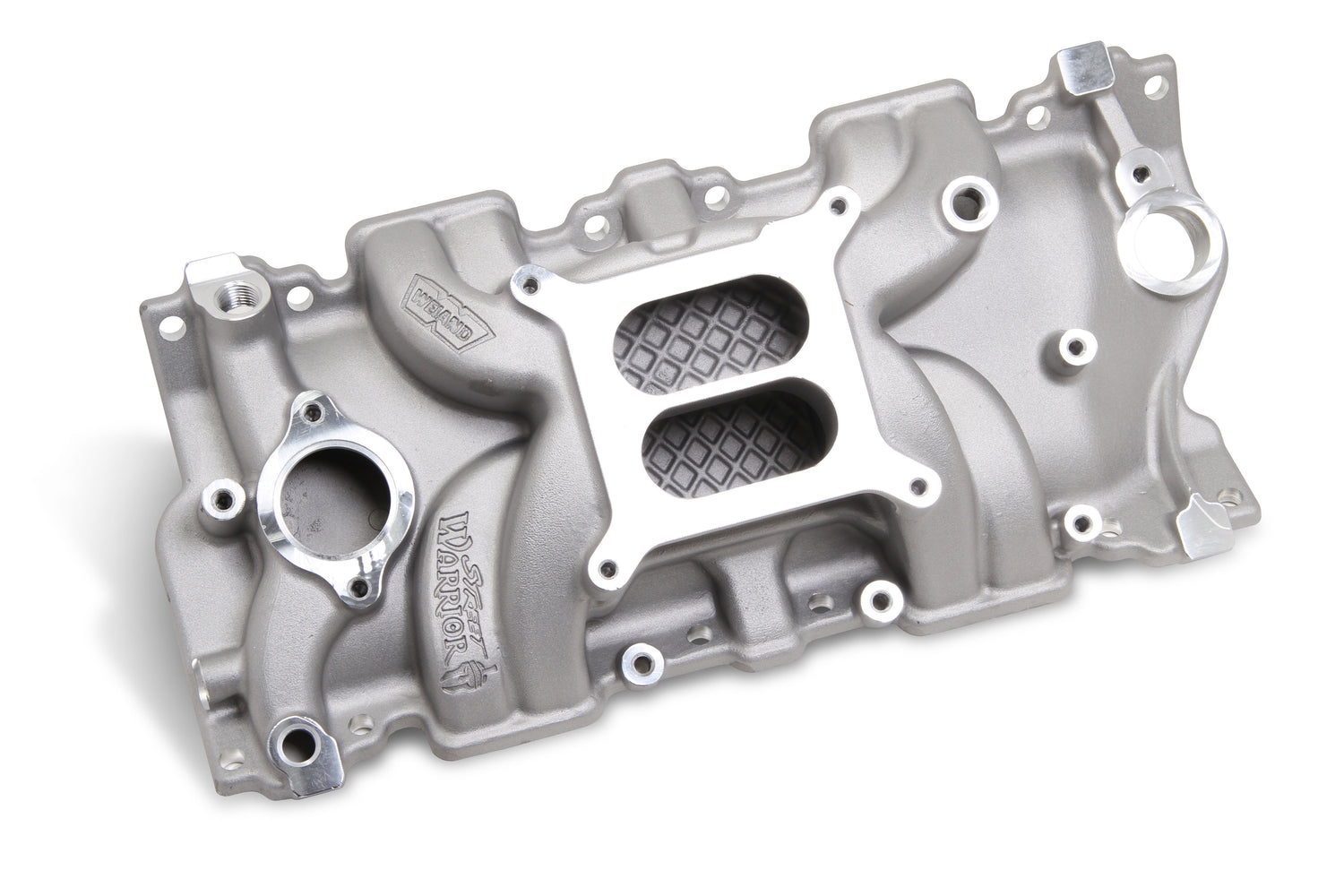

Weiand Street Warrior Intake - Chevy Small Block V8 - 8120WND
Street Warrior™ Intake Manifold non/EGR 262ci-400ci, 1955-1986 Cylinder Heads
Regular price
$582.80 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Weiand Street Warrior Intake - Chevy Small Block V8 - 8120WND is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Weiand Street Warrior Intake - Chevy Small Block V8 - 8120WND
Regular price
$582.80 NZD
+ GST
Unit price
/
Unavailable
Description
Description
Street Warrior™ Intake Manifold non/EGR 262ci-400ci, 1955-1986 Cylinder Heads
Part Number: 8120WND
The Weiand Street Warrior is designed for use on stock or stroker combinations that feature efficient cylinder heads. The latest advances in cam design necessitated the design of a new intake manifold, and the Weiand Street Warrior manifolds fill that void. They are designed with computational fluid dynamics (CFD) software for optimized and consistent flow on every single manifold.
Features and Benefits
• Power band: Idle-5500 RPM
• Satin (as cast) finish for and even surface texture
• Height: Front 3.50", Rear 4.50"
• Precision CNC machining
• Port Size: 1.84” height 1.12" width
Part Number: 8120WND
The Weiand Street Warrior is designed for use on stock or stroker combinations that feature efficient cylinder heads. The latest advances in cam design necessitated the design of a new intake manifold, and the Weiand Street Warrior manifolds fill that void. They are designed with computational fluid dynamics (CFD) software for optimized and consistent flow on every single manifold.
Features and Benefits
• Power band: Idle-5500 RPM
• Satin (as cast) finish for and even surface texture
• Height: Front 3.50", Rear 4.50"
• Precision CNC machining
• Port Size: 1.84” height 1.12" width
Specifications
Specifications
-
Specifications
Barrels 4 Basic Operating RPM Range Idle - 5500 Brand Weiand Carburetor Flange 4150 Square Bore Carburetor Quantity 1 Carburetor Studs Included No Category Intake Manifolds CNC Ported No Color Natural Construction Cast Cylinder Head Port Shape Rectangle Deck Height 9.025 EGR Port No Emission Code 3 Engine Chevrolet Small Block Gen I Flange Style 4150 Square Bore Front Maximum Height 3.5 Fuel Injectors Included No Fuel Rail(s) Included No Fuel System Type Carb Gasket Or Seal Included No Grade Type Performance Intake Port Gasket(s) Included No Manifold Type Low Rise Material Aluminum Nitrous Bung(s) Included No Plenum Finish Cast Product Type Intake Manifold Rear Maximum Height 4.5 Removable Runners No Removable Top/Lid No Single Or Dual Plane Type Dual Throttle Body Bore Diameter 3.6 Throttle Body Gasket Included No Throttle Body Included No Vacuum Ports Yes Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
