Weiand | SKU:
8122WND

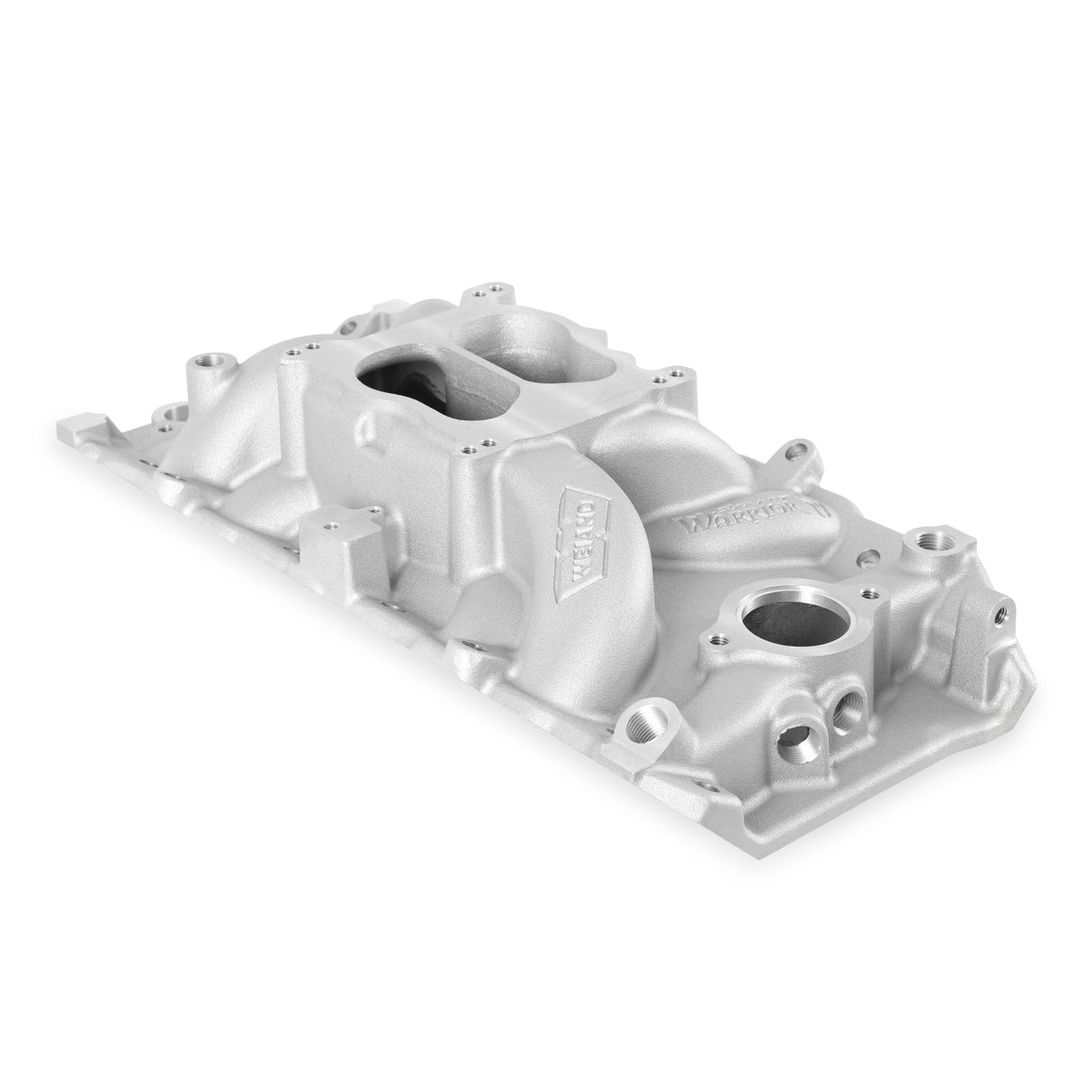

Weiand Street Warrior Intake - Chevy Big Block V8 - 8122WND
Street Warrior™ Intake Manifold 396-454ci engines with Peanut Port Heads
Regular price
$749.40 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Weiand Street Warrior Intake - Chevy Big Block V8 - 8122WND is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Street Warrior™ Intake Manifold 396-454ci engines with Peanut Port Heads
Part Number: 8122WND
Most of the intakes on the market were developed 20+ years ago when typical engines were 396-454 cubic inches. Not so anymore. With the popularity of larger engines, stroker combinations and more efficient cylinder head and cam designs came the need for intake manifolds to support these combinations. Designed with Computational Fluid Dynamics software, the Street Warrior intake rises to the challenge and delivers the performance to conquer the competition! Want maximum horsepower and torque from today's engines? Choose Street Warrior!
Features and Benefits
• Runner geometry optimized using Computational Fluid Dynamics software for even fuel & air distribution
• Height: Front 4.25", Rear 5.42"
• Low rise dual plane design delivering friendly power and torque across the usable RPM range
• Idle to 5,500 RPM band
• Sand Cast 319 aluminum construction is precision CNC machined providing lighter castings with better surface finishes
• Peanut Oval Port Dimensions: 1.570" High x 1.600" Wide
• Universal dual pattern carb flange accepts spread bore (Quadrajets) and square bore carbs
• All new optimized design for today’s higher output big block engines
Part Number: 8122WND
Most of the intakes on the market were developed 20+ years ago when typical engines were 396-454 cubic inches. Not so anymore. With the popularity of larger engines, stroker combinations and more efficient cylinder head and cam designs came the need for intake manifolds to support these combinations. Designed with Computational Fluid Dynamics software, the Street Warrior intake rises to the challenge and delivers the performance to conquer the competition! Want maximum horsepower and torque from today's engines? Choose Street Warrior!
Features and Benefits
• Runner geometry optimized using Computational Fluid Dynamics software for even fuel & air distribution
• Height: Front 4.25", Rear 5.42"
• Low rise dual plane design delivering friendly power and torque across the usable RPM range
• Idle to 5,500 RPM band
• Sand Cast 319 aluminum construction is precision CNC machined providing lighter castings with better surface finishes
• Peanut Oval Port Dimensions: 1.570" High x 1.600" Wide
• Universal dual pattern carb flange accepts spread bore (Quadrajets) and square bore carbs
• All new optimized design for today’s higher output big block engines
Specifications
Specifications
-
Specifications
Barrels 4 Basic Operating RPM Range Idle - 5500 Brand Weiand Carburetor Flange 4150 Square Bore Carburetor Quantity 1 Carburetor Studs Included No Category Engine CNC Ported No Color Natural Construction Cast Cylinder Head Port Shape Peanut Deck Height 9.8 EGR Port No Emission Code 3 Engine Chevy Big Block V8 Flange Style 4150 Square Bore Fuel Injectors Included No Fuel Rail(s) Included No Fuel System Type Carb Gasket Or Seal Included No Grade Type Performance Intake Port Gasket(s) Included No Manifold Type Low Rise Material Aluminum Nitrous Bung(s) Included No part type Engine Intake Manifold Plenum Finish Cast Product Type Intake Manifold Removable Runners No Removable Top/Lid No Single Or Dual Plane Type Dual Sub Category Cylinder Block Components Throttle Body Bore Diameter 3.6 Throttle Body Gasket Included No Throttle Body Included No Vacuum Ports Yes Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
