Weiand | SKU:
7540
Weiand Stealth Ram Intake - Chevy Small Block V8 - 7540

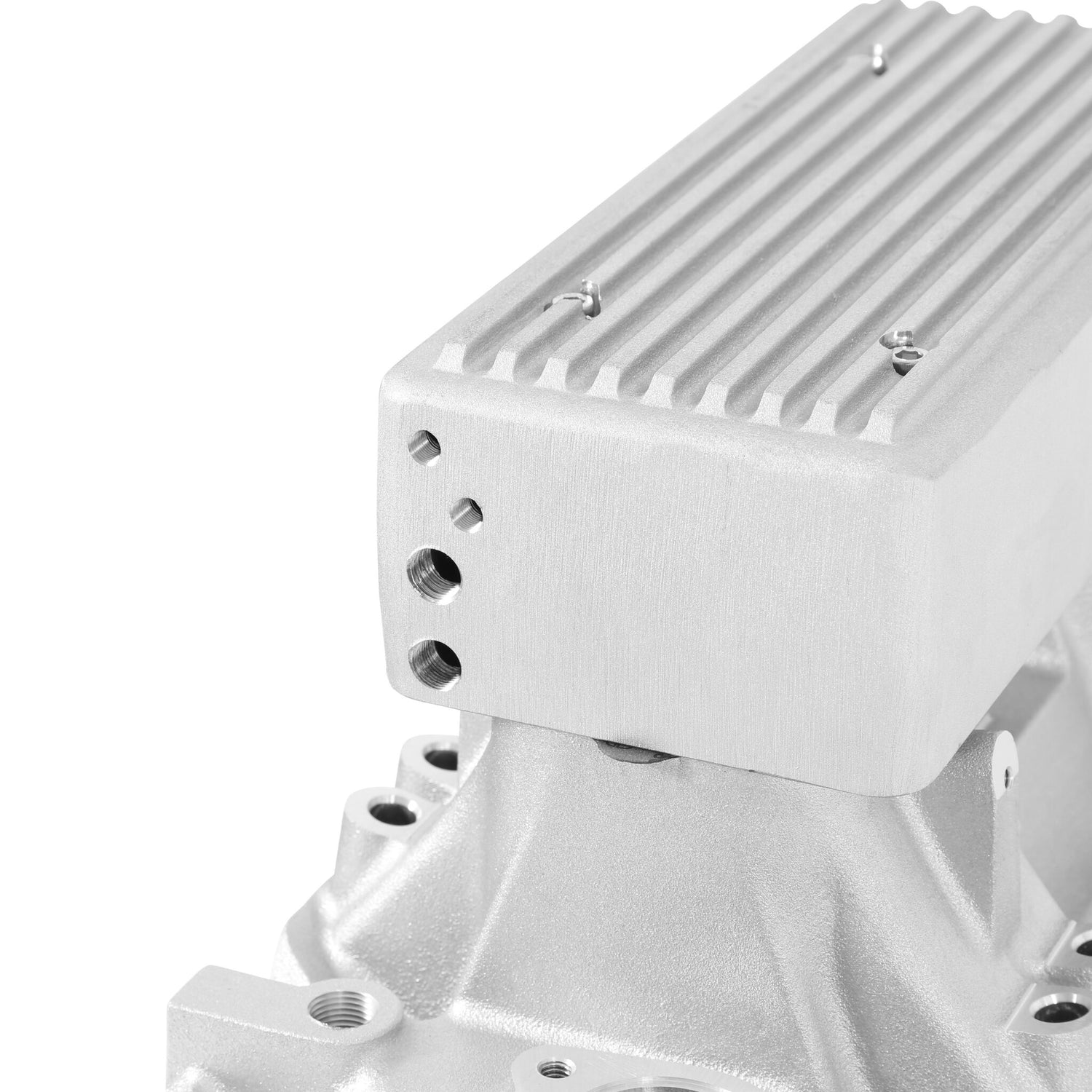

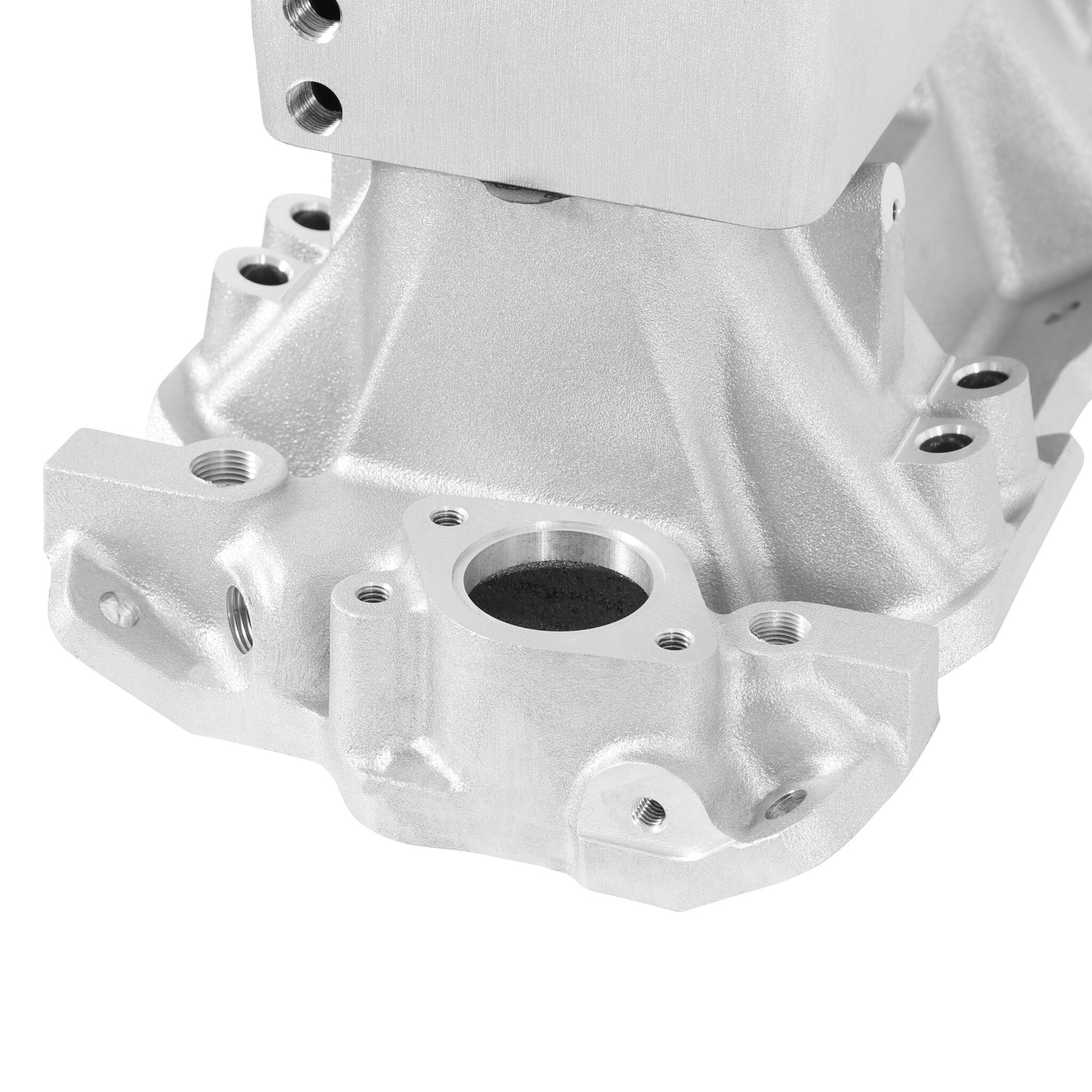

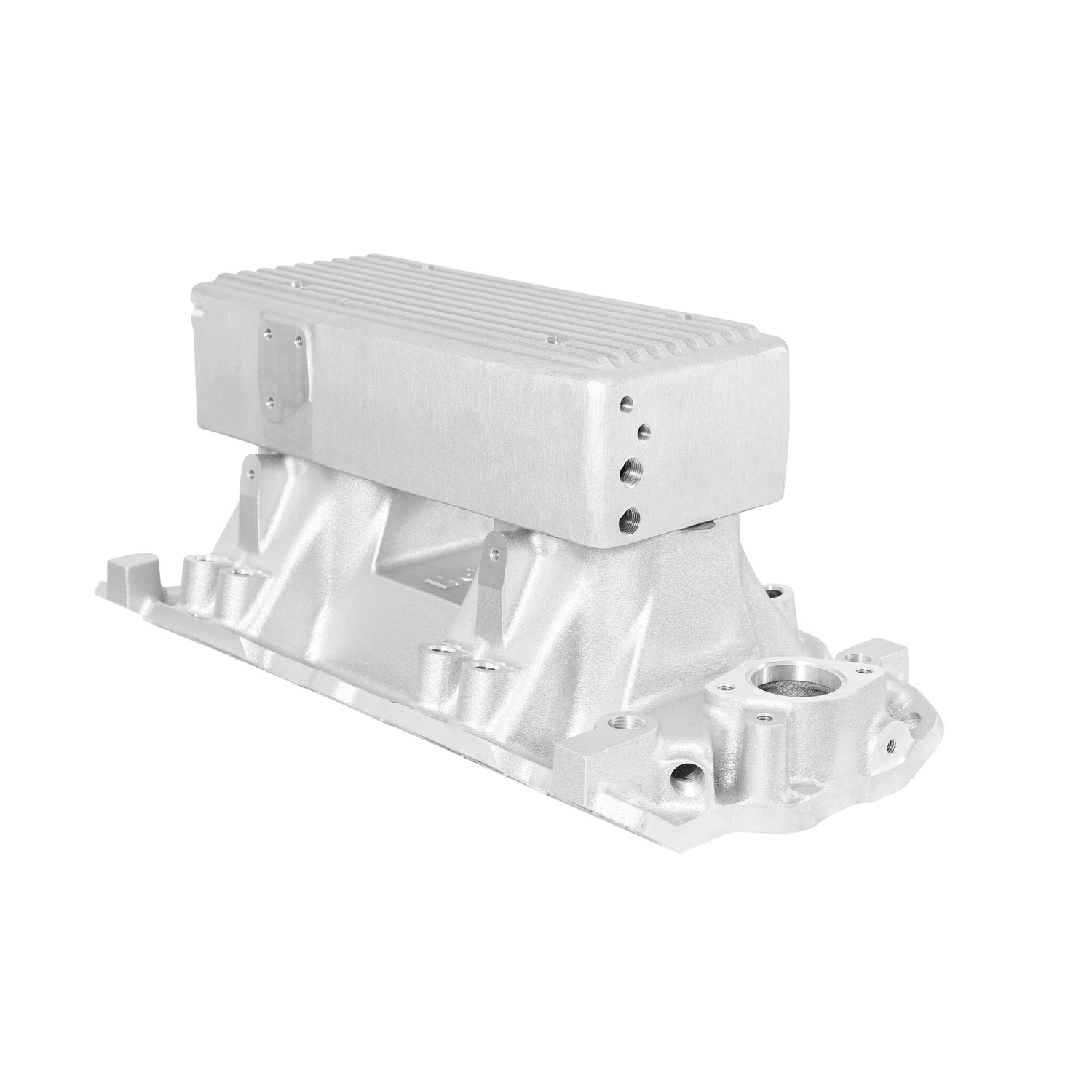

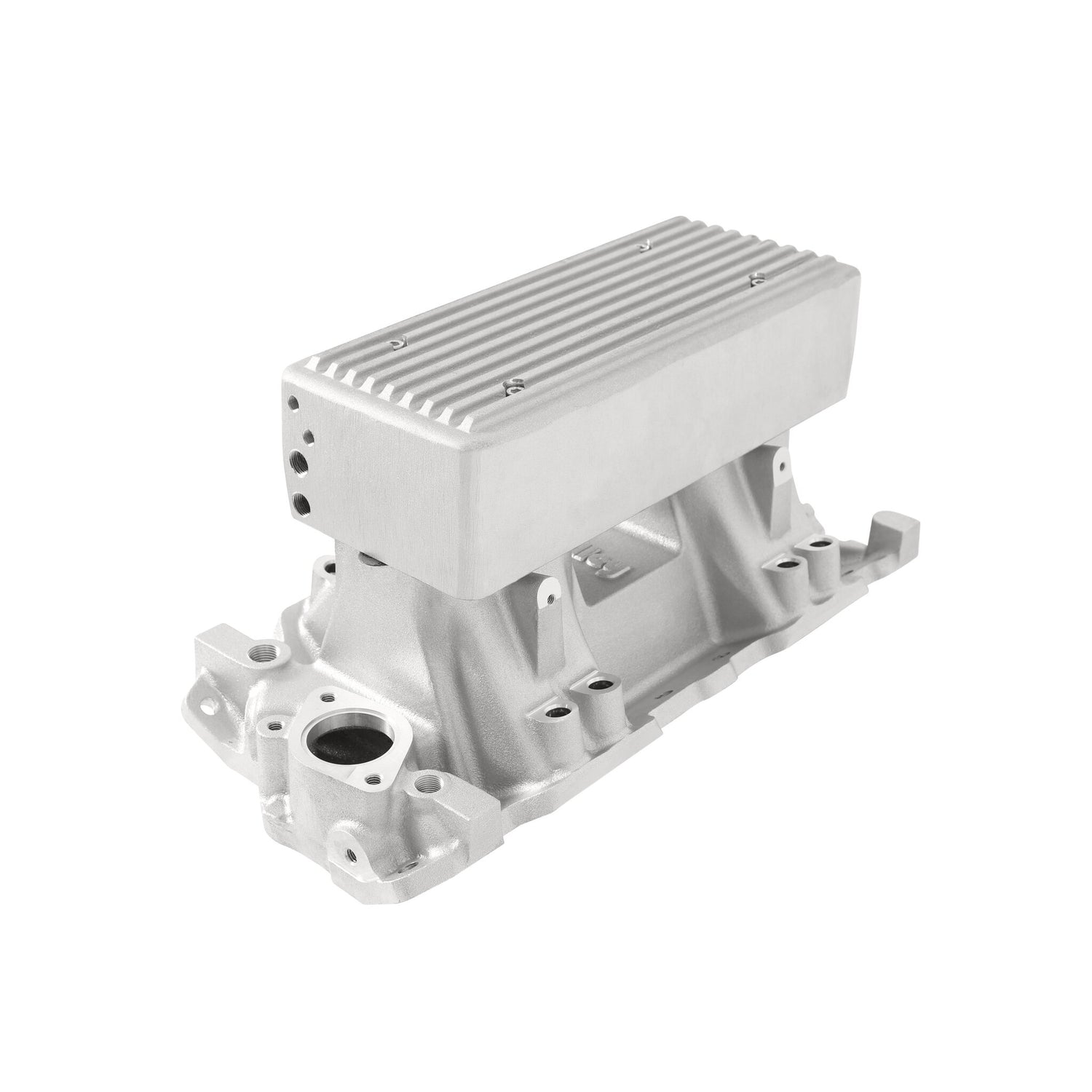

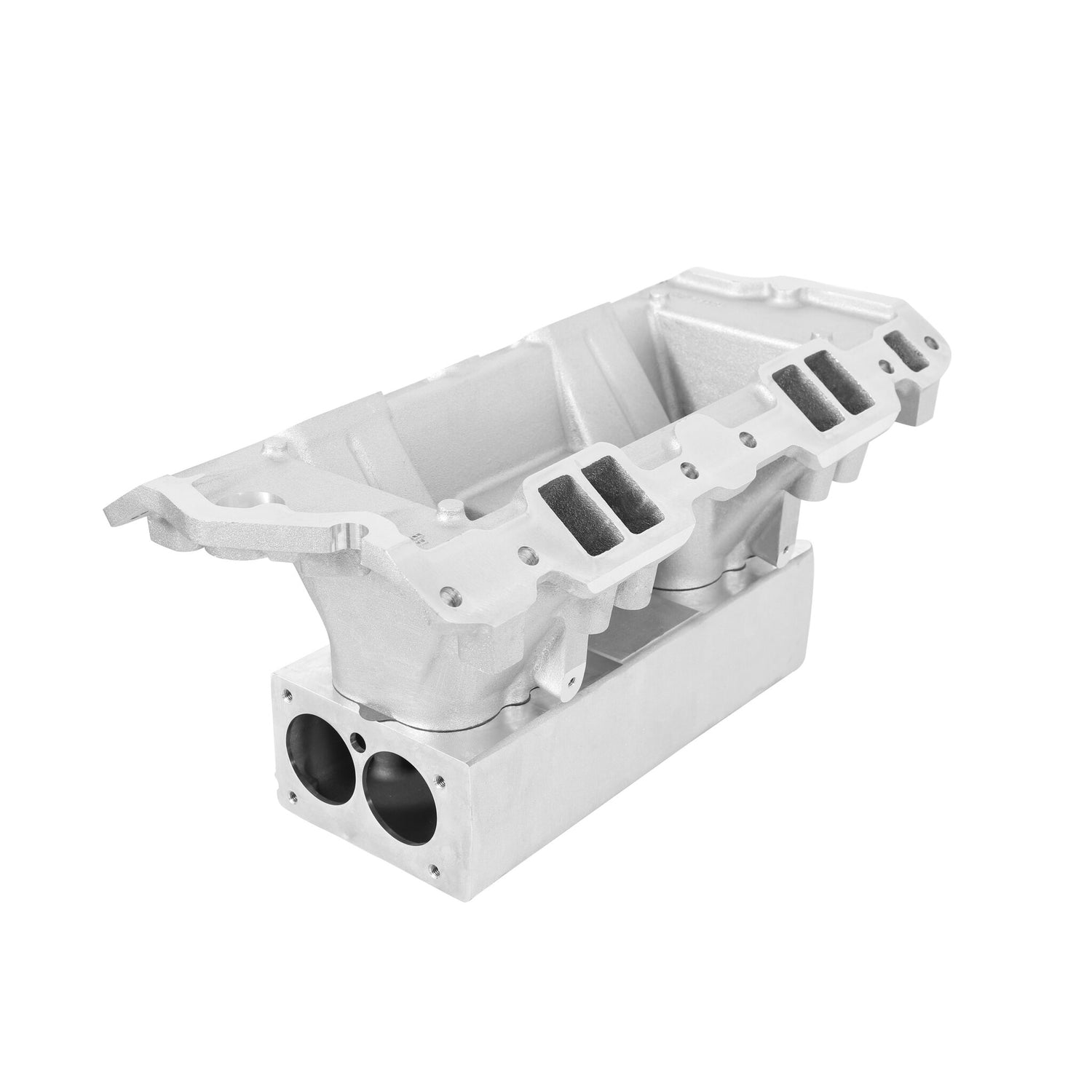

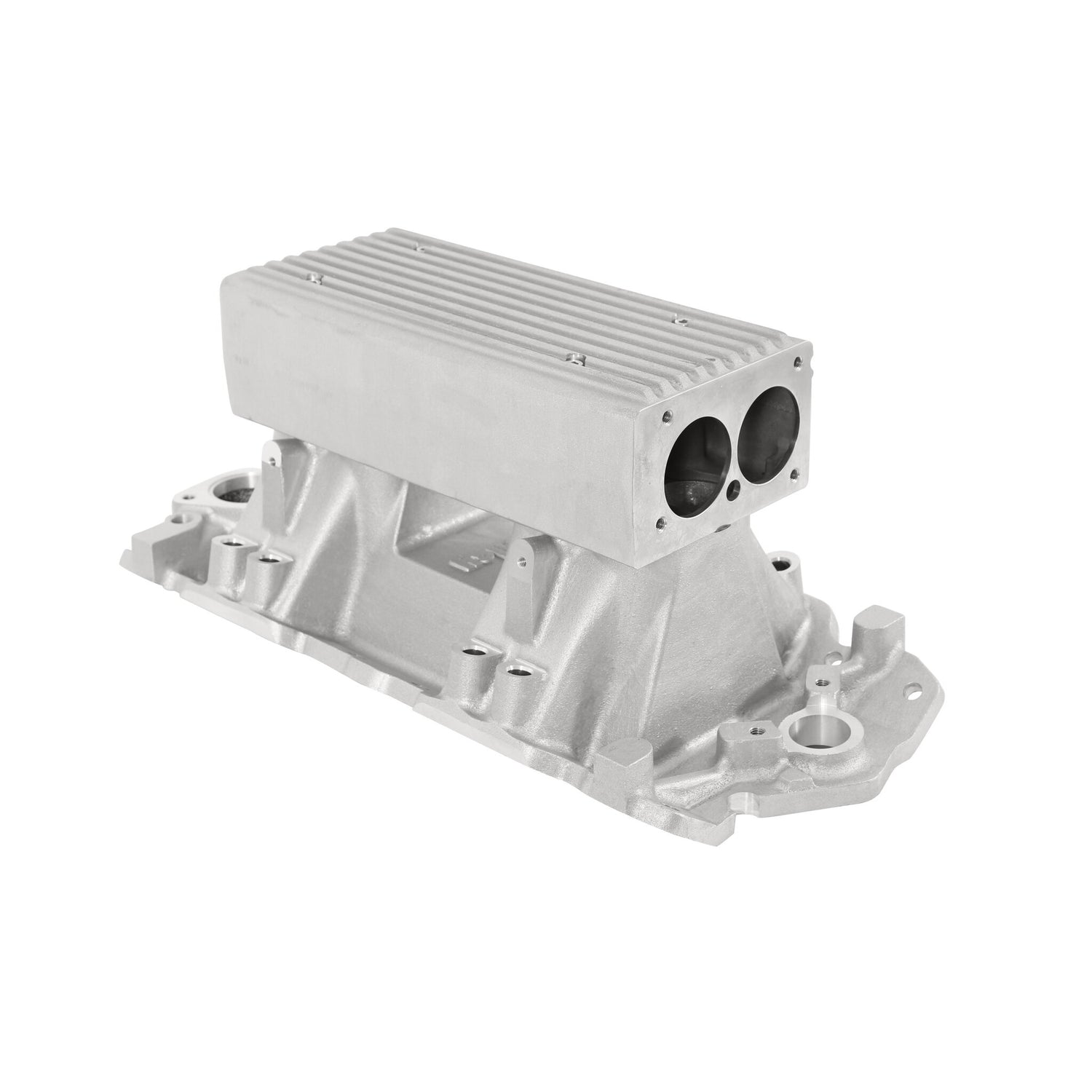

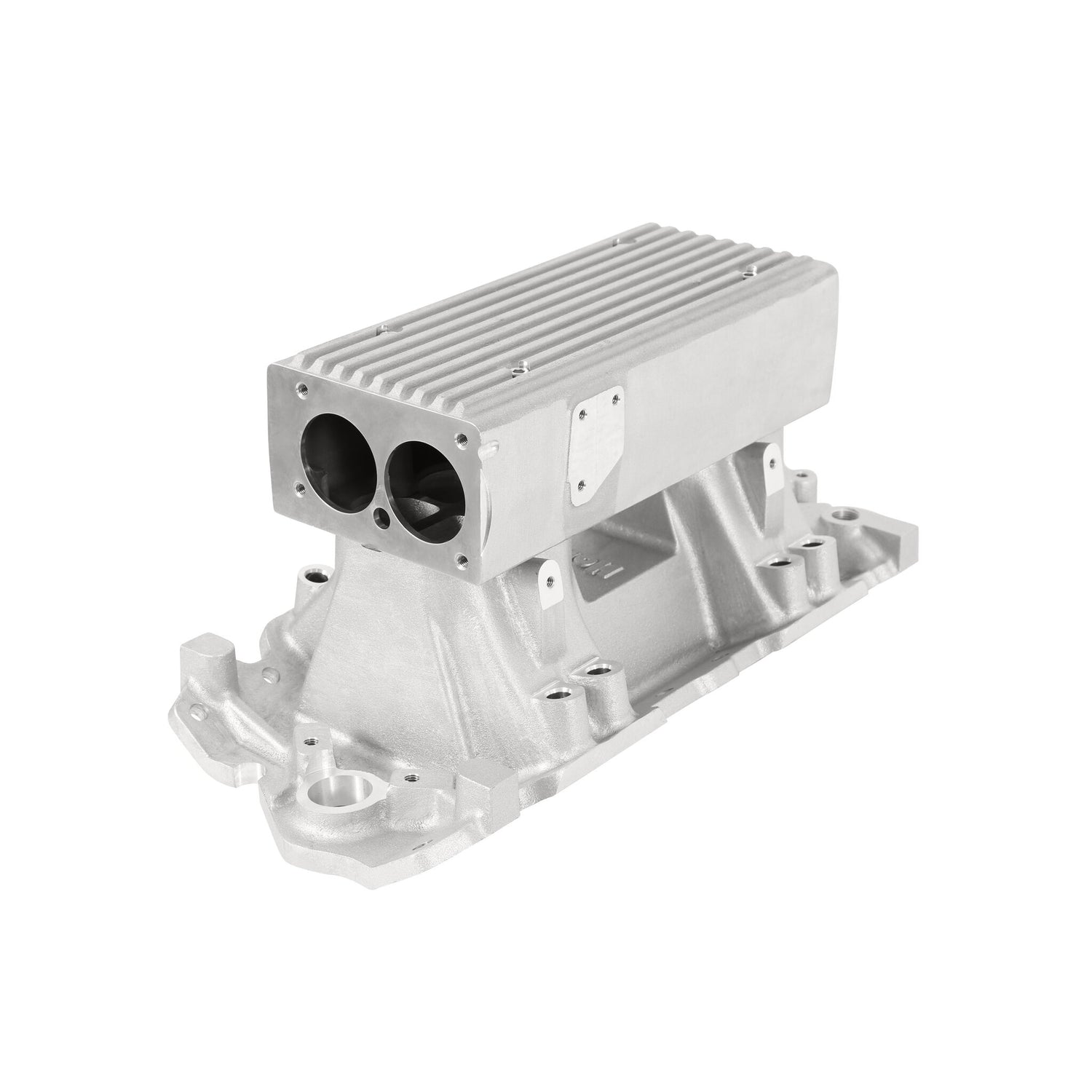

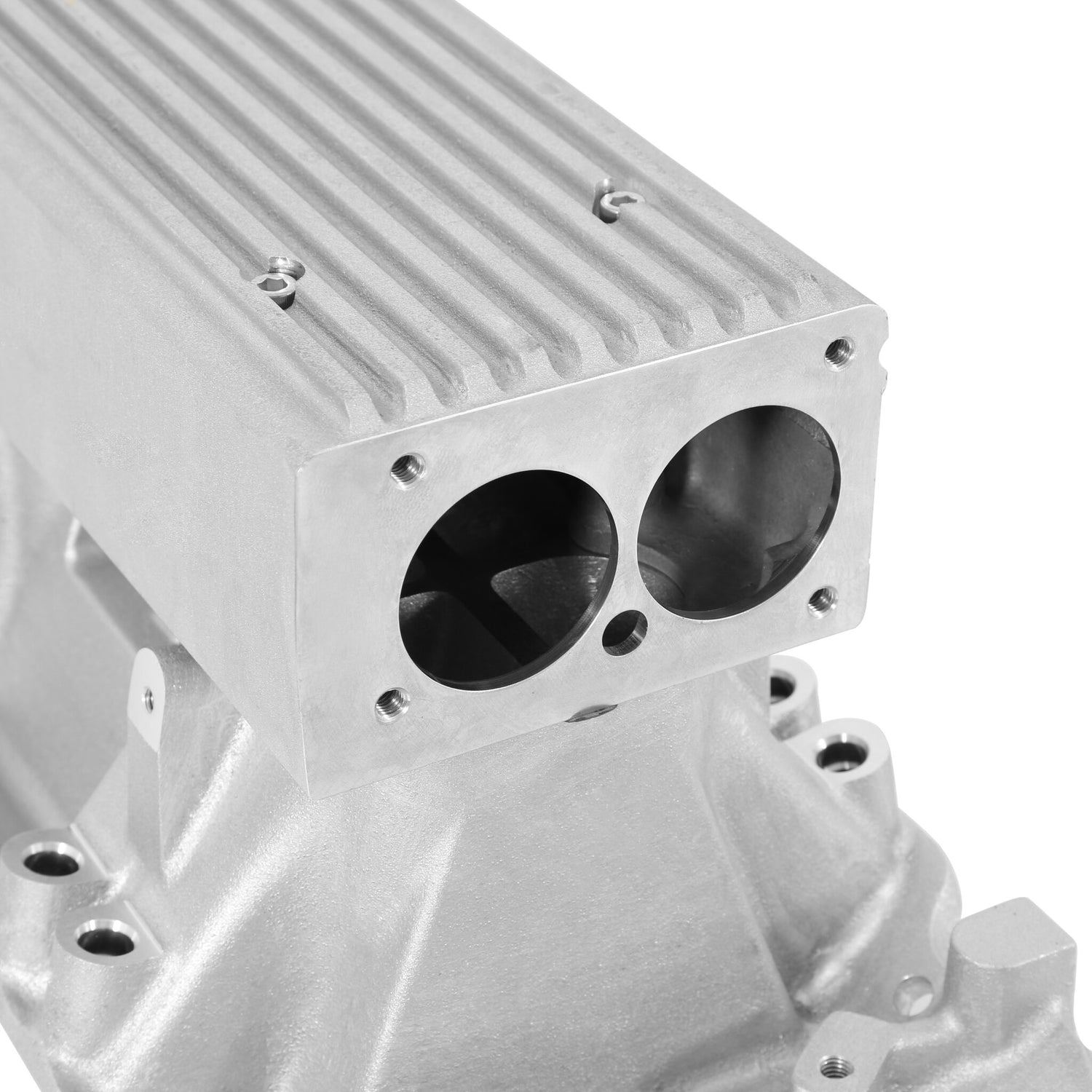

Stealth Ram™ Intake Manifold 1957-86; 262-400 Small Block Chevy V8, 1987-later with aluminum heads - satin
Regular price
$1,675.20 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Weiand Stealth Ram Intake - Chevy Small Block V8 - 7540 is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Stealth Ram™ Intake Manifold 1957-86; 262-400 Small Block Chevy V8, 1987-later with aluminum heads - satin
Part Number: 7540
The Weiand Stealth Ram™ intake is a revolutionary, radical departure from the ordinary. Designed to take advantage of the benefits associated with high ram manifolds, it combines aggressive race inspired looks with the drivability of EFI. Designed primarily as a component of the Holley Stealth Ram™/Commander 950 EFI system, the manifold is now available for retrofit on L98 TPI engines and other street/strip machines utilizing standard or 1987 and later aluminum Chevy cylinder heads. The manifold is designed to accept OEM and aftermarket TPI throttle bodies and includes provisions for mounting bracketry necessary for kickdown, cruise and throttle cables. Whether you are looking for more power for that late 80's Camaro or a new look for your street machine, look to Weiand.
Features and Benefits
• Precision CNC machining
• No EGR Provisions
• D shaped Runners Promote High Flow Rates W/O Turbulence
• Satin Finish
• 2-Piece Design Features short Individual Runners & a Large Upper Plenum
• Power band: Idle to 6500 RPM
• Permanent Mold Casting
Use Holley 2x58mm billet throttle body (p/n 112-503 or 112-507) or stock TPI throttle body. Requires use of small cap distributor. Manifold features universal mounting bolt design engineered to accommodate both straight and angled center manifold bolts (requires P/N 90748 Weiand bolt kit for 1987 & later cast iron). Accepts stock or Lokar® TPI kickdown brackets. May require additional sealing modifications for high boost blow through applications._x000D_ Will not fit Corvette due to manifold height
Part Number: 7540
The Weiand Stealth Ram™ intake is a revolutionary, radical departure from the ordinary. Designed to take advantage of the benefits associated with high ram manifolds, it combines aggressive race inspired looks with the drivability of EFI. Designed primarily as a component of the Holley Stealth Ram™/Commander 950 EFI system, the manifold is now available for retrofit on L98 TPI engines and other street/strip machines utilizing standard or 1987 and later aluminum Chevy cylinder heads. The manifold is designed to accept OEM and aftermarket TPI throttle bodies and includes provisions for mounting bracketry necessary for kickdown, cruise and throttle cables. Whether you are looking for more power for that late 80's Camaro or a new look for your street machine, look to Weiand.
Features and Benefits
• Precision CNC machining
• No EGR Provisions
• D shaped Runners Promote High Flow Rates W/O Turbulence
• Satin Finish
• 2-Piece Design Features short Individual Runners & a Large Upper Plenum
• Power band: Idle to 6500 RPM
• Permanent Mold Casting
Use Holley 2x58mm billet throttle body (p/n 112-503 or 112-507) or stock TPI throttle body. Requires use of small cap distributor. Manifold features universal mounting bolt design engineered to accommodate both straight and angled center manifold bolts (requires P/N 90748 Weiand bolt kit for 1987 & later cast iron). Accepts stock or Lokar® TPI kickdown brackets. May require additional sealing modifications for high boost blow through applications._x000D_ Will not fit Corvette due to manifold height
Specifications
Specifications
-
Specifications
Basic Operating RPM Range 800-6500 Brand Weiand Carburetor Flange N/A Carburetor Quantity N/A Carburetor Studs Included N/A Category Engine CNC Ported No Color Silver Construction Cast Cylinder Head Port Shape Rectangle Deck Height 9.025 EGR Port No Emission Code 4 Engine Chevrolet Small Block Gen I Flange Style N/A Front Maximum Height 10.25 Fuel Injectors Included No Fuel Rail(s) Included No Fuel System Type EFI Gasket Or Seal Included No Grade Type Performance Intake Port Gasket(s) Included No Manifold Type High Rise Material Aluminum Nitrous Bung(s) Included No part type Engine Intake Manifold Plenum Finish Cast Product Type Intake Manifold Rear Maximum Height 10.25 Removable Runners No Removable Top/Lid No Single Or Dual Plane Type Single Sub Category Cylinder Block Components Throttle Body Bore Diameter 2.28 Throttle Body Gasket Included No Throttle Body Included No Vacuum Ports Yes Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
