Weiand | SKU: 8020WND

Weiand Stealth™ Intake - Ford Small Block V8 - 8020WND

Name: Weiand Stealth™ Intake - Ford Small Block V8 - 8020WND
Brand: Weiand
SKU: 8020WND
Price: 717.3 NZD
Availability: InStock

Stealth™ Intake Manifold 221, 260, 289, 302 V8

$717.30 NZD + GST

Shipping calculated at checkout.

⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.

Description

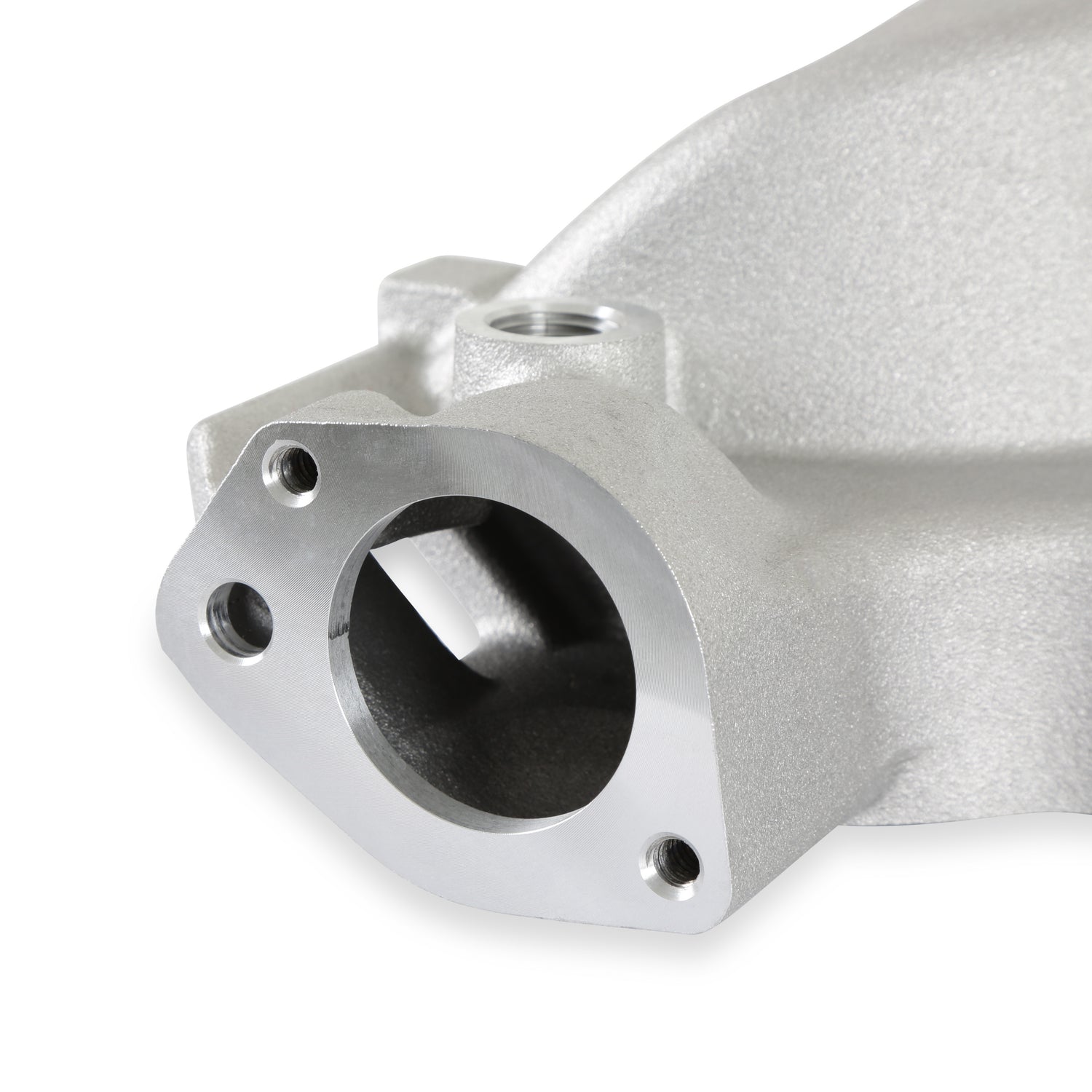

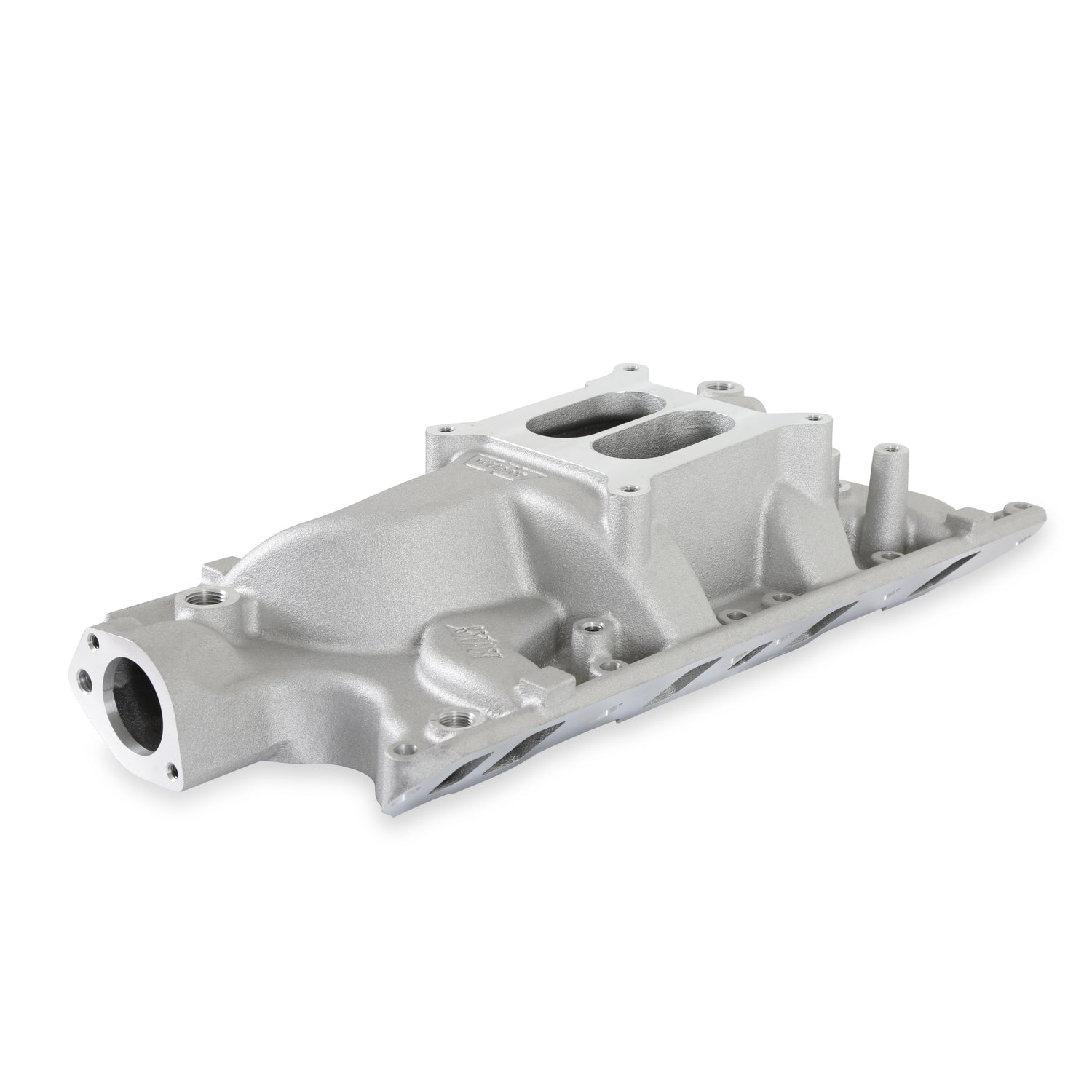

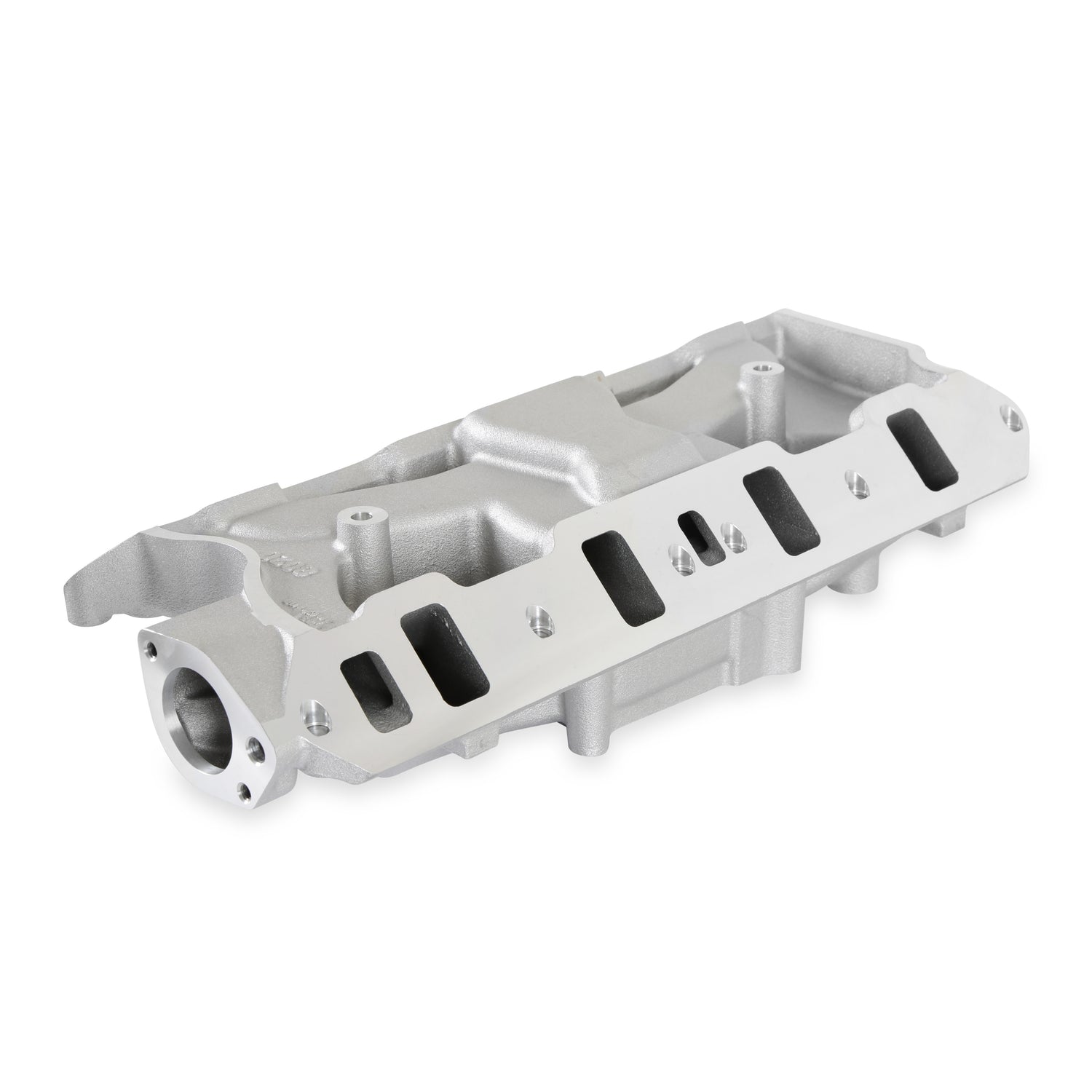

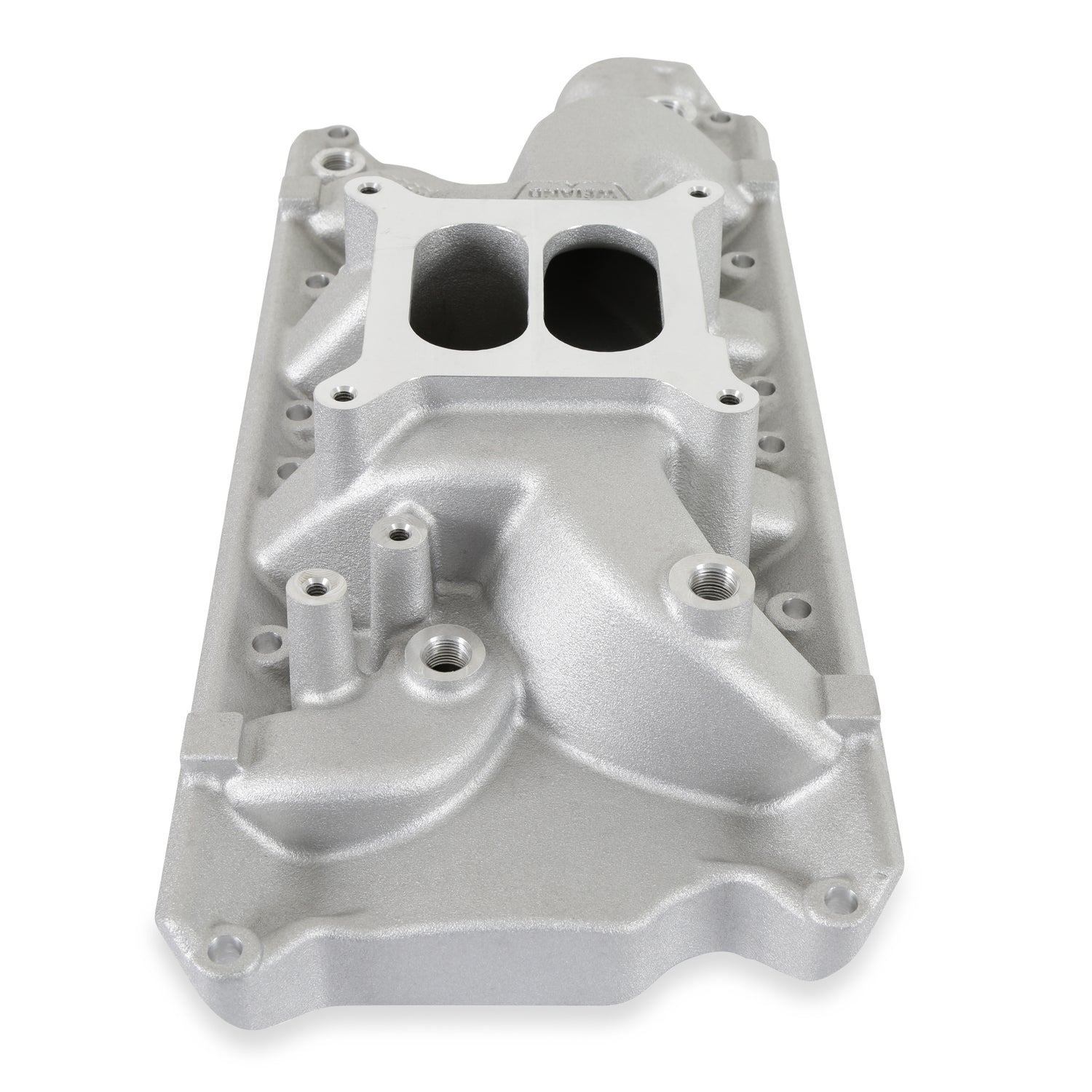

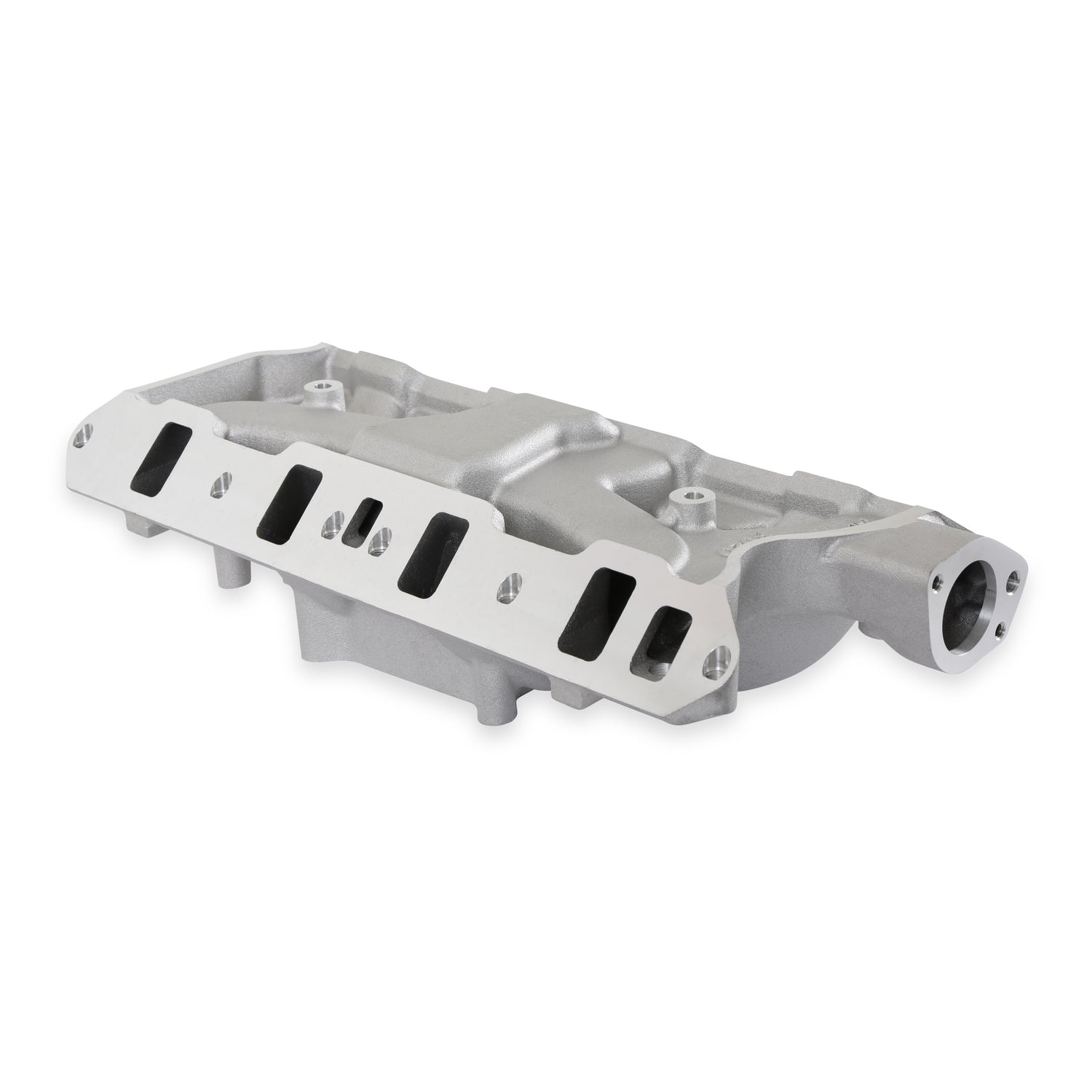

Stealth™ Intake Manifold 221, 260, 289, 302 V8

Part Number: 8020WND

Stealth™ Intake Manifold 221, 260, 289, 302 V8

Features and Benefits

• No EGR provisions
• Height: Front 4.35", Rear 5.59"
• Square Carburetor Mounting Flange
• Power band: Idle-6000 RPM
• Port Size: 1.83” height 1.02" width
• High Rise Dual Plane Design

Fits GT-40 and TFS heads. Will not fit 255 or Boss 302 engines.

Specifications

Barrels	4
Basic Operating RPM Range	Idle - 6000
Brand	Weiand
Carburetor Flange	4150 Square Bore
Carburetor Quantity	1
Carburetor Studs Included	No
Category	Engine
CNC Ported	No
Color	Natural
Construction	Cast
Cylinder Head Port Shape	Rectangle
Deck Height	8.206
EGR Port	No
Emission Code	3
Engine	Ford Small Block
Flange Style	4150 Square Bore
Front Maximum Height	4.35
Fuel Injectors Included	No
Fuel Rail(s) Included	No
Fuel System Type	Carb
Gasket Or Seal Included	No
Grade Type	Performance
Intake Port Gasket(s) Included	No
Manifold Type	High Rise
Material	Aluminum
Nitrous Bung(s) Included	No
part type	Engine Intake Manifold
Plenum Finish	Cast
Product Type	Intake Manifold
Rear Maximum Height	5.59
Removable Runners	No
Removable Top/Lid	No
Single Or Dual Plane Type	Dual
Sub Category	Cylinder Block Components
Throttle Body Bore Diameter	3.6
Throttle Body Gasket Included	No
Throttle Body Included	No
Vacuum Ports	Yes
Warning	California Proposition 65
Warranty	Manufacturer's Limited 90 Day Warranty
