Weiand | SKU:
8022WND

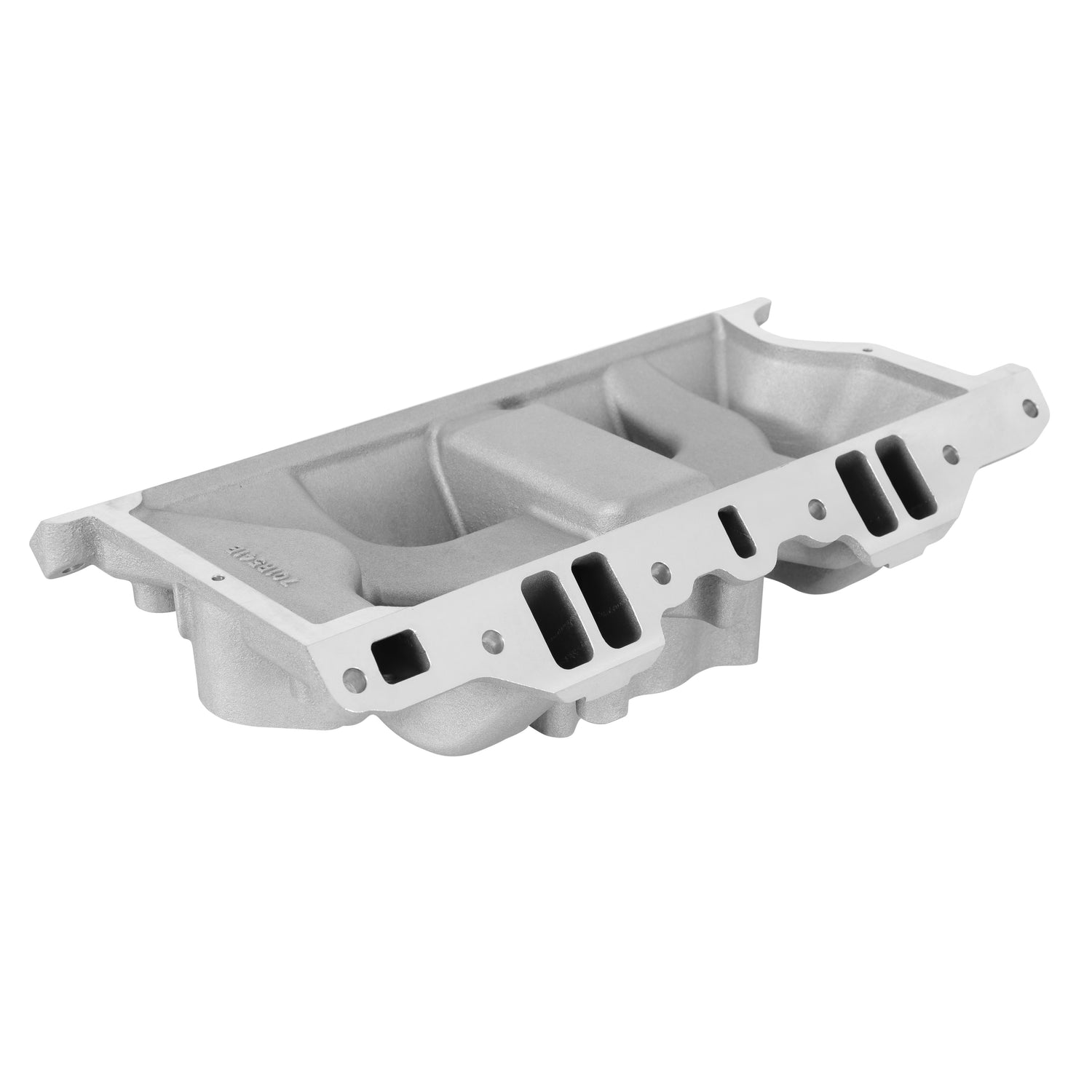

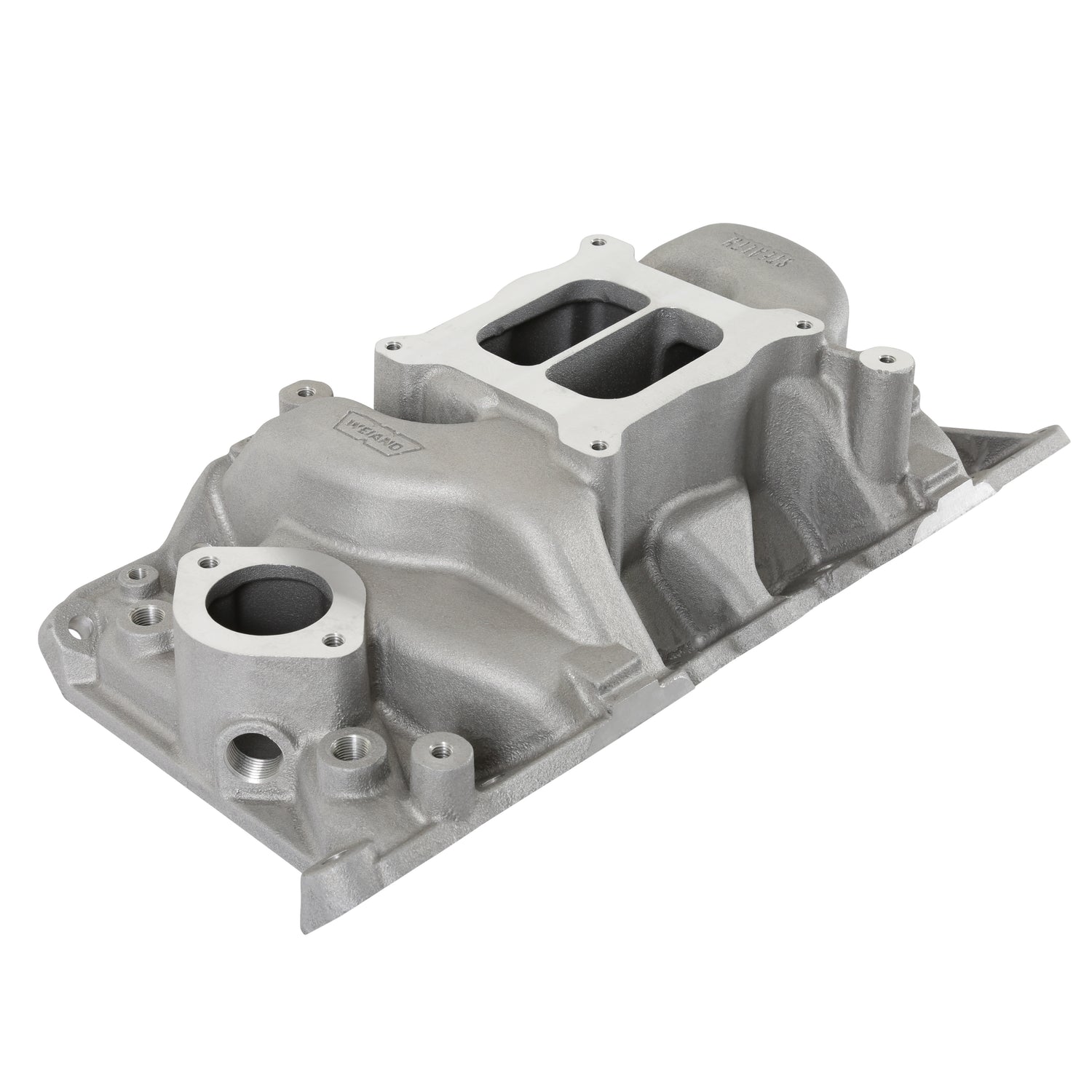

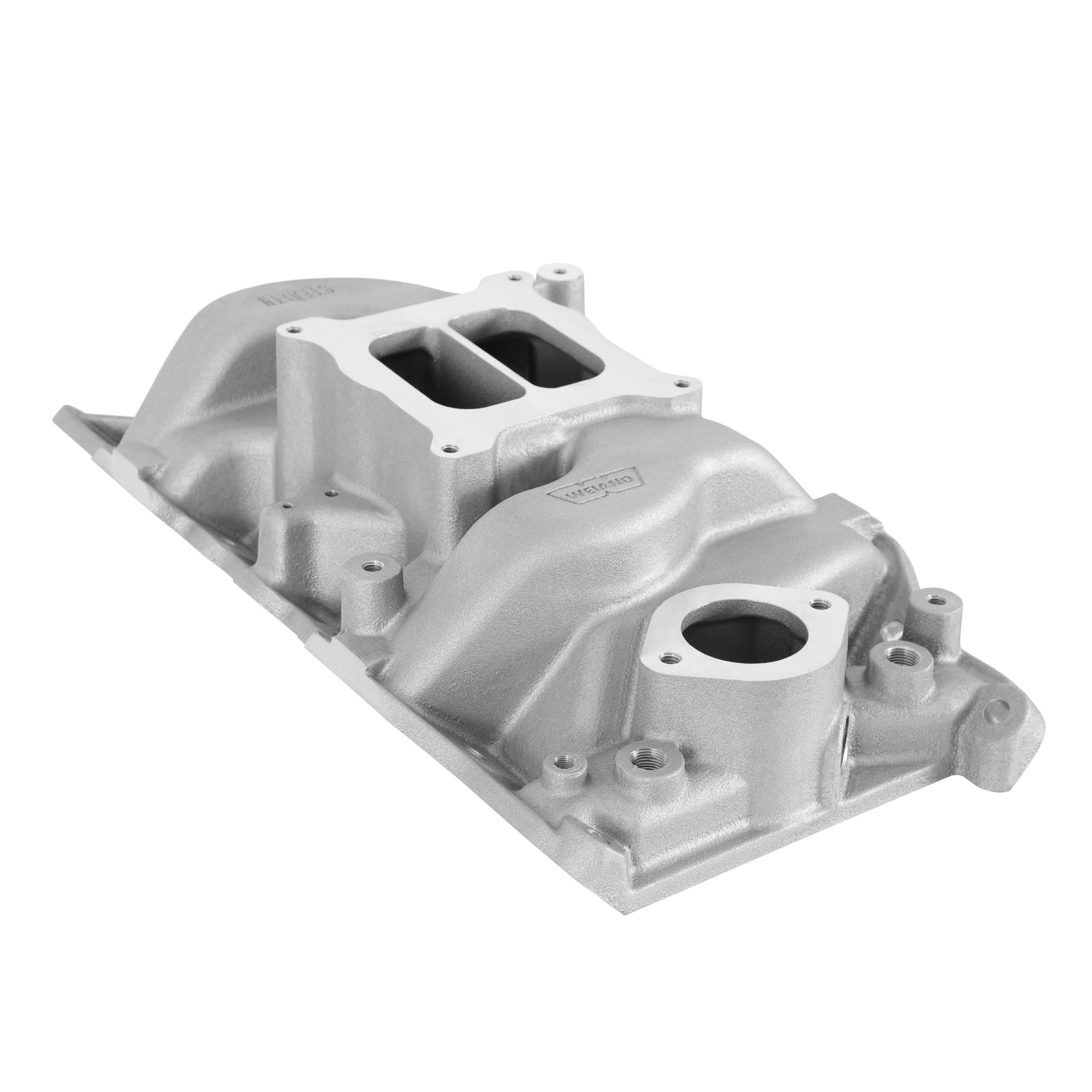

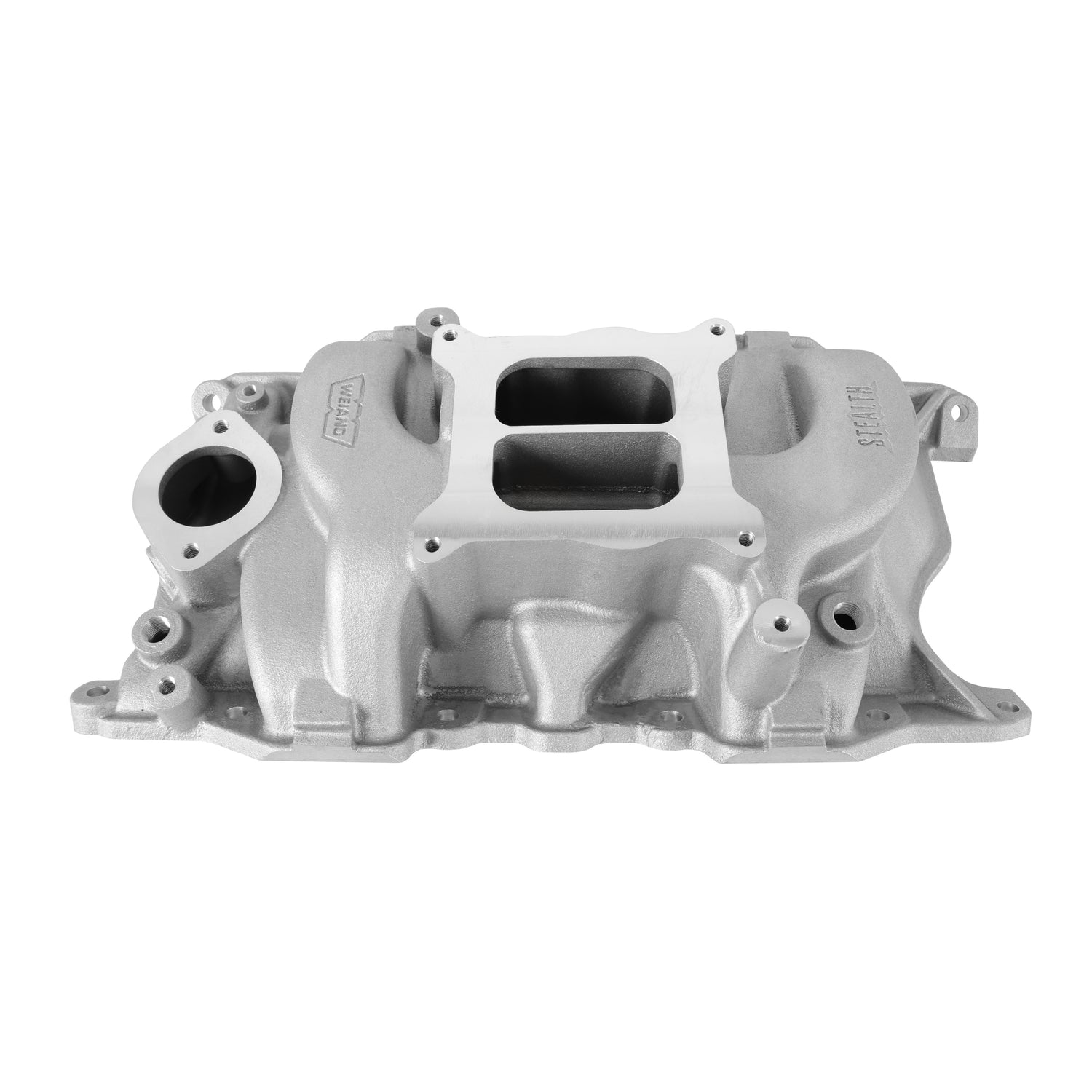

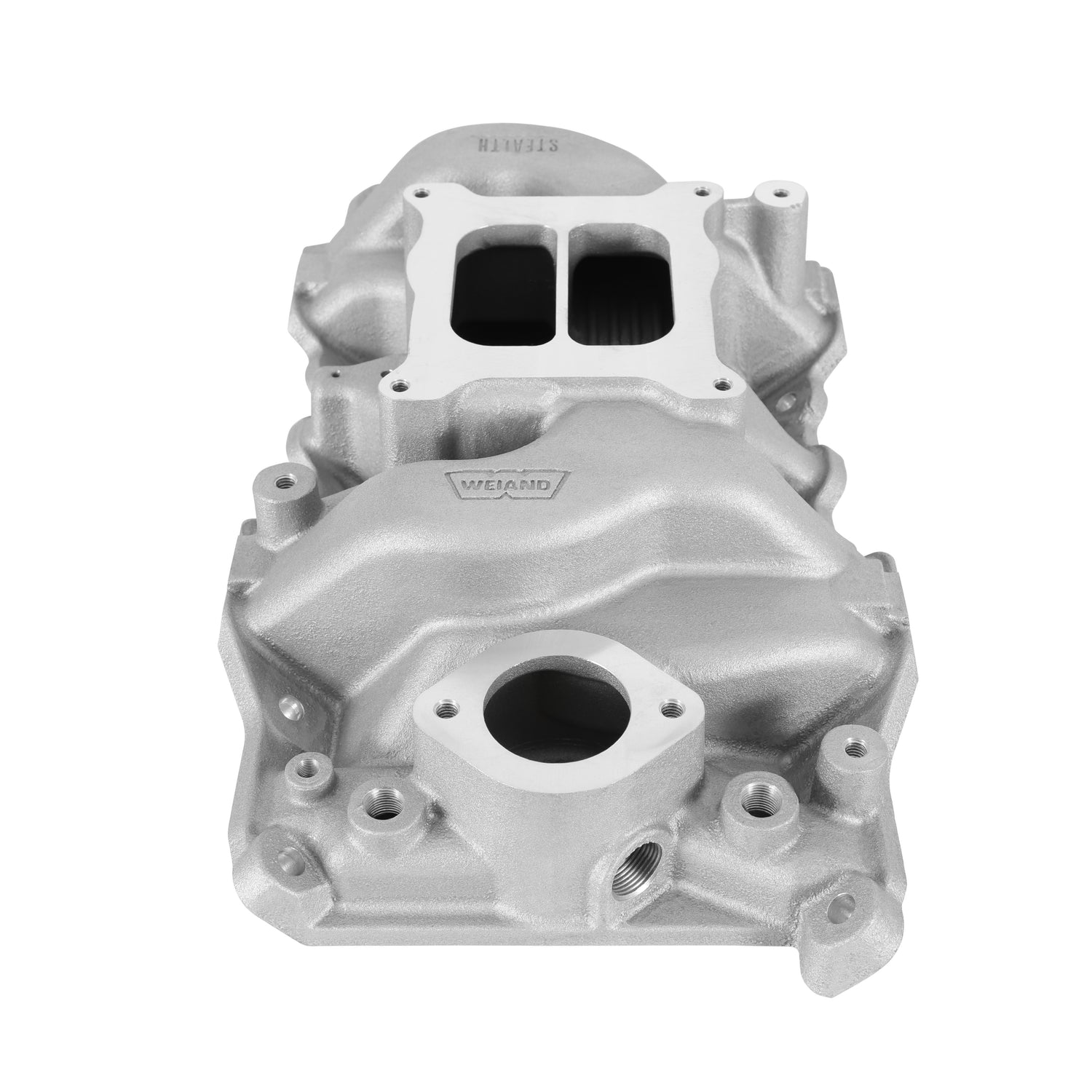

Weiand Stealth™ Intake - Chrysler Small Block V8 - 8022WND
Stealth™ Intake Manifold 318 (late style), 340, 360 V8
Regular price
$961.40 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Weiand Stealth™ Intake - Chrysler Small Block V8 - 8022WND is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Stealth™ Intake Manifold 318 (late style), 340, 360 V8
Part Number: 8022WND
This manifold is part of the Weiand Nostalgia Series of intake manifolds. Weiand Nostalgia Series intake manifolds are made using the original tooling, and may have minor appearance imperfections that do not affect the functionality of the part. These minor blemishes are a natural part of the casting process when using the original sand casting tooling. Stealth™ Intake Manifold 318 (late style), 340, 360 V8 Weiand Nostalgia series intakes are proudly cast and machined in the USA. We support all areas of the vintage, show, and nostalgia car hobby, and want to continue to produce these lower volume manifolds using the original tools. There is no need to search for that vintage intake at swap meets or on the internet when you can buy the real deal new from Weiand!
Features and Benefits
• Port Size: 1.96” height 1.00" width
• Weiand Nostalgia Series Intake Manifold
• No EGR Provisions
• Height: Front 4.88", Rear 5.94"
• Power band: Idle-6800 RPM
• High Rise Dual Plane Design
• Square Bore Carburetor Mounting Flange
Rotary A/C compressor will not clear on 1978 and later applications.
Part Number: 8022WND
This manifold is part of the Weiand Nostalgia Series of intake manifolds. Weiand Nostalgia Series intake manifolds are made using the original tooling, and may have minor appearance imperfections that do not affect the functionality of the part. These minor blemishes are a natural part of the casting process when using the original sand casting tooling. Stealth™ Intake Manifold 318 (late style), 340, 360 V8 Weiand Nostalgia series intakes are proudly cast and machined in the USA. We support all areas of the vintage, show, and nostalgia car hobby, and want to continue to produce these lower volume manifolds using the original tools. There is no need to search for that vintage intake at swap meets or on the internet when you can buy the real deal new from Weiand!
Features and Benefits
• Port Size: 1.96” height 1.00" width
• Weiand Nostalgia Series Intake Manifold
• No EGR Provisions
• Height: Front 4.88", Rear 5.94"
• Power band: Idle-6800 RPM
• High Rise Dual Plane Design
• Square Bore Carburetor Mounting Flange
Rotary A/C compressor will not clear on 1978 and later applications.
Specifications
Specifications
-
Specifications
Barrels 4 Basic Operating RPM Range Idle - 6800 Brand Weiand Carburetor Flange 4150 Square Bore Carburetor Quantity 1 Carburetor Studs Included No Category Air and Fuel Delivery CNC Ported No Color Natural Construction Cast Cylinder Head Port Shape Rectangle Deck Height 9.6 EGR Port No Emission Code 3 Engine Chrysler Small Block V8 Flange Style 4150 Square Bore Front Maximum Height 4.88 Fuel Injectors Included No Fuel Rail(s) Included No Fuel System Type Carb Gasket Or Seal Included No Grade Type Performance Intake Port Gasket(s) Included No Manifold Type High Rise Material Aluminum Nitrous Bung(s) Included No part type Engine Intake Manifold Plenum Finish Cast Product Type Intake Manifold Rear Maximum Height 5.94 Removable Runners No Removable Top/Lid No Single Or Dual Plane Type Dual Sub Category Cylinder Block Components Throttle Body Bore Diameter 3.6 Throttle Body Gasket Included No Throttle Body Included No Vacuum Ports Yes Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
