Weiand | SKU:
8150

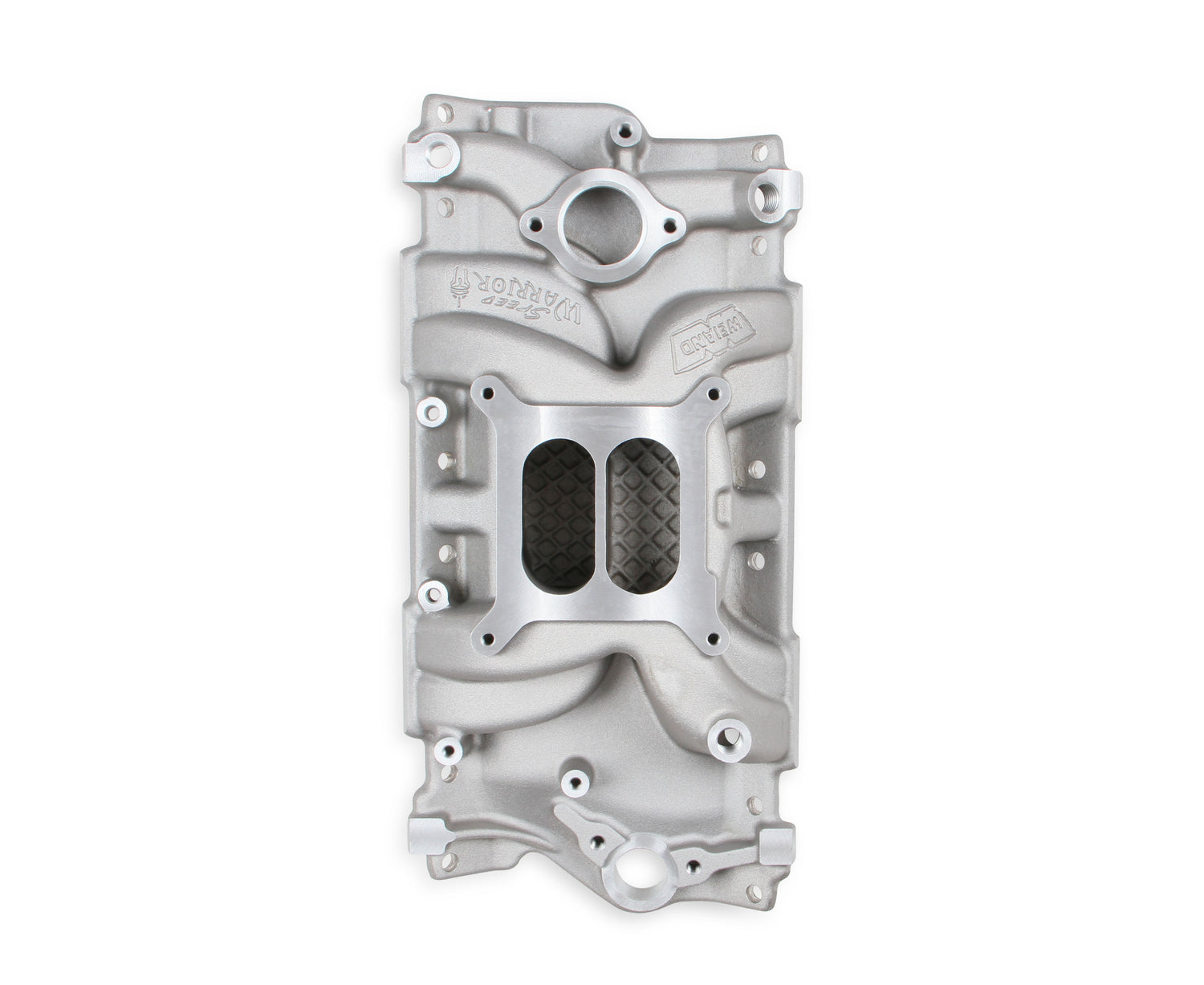

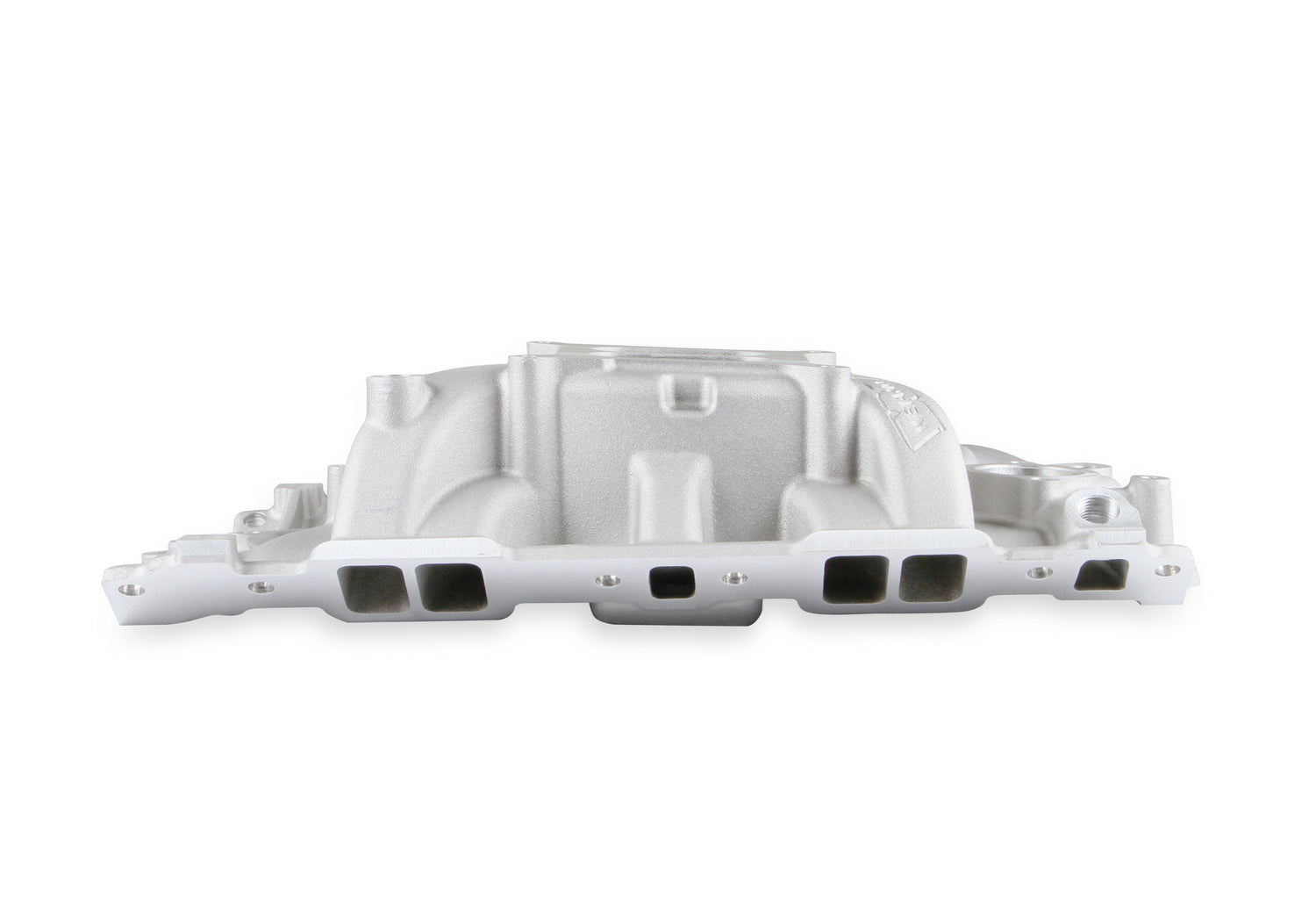

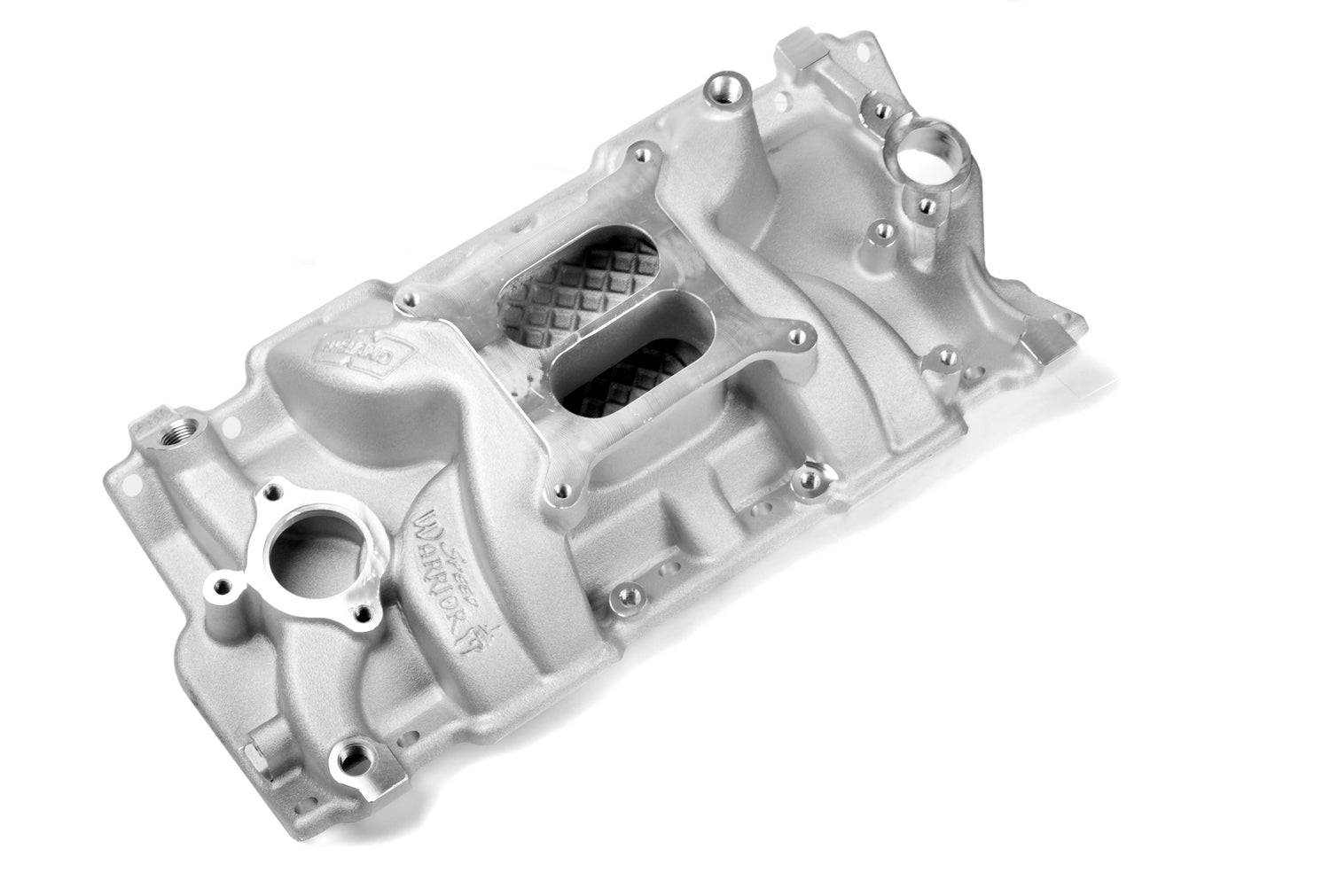

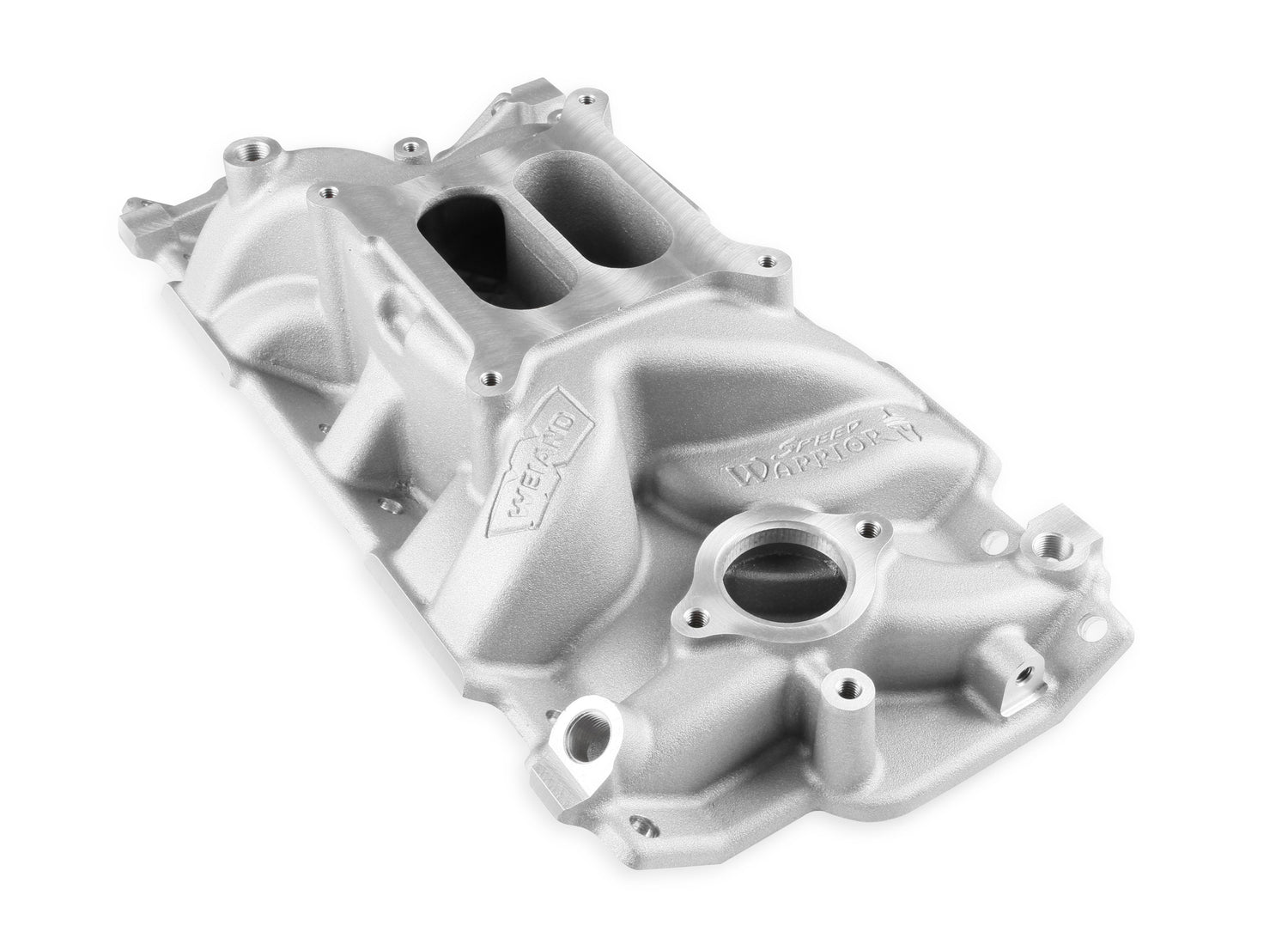

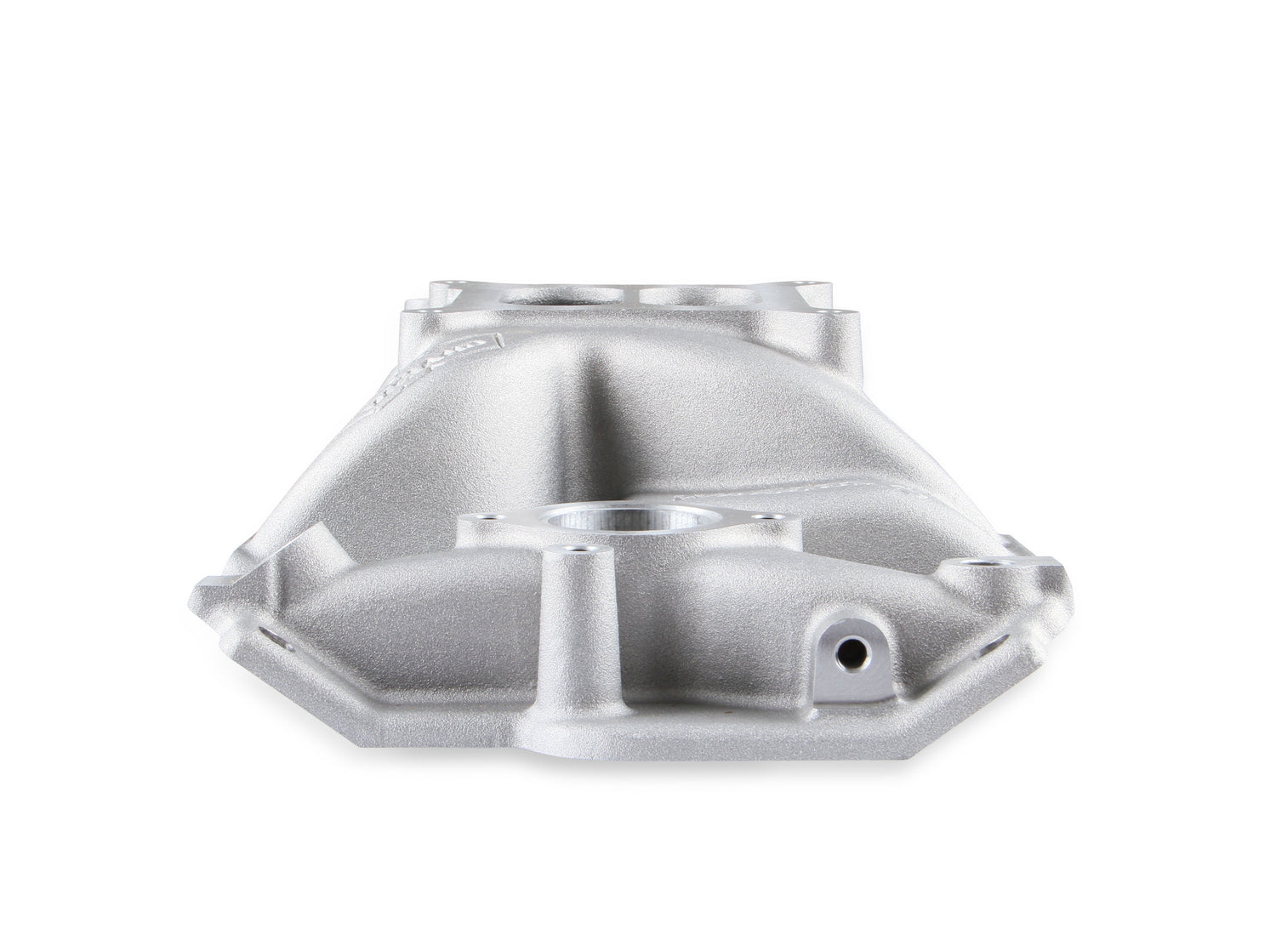

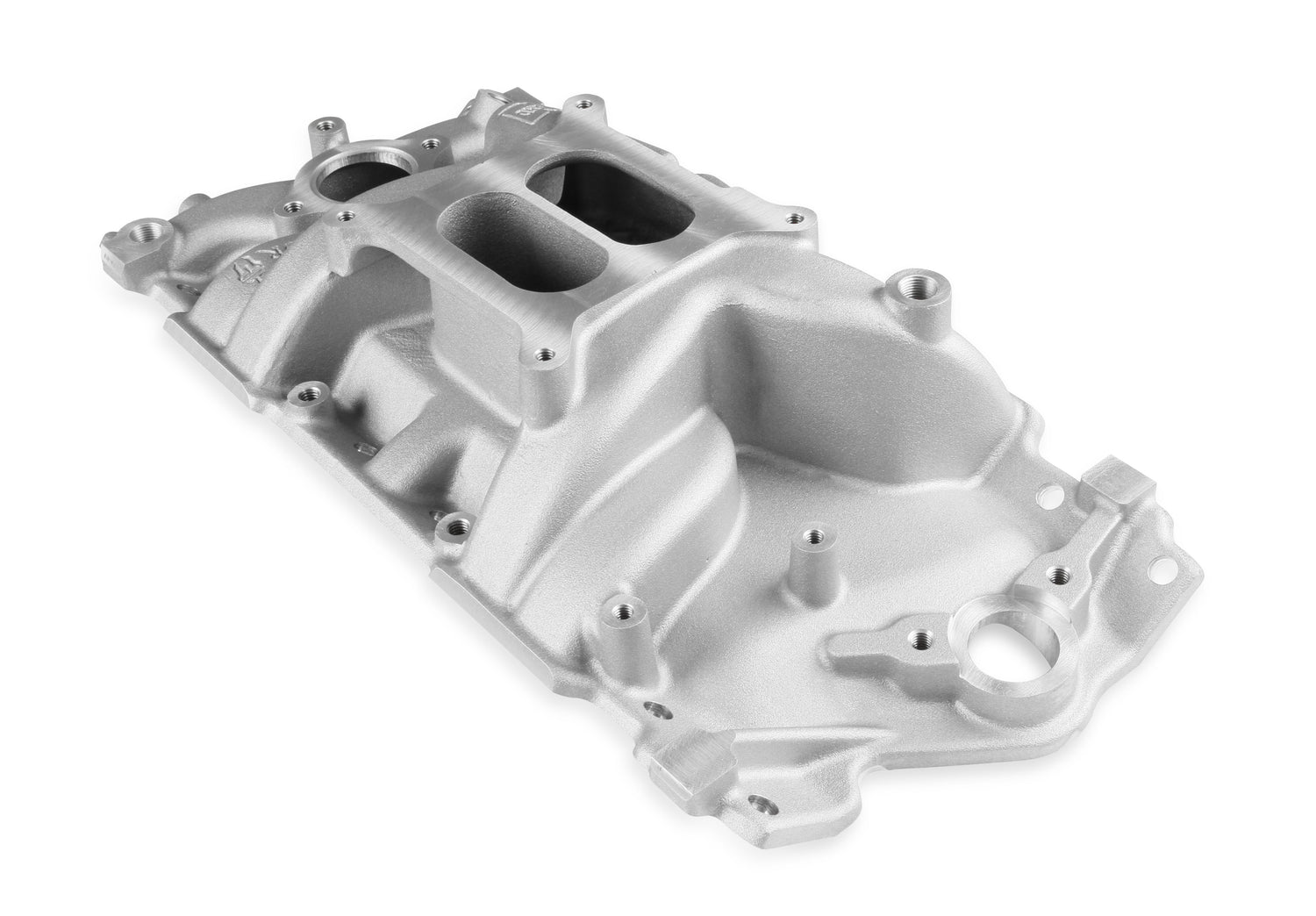

Weiand Speed Warrior Intake Manifold - Chevy Small Block V8 - 8150
Speed Warrior™ Intake Manifold non/EGR 262ci-400ci, 1955-1986 Cylinder Heads
Sold out
Regular price
$652.50 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Weiand Speed Warrior Intake Manifold - Chevy Small Block V8 - 8150 is not in stock at Fast Lane Spares and will ship direct from supplier
Stock Status:
Description
Description
Speed Warrior™ Intake Manifold non/EGR 262ci-400ci, 1955-1986 Cylinder Heads
Part Number: 8150
Weiand developed the first-ever aluminum intake manifold in 1937. Thirty years later Weiand developed complete blower drives for the GMC 6-71 supercharger. Today, Weiand is still at the forefront of intake manifold and blower development as well as high flow water pumps. To make more power you have to get more air to your engine. Look to Weiand as your power source! The Weiand Speed Warrior Intake Manifold features long, separated runners for bottom-end and mid-range power, plus a special runner design and larger plenum to flow the air needed for high-rpm horsepower. All of this usable power makes this intake manifold perfect for your street and strip hot rod!
Features and Benefits
• Precision CNC machining
• Port Size: 1.92” height, 1.16" width
• Satin (as cast) finish for and even surface texture
• Power band: 1500-6700 RPM
• Square Bore Carburetor Flange
• Exhaust Crossover for Improved Street Drivability (Standard Small Block Chevy Heads)
• Height: Front 4.19", Rear 5.27"
• High Rise/Dual Plane Design
Utilizes late model alternator an A/C bracket mounting provisions. Has additional vacuum tap off of runner. Recommended intake manifold gasket - Mr Gasket #'s 5821 or 101G Plenum depth: From the carb flange to the bottom of the upper plenum is 2-3/16". To the bottom of the lower plenum is 4-1/16".
Part Number: 8150
Weiand developed the first-ever aluminum intake manifold in 1937. Thirty years later Weiand developed complete blower drives for the GMC 6-71 supercharger. Today, Weiand is still at the forefront of intake manifold and blower development as well as high flow water pumps. To make more power you have to get more air to your engine. Look to Weiand as your power source! The Weiand Speed Warrior Intake Manifold features long, separated runners for bottom-end and mid-range power, plus a special runner design and larger plenum to flow the air needed for high-rpm horsepower. All of this usable power makes this intake manifold perfect for your street and strip hot rod!
Features and Benefits
• Precision CNC machining
• Port Size: 1.92” height, 1.16" width
• Satin (as cast) finish for and even surface texture
• Power band: 1500-6700 RPM
• Square Bore Carburetor Flange
• Exhaust Crossover for Improved Street Drivability (Standard Small Block Chevy Heads)
• Height: Front 4.19", Rear 5.27"
• High Rise/Dual Plane Design
Utilizes late model alternator an A/C bracket mounting provisions. Has additional vacuum tap off of runner. Recommended intake manifold gasket - Mr Gasket #'s 5821 or 101G Plenum depth: From the carb flange to the bottom of the upper plenum is 2-3/16". To the bottom of the lower plenum is 4-1/16".
Specifications
Specifications
-
Specifications
Barrels 4 Basic Operating RPM Range 1500-6700 Brand Weiand Carburetor Flange 4150 Square Bore Carburetor Quantity 1 Carburetor Studs Included No Category Engine CNC Ported No Color Natural Construction Cast Cylinder Head Port Shape Rectangle Deck Height 9.025 EGR Port No Emission Code 3 Engine Chevrolet Small Block Gen I Flange Style 4150 Square Bore Front Maximum Height 4.19 Fuel Injectors Included No Fuel Rail(s) Included No Fuel System Type Carb Gasket Or Seal Included No Grade Type Performance Intake Port Gasket(s) Included No Manifold Type High Rise Material Aluminum Nitrous Bung(s) Included No part type Engine Intake Manifold Plenum Finish Cast Product Type Intake Manifold Rear Maximum Height 5.27 Removable Runners No Removable Top/Lid No Single Or Dual Plane Type Dual Sub Category Cylinder Block Components Throttle Body Bore Diameter 3.6 Throttle Body Gasket Included No Throttle Body Included No Vacuum Ports Yes Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
