Weiand | SKU:
8150BK

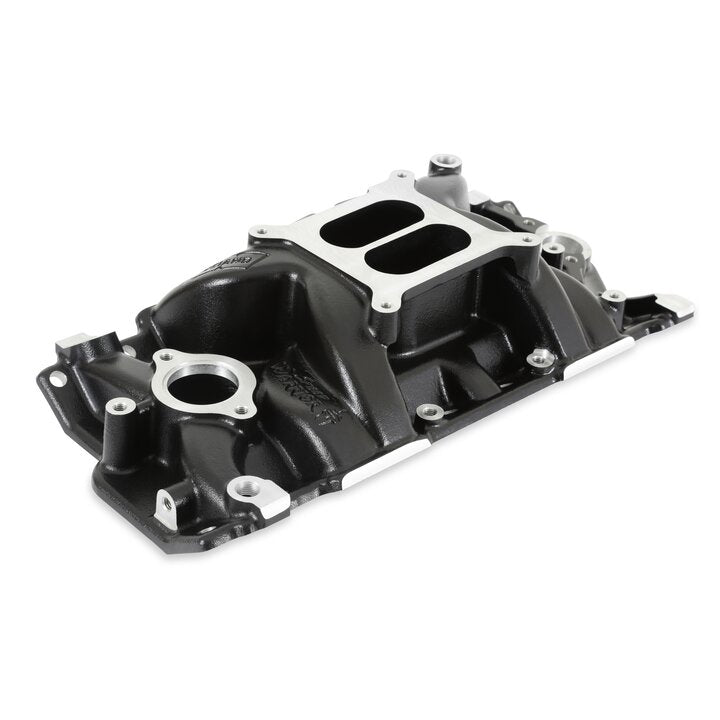

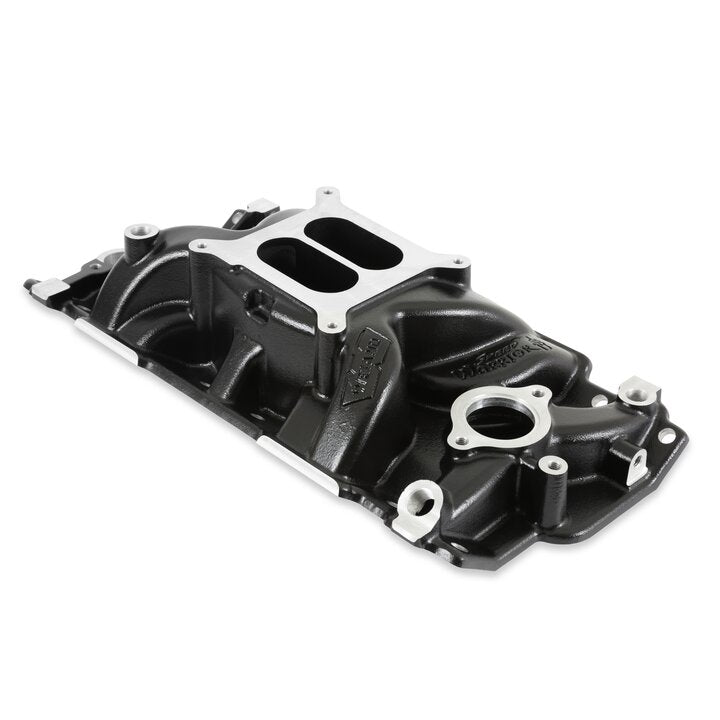

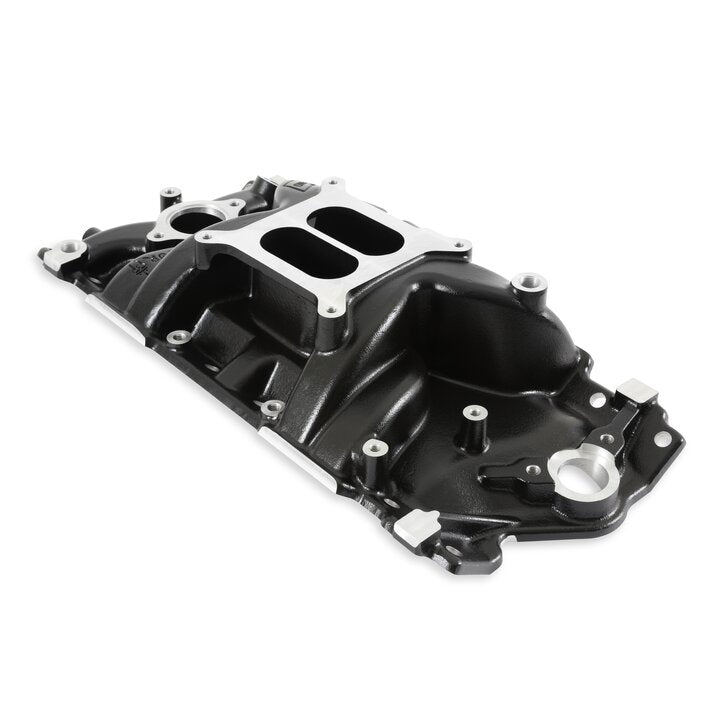

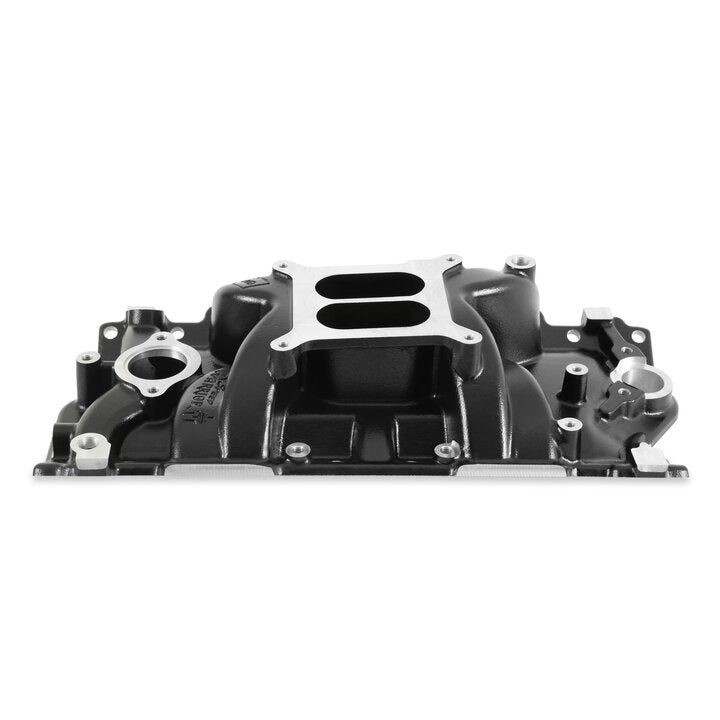

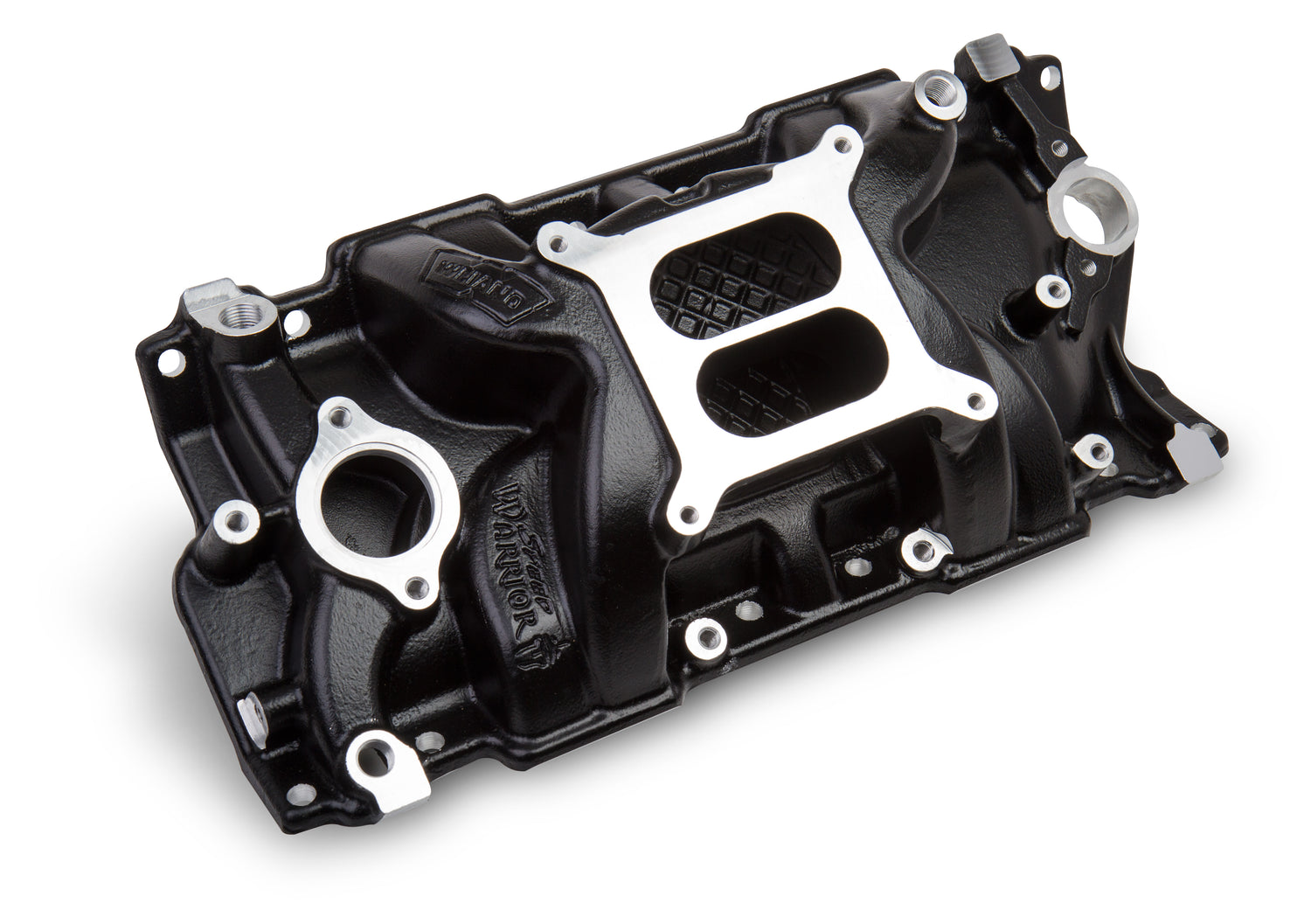

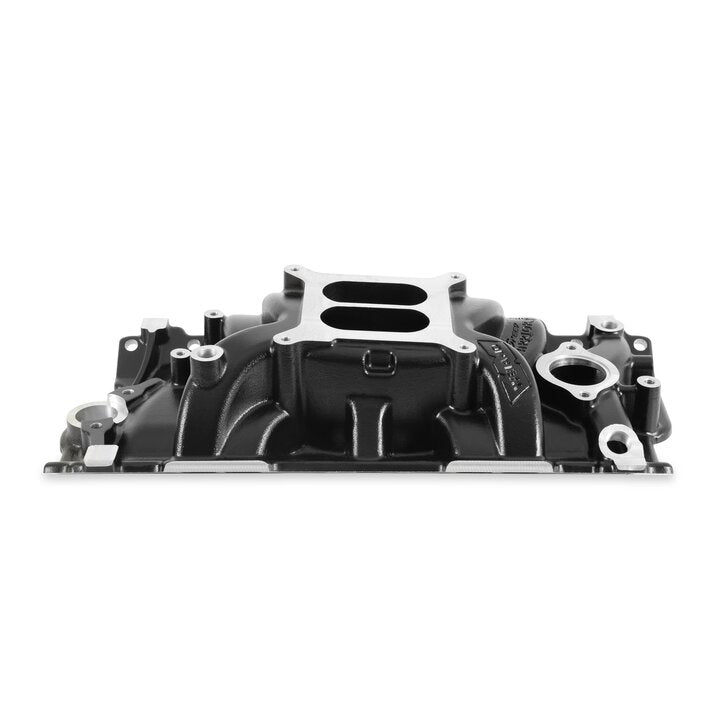

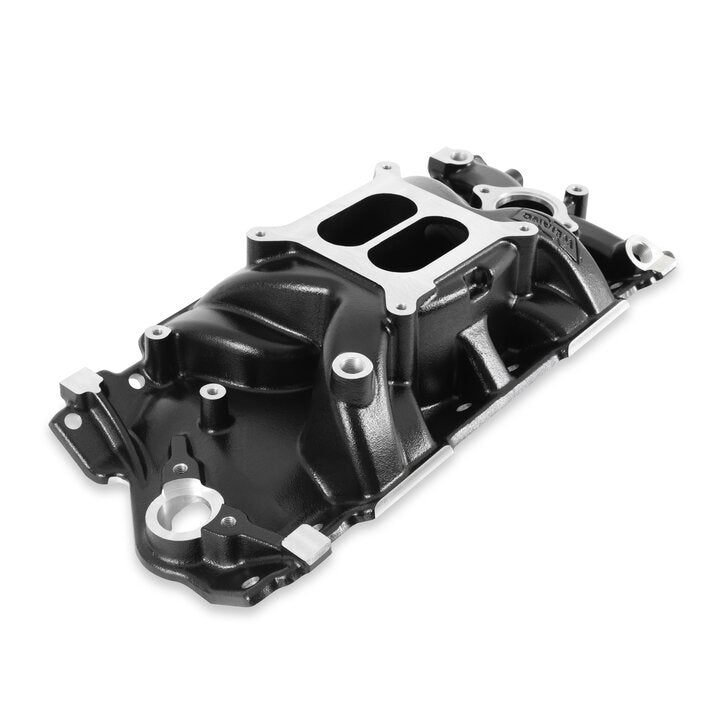

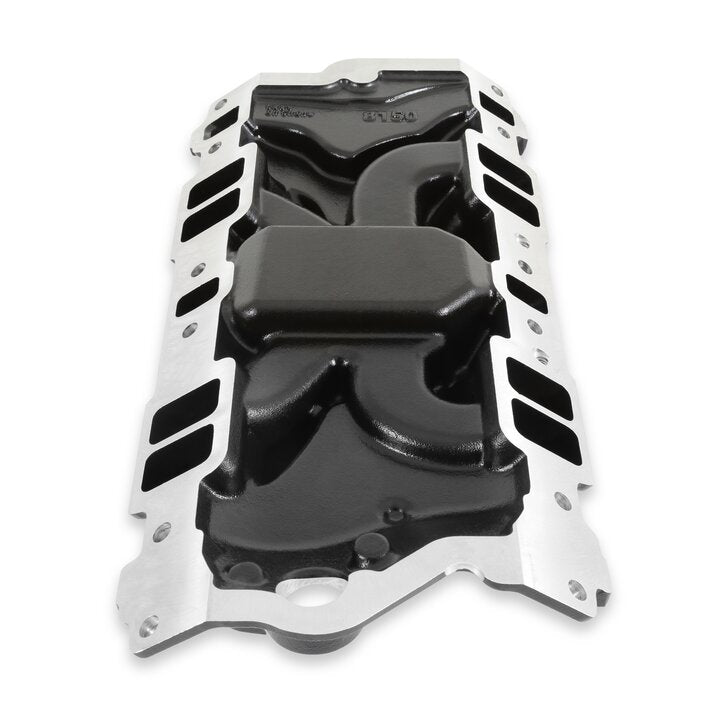

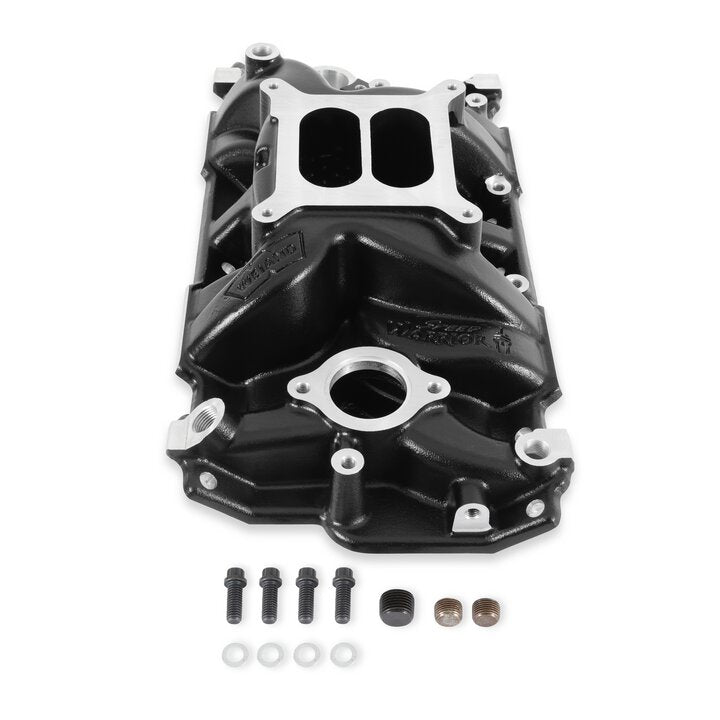

Weiand Speed Warrior Intake - Chevy Small Block V8 - Black Ceramic Coated - 8150BK
Speed Warrior™ Intake Manifold non/EGR 262ci-400ci, 1955-1986 Cylinder Heads; Black Ceramic Coated
Regular price
$788.40 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Weiand Speed Warrior Intake - Chevy Small Block V8 - Black Ceramic Coated - 8150BK is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Weiand Speed Warrior Intake - Chevy Small Block V8 - Black Ceramic ...
Regular price
$788.40 NZD
+ GST
Unit price
/
Unavailable
Description
Description
Speed Warrior™ Intake Manifold non/EGR 262ci-400ci, 1955-1986 Cylinder Heads; Black Ceramic Coated
Part Number: 8150BK
Weiand developed the first ever aluminum intake manifold in 1937. Thirty years later Weiand developed complete blower drives for the GMC 6–71 supercharger. Today, Weiand is still at the forefront of intake manifold and blower development as well as high flow water pumps. To make more power you have to get more air to your engine. Look to Weiand as your power source! The Weiand Speed Warrior features long, separated runners for bottom-end and mid-range power, plus a special runner design and larger plenum to flow the air needed for high-rpm horsepower. All of this usable power makes this intake perfect for your street and strip hot rod!
Features and Benefits
• Black ceramic coating provides an aggressive look to your engine compartment
• Square Bore Carburetor Flange
• Provides an easy to clean finish
• Precision CNC machining
• Exhaust Crossover for Improved Street Drivability (Standard Small Block Chevy Heads)
• High Rise/Dual Plane Design
• Black ceramic is heat and corrosion resistant for long life and durability
• Height: Front 4.19", Rear 5.27"
• Port Size: 1.92” height, 1.16" width
• Power band: 1500-6700 RPM
Utilizes late model alternator an A/C bracket mounting provisions. Has additional vacuum tap off of runner. Recommended intake manifold gasket - Mr Gasket #'s 5821 or 101G_x000D_ _x000D_ Plenum depth:_x000D_ From the carb flange to the bottom of the upper plenum is 2-3/16”._x000D_ To the bottom of the lower plenum is 4-1/16”.
Part Number: 8150BK
Weiand developed the first ever aluminum intake manifold in 1937. Thirty years later Weiand developed complete blower drives for the GMC 6–71 supercharger. Today, Weiand is still at the forefront of intake manifold and blower development as well as high flow water pumps. To make more power you have to get more air to your engine. Look to Weiand as your power source! The Weiand Speed Warrior features long, separated runners for bottom-end and mid-range power, plus a special runner design and larger plenum to flow the air needed for high-rpm horsepower. All of this usable power makes this intake perfect for your street and strip hot rod!
Features and Benefits
• Black ceramic coating provides an aggressive look to your engine compartment
• Square Bore Carburetor Flange
• Provides an easy to clean finish
• Precision CNC machining
• Exhaust Crossover for Improved Street Drivability (Standard Small Block Chevy Heads)
• High Rise/Dual Plane Design
• Black ceramic is heat and corrosion resistant for long life and durability
• Height: Front 4.19", Rear 5.27"
• Port Size: 1.92” height, 1.16" width
• Power band: 1500-6700 RPM
Utilizes late model alternator an A/C bracket mounting provisions. Has additional vacuum tap off of runner. Recommended intake manifold gasket - Mr Gasket #'s 5821 or 101G_x000D_ _x000D_ Plenum depth:_x000D_ From the carb flange to the bottom of the upper plenum is 2-3/16”._x000D_ To the bottom of the lower plenum is 4-1/16”.
Specifications
Specifications
-
Specifications
Basic Operating RPM Range 1500-6700 Brand Weiand Carburetor Flange 4150 Square Bore Carburetor Quantity 1 Carburetor Studs Included No Category Engine CNC Ported No Color Black Construction Cast Cylinder Head Port Shape Rectangle Deck Height 9.025 EGR Port No Emission Code 3 Engine Chevrolet Small Block Flange Style 4150 Square Bore Fuel Injectors Included No Fuel Rail(s) Included No Gasket Or Seal Included No Grade Type Performance Intake Port Gasket(s) Included No Material Aluminum Nitrous Bung(s) Included No part type Engine Intake Manifold Plenum Finish Black Ceramic Product Type Intake Manifold Removable Runners No Removable Top/Lid No Single Or Dual Plane Type Dual Sub Category Cylinder Block Components Throttle Body Bore Diameter 3.6 Throttle Body Gasket Included No Throttle Body Included No Vacuum Ports Yes Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day (1 Year with Warranty Registration) -
