Weiand | SKU:
8501WND

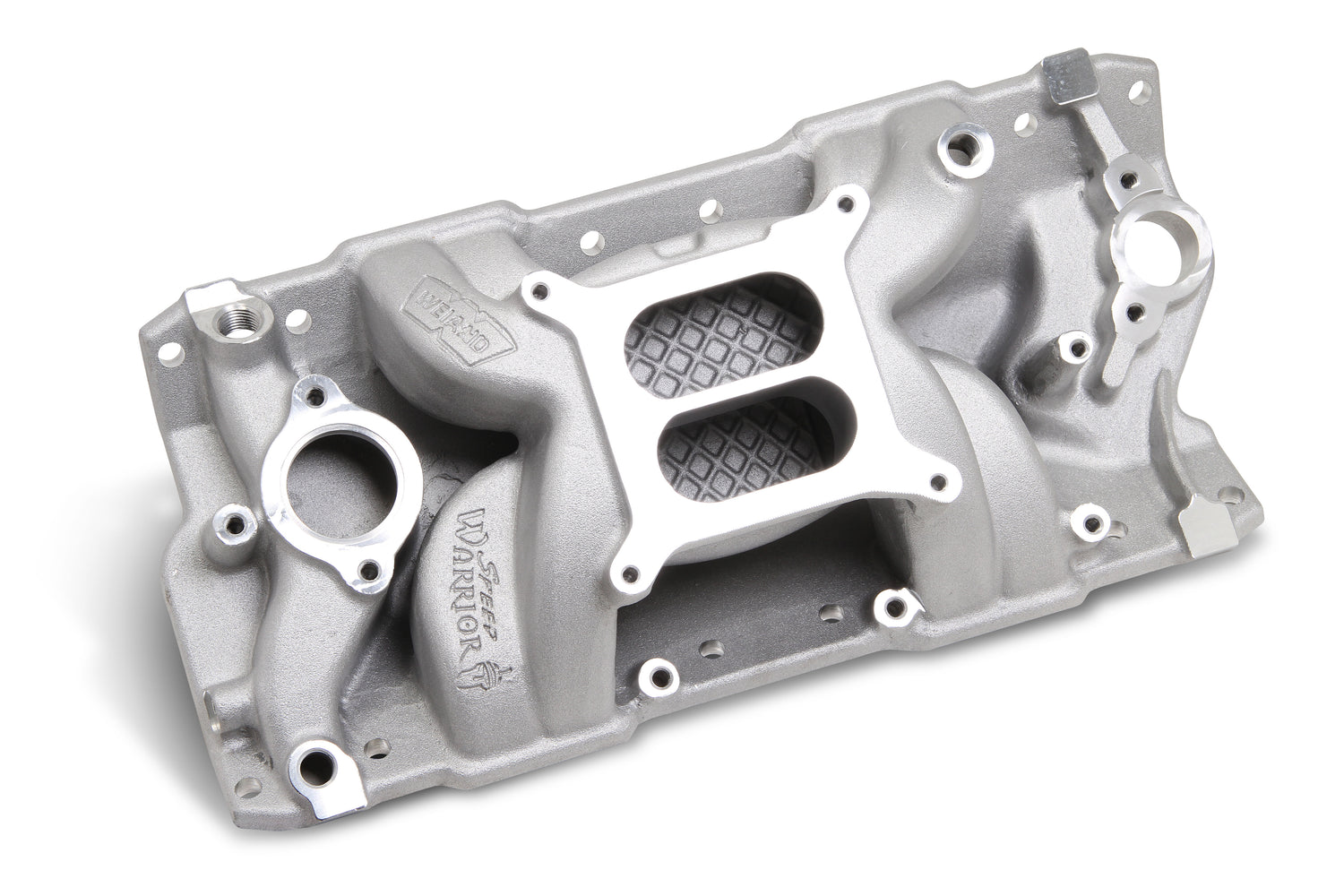

Weiand Speed Warrior Intake - Chevy Small Block V8 - 8501WND
Speed Warrior™ Intake Manifold non/EGR 262ci-400ci, 1955-1986 Cylinder Heads
Regular price
$890.00 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Weiand Speed Warrior Intake - Chevy Small Block V8 - 8501WND is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Speed Warrior™ Intake Manifold non/EGR 262ci-400ci, 1955-1986 Cylinder Heads
Part Number: 8501WND
Speed Warrior™ Intake Manifold non/EGR 262ci-400ci, 1955-1986 Cylinder Heads
Features and Benefits
• Precision CNC machining
• Permanent Mold Casting
• Height: Front 4.19", Rear 5.27"
• Isolated Runners To Reduce Intake Charge Heating And Promote Airflow Between The Hot Engine And The Intake Plenum
• Power band: 1500-6700 RPM
• Square Bore Carburetor Flange
• Port Size: 1.92” height, 1.16" width
• High Rise/Dual Plane Design
Utilizes late model alternator an A/C bracket mounting provisions. Has additional vacuum tap off of runner. Recommended intake manifold gasket - Mr Gasket #'s 5821 or 101G
Part Number: 8501WND
Speed Warrior™ Intake Manifold non/EGR 262ci-400ci, 1955-1986 Cylinder Heads
Features and Benefits
• Precision CNC machining
• Permanent Mold Casting
• Height: Front 4.19", Rear 5.27"
• Isolated Runners To Reduce Intake Charge Heating And Promote Airflow Between The Hot Engine And The Intake Plenum
• Power band: 1500-6700 RPM
• Square Bore Carburetor Flange
• Port Size: 1.92” height, 1.16" width
• High Rise/Dual Plane Design
Utilizes late model alternator an A/C bracket mounting provisions. Has additional vacuum tap off of runner. Recommended intake manifold gasket - Mr Gasket #'s 5821 or 101G
Specifications
Specifications
-
Specifications
Basic Operating RPM Range 1500-6700 Brand Weiand Carburetor Flange 4150 Square Bore Carburetor Quantity 1 Carburetor Studs Included No Category Engine CNC Ported No Color Natural Construction Cast Cylinder Head Port Shape Rectangle Deck Height 9.025 EGR Port No Emission Code 3 Engine Chevrolet Small Block Gen I Flange Style 4150 Square Bore Front Maximum Height 4.19 Fuel Injectors Included No Fuel Rail(s) Included No Fuel System Type Carb Gasket Or Seal Included No Grade Type Performance Intake Port Gasket(s) Included No Manifold Type High Rise Material Aluminum Nitrous Bung(s) Included No part type Engine Intake Manifold Plenum Finish Cast Product Type Intake Manifold Rear Maximum Height 5.27 Removable Runners No Removable Top/Lid No Single Or Dual Plane Type Dual Sub Category Cylinder Block Components Throttle Body Bore Diameter 3.6 Throttle Body Gasket Included No Throttle Body Included No Vacuum Ports Yes Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
