Weiand | SKU:
8150P

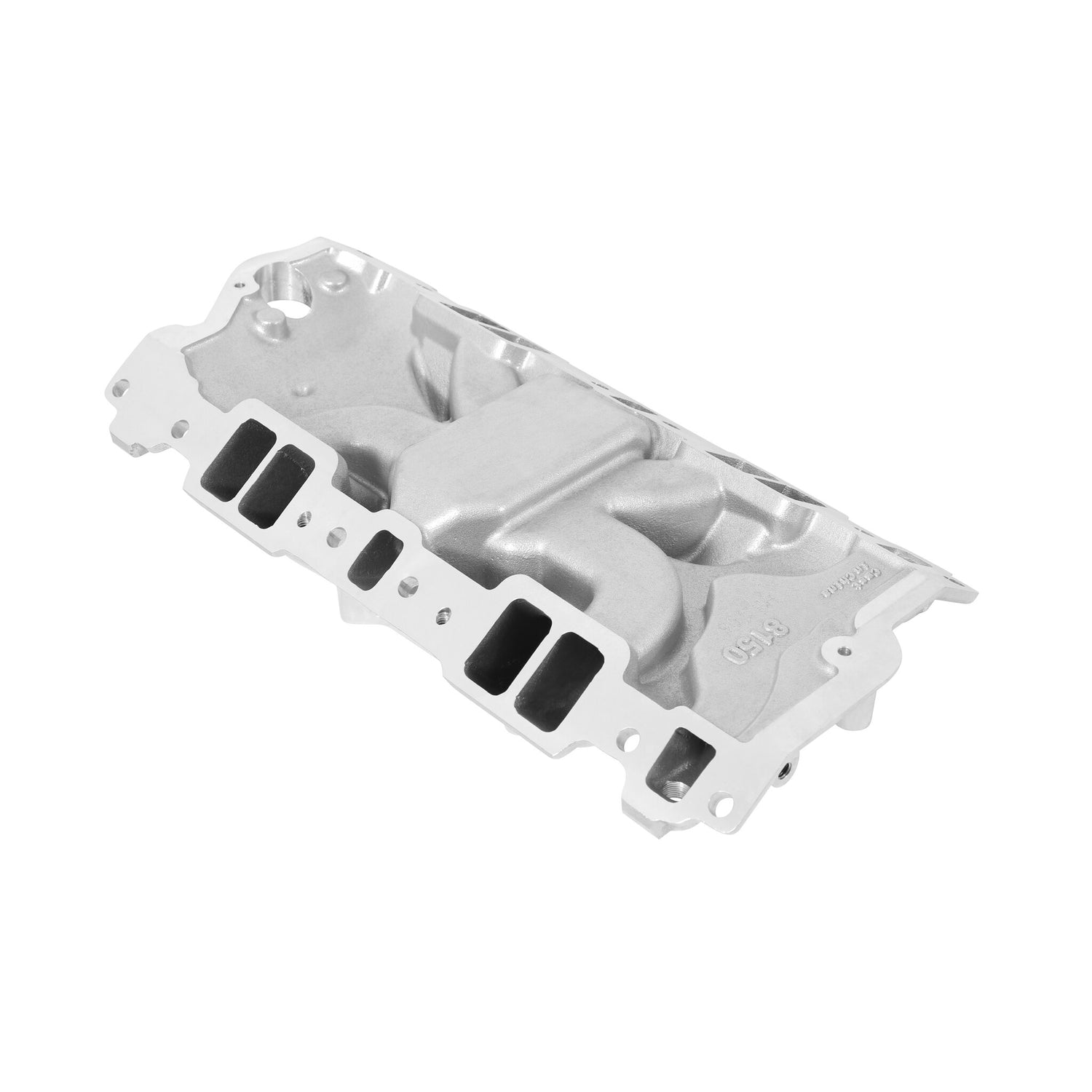

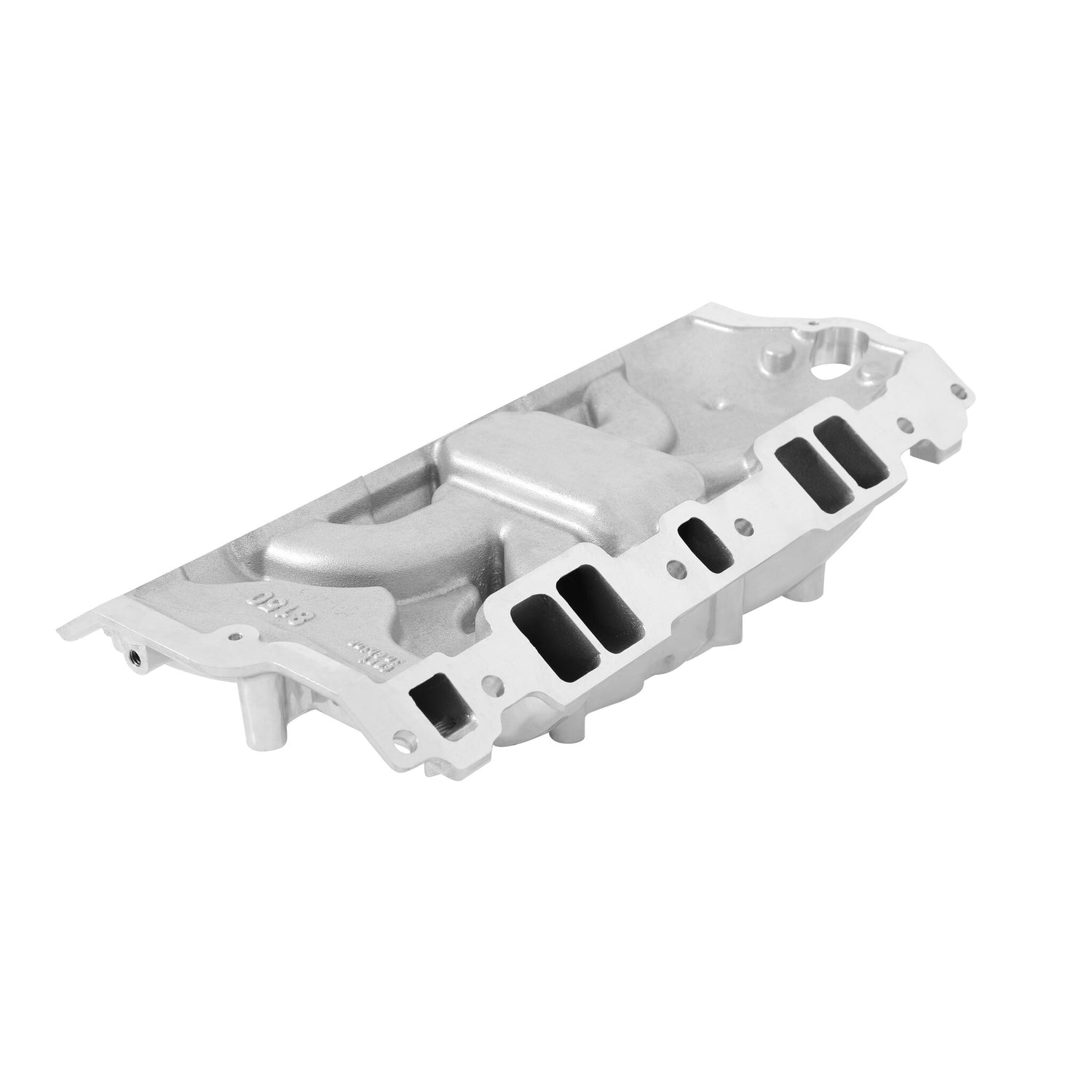

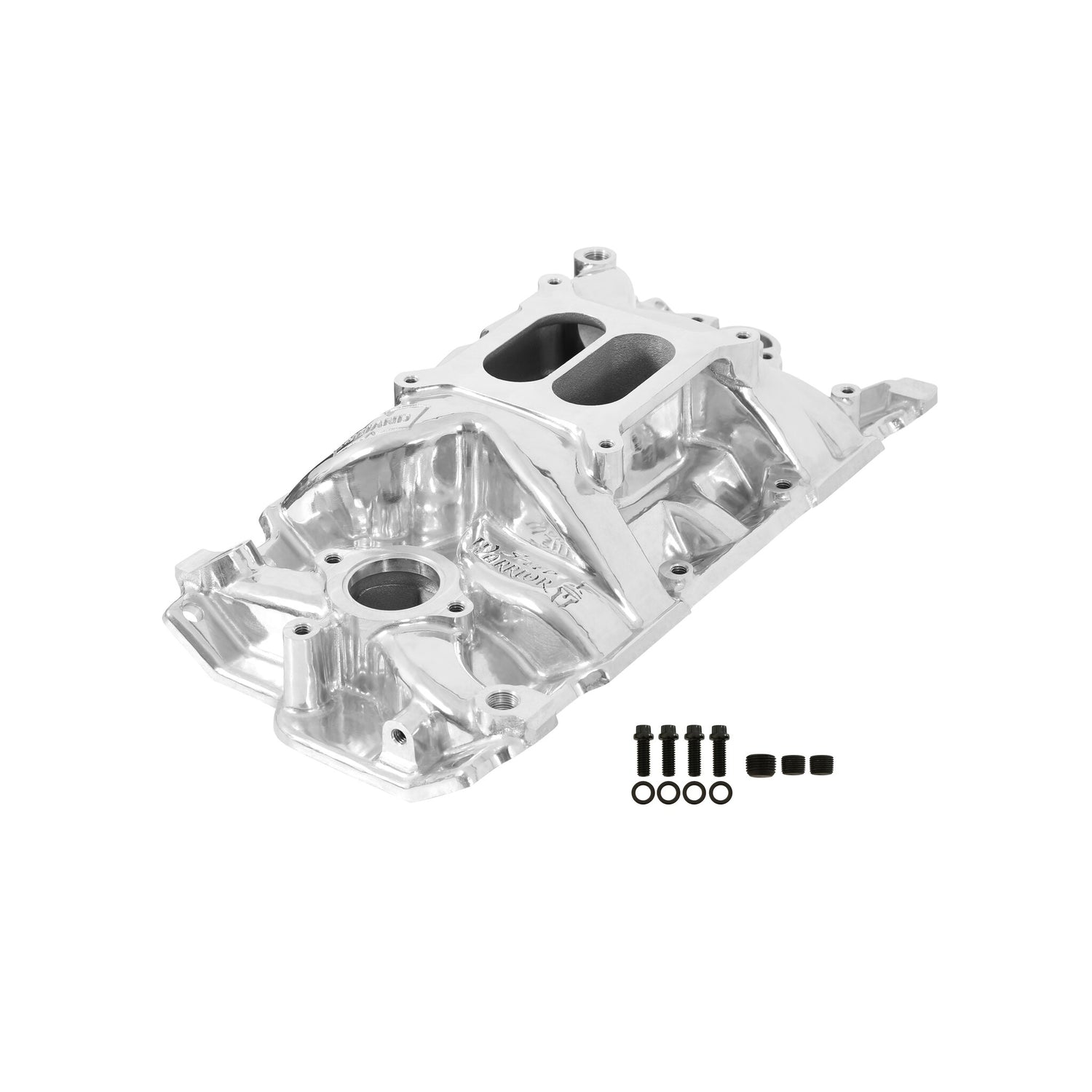

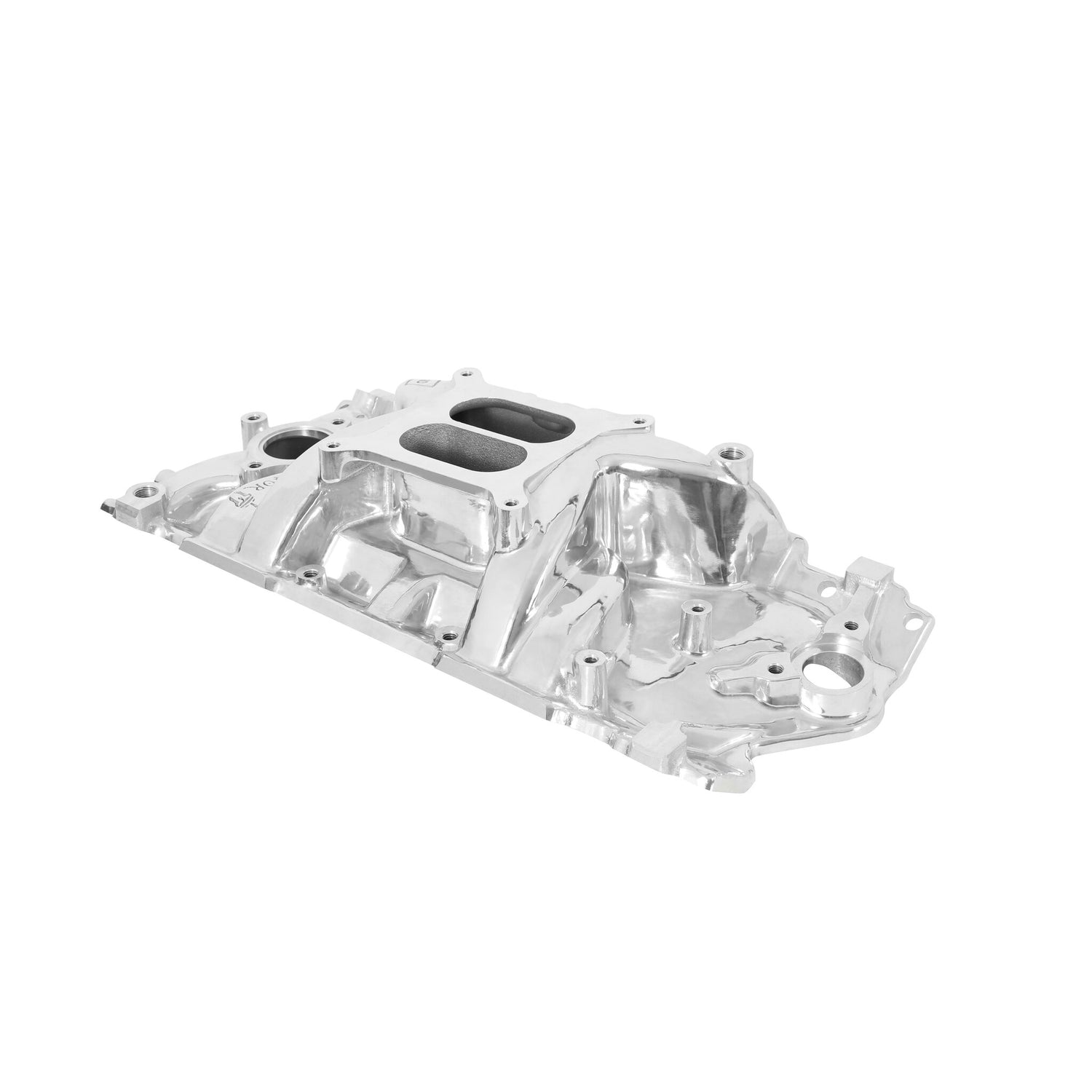

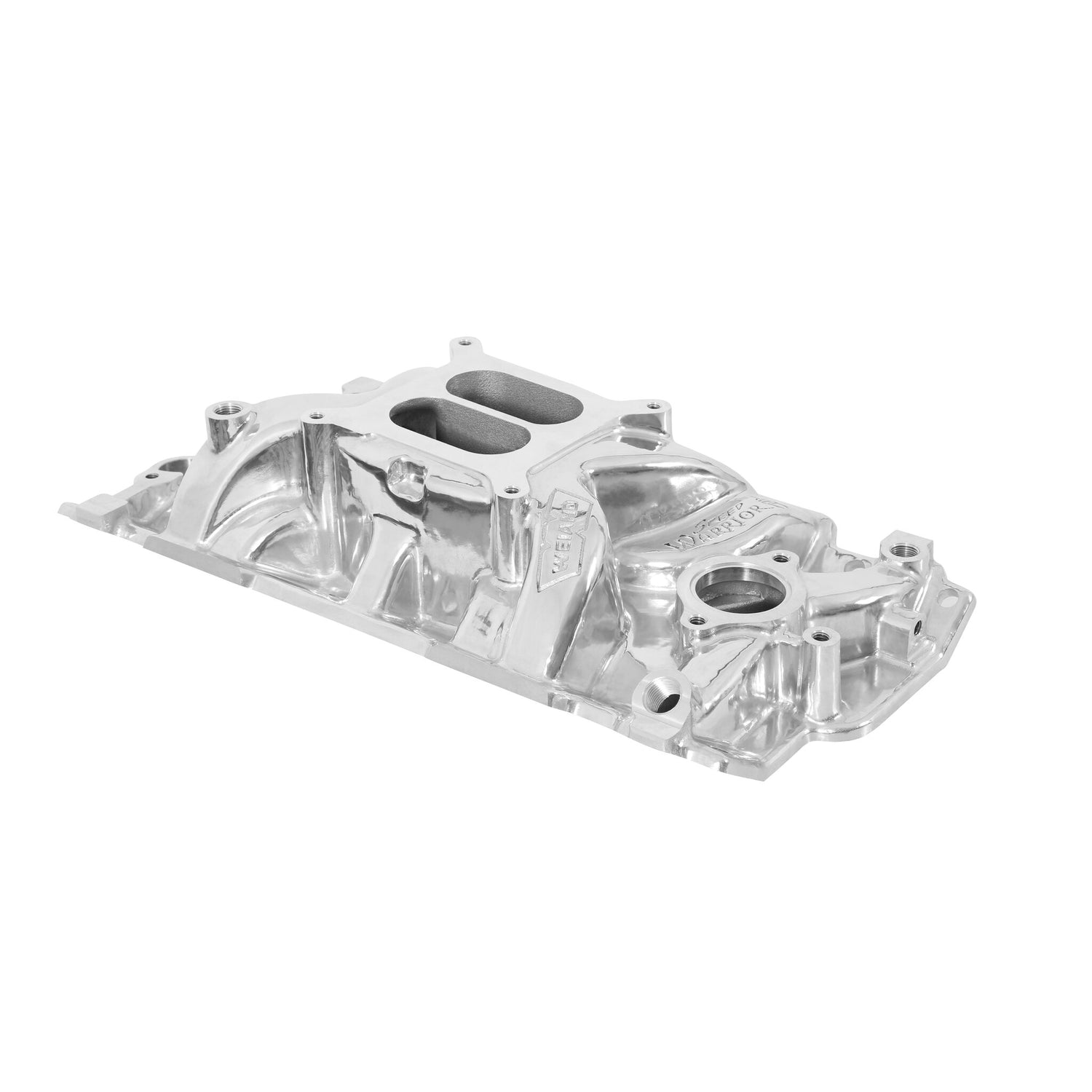

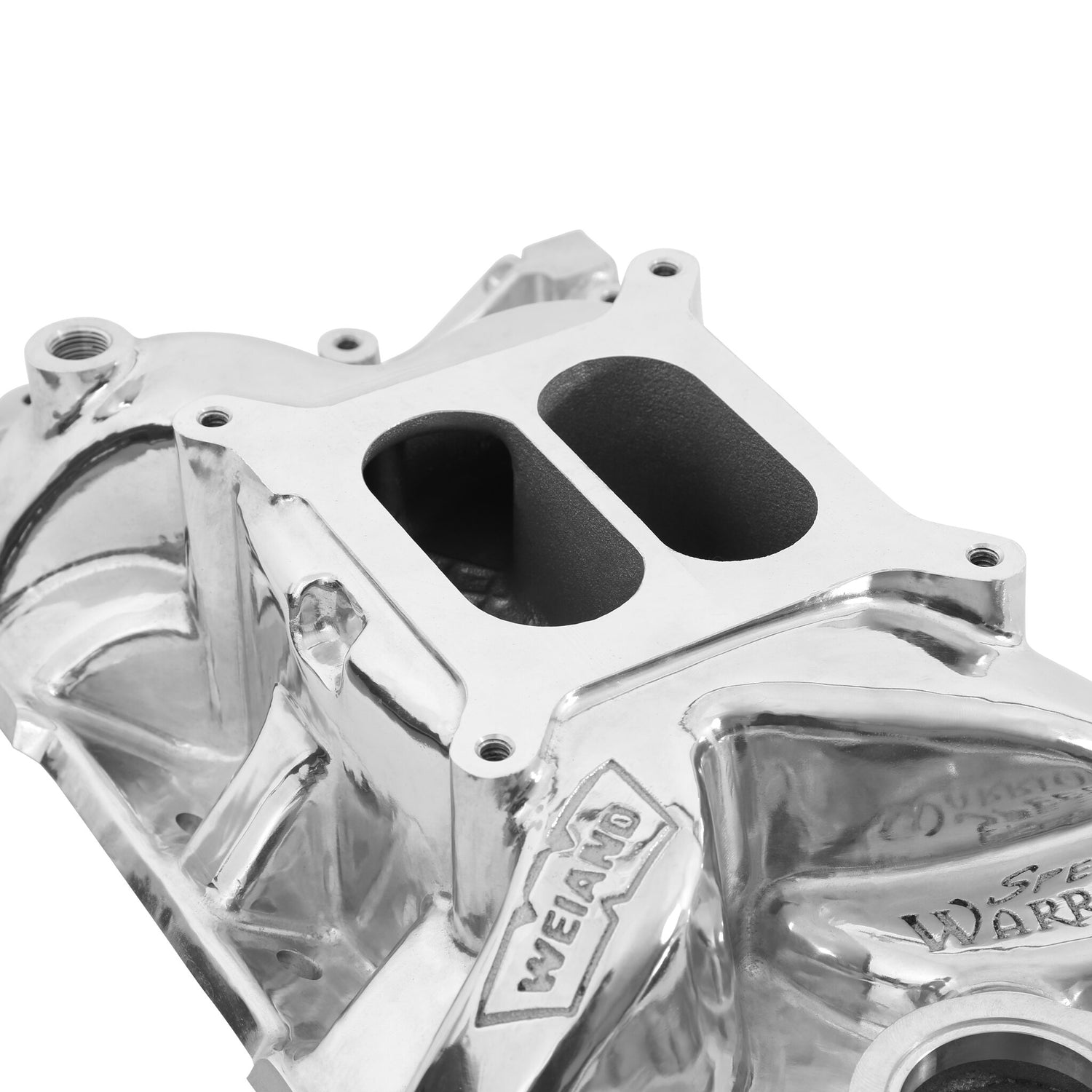

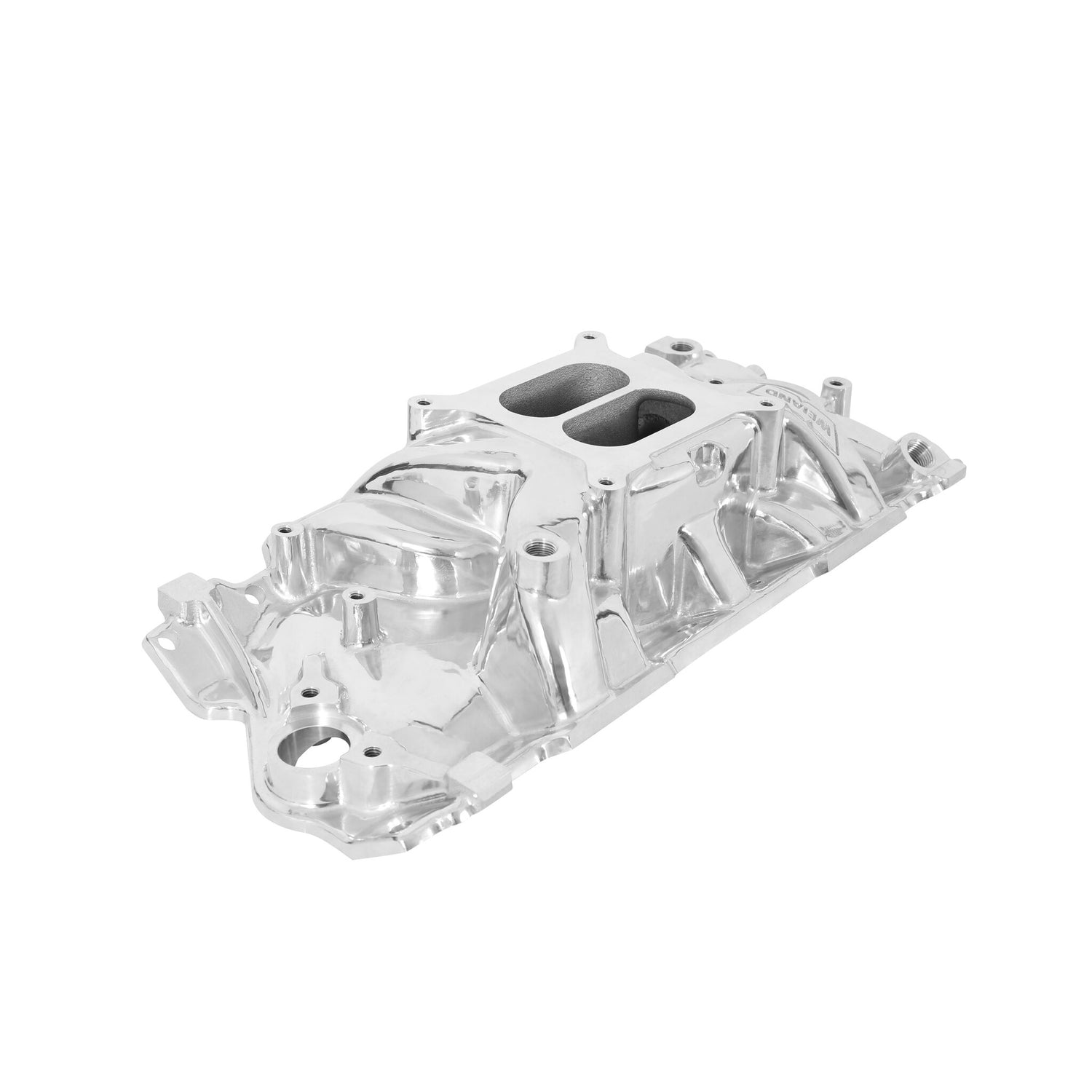

Weiand Speed Warrior Intake - Chevy Small Block V8 - 8150P
Speed Warrior™ Intake Manifold non/EGR 262ci-400ci, 1955-1986 Cylinder Heads - Polished finish
Regular price
$885.80 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Weiand Speed Warrior Intake - Chevy Small Block V8 - 8150P is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Speed Warrior™ Intake Manifold non/EGR 262ci-400ci, 1955-1986 Cylinder Heads - Polished finish
Part Number: 8150P
Speed Warrior™ Intake Manifold non/EGR 262ci-400ci, 1955-1986 Cylinder Heads - Polished finish
Features and Benefits
• Exhaust Crossover for Improved Street Drivability (Standard Small Block Chevy Heads)
• Square Bore Carburetor Flange
• Port Size: 1.92” height, 1.16" width
• Power band: 1500-6700 RPM
• High Rise/Dual Plane Design
• Height: Front 4.19", Rear 5.27"
• Precision CNC machining
• Hand polished finish
Utilizes late model alternator an A/C bracket mounting provisions. Has additional vacuum tap off of runner. Recommended intake manifold gasket - Mr Gasket #'s 5821 or 101G_x000D_ _x000D_ Plenum depth:_x000D_ From the carb flange to the bottom of the upper plenum is 2-3/16”._x000D_ To the bottom of the lower plenum is 4-1/16”.
Part Number: 8150P
Speed Warrior™ Intake Manifold non/EGR 262ci-400ci, 1955-1986 Cylinder Heads - Polished finish
Features and Benefits
• Exhaust Crossover for Improved Street Drivability (Standard Small Block Chevy Heads)
• Square Bore Carburetor Flange
• Port Size: 1.92” height, 1.16" width
• Power band: 1500-6700 RPM
• High Rise/Dual Plane Design
• Height: Front 4.19", Rear 5.27"
• Precision CNC machining
• Hand polished finish
Utilizes late model alternator an A/C bracket mounting provisions. Has additional vacuum tap off of runner. Recommended intake manifold gasket - Mr Gasket #'s 5821 or 101G_x000D_ _x000D_ Plenum depth:_x000D_ From the carb flange to the bottom of the upper plenum is 2-3/16”._x000D_ To the bottom of the lower plenum is 4-1/16”.
Specifications
Specifications
-
Specifications
Barrels 4 Basic Operating RPM Range 1500-6700 Brand Weiand Carburetor Flange 4150 Square Bore Carburetor Quantity 1 Carburetor Studs Included No Category Engine CNC Ported No Color Polished Construction Cast Cylinder Head Port Shape Rectangle Deck Height 9.025 EGR Port No Emission Code 3 Engine Chevrolet Small Block Gen I Flange Style 4150 Square Bore Front Maximum Height 4.19 Fuel Injectors Included No Fuel Rail(s) Included No Fuel System Type Carb Gasket Or Seal Included No Grade Type Performance Intake Port Gasket(s) Included No Manifold Type High Rise Material Aluminum Nitrous Bung(s) Included No part type Engine Intake Manifold Plenum Finish Polished Product Type Intake Manifold Rear Maximum Height 5.27 Removable Runners No Removable Top/Lid No Single Or Dual Plane Type Dual Sub Category Cylinder Block Components Throttle Body Bore Diameter 3.6 Throttle Body Gasket Included No Throttle Body Included No Vacuum Ports Yes Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
