Weiand | SKU: 5023WND

Weiand Oil Pan Kit- Fabricated - 5023WND

Name: Weiand Oil Pan Kit- Fabricated - 5023WND
Brand: Weiand
SKU: 5023WND
Price: 605.1 NZD
Availability: InStock

Oil Pan Kit 6QT- Gold Zinc Finish - 1962-1967 Chevy II equipped with a 1986/2002 Small Block Chevy (Drag Racing)

$605.10 NZD + GST

Shipping calculated at checkout.

⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.

Description

Oil Pan Kit 6QT- Gold Zinc Finish - 1962-1967 Chevy II equipped with a 1986/2002 Small Block Chevy (Drag Racing)

Part Number: 5023WND

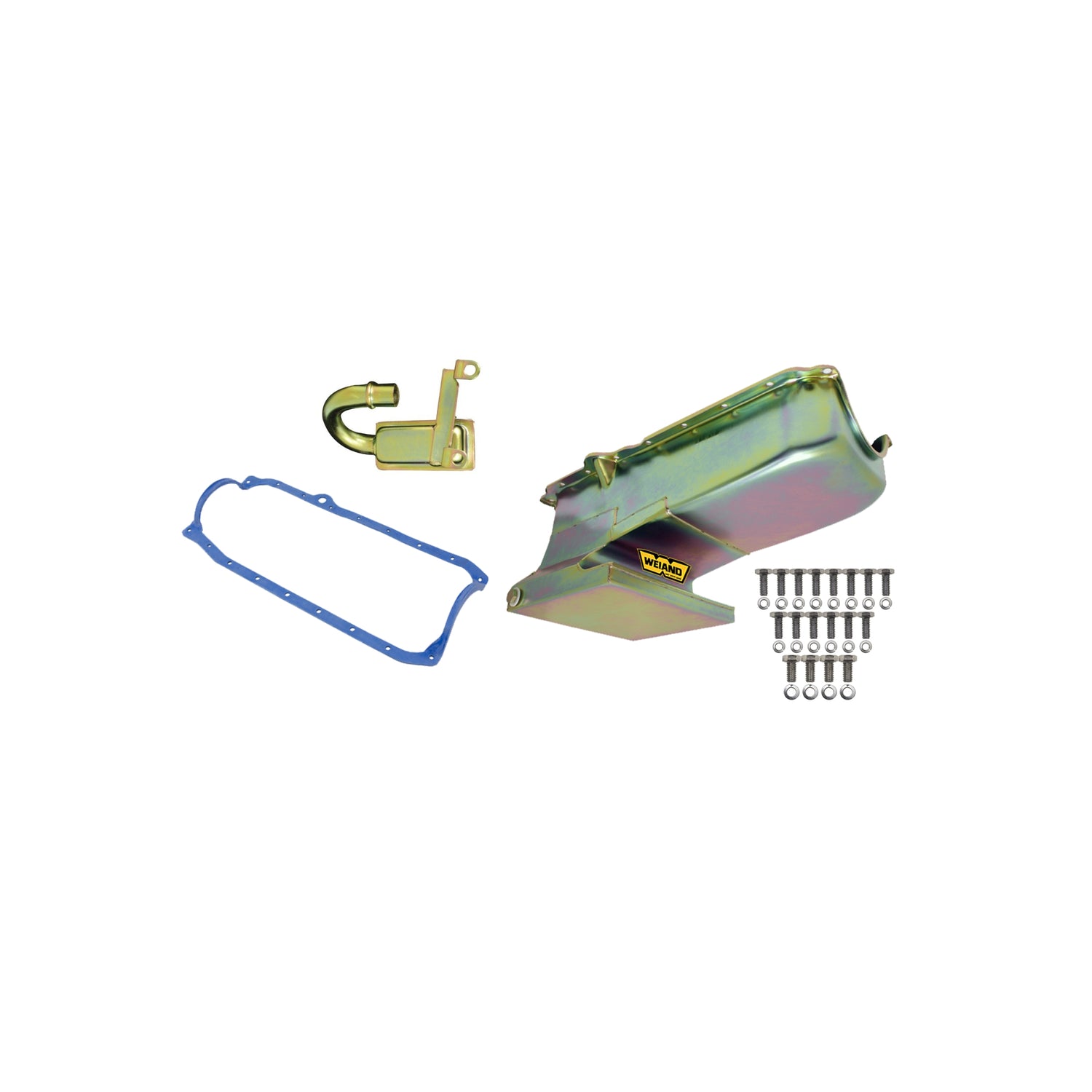

Save Time and aggravation with these money saving Fabricated oil pan kits! Each kit packages everything you need to get the job of changing an oil pan done. Components included in each kit include: • Application specific oil pan • Oil pan gasket • Oil pump pickup • Pan mounting bolt kit

Features and Benefits

• Trap door baffles keep oil under control during hard acceleration and cornering
• Increased oil capacity to keep high performance engine oil systems fed properly
• Pans available in additional finishes
• Kit includes Pan, Pump Pickup, Pan Gasket, and pan mounting bolt kit

The oil pan sump dimensions and capacity are listed on the SPECS tab.

Specifications

Application	1962-1967 Chevy II (w/ 86/02 SBC)
Brand	Weiand
Category	Engine
Crank Scraper Included	No
Dipstick Location	Passenger
Emission Code	5
Finish	Gold Zinc Finish
Material	Stamped Steel
Oil Pan Capacity	6.0 Quarts
Oil Pan Depth	8.125"
Oil Pan Sump Length	9.25
Oil Pan Sump Width	11.375
Oil Pan Type	Fabricated
part type	Engine Oil Pan
Product Type	Oil Pan Kit
Sub Category	Cylinder Block Components
Sump Location	Rear
Warranty	Manufacturer's Limited 90 Day Warranty
Windage Tray Included	No
