Weiand | SKU:
1994WND

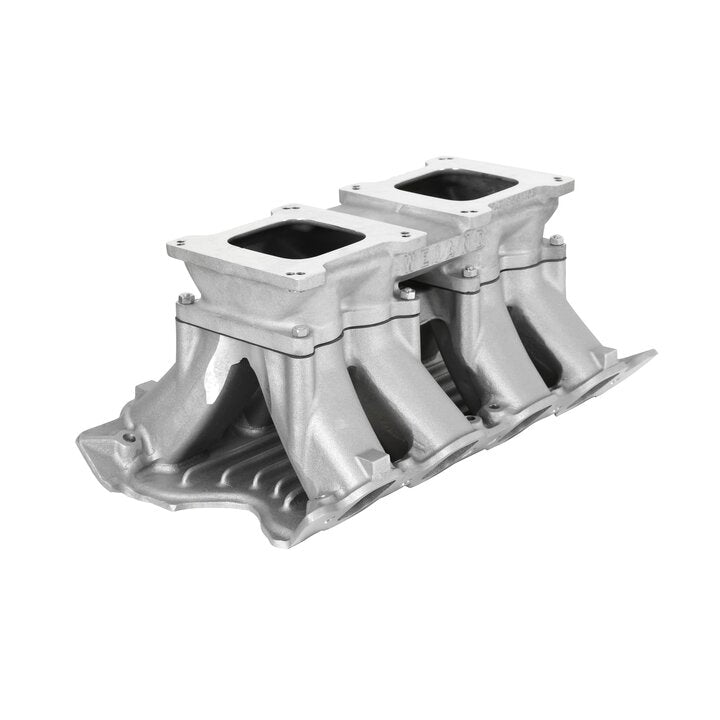

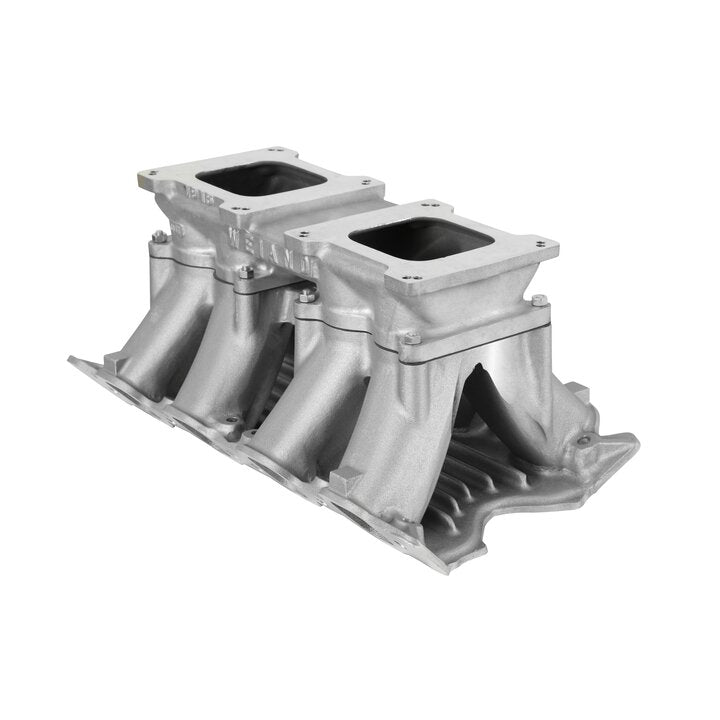

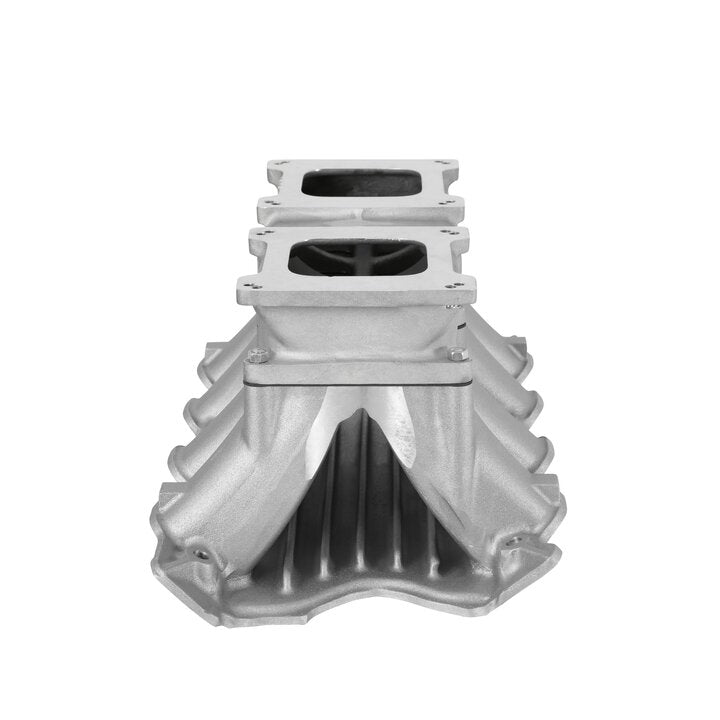

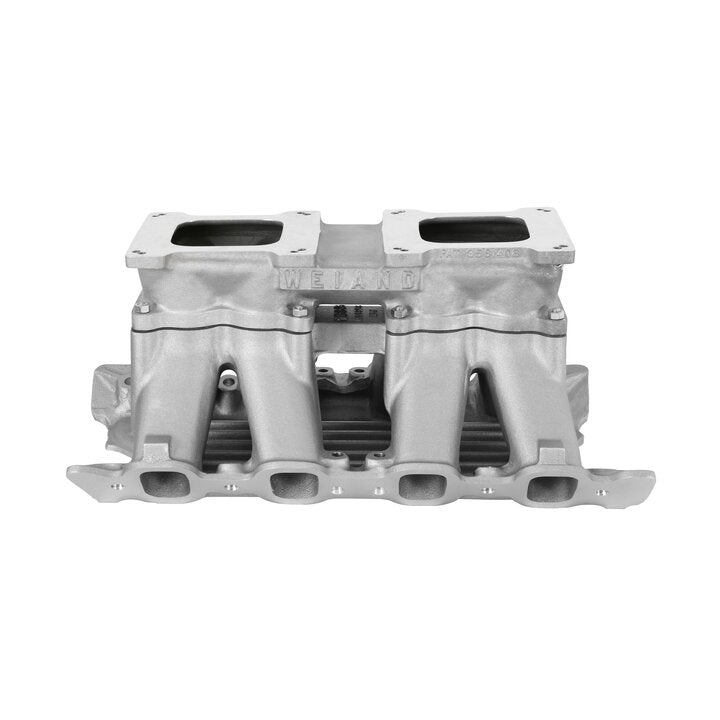

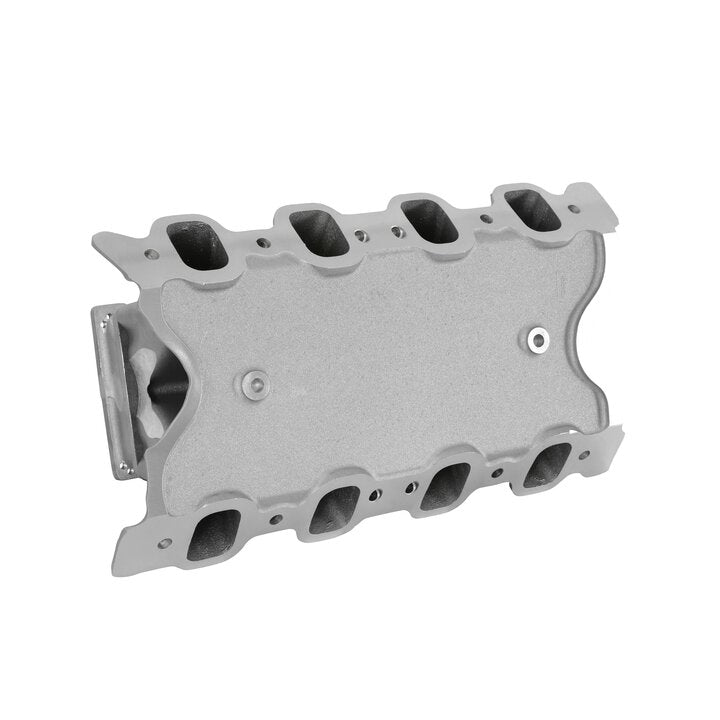

Weiand Hi-Ram Intake - Ford Small Block V8 - 1994WND
Hi-Ram Intake Manifold 351 Cleveland V8 4V Head
Sold out
Regular price
$1,793.40 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Weiand Hi-Ram Intake - Ford Small Block V8 - 1994WND is not in stock at Fast Lane Spares and will ship direct from supplier
Stock Status:
Description
Description
Hi-Ram Intake Manifold 351 Cleveland V8 4V Head
Part Number: 1994WND
HI-RAM SERIES: These tunnel ram manifolds are used primarily in drag racing, tractor/truck pulls and performance marine applications where high RPM performance is required. The effective RPM range is between 3,200 to 9,000 RPM. The WEIAND Hi-Ram, with it''s patented D-shaped port runners and large plenum chamber, provides optimum velocity of the air/fuel mixture to the cylinder head intake ports. For maximum performance in a naturally aspirated competition application, the WEIAND Hi-Ram is the manifold of choice! If you are not satisfied with a Nostalgia Series intake, we will gladly exchange it or refund your money. Our tech service representatives can be reached at 1-866-464-6553. We support all areas of the vintage, show, and nostalgia car hobby, and want to continue to produce these lower volume manifolds using the original tools. There is no need to search for that vintage intake at swap meets or on the internet when you can buy the real deal new from Weiand! Weiand Nostalgia series intakes are proudly cast and machined in the USA. This manifold is part of the Weiand Nostalgia Series of intake manifolds. Weiand Nostalgia Series intake manifolds are made using the original tooling, and may have minor appearance imperfections that do not affect the functionality of the part. These minor blemishes are a natural part of the casting process when using the original sand casting tooling.
Features and Benefits
• Power band: 3200-9000 RPM
• Carb Flange Center-To Center 8-3/4"
• Port Size: 2.36” height 1.63" width
• Height: Front 8.81", Rear 9.18"
• Large volume plenum
• 2 x 4 carburetor top
• Weiand Nostalgia Series Intake Manifold
• Square flange carburetor mounting
• Special D-shaped port runner design
Stock electronic ignition will NOT clear.
Part Number: 1994WND
HI-RAM SERIES: These tunnel ram manifolds are used primarily in drag racing, tractor/truck pulls and performance marine applications where high RPM performance is required. The effective RPM range is between 3,200 to 9,000 RPM. The WEIAND Hi-Ram, with it''s patented D-shaped port runners and large plenum chamber, provides optimum velocity of the air/fuel mixture to the cylinder head intake ports. For maximum performance in a naturally aspirated competition application, the WEIAND Hi-Ram is the manifold of choice! If you are not satisfied with a Nostalgia Series intake, we will gladly exchange it or refund your money. Our tech service representatives can be reached at 1-866-464-6553. We support all areas of the vintage, show, and nostalgia car hobby, and want to continue to produce these lower volume manifolds using the original tools. There is no need to search for that vintage intake at swap meets or on the internet when you can buy the real deal new from Weiand! Weiand Nostalgia series intakes are proudly cast and machined in the USA. This manifold is part of the Weiand Nostalgia Series of intake manifolds. Weiand Nostalgia Series intake manifolds are made using the original tooling, and may have minor appearance imperfections that do not affect the functionality of the part. These minor blemishes are a natural part of the casting process when using the original sand casting tooling.
Features and Benefits
• Power band: 3200-9000 RPM
• Carb Flange Center-To Center 8-3/4"
• Port Size: 2.36” height 1.63" width
• Height: Front 8.81", Rear 9.18"
• Large volume plenum
• 2 x 4 carburetor top
• Weiand Nostalgia Series Intake Manifold
• Square flange carburetor mounting
• Special D-shaped port runner design
Stock electronic ignition will NOT clear.
Specifications
Specifications
-
Specifications
Basic Operating RPM Range 3200-9000 Brand Weiand Carburetor Flange 4150 Square Bore Carburetor Quantity 2 Carburetor Studs Included No Category Air and Fuel Delivery CNC Ported No Color Natural Construction Cast Cylinder Head Port Shape Oval Deck Height 9.206 EGR Port No Emission Code 4 Engine Ford Cleveland Flange Style 4150 Square Bore Front Maximum Height 8.81 Fuel Injectors Included No Fuel Rail(s) Included No Fuel System Type Carb Gasket Or Seal Included No Grade Type Performance Intake Port Gasket(s) Included No Manifold Type Hi-Ram Material Aluminum Nitrous Bung(s) Included No Plenum Finish Cast Product Type Intake Manifold Rear Maximum Height 9.25 Removable Runners No Removable Top/Lid No Single Or Dual Plane Type Single Throttle Body Bore Diameter 3.6 Throttle Body Gasket Included No Throttle Body Included No Vacuum Ports Yes Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
