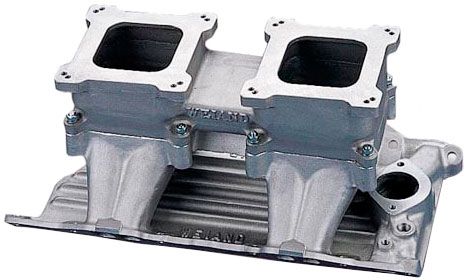

Weiand Weiand Chrysler 318 (Late) 340, 360 V8 Hi-Ram Intake Manifold (WM1995)

WM1995 - PRO HI-RAM SB CHRYSLER

Part Number: WM1995

HI-RAM SERIES: These tunnel ram manifolds are used primarily in drag racing, tractor/truck pulls and performance marine applications where high RPM performance is required. The effective RPM range is between 2,800 to 8,000 RPM. The WEIAND Hi-Ram, with it's patented D-shaped port runners and large plenum chamber, provides optimum velocity of the air/fuel mixture to the cylinder head intake ports. For maximum performance in a naturally aspirated competition application, the WEIAND Hi-Ram is the manifold of choice! This manifold is part of the Weiand Nostalgia Series of intake manifolds. Weiand Nostalgia Series intake manifolds are made using the original tooling, and may have minor appearance imperfections that do not affect the functionality of the part. These minor blemishes are a natural part of the casting process when using the original sand casting tooling. Weiand Nostalgia series intakes are proudly cast and machined in the USA.
2 x 4 carburetor top
Square flange carburettor mounting
2800-8000 RPM power band
Special D-shaped port runner design
Large volume plenum
Power band: 2800-8000 RPM
Height: Front 8.93", Rear 9.37"
Port Size: 2.08" height 1.08" width
Carb Flange Center-To Center 9"
Weiand Nostalgia Series Intake Manifold
