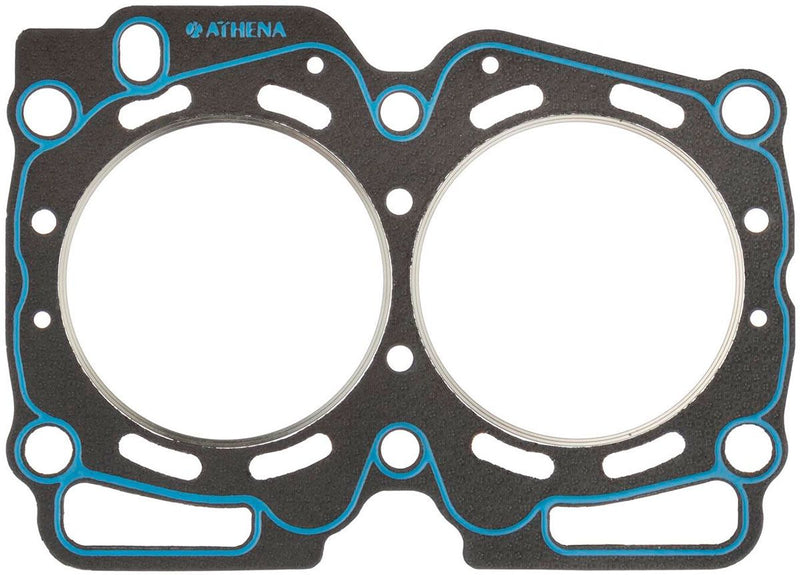

SCE Vulcan Cut-Ring Head Gasket (SCE-CR330076)

SCE Vulcan Cut-Ring Head Gasket (SCE-CR330076)

Suit Subaru EJ25 100.0mm Bore x 1.20mm Thick
SKU: SCE-CR330076
$256.30 - $256.30
$256.30
$256.30 - $256.30
$256.30
+ GST
Stock Status: ⌛ Available — ships from supplier, allow 2–10 days shipping

HEAD GASKET SUBARU WRX EJ25

Suit Subaru EJ25 100.0mm Bore x 1.20mm Thick

Part Number: SCE-CR330076

New SCE Vulcan Cut-Ring head gaskets are designed for use in engines with high static compression forced-induction or nitrous oxide where typical composite or MLS head gaskets may be prone to leak combustion pressure and-or coolant. The New Vulcan Cut-Ring head gaskets are a hybrid-design which combines sealing properties of 2 different headgasket material types; Composite - a pliable, perforated metal-core composite gasket body for effective sealing of coolant and oil, without additional sealants. The stainless steel,solid stainless cut-rings biteinto the cylinder head under clamp load to form a positive barrier against combustion pressure leaks, without additional machining.

Designed for use with high static compression or forced-induction engines whichare prone to combustion pressure leaks when using typical composite or MLS head gaskets. Especially 4-bolt-per-cylinder patterns such as BMW, Subaru, Toyota and Chevrolet LS series.

Composite: Pliable, perforated metal-core composite gasket body eliminates coolant and oil leaks. No sealant needed!

Stainless Steel: Solid stainless cut-ring 'bites' into the cylinder headforming a positive barrier against combustion pressure leaks. No machining required!

EngineSealing Capability Exceeds:

  • 16:1 Static Compression Ratio
  • 35 lbs. Supercharged or Turbocharged forced induction
  • 250 Shot of Nitrous Oxide
