Supersedes: TS-0503-1041
Part Number: TS-0555-1012

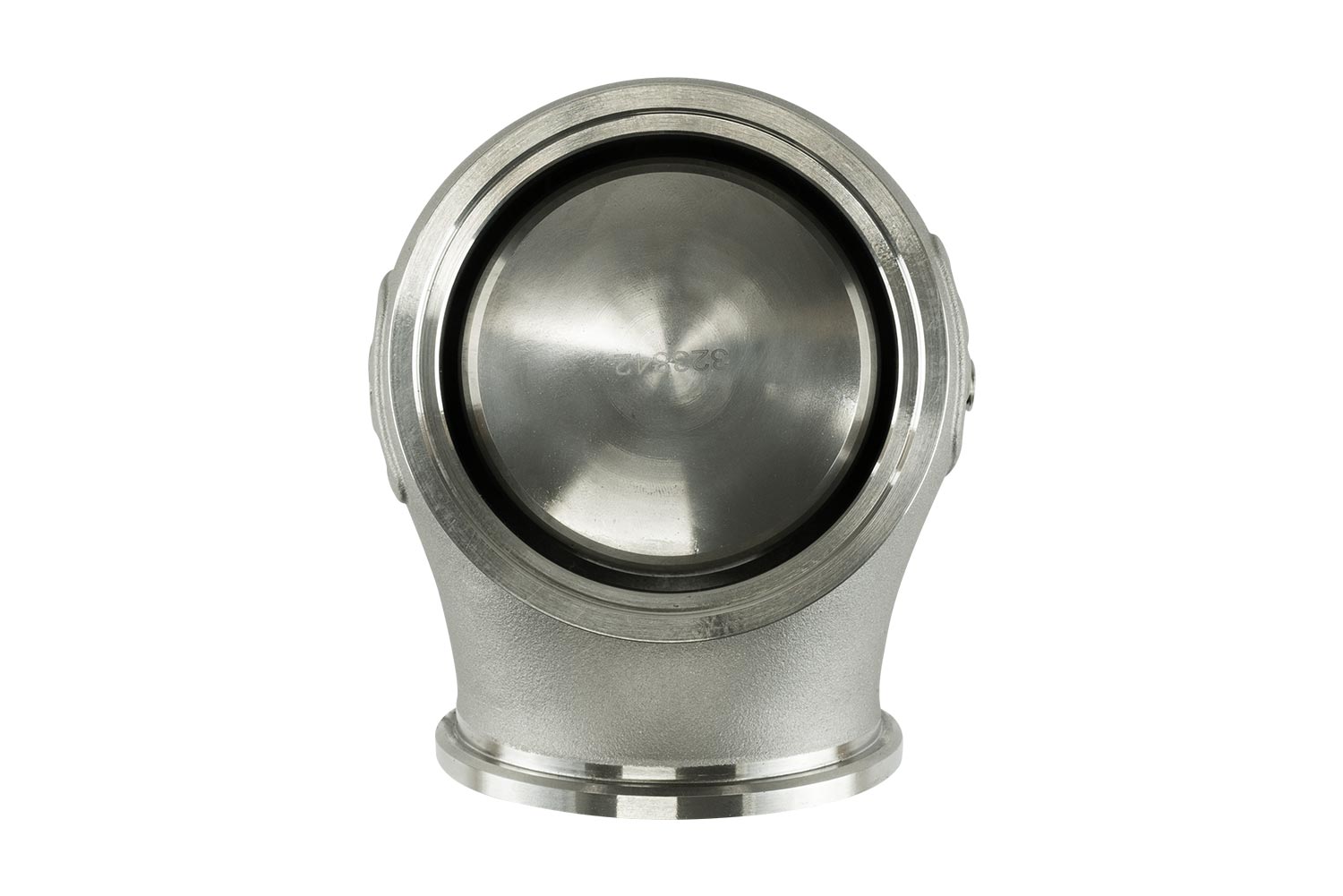

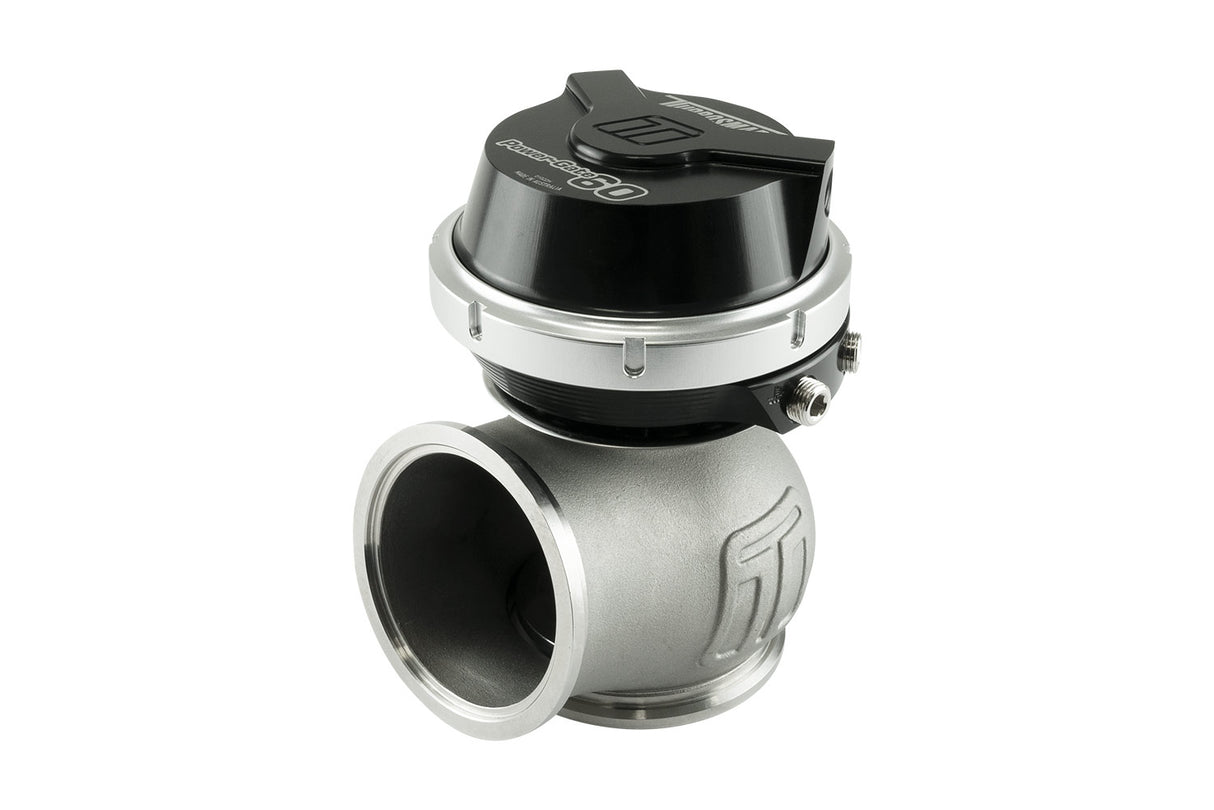

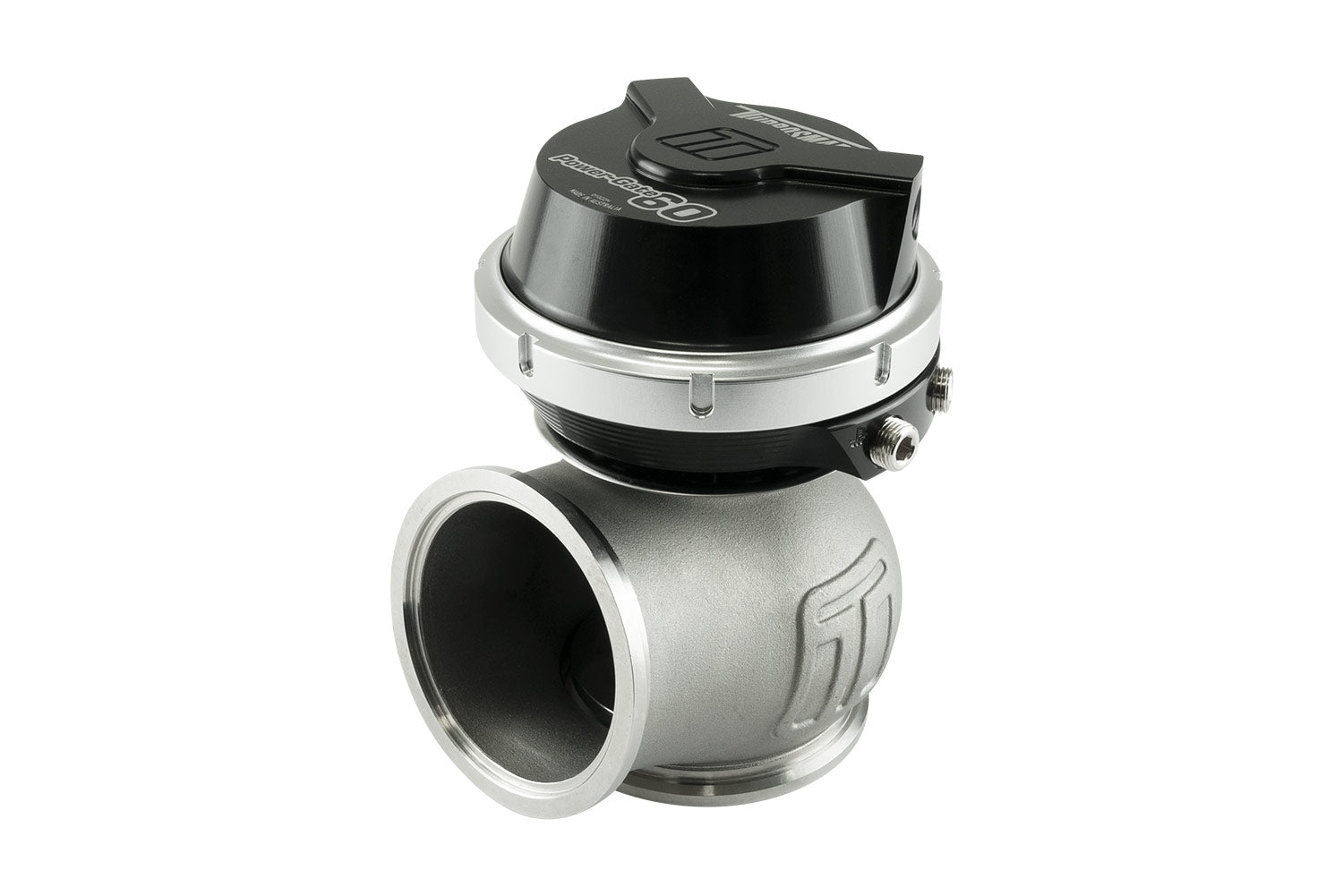

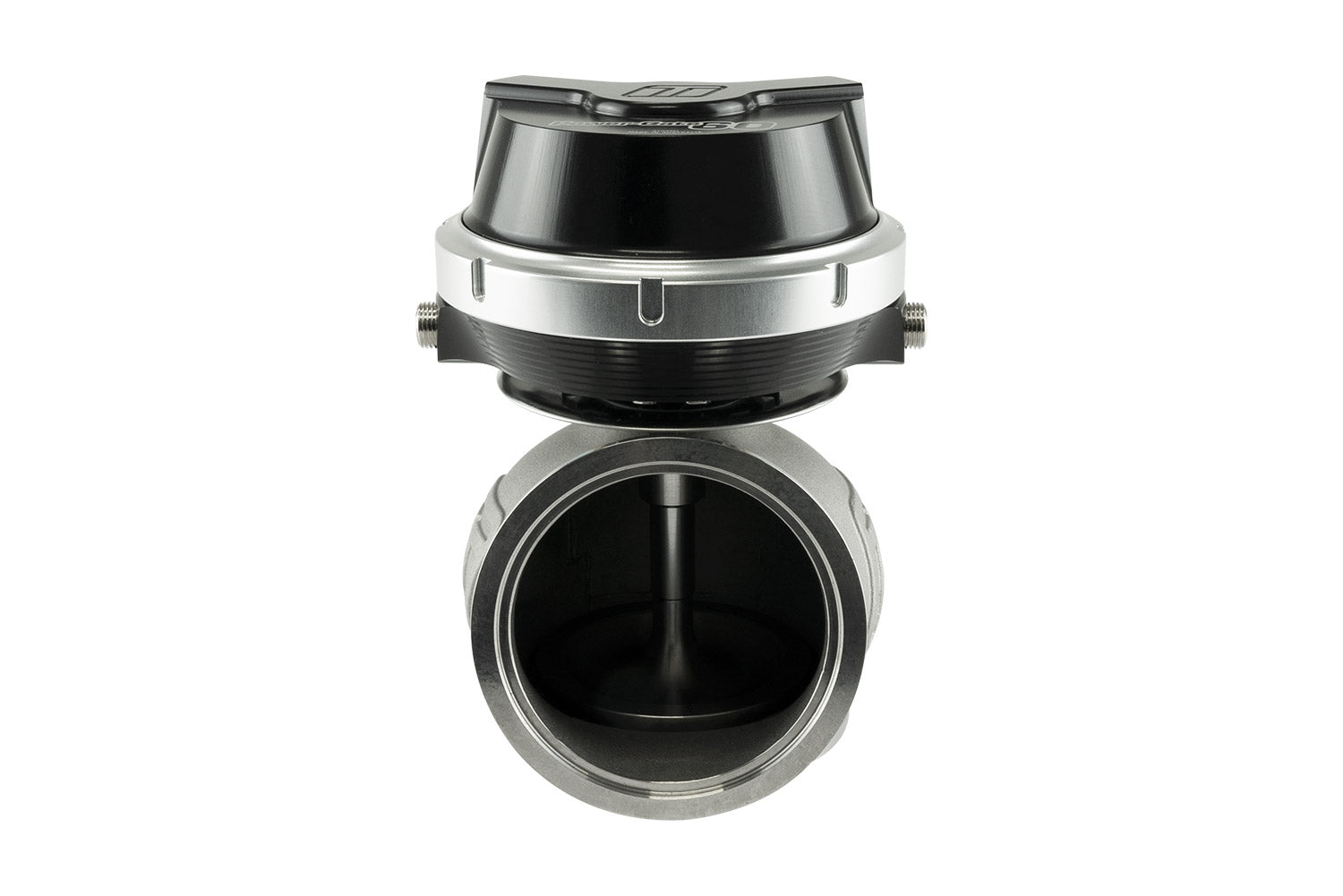

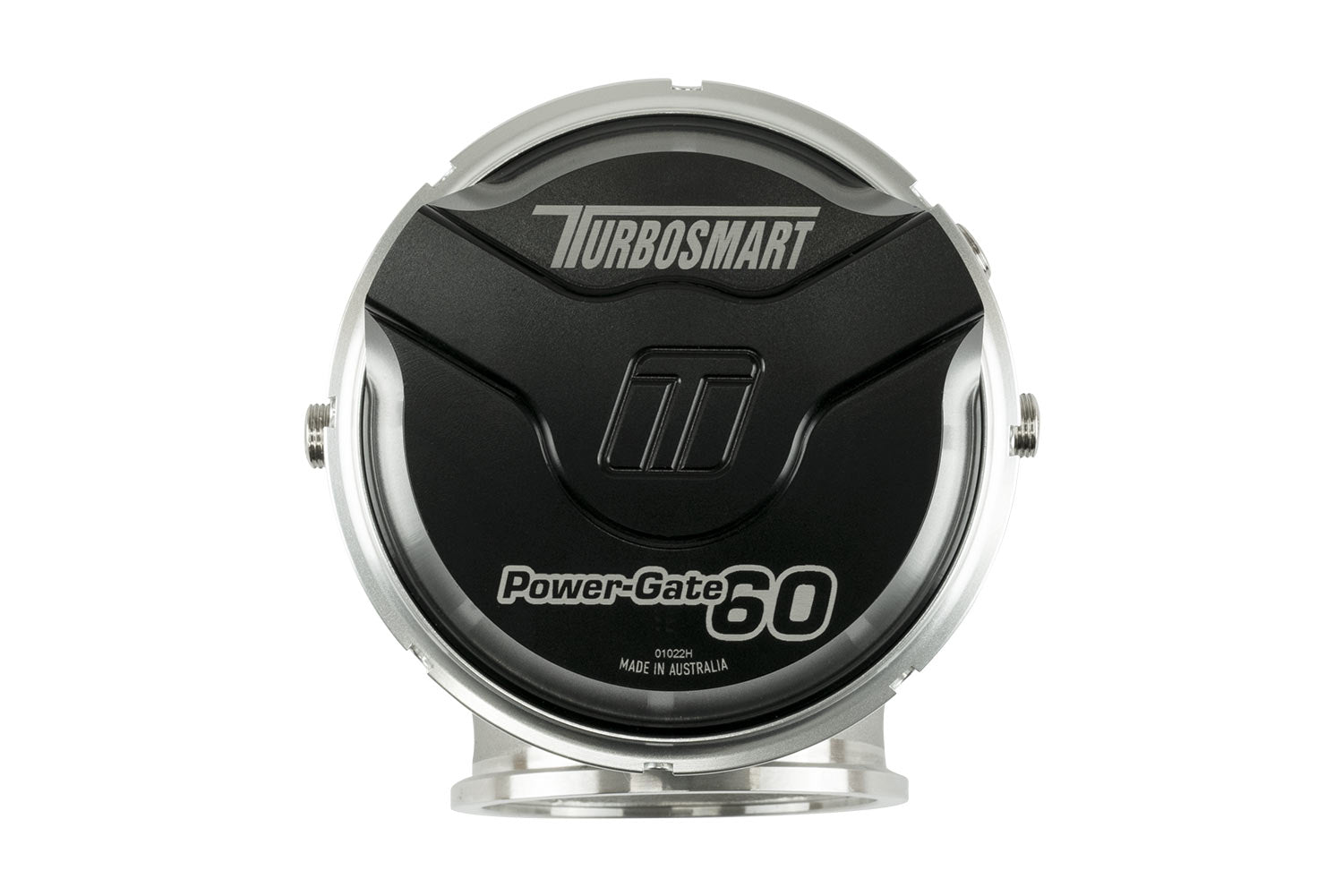

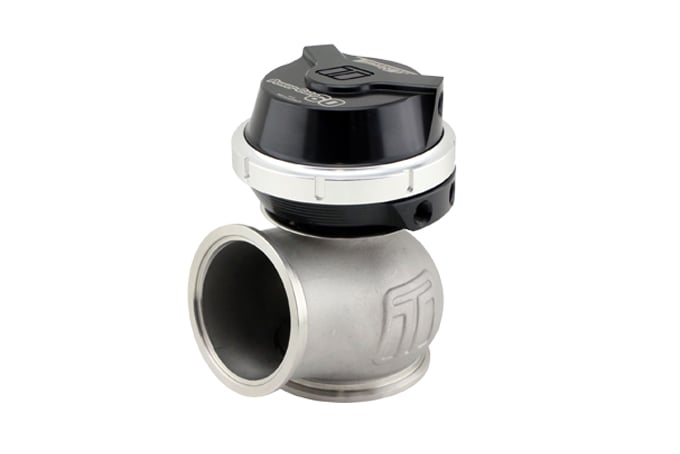

The GenV WG60 PowerGate60 External Wastegate is a Motorsport-proven, cost-effective 60mm external wastegate - The largest in the Turbosmart GenV range and the Highest Flowing 'Poppet Style' Wastegate in the World. The GenV provides extensive user configurability, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.
The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management, the GenV range has more features, options and performance than any other gate.
A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8ā³ NPT reference ports and are provided with the full range of available springs.
Available In
Black, Blue, Red, PurpleĀ andĀ SleeperĀ colours
Wastegate Position Sensor Optional Upgrade
Compressed Gas / Co2 Version
eWG (Electronically Actuated) Version
Features
Class Leading, Thermal PerformanceĀ
Class Leading, CFD & Bench Validated Flow Performance
Class Leading Fatigue Resistance
Optional Liquid Actuator Cooling
Optional Position Sensor Available Separately
Rotatable / Clock-able Actuator Housing
60mm V-Band Fitment
Nitronic 60 Valve Guide & High Temp 347 SS Body
17-7 PH Stainless Steel Springs
Strap Type V-band clamps

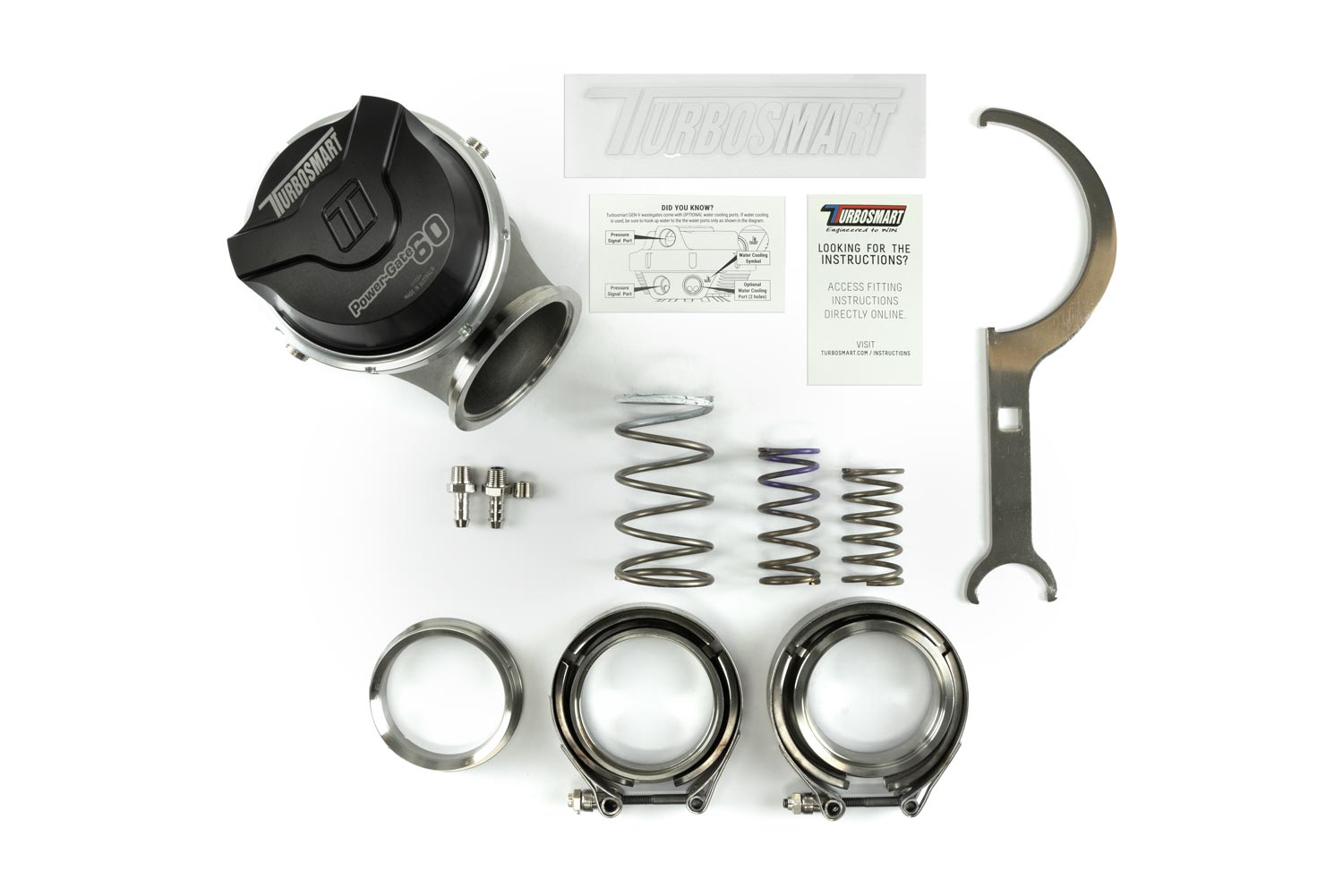

SUPPLIED WITH
GenV Wastegate unit
All Springs IncludedĀ
3,5,7,14psi (1 Inst. As per Description)
Locking Collar Tool
GenV SS316 Valve seat
Strap Type V-Bands
Inlet & Outlet Weld Flanges
Hose Tail & Blank Fitting Kit
Turbosmart Decal
