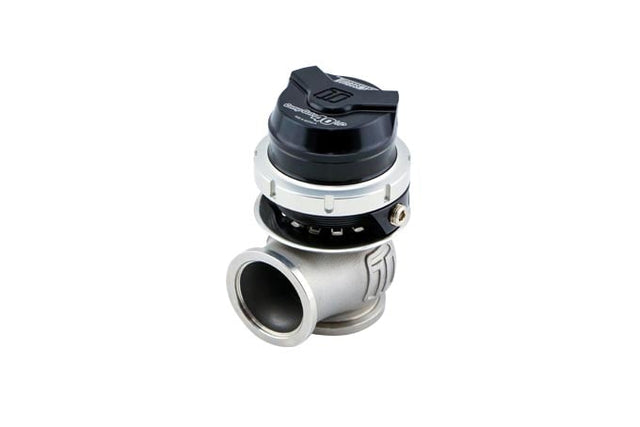

Turbosmart GenV WG40 CompGate40HP 35psi Black
Stock Status / Availability
This item may not be kept in physical stock, in some instances item will be shipped direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
Part Number: TS-0552-1312
The GenV CompGate40 HP external wastegate is a Motorsport-proven, cost-effective 40mm external wastegate with base spring pressure options of up to 50psi! Add to that some reference signal manipulation and you have a serious boost! The GenV provides extensive user configurability, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.
The GenV External Wastegate from Turbosmart was a ground-up rework of a classic and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management, the GenV range has more features, options and performance than any other gate.
A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision and 1/8″ NPT reference ports.
Available In
38mm GenV UltraGate38HP - TS-0551-1312
40mm GenV CompGate40HP - TS-0552-1312
45mm GenV Hyperflow45HP - TS-0553-1312
Features
HP Actuator - Up to 50psi Base Pressure
Class Leading Thermal Performance
Class Leading CFD & Bench Validated Flow Performance
Class Leading Fatigue Resistance
Optional Actuator Liquid Cooling
Rotatable / Clockable Actuator Housing
Nitronic 60 Valve Guide & High Temp 347 SS Body
17-7 PH Stainless Steel Springs
Strap Type V-band clamps
Locking Collar Tool
