Supersedes: TS-0501-1141
Part Number: TS-0551-1012

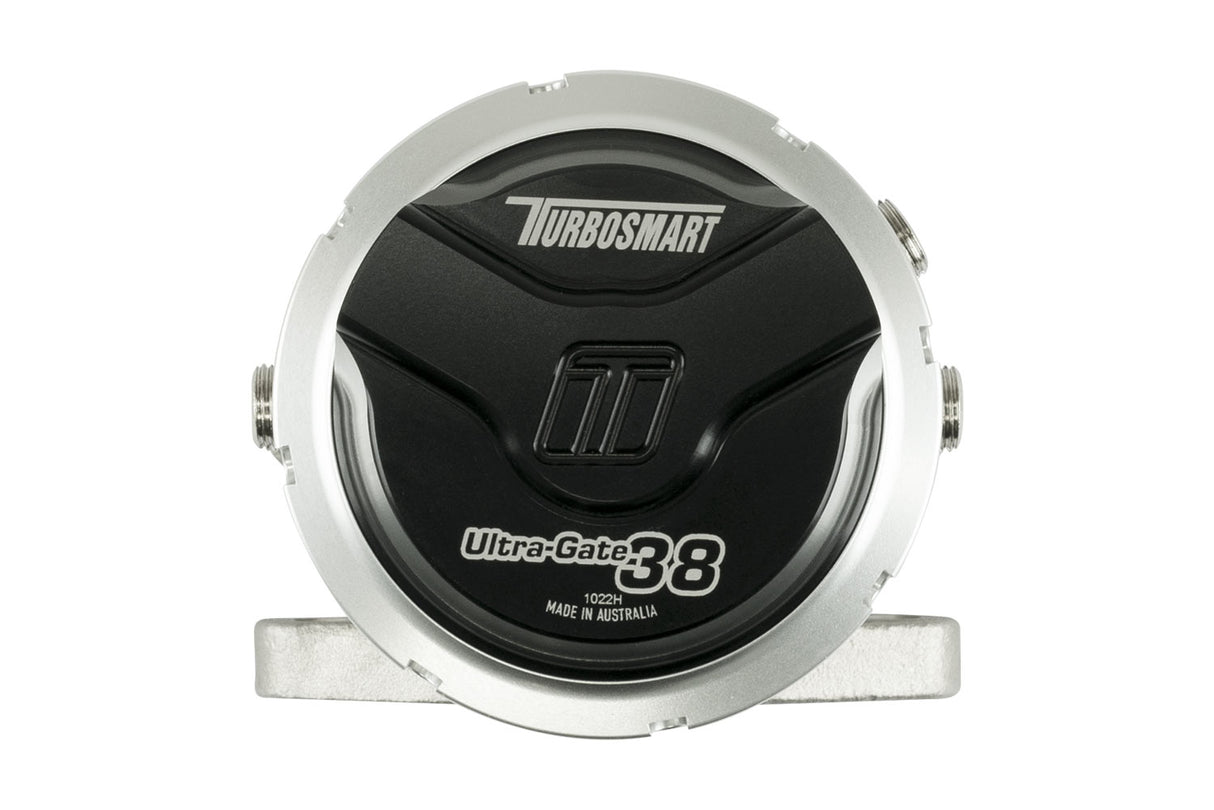

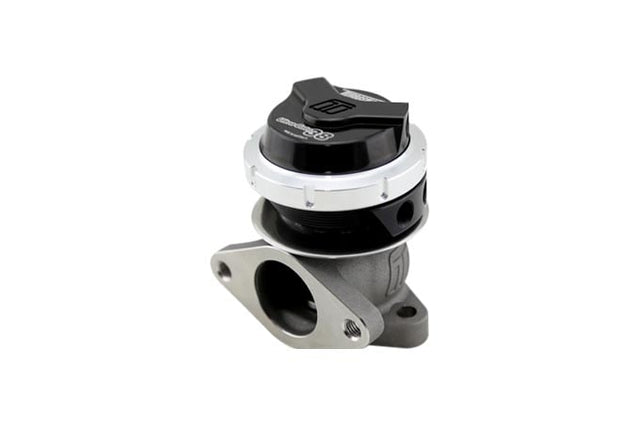

The GenV WG38 UltraGate38 External Wastegate is a Motorsport-proven, cost-effective external wastegate.
The Turbosmart GenV range is the Highest Flowing Wastegate range in the World.
The GenV provides extensive user configuration, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.
The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management. The GenV Range has more features, options and performance than any other gate.
A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.
Available In
Black, Blue, Red, Purple and Sleeper Colours
HP High Pressure Version - Black Only
Features
Traditional 3 Bolt Flange & Orientation
Optional Position Sensor Upgrade
Class Leading Thermal Performance
Class Leading CFD & Bench Validated Flow Performance
Class Leading Fatigue Resistance
Nitronic 60 Valve Guide & High Temp 347 SS Body
17/7 PH Stainless Steel Springs
Liquid Actuator Cooling Option
SUPPLIED WITH _x000D_
GenV Wastegate Unit _x000D_
All Springs Included _x000D_
(3,5,7,14 (1 Inst. As per Desciption) _x000D_
GenV SS316 Valve Seat _x000D_
GenV UltraGate38 SS Gaskets _x000D_
Hose Tail & Blank Fitting Kit _x000D_
Turbosmart Decal _x000D_
DOES NOT INCLUDE WELD FLANGES _x000D_
