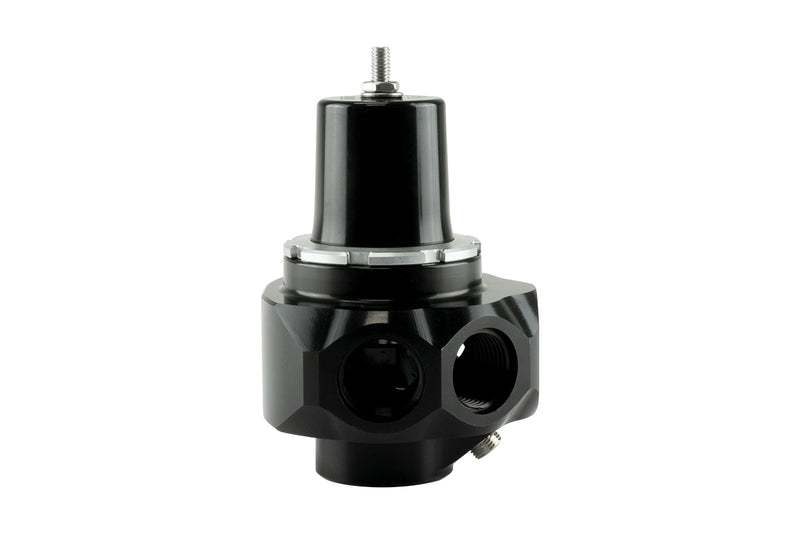

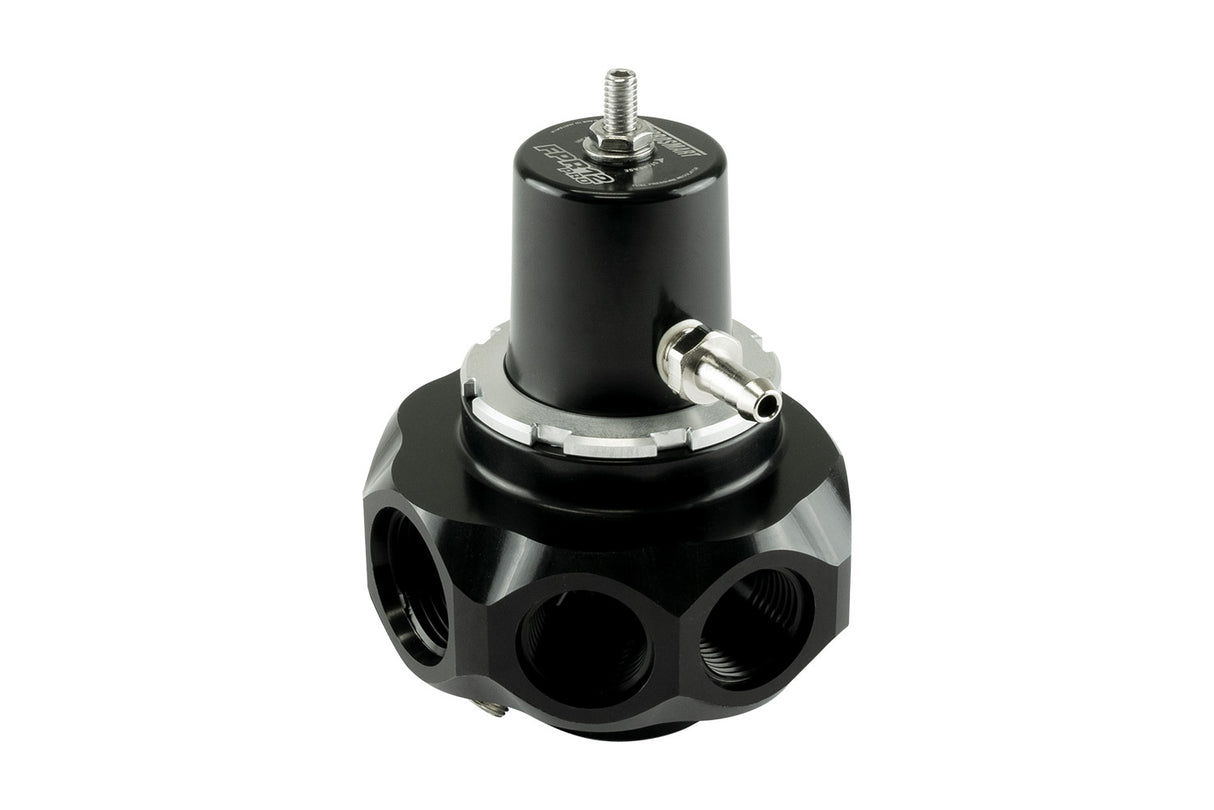

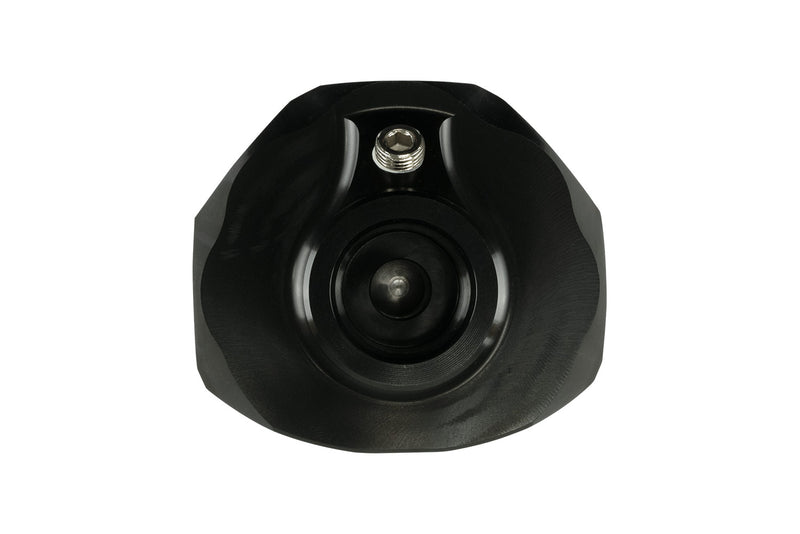

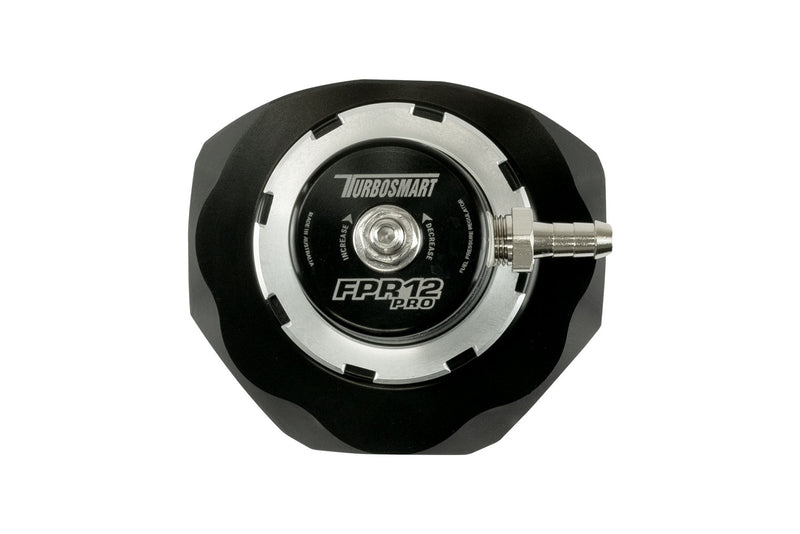

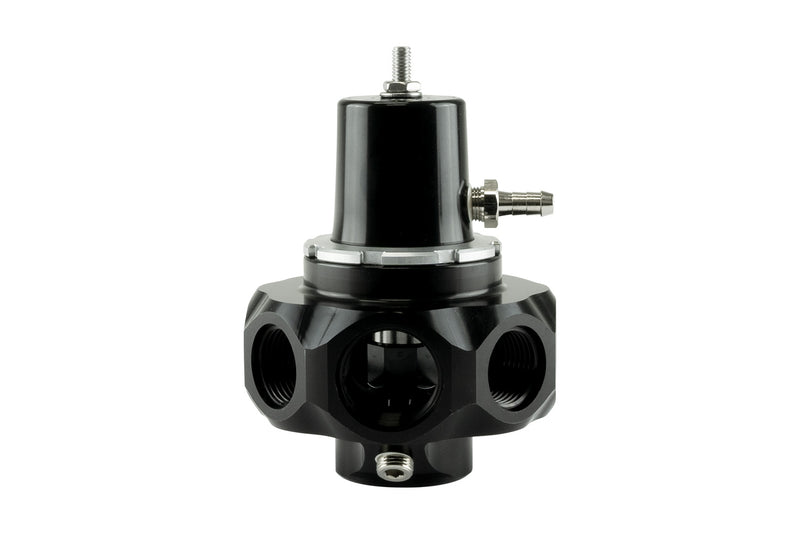

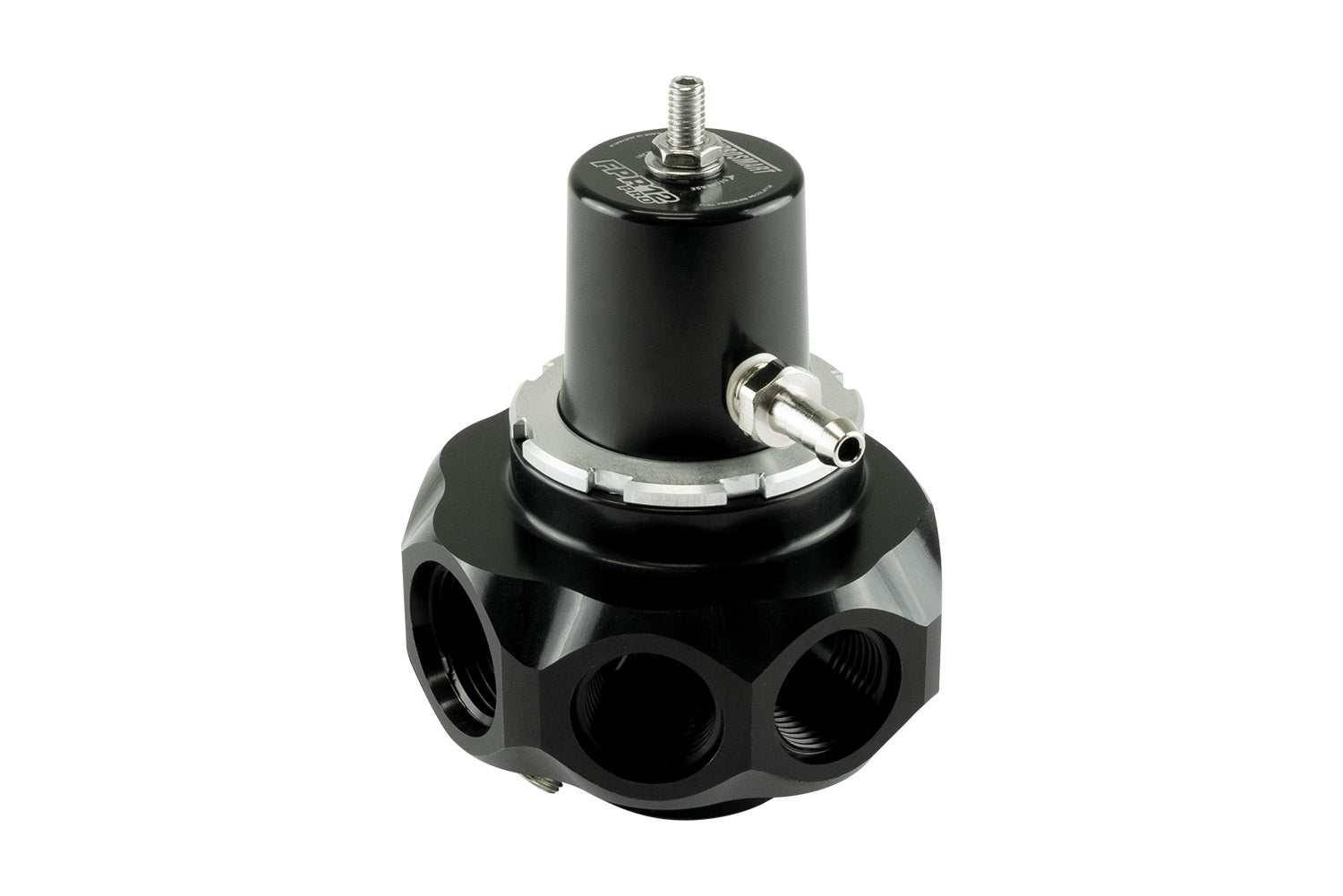

Turbosmart FPR12 Pro - Fuel Pressure Regulator - Black
Stock Status / Availability
This item may not be kept in physical stock, in some instances item will be shipped direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
Part Number: TS-0404-1252
The Turbosmart FPR Pro 12 Series provides market-leading fuel control and response via true 1:1 ratio and superior flow and bypass capacity for vehicles with -12 / 12AN fuel feed and -10 / 10AN return fittings. Utilising our Stainless Steel Valve Seat & Milspec Diaphragm, the FPR12 Pro Series is suitable for all Fuel types, including Race Fuel and aggressive leaded fuels. Our FPR12 Pro Range includes 1 x 12AN inlet, 4 x 10AN outlet ports and a 12AN return and is available in Pro EFI (50psi to 130psi) and Pro M (50psi to 100psi) for Mechanical Pump Systems.
Available in Pro (EFI) and Pro M (Mechanical Pump) - Suits Up to 3000HP Systems.
Features
12AN Inlet and Return
4 x 10AN Fuel Distribution
Stainless Steel Valve Seat
Suitable for all fuel types
1:1 Class Leading Ratio & Response
Adjustable Pressure
1/8 NPT Pressure Sensor Port
Unique Locking Collar Design
Milspec Diaphragm
Detailed Specific Fuel Flow Data & Spec
FPR12 Pro Series (EFI & Mechanical) available in:
FPR12 Pro 5 Port EFI Suit -12AN (Black) TS-0404-1252
FPR12 Pro M 5 Port Mechanical Pump Suit -12AN (Black) TS-0404-1352

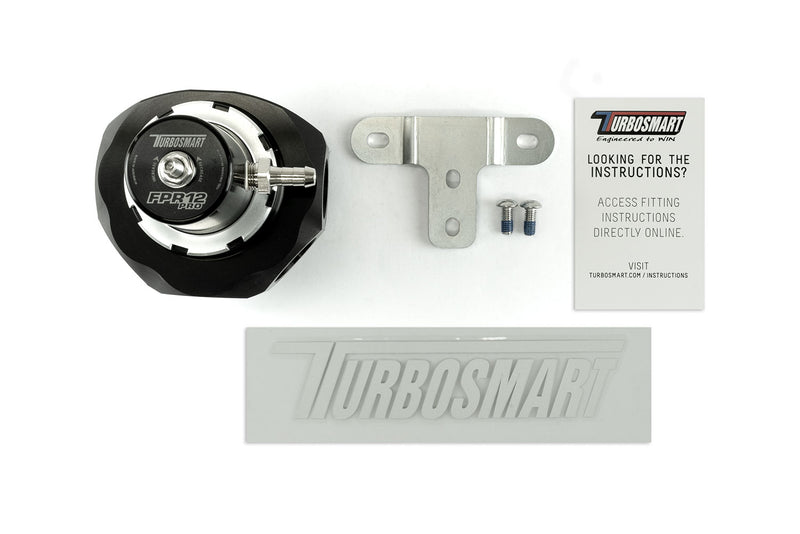

Fuel Pressure Regulator
Mounting bracket
Turbosmart Decal
