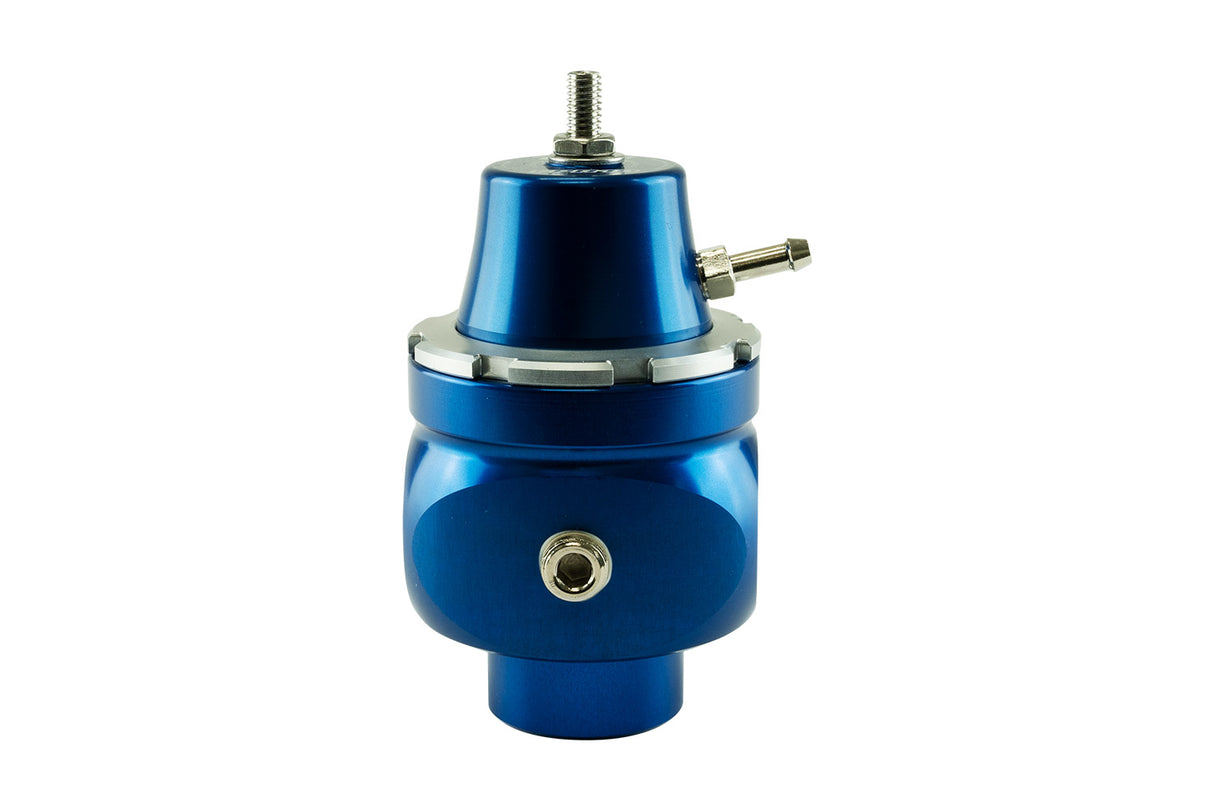

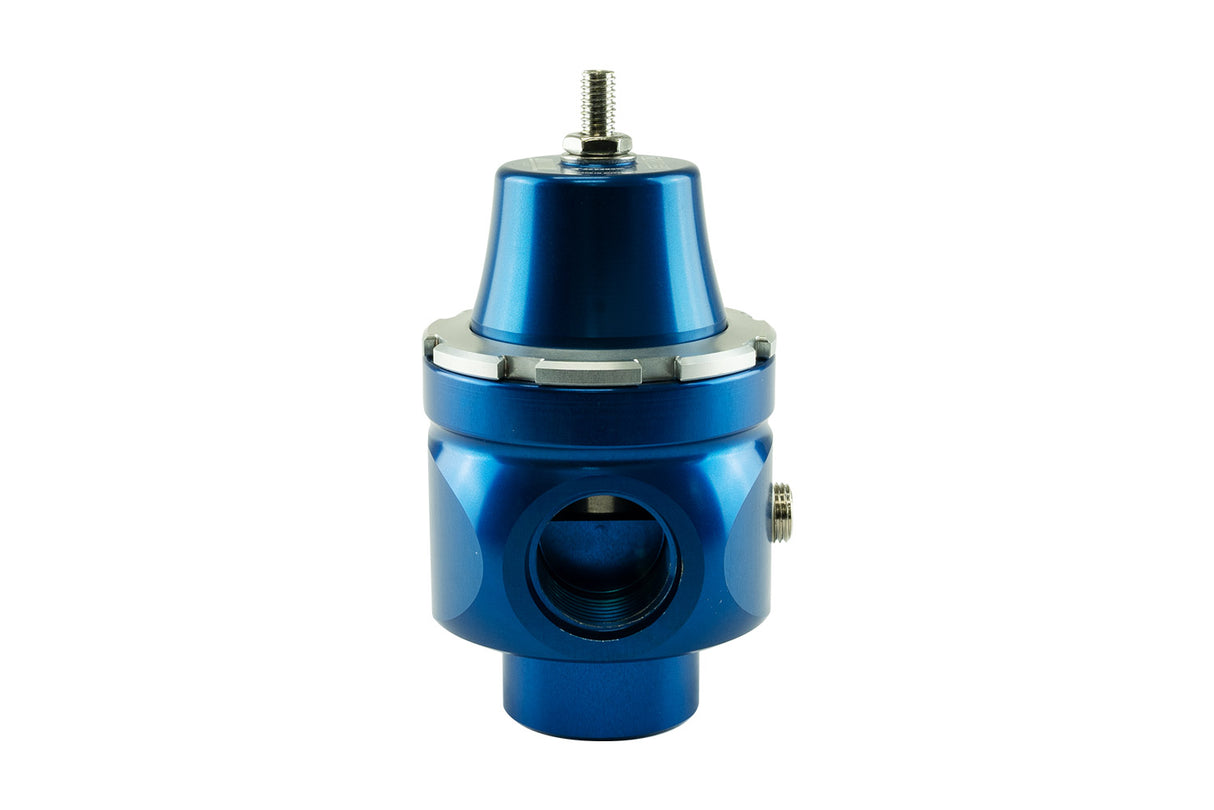

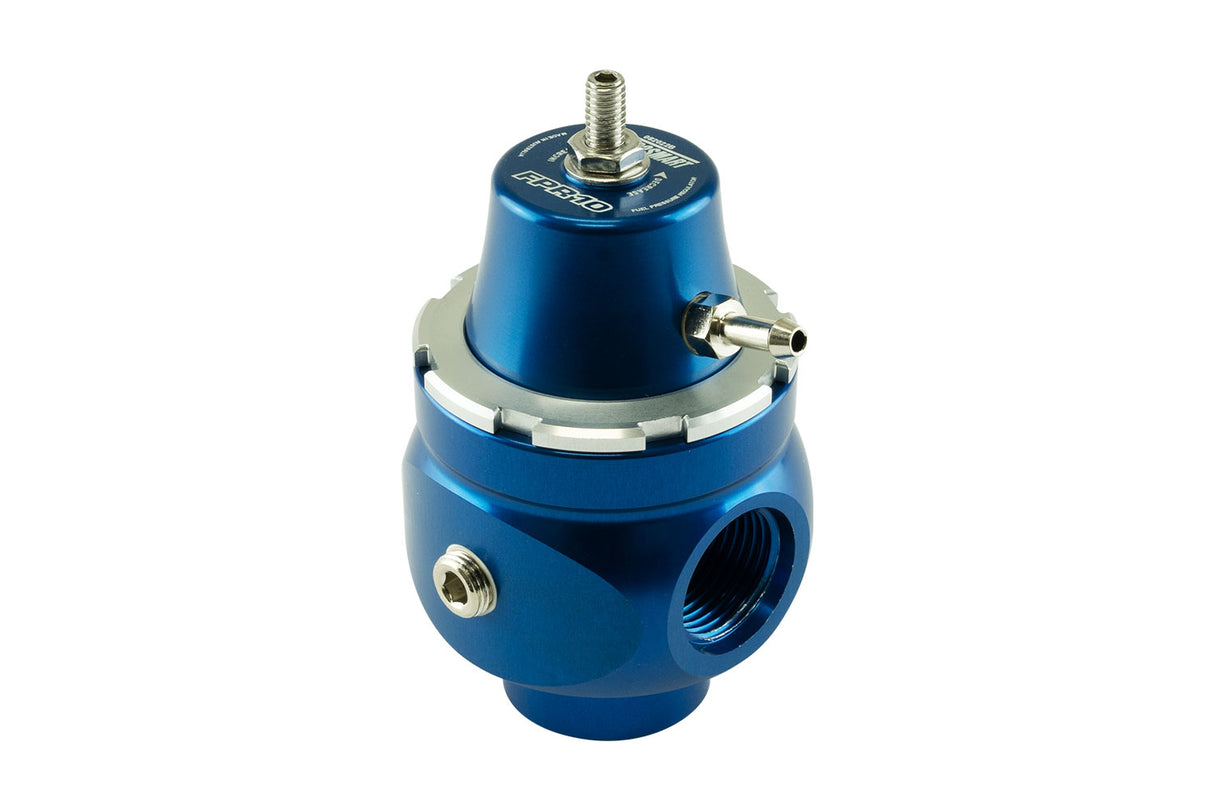

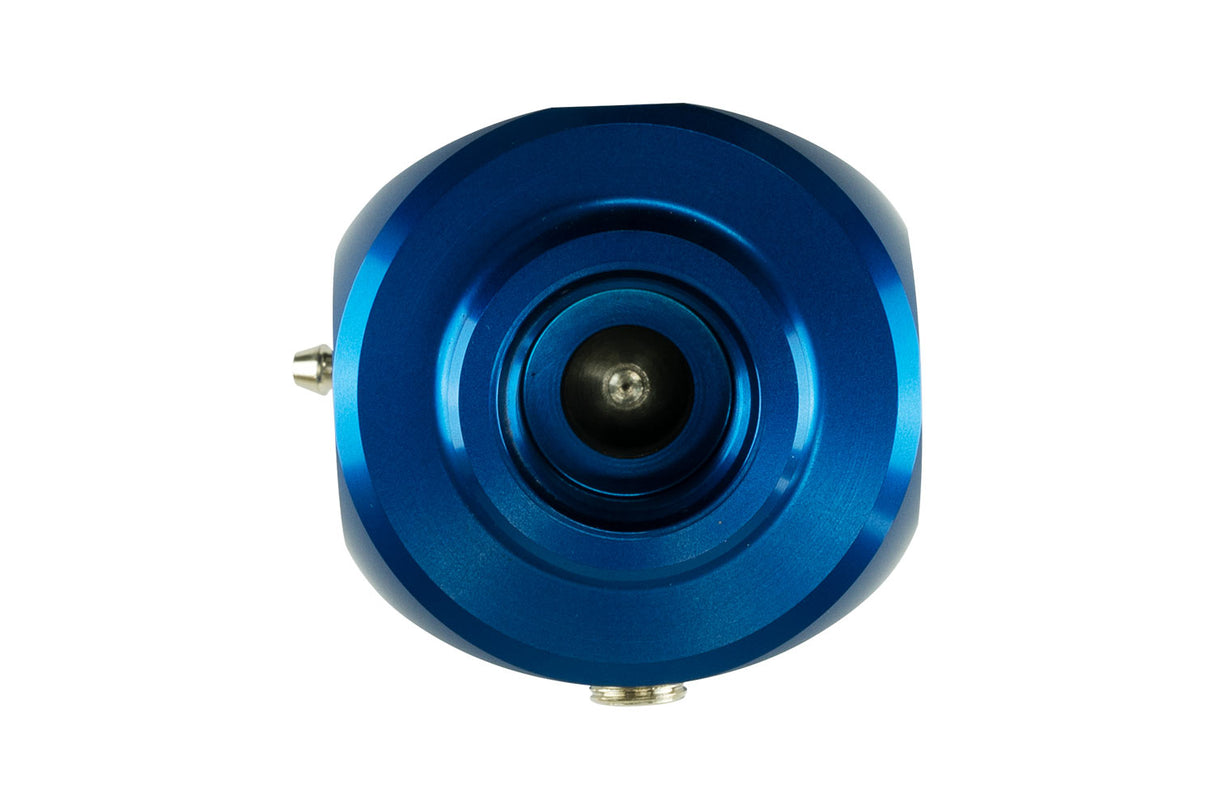

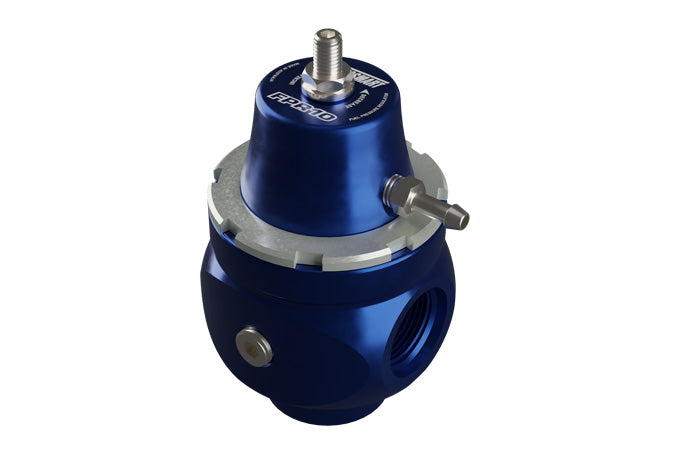

Turbosmart FPR10 - Fuel Pressure Regulator - Blue
Stock Status / Availability
This item may not be kept in physical stock, in some instances item will be shipped direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
Part Number: TS-0404-1041
The Turbosmart FPR10 Series provides market-leading fuel control and response via a true 1:1 ratio and superior flow and bypass capacity for vehicles with -10 / 10AN fuel systems. Utilising our Stainless Steel Valve Seat & Milspec Diaphragm, the FPR10 Series is suitable for all Fuel types, including Race Fuel and aggressive leaded fuels. Our FPR10 Range includes a 10AN inlet, outlet and returns port and is available in Standard (35psi to 80psi) and LP (3psi to 20psi) for Low Pressure and Carburettor Systems to suit 3000HP systems.
Features
Stainless Steel Valve Seat Suitable for all fuel types 1:1 Class Leading Ratio and Response Adjustable Pressure 1/8 NPT Gauge / Pressure Sensor Port Unique Locking Collar Design Milspec Diaphragm Detailed Specific Fuel Flow Data and Spec
Available in:
FPR10 (Blue) TS-0404-1041 FPR10 (Black) TS-0404-1042 FPR10 (Purple) TS-0404-1043 FPR10 (Red) TS-0404-1044 FPR10 (LP) TS-0404-1142
SUPPLIED WITH
_x000D_
Fuel Pressure Regulator _x000D_
Mounting bracket _x000D_
2 x M5 Mounting Screws _x000D_
Turbosmart Decal _x000D_
