Part Number: TS-0207-1003
The PowerPort is Turbosmart's most significant and highest-flowing blow-off valve, resetting the flow benchmark set by our popular and highly regarded RacePort Blow Off Valve and designed to be as light as possible to keep vehicle weight down. Its cutting-edge dual-chamber design is capable of advanced control strategies. It can be held open with a solenoid to aid turbo response and control during staging to give the best possible launch for drag racing, etc.
Flowing Over 600CFM via its 2.5" (63mm inlet), this diaphragm-operated valve is built to flow vast amounts of air for High Horsepower Applications while providing marketing-leading response and boost handling. Twin Port Control allows for advanced control strategies. Some options include an onboard valve position sensor and part numbers specific to Supercharged Applications. However, it can also be used with a traditional single-port hookup.
Available in
Black: TS-0207-1002
Blue: TS-0207-1001
Sensor Cap (Black Only): TS-0207-1102
Supercharger (Black Only): TS-0207-1003
Features
Billet 6000 Series Aluminium Construction
Quick Release V-Ban Collar for ease of fitment & serviceability
2.5" Inlet & Flows Over 600 CFM
MILSPEC Hard Anodised Valve
1/8NPT Reference Fittings (Twin Port)
Collar Secured Cap for Quick Spring Changes & Servicing
3 User Configurable Corrosions Resistant Springs
Optional Valve Position Sensor
Pre-Drilled Collar for Lockwire provision
Designed, Manufactured and validated in Australia

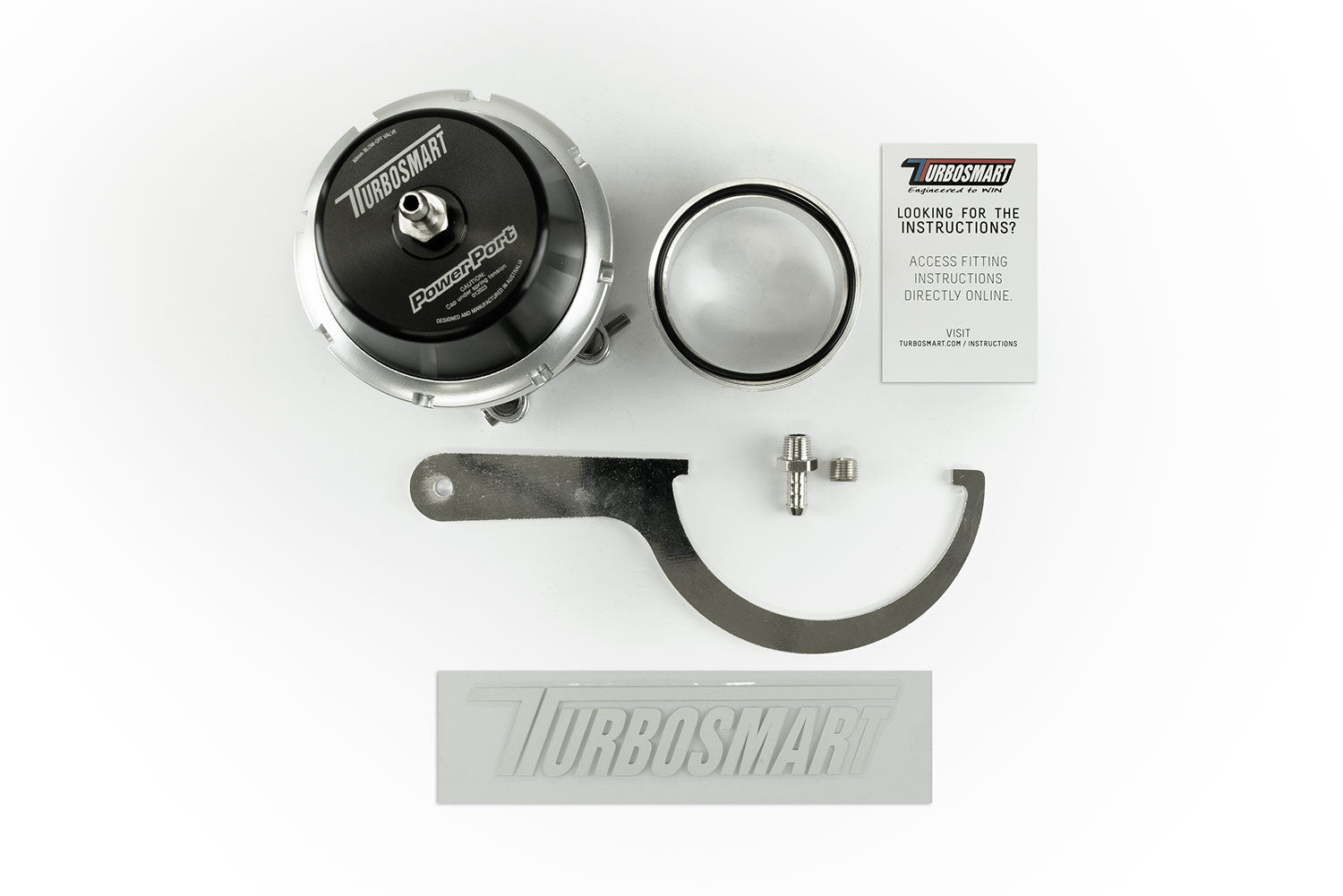

SUPPLIED WITH
1 x PowerPort Blow Off Valve
1/4" -4AN Nipple
1/8" NPT Blank
1/8" NPT Nipple
Profiled Inlet Weld-On Flange (Alloy)
Collar Tool.
Turbosmart sticker
