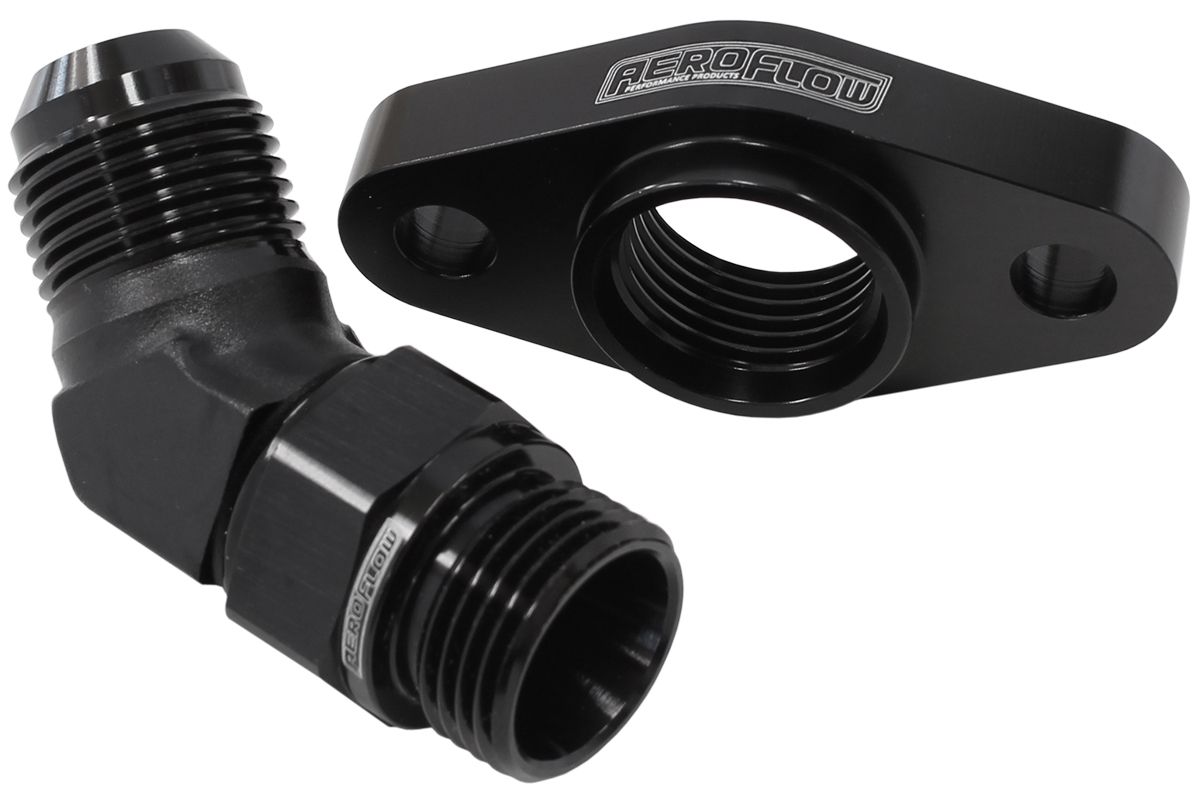

Aeroflow Turbo Drain Adapter (AF463-16)

Turbo Oil Drain Adapter With O-Ring Seal.

-10 AN with Male 45 degree swivel and 50.8mm hole centresto suit turbos with 50.8mm bolt centres on core.

This selection of turbo drains options available from Aeroflow Performance will allow a large range custom plumbing application. For sufficient drainage of oil forboth bearing styles of turbochargers a -10AN or 5/8” hose is ideal. The oil outlet should follow the direction of gravity +/-45° when installed in the vehicle on level ground. It is recommended to avoid kinks or beyond 90-degree bends in the oil drain line and draining into the sump below. With heat surrounding the manifold and turbocharger a heat shield or sleeve is a great idea to prolong the lifeof the hose.
