Diamond | SKU:
D37005-6

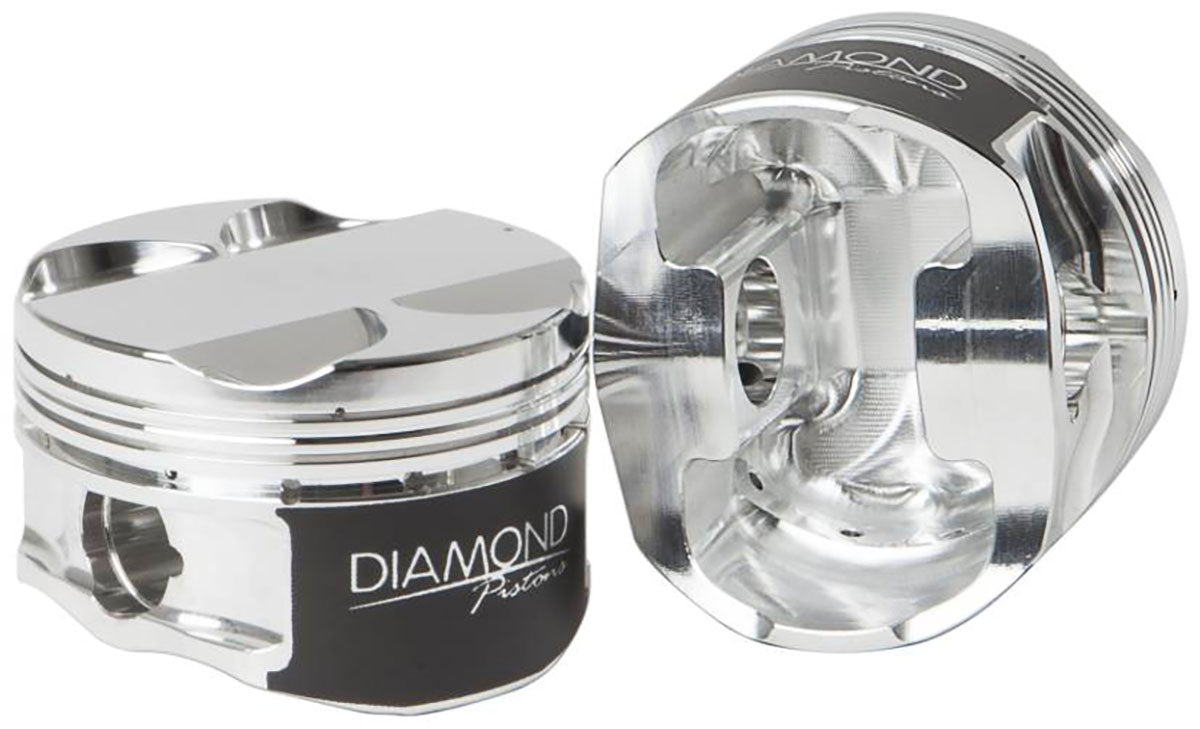

Diamond Toyota 2JZGTE Turbo Dish Top Forged Pistons - D37005-6
87mm bore, 86mm stroke, 5.590" rod length, -10.4cc dome volume
Regular price
$2,549.30 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Diamond Toyota 2JZGTE Turbo Dish Top Forged Pistons - D37005-6 is not in stock at Fast Lane Spares and will ship direct from supplier
Stock Status:
Description
Description
TOY 2JZGTE 87.0mm PISTON -10.4
87mm bore, 86mm stroke, 5.590" rod length, -10.4cc dome volume
Part Number: D37005-6
Piston Specifications:
- Block: Toyota 2JZGTE
- Bore: 87mm
- Stroke: 86mm
- Rod: 5.590"
- Comp Heigh: 1.338"
- Weight: N/A
- Pin: .866 x 2.250"
- CC's: Dish Top -10.4
- Comp Ratio With 45cc Head: 9.2
- Ring Set: 09513425
Piston Features:
- 3D milling on piston crowns for ready to install finish
- Offset pins forquiet operation
- Moly skirt coating for friction loss and skirt wear protection
- Side gas ports for better ring seal
- Ratios figured for 87mm x .040 head gasket @ 8.621 deck
- Top ring down dimension: .300" 1.338cd - .280" 1.180cd
- Premium 8620 .180W wrist pins chamfered forroundwire locks included
- Premium 1.0mmx 1.2mm x 2.8mm ring package included
- Oversized valve pockets - for larger than stock valve sizes
- Valve pocket depth: 0.245" intake and .230"exhaust
- 2618 material for High HP/Boost applications
