Aeroflow  |  SKU: AF37-2045

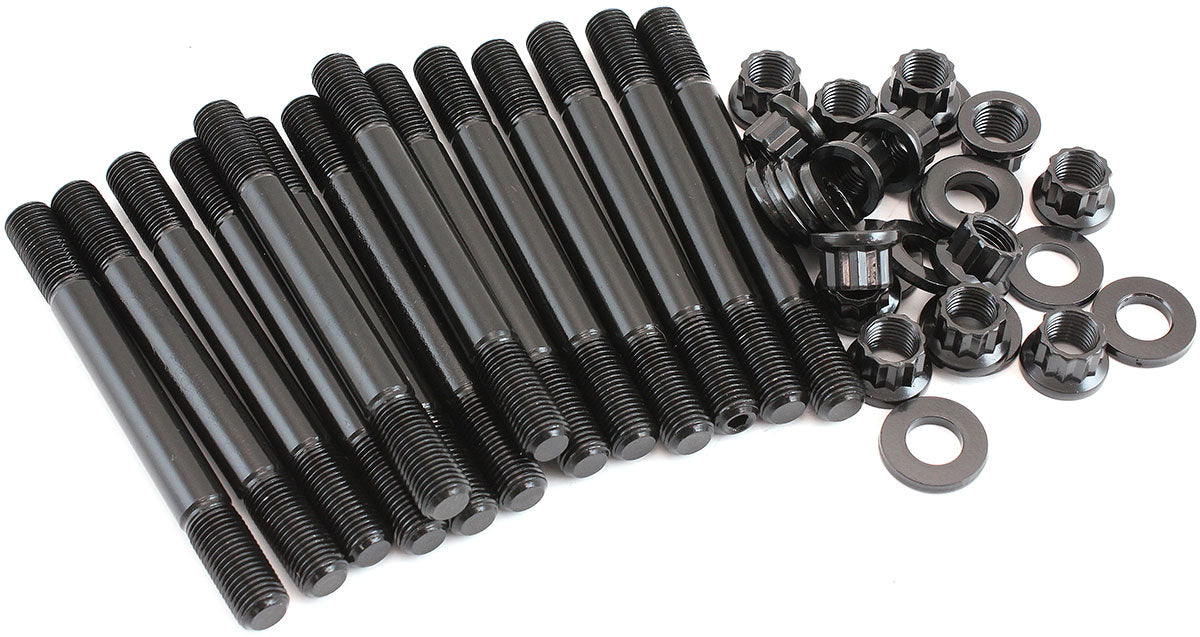

Aeroflow Toyota 1JZ/2JZ Head Stud Kit 12 Point Nuts, 8740 Grade Material (AF37-2045)

12 Point Nuts, 8740 Grade Material

Regular price $213.90 NZD + GST
Shipping calculated at checkout.

Description

TOYOTA 2JZ 1JZ HEAD STUD KIT

12 Point Nuts, 8740 Grade Material

Part Number: AF37-2045

Aeroflow Performance head studs greatly improve your cylinder head-to-block sealing compatibilities. This is important in engines with high power adders such as turbochargers, superchargers or nitrous. They can even be a great addition to a mildly modified build as insurance against failure. All head studs provide a more accurate and consistent torque loading over traditional head bolts.

These head studs are manufactured from aircraft quality 8740 high tensile strength chromoly steel and cold-forged to ensure molecular integrity within the stud. Meaning these studs are rated up to 190,000 psi making them stronger than Grade 8 and OEM fasteners. All kits come complete with 12-point nuts and hardened washers for an even load distribution and accurate torque readings.

Specifications:

Kit Contains

14 x Studs
114.25mm Overall Length
61.50mm Shank Length

11mm Shank Diameter
M11 x 1.25mm thread into Engine Block
M11 x 1.25mm thread on Nut End

14 x 12 Point Nuts
M11 x 1.25mm Thread
18.25mm Outside Diameter
11.80mm Height
1/2 Spanner Size

14 x Flat Washers
21.90mm Outside Diameter
11.30mm Inside Diameter
3mm Thickness

Important Information:

Torque Recommendations
75 ft.lbs or 101Nm
