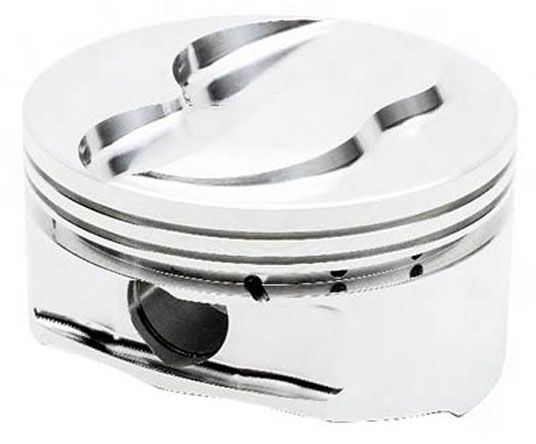

JE Subaru 2002-2005 Impreza WRX EJ205 (J226378)

J226378 - EJ20 PISTON -11.8cc 92.5mm

92.5mm bore, 75.0mm stroke, 130.5mm rod length, -11.8cc dome volume

Part Number: J226378

This piston set is forged from 2618 T6 high tensile strength aluminium and features smooth flowing radii for excellent flame travel. Deburring or preparation is not required.
Includes
:
.905 x 2.500 straight wall carbon steel wrist pin

1.2x1.5x3.0mm rings

Pin fitting
Wire locks
Specifications
:

Part #: J226378

Bore: 92.5mm
Oversize: 0.5mm
Stroke: 75.0mm
Rod Length: 130.5mm
Compression Height: 32.7mm
Chamber Volume: 48.0cc
Compression Ratio with .040" Head Gasket: 8.5:1
Dome Volume: -11.8cc
Gram Weight: 371
Footnote: Accepts Turbo and Nitrous
Skirt: Full Round Skirt

Included Ring Set: JC91204-3642
