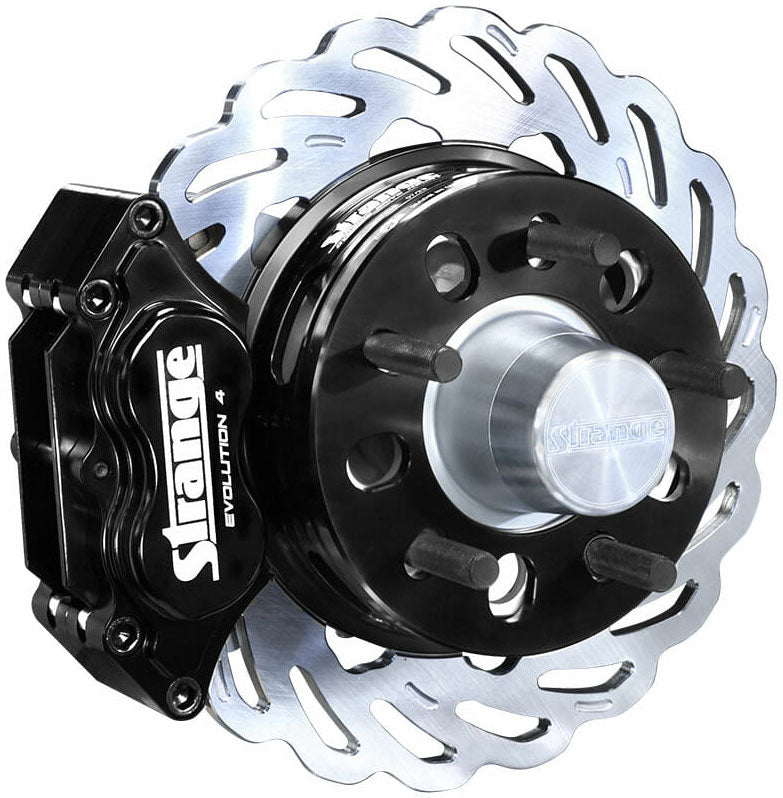

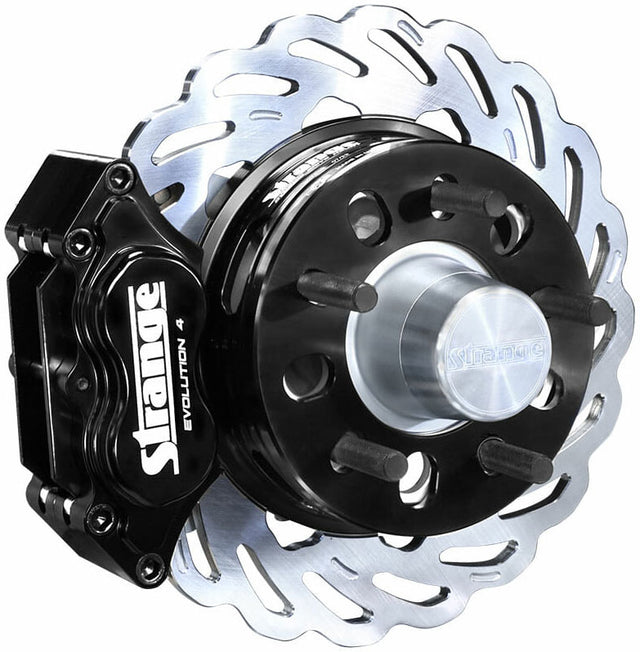

Strange Evolution DDM 4-Piston Front Brake Kit - STB4112WCE

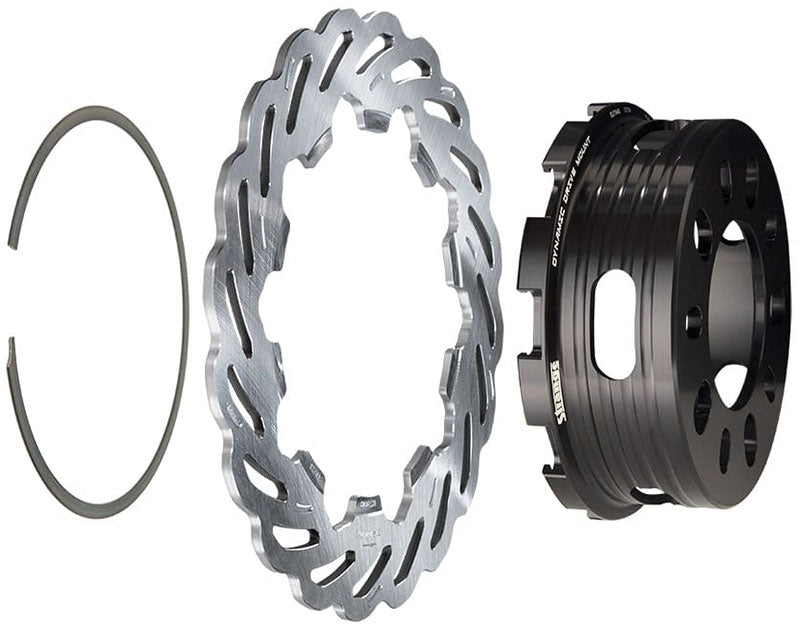

Evolution S Dynamic Drive Mount (DDM) Stainless Steel Rotors – B2798L / B2798R

• Evolution S Rotor mounts to Billet Aluminum DDM Hat – reducing rotating weight
• DDM system secures the rotor and allows for rotor thermal expansion – drastically reducing warping, coning, and cracking which are common with bolt retention designs
• DDM system design is secured by an internal Spirolox, eliminating heavy bolts and hardware- further reducing rotating weight
• Evolution S rotors are machined and fully ground from Stainless Steel that exhibits 48% greater yield strength at 1,000° F compared to carbon steel- further maintaining rotor integrity
• Stainless steel Evolution S rotors are highly resistant to heat and corrosion
• Unique Aero Slot design reduces rotating weight and promotes even heat dissipation- compared to common round drilled holes
• Scalloped design further reduces rotating weight
• 11.250" OD / .355" thickness

Four Piston Billet Evolution 4 Calipers – B1900

• Computer finite element analysis (FEA) optimized and field-tested caliper
• Evolution 4 design improves piston retraction, pedal feel, and stiffness
• High retraction piston and O-ring design to eliminate drag during acceleration
• Results in improved pad wear and exemplary braking efficiency
• Stainless steel pistons mitigate heat transfer to brake fluid
• All 1.750" pistons provide maximum clamping force
• Two bleeder screws ensure complete air evacuation
• Type II Black anodized finish resists corrision, heat & brake fluid

Aluminum Caliper Mounts

• Billet one piece design
• Eliminates bolts, spacers & nuts that require periodic maintenance

DTC-30 Semi Metallic Brake Pads – B5010

• Best compound suited for front application
• Excellent cold holding capabilities

Billet Aluminum Hubs

• Strong lightweight material
• Lightening holes for enhanced weight reduction
• Billet hub caps with O-rings
• Bearings, races and seals

Screw-in Wheel Studs – A1028

• Tapered allen 1/2"-20 x 2 1/2"
• Standard allen in 3" available on request
