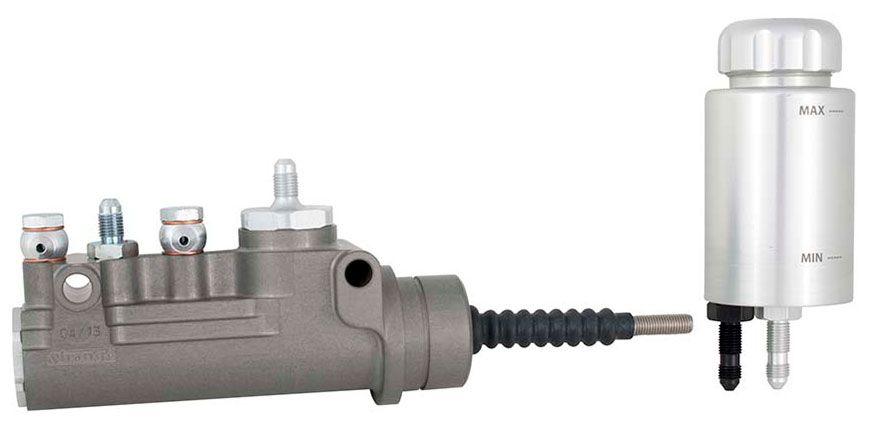

Strange Dual In-Line Master Cylinder & Remote Reservoir Kit (STB3370)

Kit Contains:

Dual In-line Fast Fill Master Cylinder

• 6061-T6511 billet aluminum body
• Hard anodized with PTFE coating
• 1.123" primarybore initally moves a large volume of fluid to the rear brakes
• .875" secondarybore takes over and applies high pressure to the rear brakes
• Internal pop-off valve regulates this transition
• 1.123" third bore supplies fluid onlyto the front brakes
• Design eliminates the need for a proportioning valve
• Brake line banjofittings with male 3 AN ends
• 3 AN brake fluid inlet fittings
• Side mount .375" holes on 3.750" centers

Remote Reservoir - B3370RK

• 6061-T6511 billet aluminum reservoir
• Clear anodized for corrosion resistance
• Separate internal chambers for front & rear systems
• External markings for Max / Min fluid levels
• Threaded cap insures a tight seal to prevents leaks
• Internal diaphragm allows for fluid displacement
• Provided with two male 3 AN outlet fittings

Note: Silicone Brake Fluid Is Not Recommended
