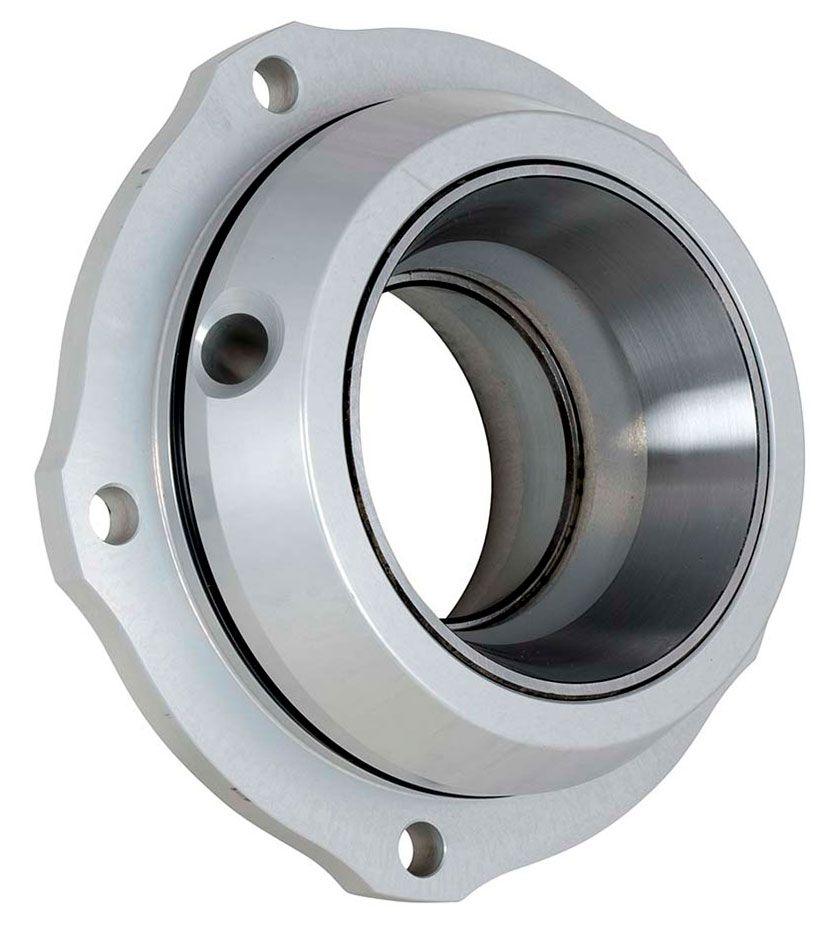

Strange Aluminium Pinion Support (Taper Bearing) (STN1922)

Forged Aluminium Taper Bearing Pinion Support (Drag Racing)

The Strange aluminium taper bearing pinion support (STN1922) is completely CNC machined from Strange designed forgings. The Strange forging offers optimal grain structure and provides superior strength to random grain flow billet pinion supports. This support accepts larger than stock front and rear pinion bearings - allotting for a tremendous increase in thrust capacity and improved rigidity for the pinion shaft. The N1922 offers an optimal solution for drag racers seeking to replace failure prone stock supports. The STN1922 support is designed to survive the most abusive drag racing conditions; however it is not designed for continuous use.

The STN1922 pinion support body is designed to accept a large stem (35-spline) pinion shaft and a small stem (28-spline) pinion shaft. Pinion support installation kit #STN1923 fits a 28-spline pinion shaft and kit #STN1924 fits a 35-spline pinion shaft. When changing from a 28 or 35-spline pinion shaft, all that is needed is a new pinion support installation kit.
