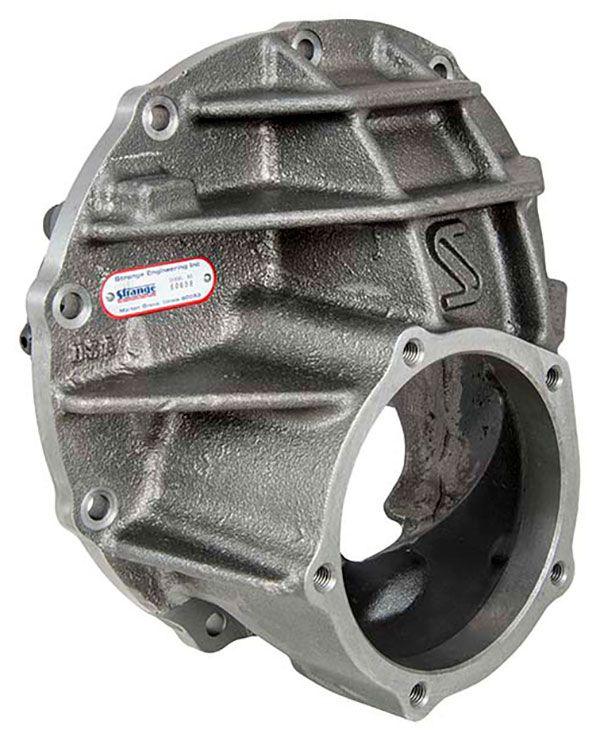

Strange 9" Nodular Iron Case (STN1905)

STN1905 - STRANGE PRO NODULAR IRON 3.062

3.0625" With Chrome-Moly Caps

Part Number: STN1905

Has your stock 9" case or aftermarket big cap" case with 5/8" cap bolts failed? The Strange 9" nodular iron case is the solution- hopefully before the failure costs you a lot of money. Strange nodular cases are machined from D-4512 nodular iron which is 8% stronger than the nodular which is found in OEM cases. The 8% material strength is only a small portion of the total strength increase a Strange case offers.
For additional strength the case features:

Chrome-Moly bearing caps retained by socket head cap screws that exceed aircraft grade 8 specifications
Steel adjuster nuts
The pinion pilot bearing has been reinforced with superior D-4512 nodular and additional material
All bolt holes are deep tapped and cast with additional material surrounding the OD of the holes
Bearing bores and reinforcing ribs are all cast with additional material in critical areas
Ribs were carefully designed to further enhance rigidity
Spot faced stud holes prevent lubricant leaks and damaged mounting surfaces.
Strange nodular cases are virtually indestructible therefore the iron case is recommended for any vehicle which accepts a 9" housing and a 9" gear set.
