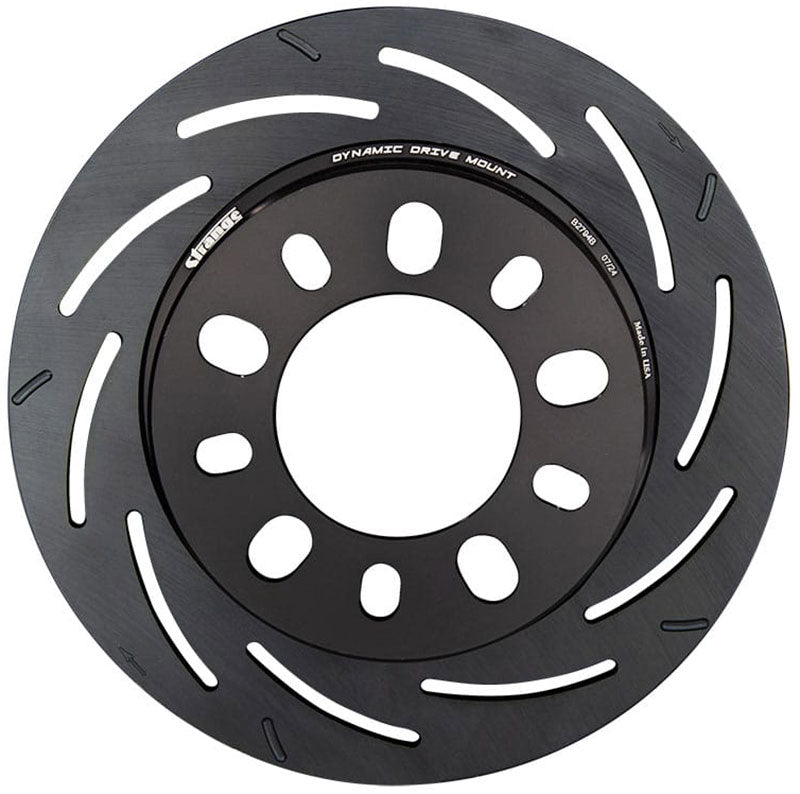

Strange 2-Piece Front & Rear DDM Brake Rotor Assembly - STB2794R

Designed Specifically For Drag Racing

Application
-Strange Pro II Brake Kits – Left Hand Side
-Front Pro II Kits with 2 or 4 Piston Calipers
-All Rear Pro II Kits

For Pro II Stainless Kits – B2794RS

Steel Rotor

• Internal cogs allow rotor to float
• Allows for expansion variances between aluminum & steel
• Slots reduce rotating weight and increase air flow

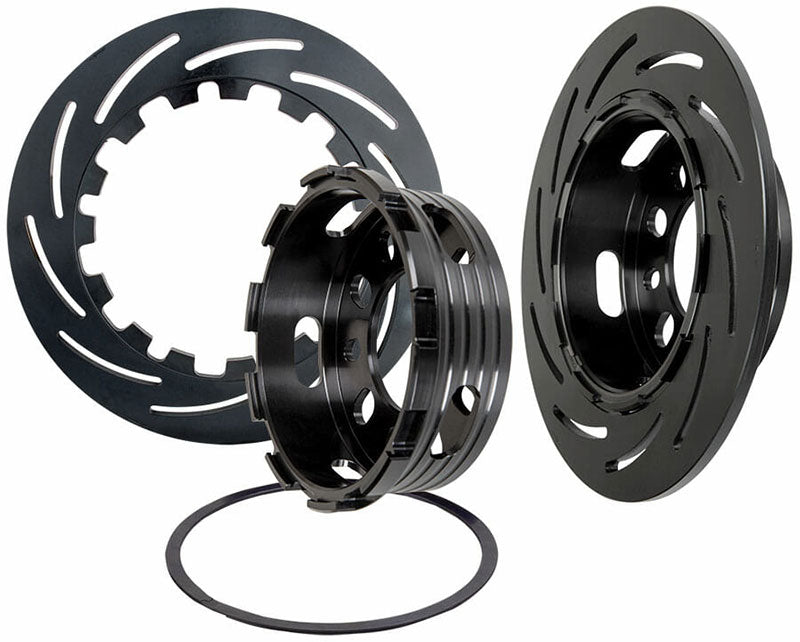

Dynamic Drive Mount (DDM) Billet Aluminum Hat

• DDM system secures the rotor and allows for rotor thermal expansion
• Warping, coning, and cracking are drastically reduced compared to bolt retention designs
• Internal Spirolox eliminates bolts and hardware that require periodic maintenance
• Additionally reduces rotating weight

Rotor
-11.250″ O.D. x .355″ thick
-Discard at .312″

Hat
-6.670″ O.D. x 6.302″ I.D.
-.250″ thick mounting face
-4 1/2″, 4 3/4″, & 5″ Uni-Lug BC
-For 1/2″ & 5/8″ wheel studs

-Offset – 2.180″
Measured from inside face of hat to inner pad surface

Assembly Weight
-6.7 Lbs
