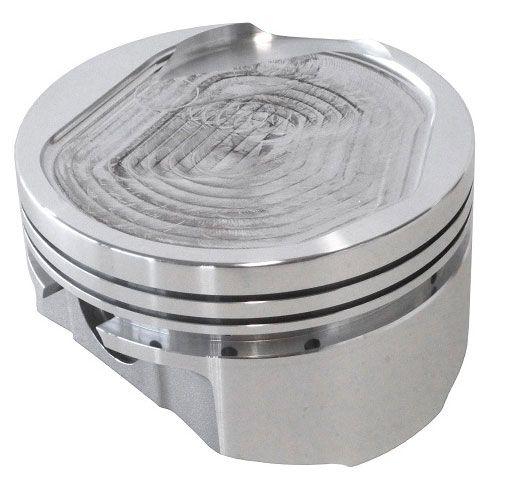

SRP Ford 351 Cleveland, Dart Block- Dish Top Forged Piston (SRP310787)

SRP310787 - 351C 4.125" PISTONS -12cc DISH

427 c.i, 4.125" bore, 3.850" stroke, 6.000" rod length, -12cc dome volume

Part Number: SRP310787

This piston set is ideal for oval track to street/strip applications, it is forged from high silicon 4032 aluminium alloy. Features include CNC machined ring grooves and forced pin oiling. Piston set accepts 1/16, 1/16, 3/16 rings.

Includes:

Spiro Lock: 927-042-CS
Straight Wall Pin: 927-2750-15-51S (130g)
Specifications:

Part #: SRP310787

CID: 427
Bore: 4.125
Stroke: 3.850
Rod Length: 6.000
Compression Height: 1.265
Compression Ratio with 72cc chamber volume: 10.38
Compression Ratio with 80cc chamber volume: 9.64
Compression Ratio with 84cc chamber volume: 9.31
Dome Volume: -12cc
Gram Weight: 474
Footnote: .927 Pin Diameter,
Oversize: STD

Recommended Ring Set (Check Proseal listing to determine oil ring tension): S100S8-4125-5
SRP Pistons was founded in 1997 by JE Pistons, the world's largest manufacturer of forged racing pistons. The idea was simple, to create a high quality forged piston at an affordable price. Every SRP forging was created with quality, performance and affordability in mind. By designing dedicated forgings, the pistons became both lighter and stronger while machining time and scrap aluminium were drastically reduced. These factors have reduced the price of SRP Pistons and contributed to their success. Today, over 400 different piston part numbers comprise the SRP product line-up, including Chevy, Ford, Chrysler, Honda and more.
