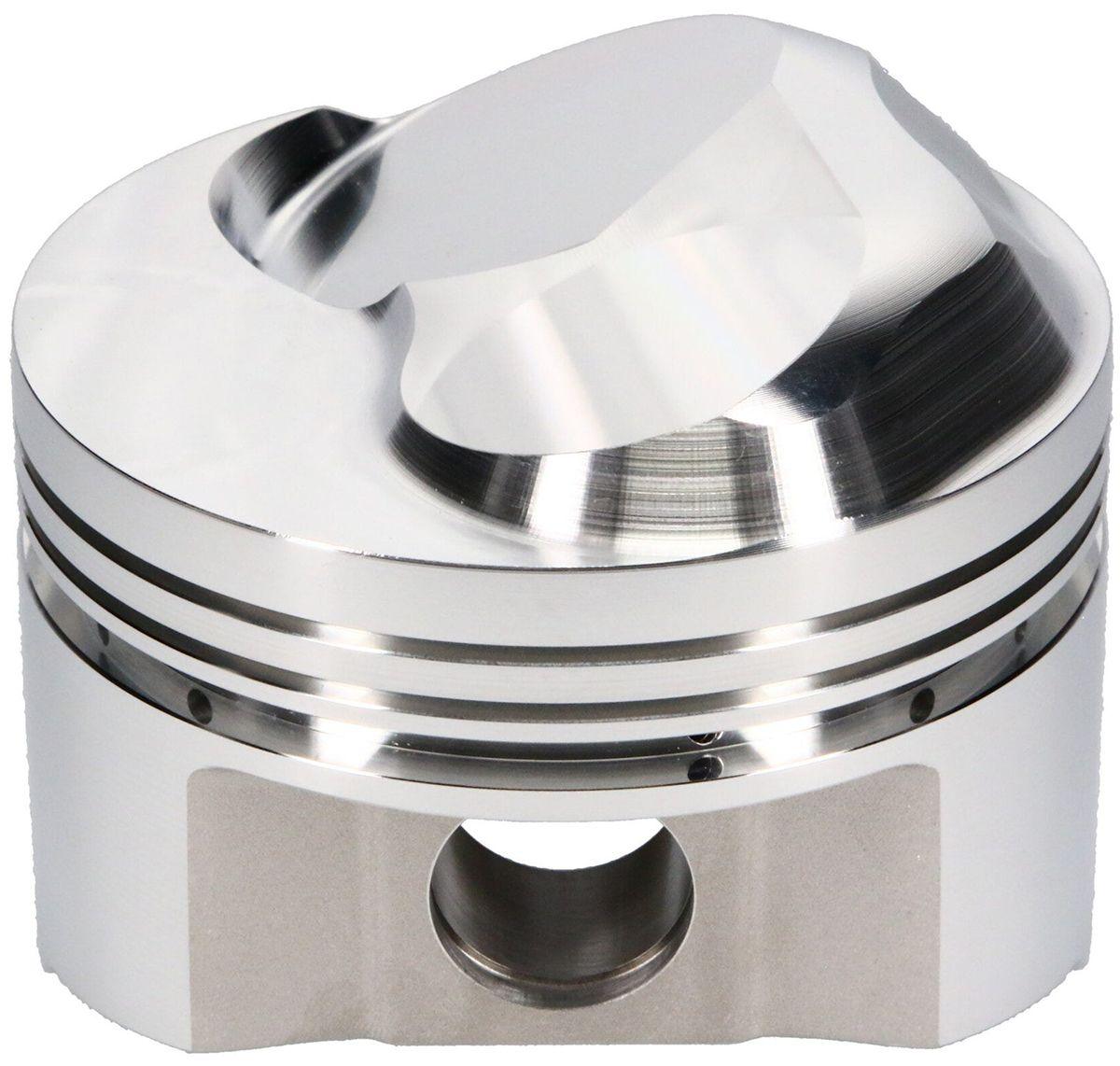

SRP Big Block Chevy - High Compression Dome Forged Piston (SRP139832)

SRP139832 - BBC 4.310" PISTONS +43cc DOME

496 c.i., 4.310" bore, 4.250" stroke, 6.385" rod length, 43.0cc dome volume

Part Number: SRP139832

This piston set is ideal for oval track to street/strip applications, it is forged from high silicon 4032 aluminium alloy. Features include CNC machined ring grooves and forced pin oiling. Piston set accepts 1/16, 1/16, 3/16 rings.

Includes:
Spiro Lock: 990-042-CS
Straight Wall Pin: 990-2930-150(150g)

Specifications:
Part #: SRP139832
CID: 496
Bore: 4.310
Stroke: 4.250
Rod Length: 6.385
Compression Height: 1.270

Compression Ratio with 112cc chamber volume: 13.8
Compression Ratio with 118cc chamber volume: 12.7
Compression Ratio with 124cc chamber volume: 11.8
Dome Volume: 43cc
Gram Weight: 592
Oversize: 0.060
Recommended Ring Set (Check Proseal listing todetermine oil ring tension): J100F8-4310-5

SRP Pistons was founded in 1997 by JE Pistons, the world's largest manufacturer of forged racing pistons. The idea was simple, to create a high quality forged piston at an affordable price. Every SRP forging was created with quality, performance and affordability in mind. By designing dedicated forgings, the pistons became both lighter and stronger while machining time and scrap aluminium were drastically reduced. These factors have reduced the price of SRP Pistons and contributed to their success. Today, over 400 different piston part numbers comprise the SRP product line-up, including Chevy, Ford, Chrysler, Honda and more.
