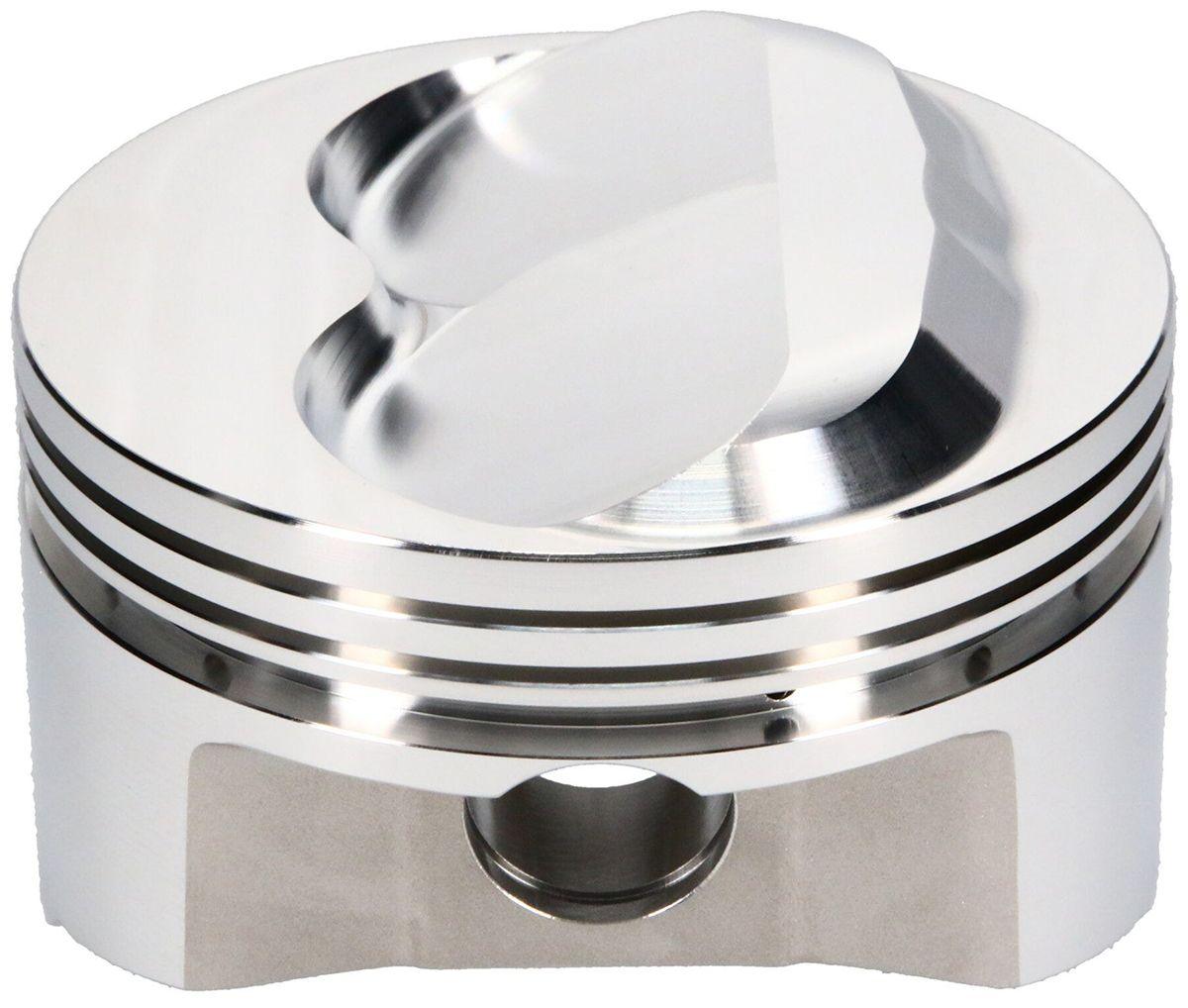

SRP 350 Small Block Chevy - Dome Forged Piston (SRP140349)

SRP140349 - SBC 4.040" PISTONS + 7cc DOME

385 c.i., 4.040" bore, 3.750" stroke, 6.000" rod length, 7.0cc dome volume

Part Number: SRP140349

This piston set is ideal for oval track to street/strip applications, it is forged from low silicon 2618 aluminium alloy. Designed for use with most popular 23 degree heads, features include CNC machined ring grooves and forced pin oiling. Piston set accepts 1/16, 1/16, 3/16 rings.

Includes
:
Spiro Lock: 927-042-CS
Straight Wall Pin: 927-2750-15-51S(130g)
Pin fitting

Specifications
:
Part #: SRP140349
CID: 385
Bore: 4.040
Stroke: 3.750
Rod Length: 6.000
Compression Height: 1.125

Compression Ratio with 58cc chamber volume: 14.1

Compression Ratio with 64cc chamber volume: 12.9

Compression Ratio with 70cc chamber volume: 11.9

Dome Volume: 7cc
Gram Weight: 430
Oversize: 0.040
Recommended Ring Set (Check Proseal listing to determine oil ring tension): J100F8-4040-5
SRP Pistons was founded in 1997 by JE Pistons, the world's largest manufacturer of forged racing pistons. The idea was simple, to create a high quality forged piston at an affordable price. Every SRP forging was created with quality, performance and affordability in mind. By designing dedicated forgings, the pistons became both lighter and stronger while machining time and scrap aluminium were drastically reduced. These factors have reduced the price of SRP Pistons and contributed to their success. Today, over 400 different piston part numbers comprise the SRP product line-up, including Chevy, Ford, Chrysler, Honda and more.
