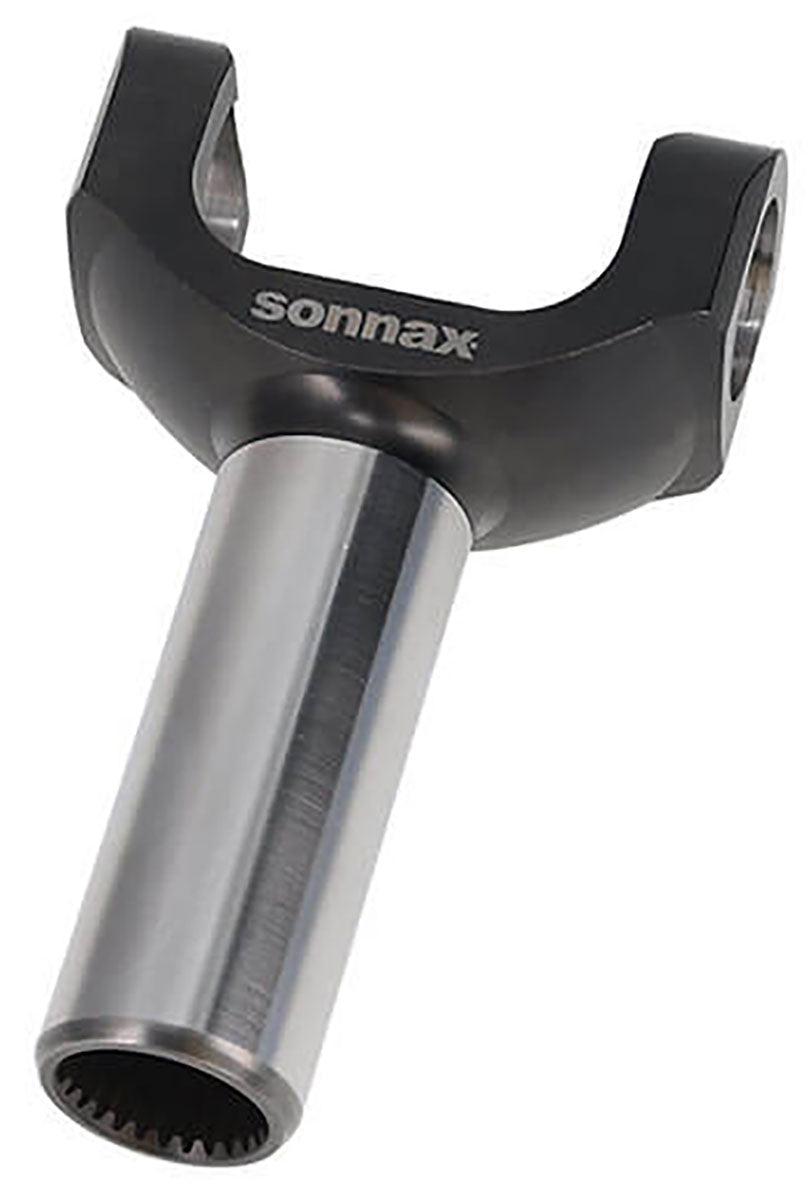

Sonnax Roller Bearing Transmission Yoke, Chromoly with 1350 U-Joint Suit GM Powerglide; TH350, TH350C; Muncie M20, M21 & M22 with 27-tooth spline; Saginaw 3- & 4-speed (SXT3-3-6081H)
Suit GM Powerglide; TH350, TH350C; Muncie M20, M21 & M22 with 27-tooth spline; Saginaw 3- & 4-speed
Sonnax Roller Bearing Transmission Yoke, Chromoly with 1350 U-Joint Suit GM Powerglide; TH350, TH350C; Muncie M20, M21 & M22 with 27-tooth spline; Saginaw 3- & 4-speed (SXT3-3-6081H)
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
Description
Description
TRANS SLIP YOKE, 27-SPL, 1350
Suit GM Powerglide; TH350, TH350C; Muncie M20, M21 & M22 with 27-tooth spline; Saginaw 3- & 4-speed
Part Number: SXT3-3-6081H
Slip yokes found in many common applications run on a bushing inside the transmission tail housing. High-horsepower builds often use a roller bearing instead, so upgrading to a roller bearing yoke is a must — not only for proper fitment, but to guarantee the barrel is hard enough to avoid damage from the bearings.
Sonnax performance slip yoke T3-3-6081H fits a variety of applictions, including those listed here, and is specifically designed for use with tail housings that are equipped with a roller bearing instead of a bushing. It is forged from rugged chromoly steel, precision machined, through-hardened and expertly tempered to be able to withstand the most severe performance environments. Perfectly suited for all high-horsepower and torque capacity vehicles, whether at the strip, on the street or at the track.
Talk with a transmission builder or driveline shop to verify your vehicle's output shaft style.
- Forged 4340 chromoly
- Through-hardened, tempered barrel
- Unique Sonnax design increases strength in critical areas
- Use with single- or double-roller bearings
- 100% leak tested to 40 psi
Specifications:
Specs
- Material: Forged 4340 Chromoly
- Counter Bore (Y/N): N
- Spline Type: Full
- U-Joint Series: 1350
- Centerline to End Length: 5.810"
- Spline Tooth Count: 27
- Journal Dia.: 1.500"
- Barrel Length: 3.890"
- Weight: 2.320lbs
