Aeroflow Small Block Ford Windsor Fuel Rail Kit for Air Gap Intake Manifold Suits AF6090-2000 and AF6290-2000 Intake Manifolds ONLY (AF6999-2000)
Suits AF6090-2000 and AF6290-2000 Intake Manifolds ONLYSBF EFI FUEL RAIL KIT INTAKE
Suits AF6090-2000 and AF6290-2000 Intake Manifolds ONLY
Part Number: AF6999-2000
Give your Small Block Ford intake manifold the capabilityto flow some serious flow to feed even the most fuel hungryapplications. These Chevy fuelrails from Aeroflow Performance are specifically designed for use with the Small Block Ford with EFI bungs air gap intake manifold.It will not suit any factory Ford Windsor intake manifold.
Each fuel railis precision CNC machined fromextruded 6063 aluminium with alarge internal diameter bore with -8ORB ports on each end and anodized black.
The injector bores are 14mm ID so factory injectors are permitted. This kit is compatible with all fuel typesincluding popular alcohol mixtures such as E85.
This kit includes all mounting hardware to mountto the intake manifold.
Specifications:
Requires the use of 14mm short (33.60mm) fuel injectors.

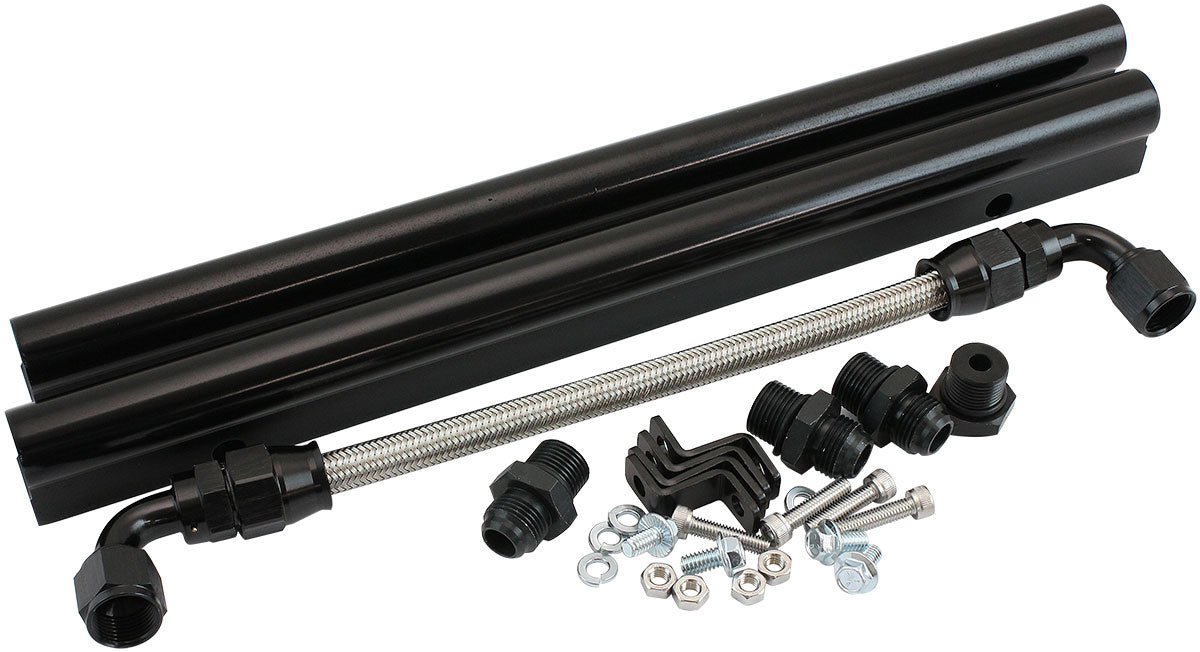

AF6999-2000 Includes
2 xFuel Rails (-8ORB)
-8AN cross over 200 series braided line with two 90 degree non full flow fittings
3 x -8an to -8ORB fittings
1 x -8ORB hex port plug
4 xmounting brackets
4 x 1/4-20" socket cap screws(25mm UHL)
4 x 1/4-20" hex head screws (12mm UHL)
Important Information:
This Fuel Rail kit will not
suit Factory Windsor Intake
Manifolds. This fuel rail kit
can only be used with Aeroflow Performance Small Block Ford
Windsor EFI Air Gap intake
manifold (AF6090-2000 and
AF6290-2000)
