Scott Drake | SKU:
C5ZZ-9430-BK-SH

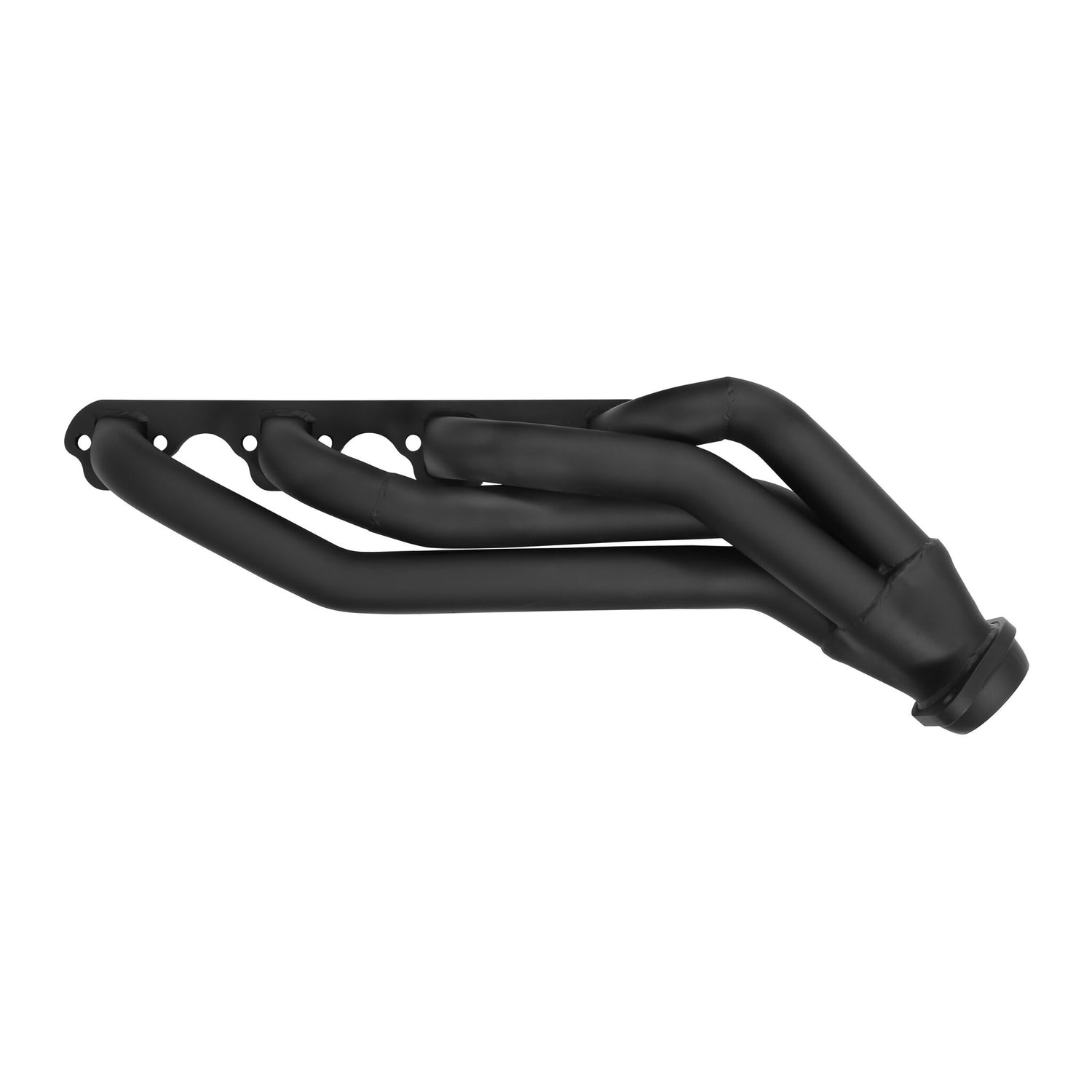

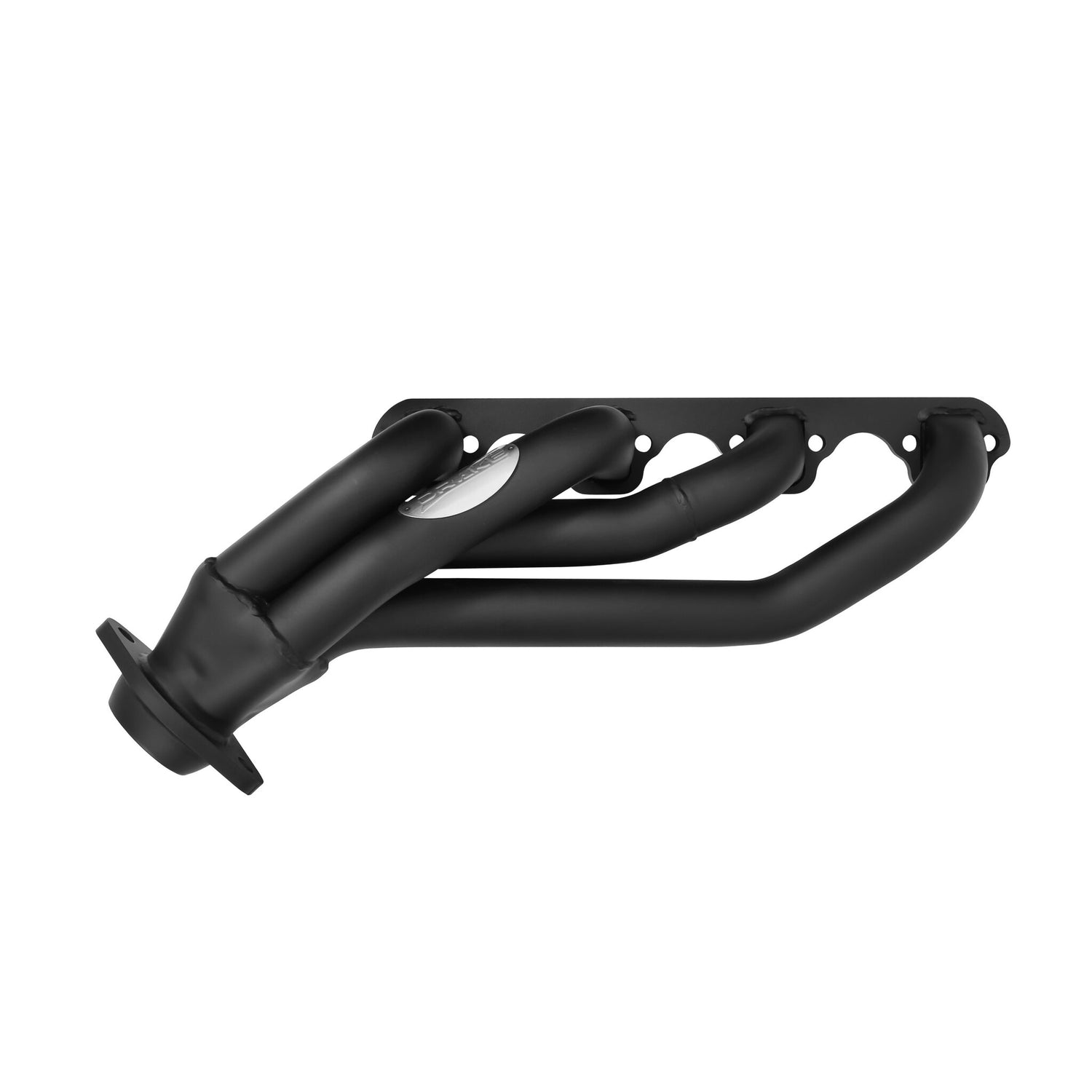

Scott Drake Shorty Headers 1-5/8" Black High Temp Painted - C5ZZ-9430-BK-SH
1964-1970 Ford Mustang 260, 289, 302 Shorty Headers 1-5/8" Black High Temp Painted
Sold out
Regular price
$697.80 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Scott Drake Shorty Headers 1-5/8" Black High Temp Painted - C5ZZ-9430-BK-SH is not in stock at Fast Lane Spares and will ship direct from supplier
Stock Status:
Description
Description
1964-1970 Ford Mustang 260, 289, 302 Shorty Headers 1-5/8" Black High Temp Painted
Part Number: C5ZZ-9430-BK-SH

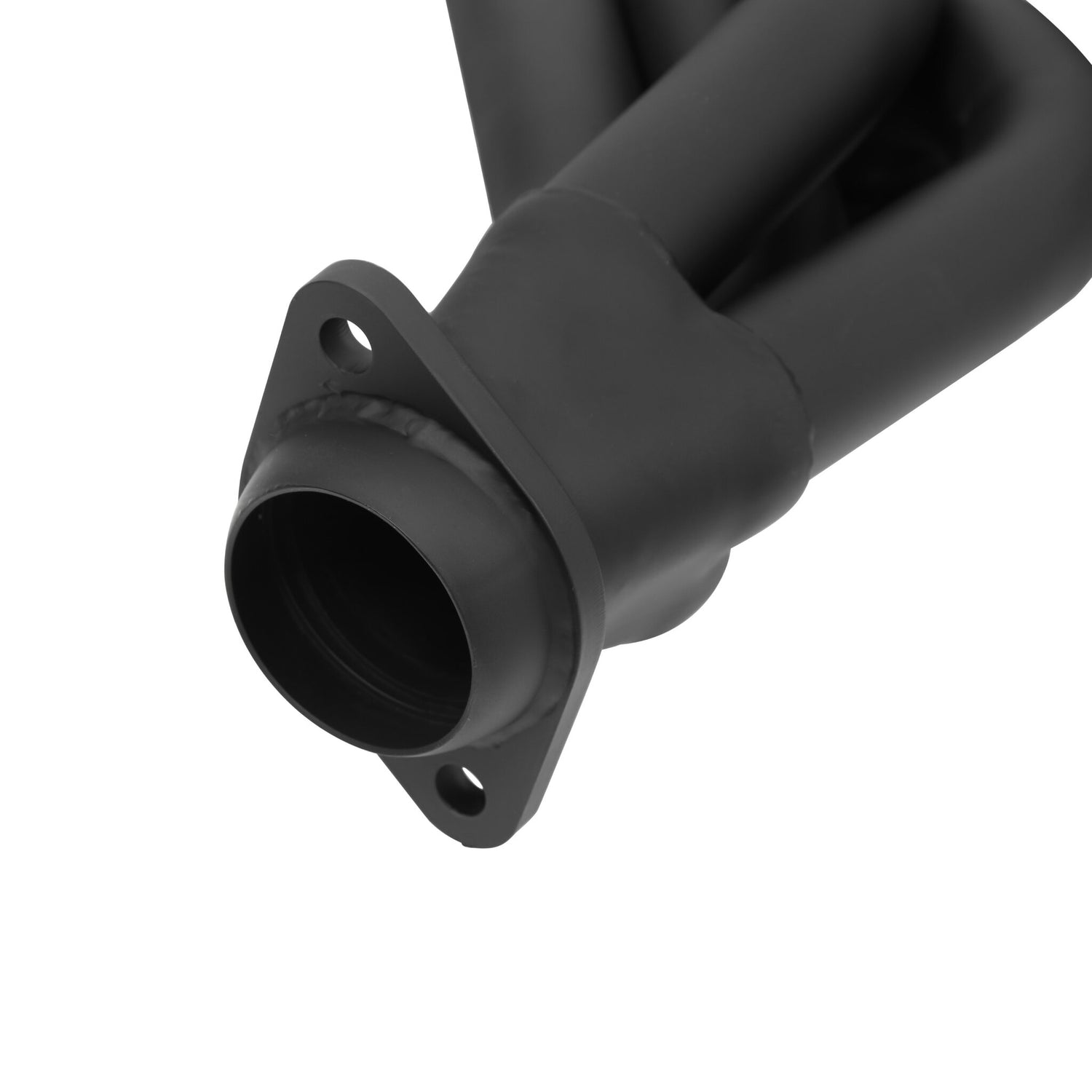

Shorty headers are designed to help eliminate steering system and bell housing clearance issues associated with most long tube and Tri-Y headers. These headers feature extra-thick 3/8" flanges, 12 gauge 1 5/8" primary tubes, and a 2.25" ball and socket collector for ease of installation while providing a leak-free installation. Includes necessary mounting hardware and premium gaskets. For 1964 through 1970 Mustangs with 260, 289, or 302 engines. NOTE: 61964-1965 cars may require either 1966-1970 motor mounts and brackets or 1/4 inch spacers on stock mounts for proper clearance. 67-68 manual transmission cars will have to modify the clutch equalizer bar. These will not fit late model 302 "P" heads. EFI cars require C6TZ-9430-RCO2 Reducer Cones.
Features and Benefits

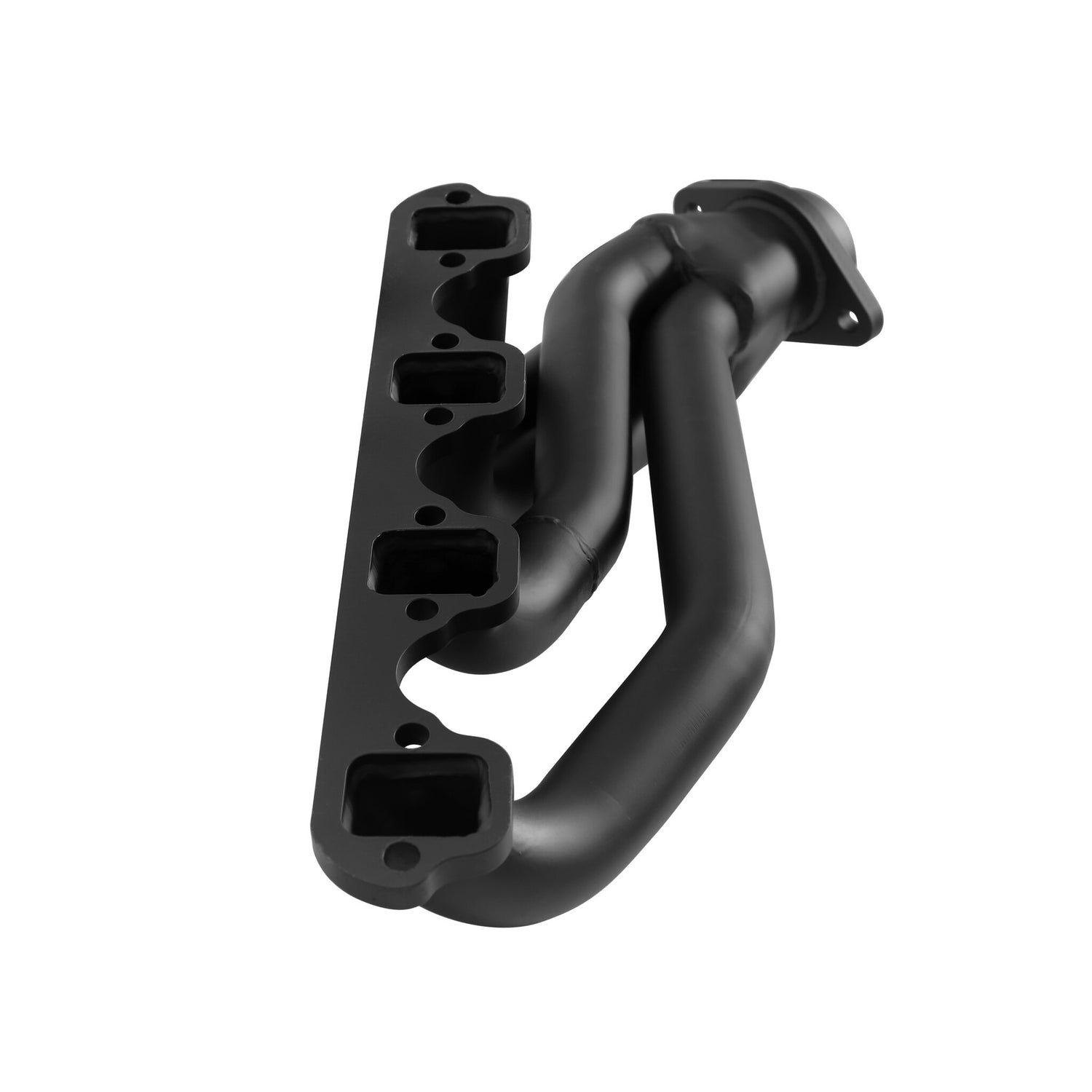

ā¢ 3/8" thick mounting flange to prevent warping
ā¢ Eliminates steering system and bell housing clearance issues

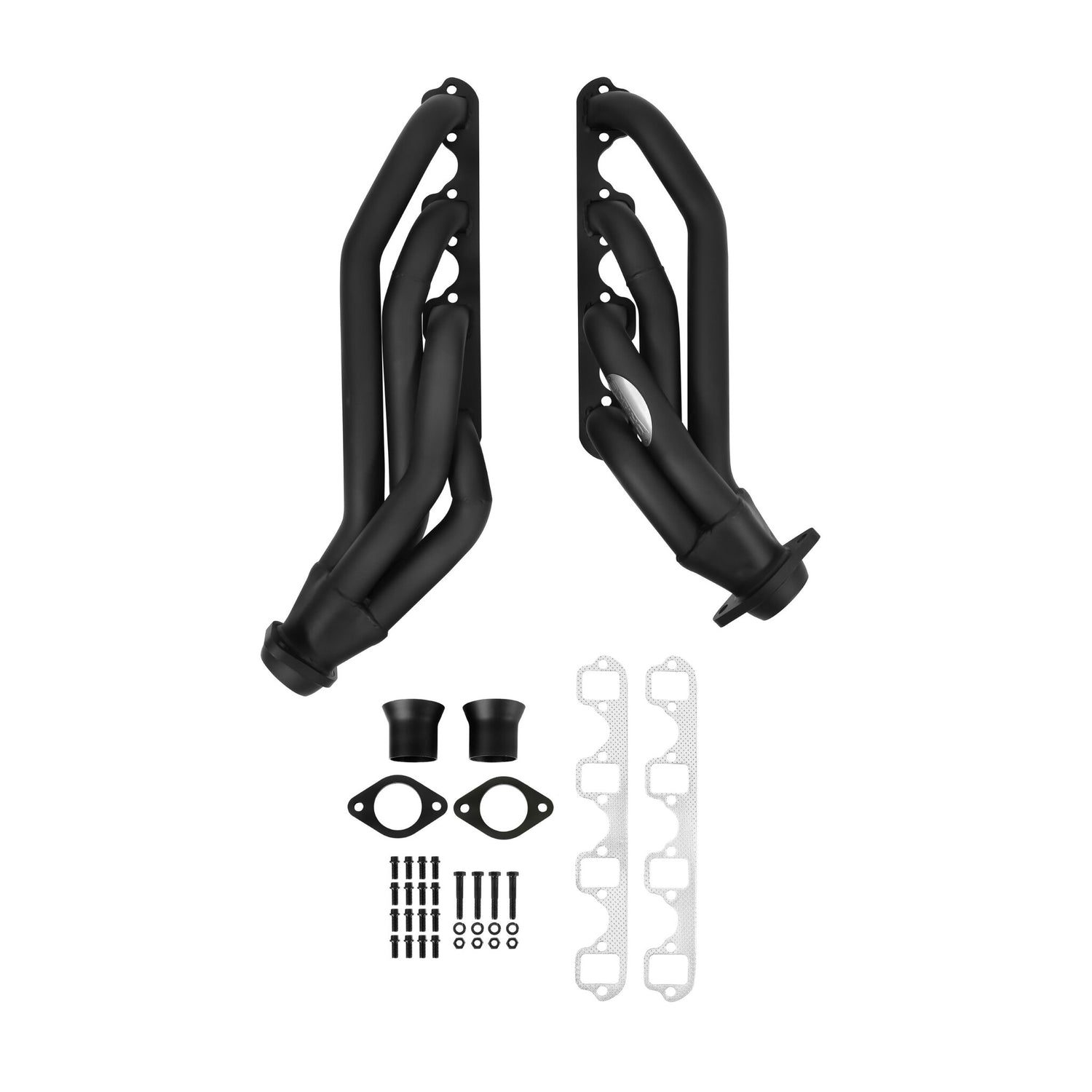

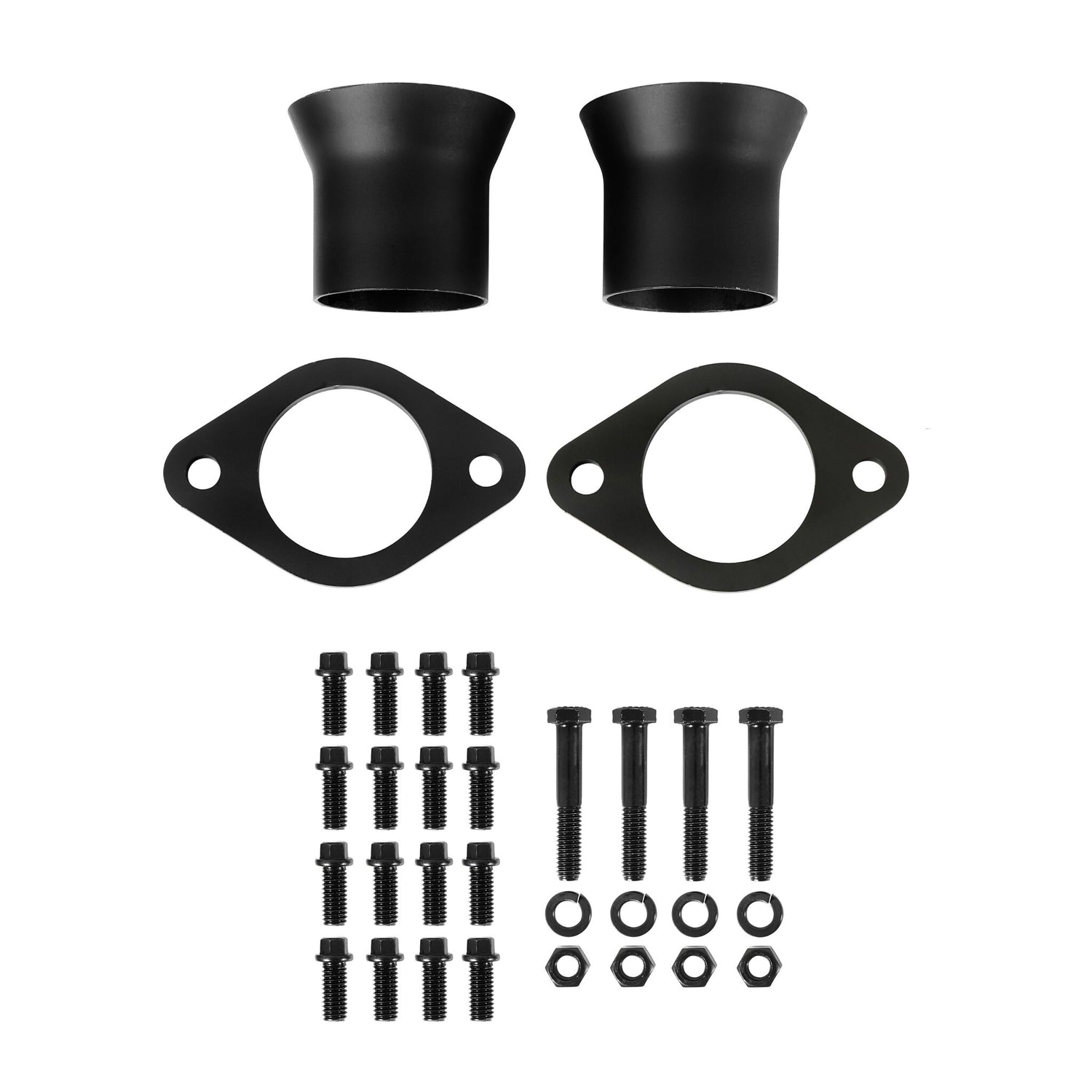

ā¢ Includes header gaskets and mounting hardware
ā¢ Black high temperature paint
Will not fit late model 302 "P" heads. EFI cars require C6TZ-9430-RCO2 Reducer Cones.
Part Number: C5ZZ-9430-BK-SH
Shorty headers are designed to help eliminate steering system and bell housing clearance issues associated with most long tube and Tri-Y headers. These headers feature extra-thick 3/8" flanges, 12 gauge 1 5/8" primary tubes, and a 2.25" ball and socket collector for ease of installation while providing a leak-free installation. Includes necessary mounting hardware and premium gaskets. For 1964 through 1970 Mustangs with 260, 289, or 302 engines. NOTE: 61964-1965 cars may require either 1966-1970 motor mounts and brackets or 1/4 inch spacers on stock mounts for proper clearance. 67-68 manual transmission cars will have to modify the clutch equalizer bar. These will not fit late model 302 "P" heads. EFI cars require C6TZ-9430-RCO2 Reducer Cones.
Features and Benefits
ā¢ 3/8" thick mounting flange to prevent warping
ā¢ Eliminates steering system and bell housing clearance issues
ā¢ Includes header gaskets and mounting hardware
ā¢ Black high temperature paint
Will not fit late model 302 "P" heads. EFI cars require C6TZ-9430-RCO2 Reducer Cones.
Specifications
Specifications
-
Specifications
Automotive Item Grade High Performance Part Bolt size 3/8-16 x 3/4 Brand Scott Drake CARB (California) Compliant No Category Exhaust Collector Diameter 2.25 inch Color Black Emission Code 3 Engine Ford Small Block Engine Mounts Included No Finish Painted Gasket Or Seal Included Yes Gaskets Included Yes Header Finish Black Paint Header Style Shorty Material Steel Mounting Hardware Included Yes part type Exhaust Header Primary Tube Diameter 1 5/8 Product Type Headers Quantity 2 Reducer Included Yes Sub Category Exhaust Manifolds Transmission Mounts Included No Type Shorty Warning California Proposition 65
