Scott Drake | SKU:
259-2AL
Scott Drake Radiator 2-Row Aluminum V8 Automatic Transmission - 259-2AL
1964-1966 Ford Mustang Radiator 2-Row Aluminum V8 Automatic Transmission
Sold out
Regular price
$845.80 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Scott Drake Radiator 2-Row Aluminum V8 Automatic Transmission - 259-2AL is not in stock at Fast Lane Spares and will ship direct from supplier
Stock Status:
Description
Description
1964-1966 Ford Mustang Radiator 2-Row Aluminum V8 Automatic Transmission
Part Number: 259-2AL

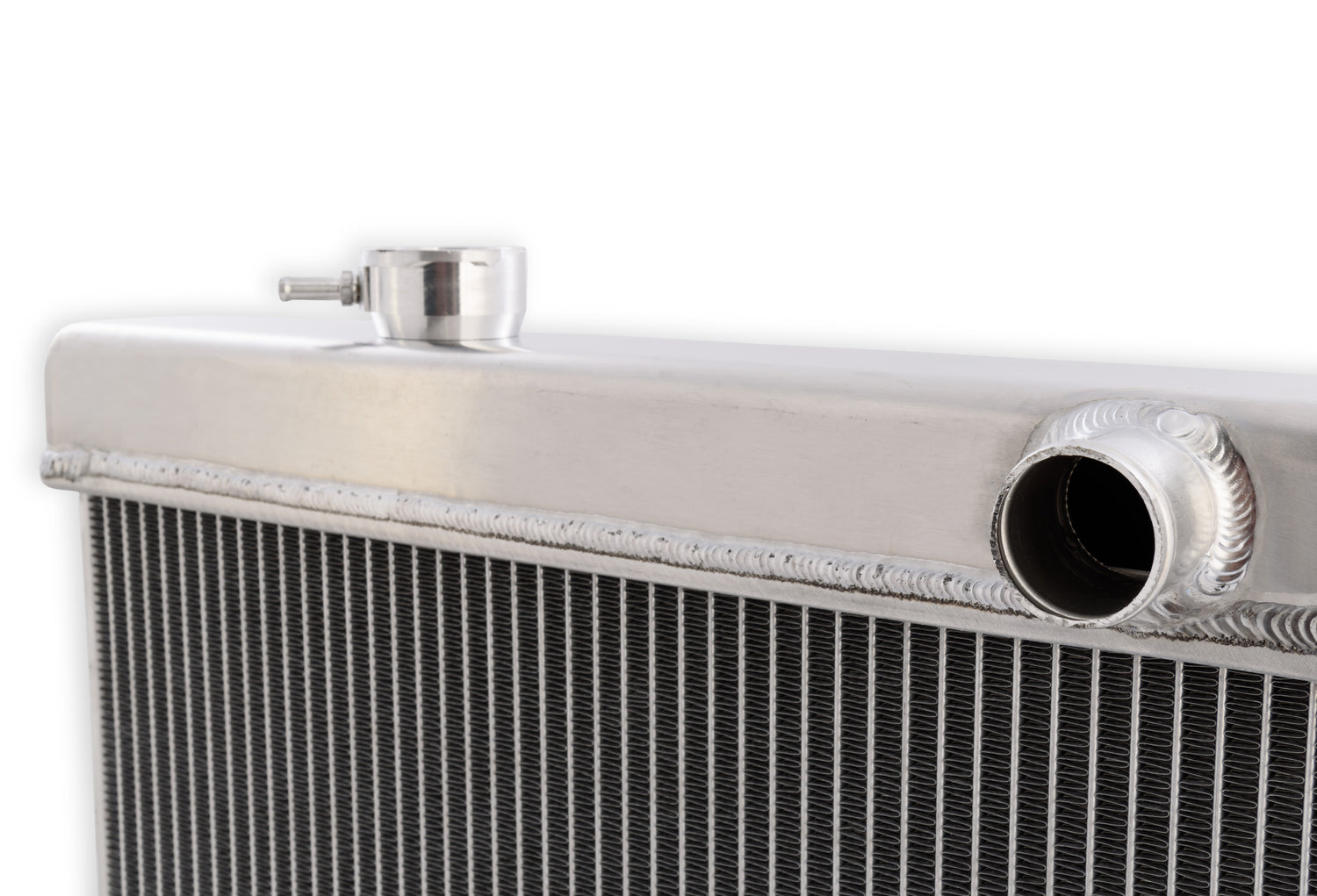

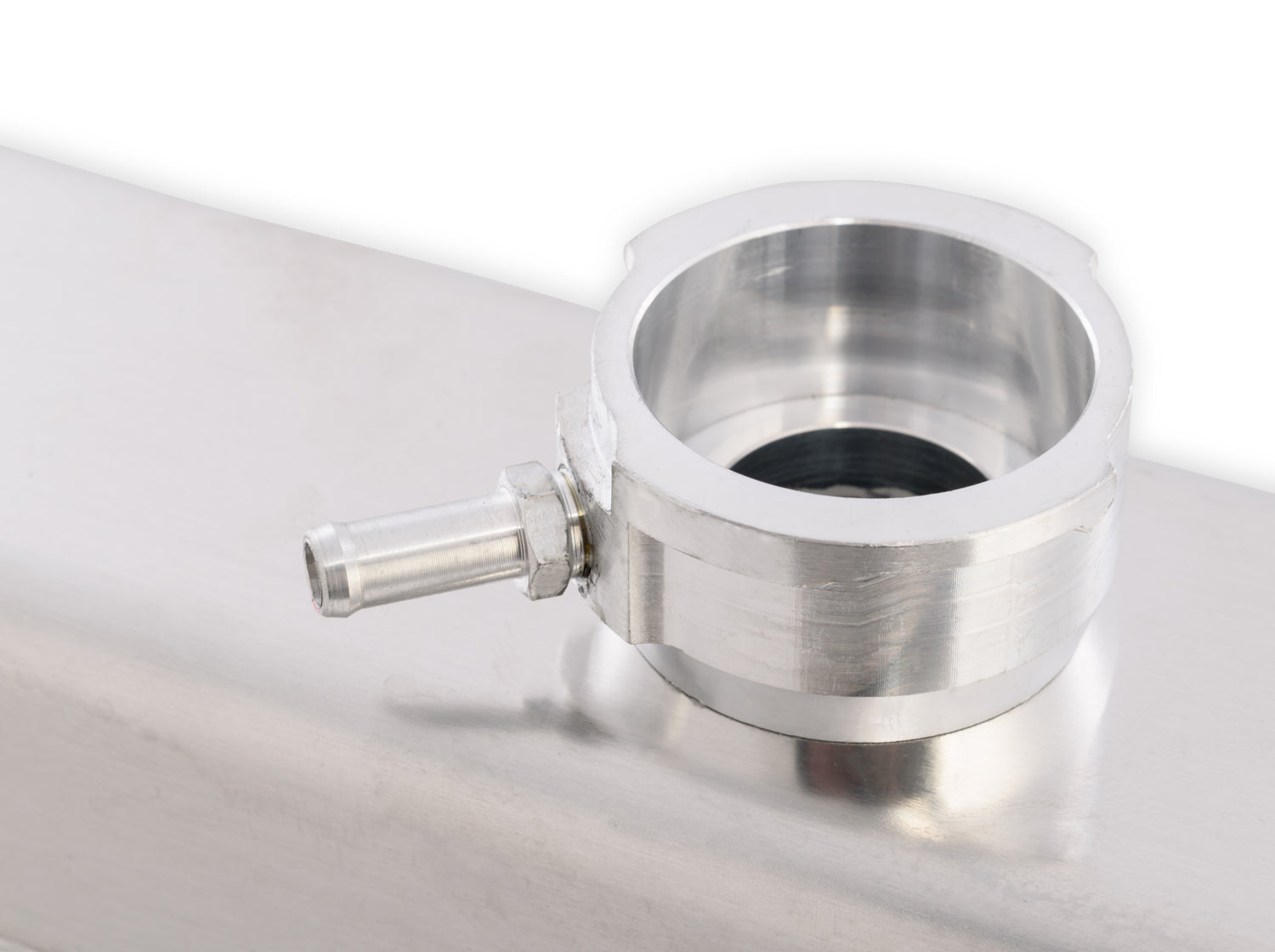

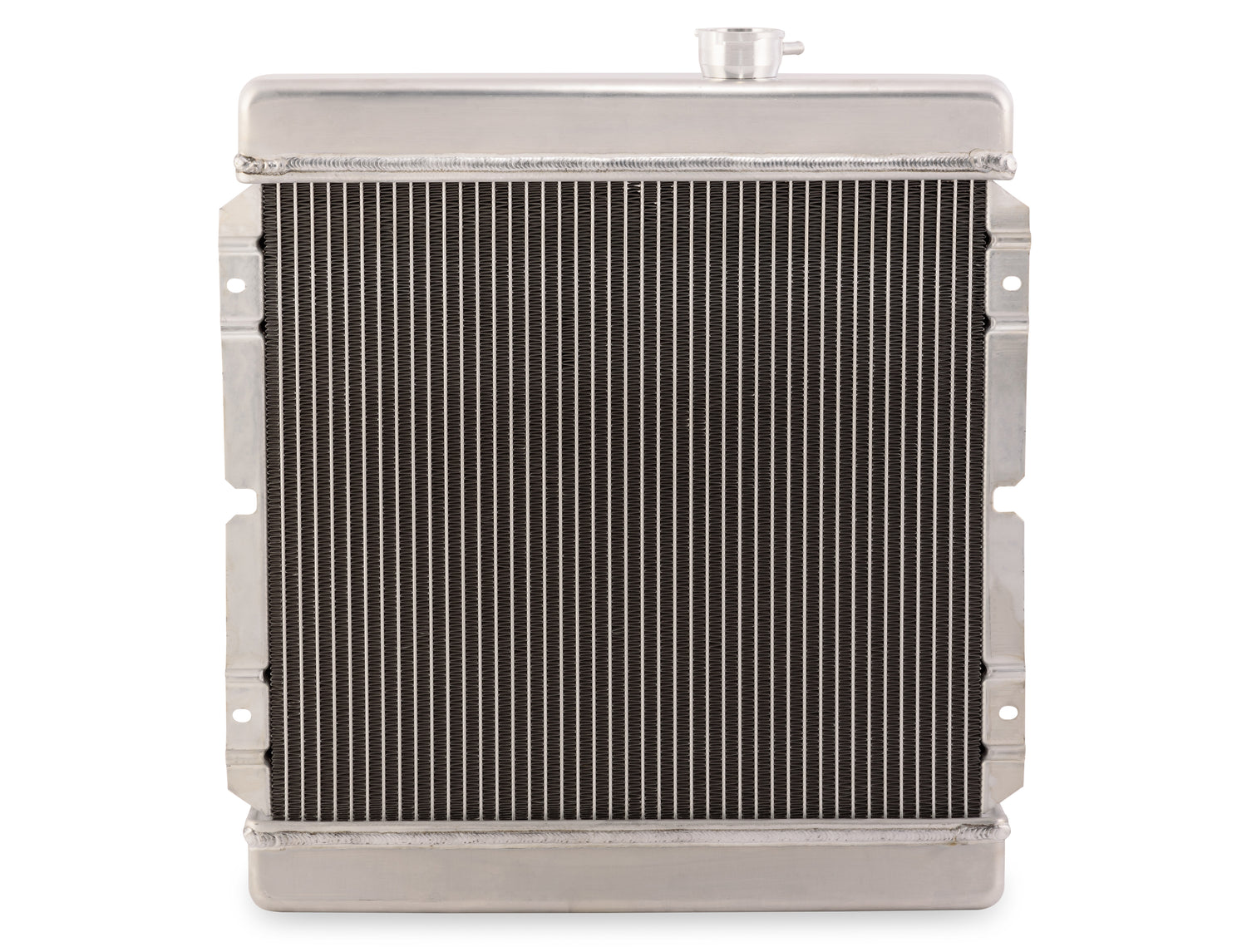

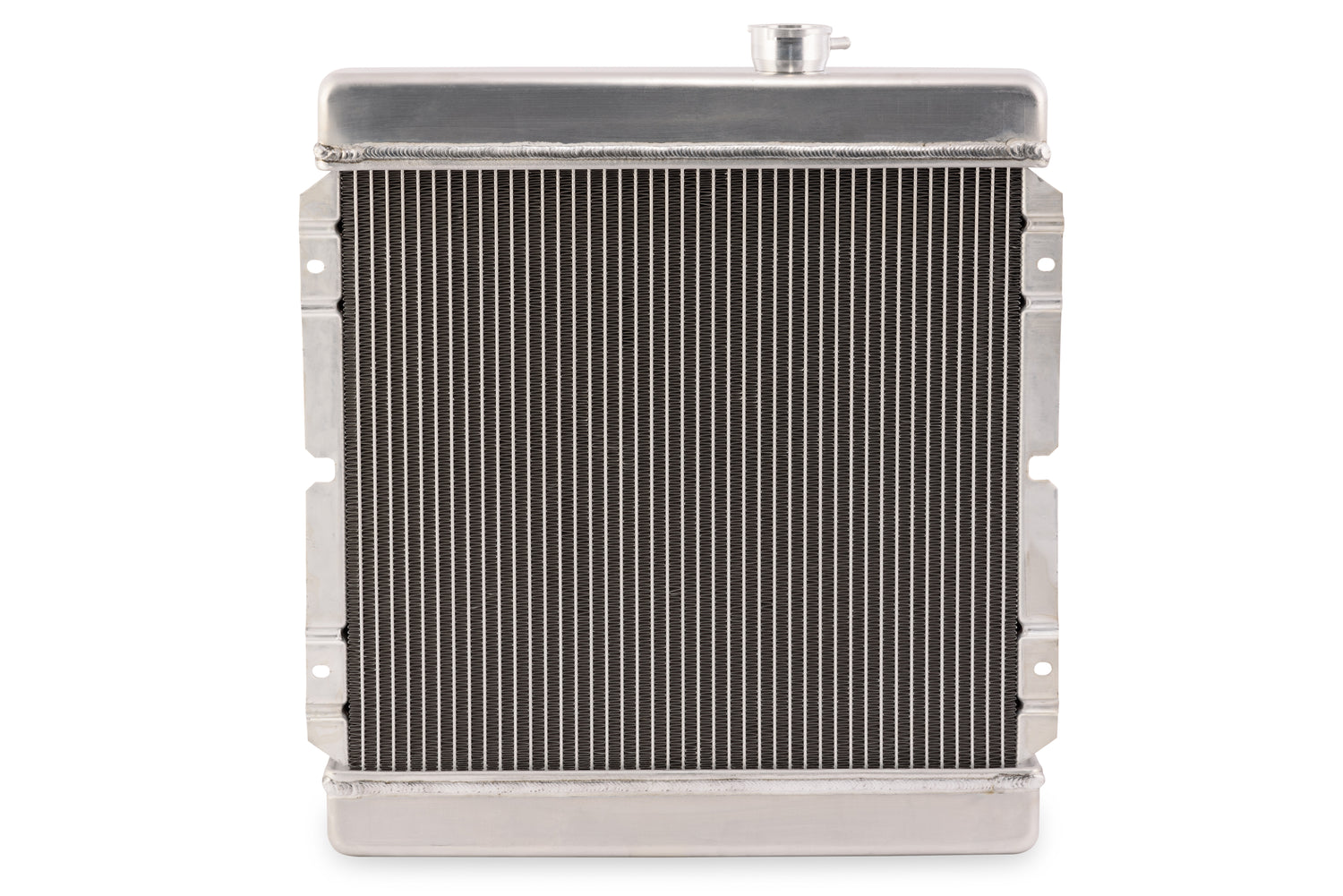

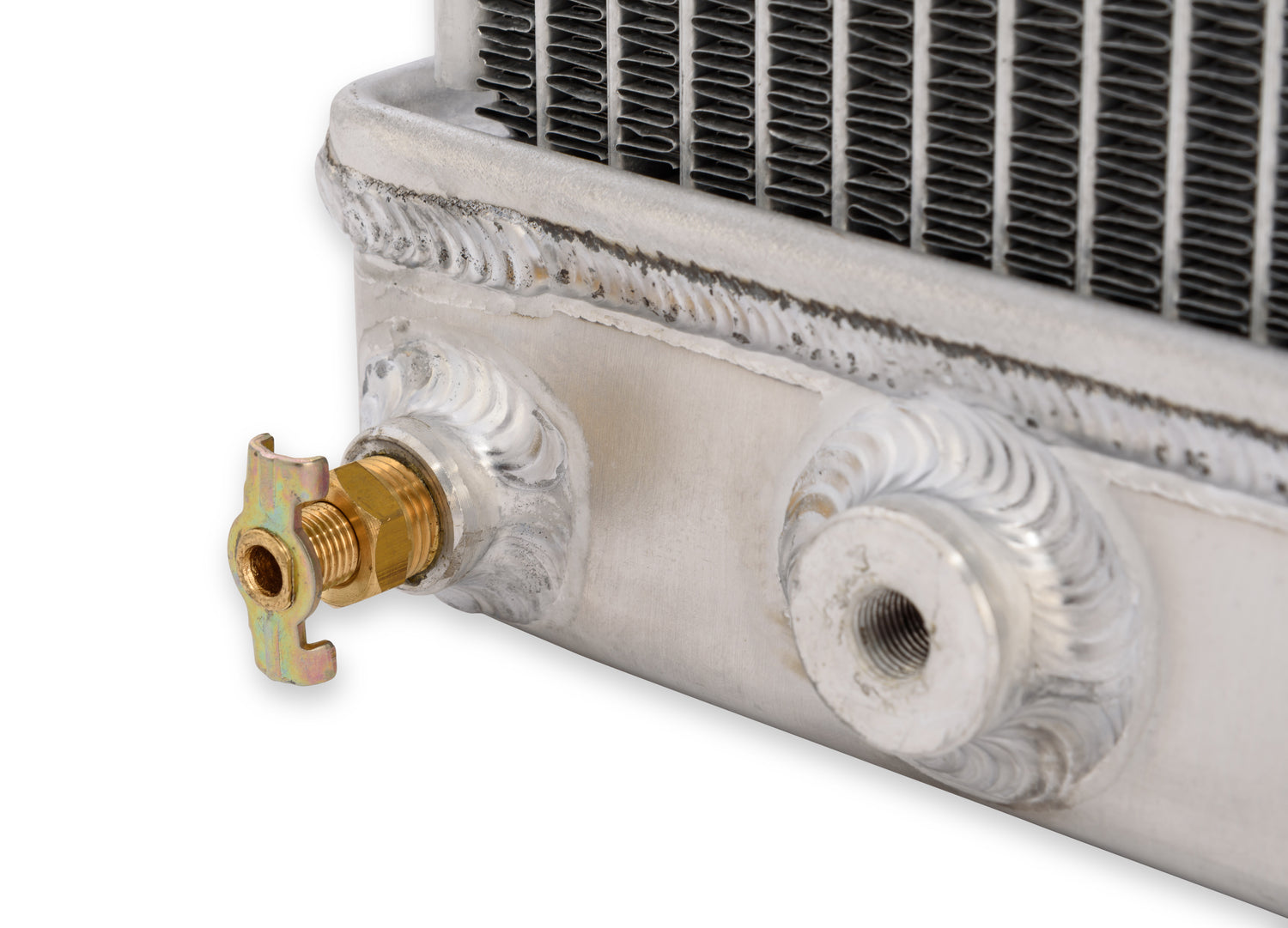

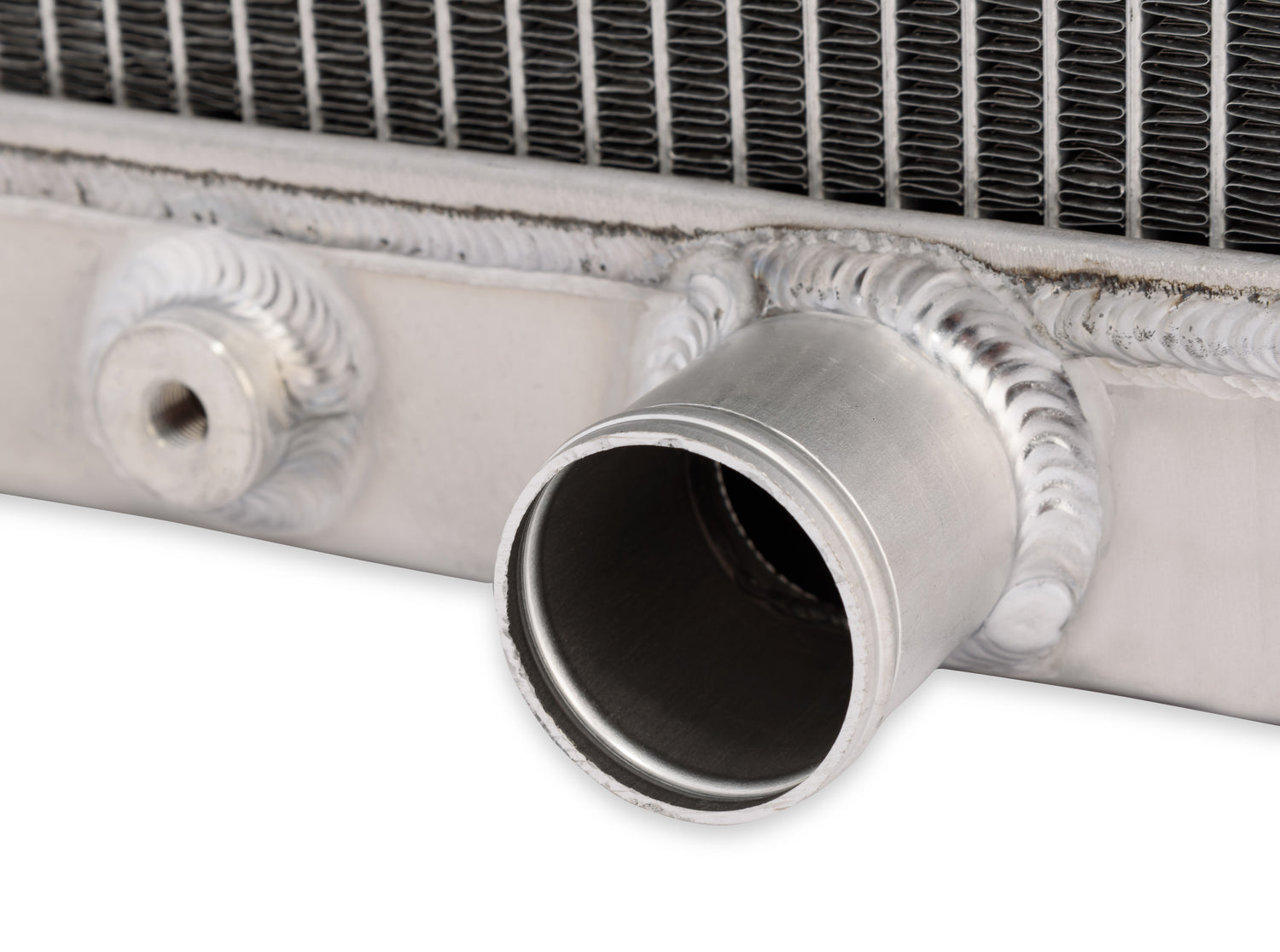

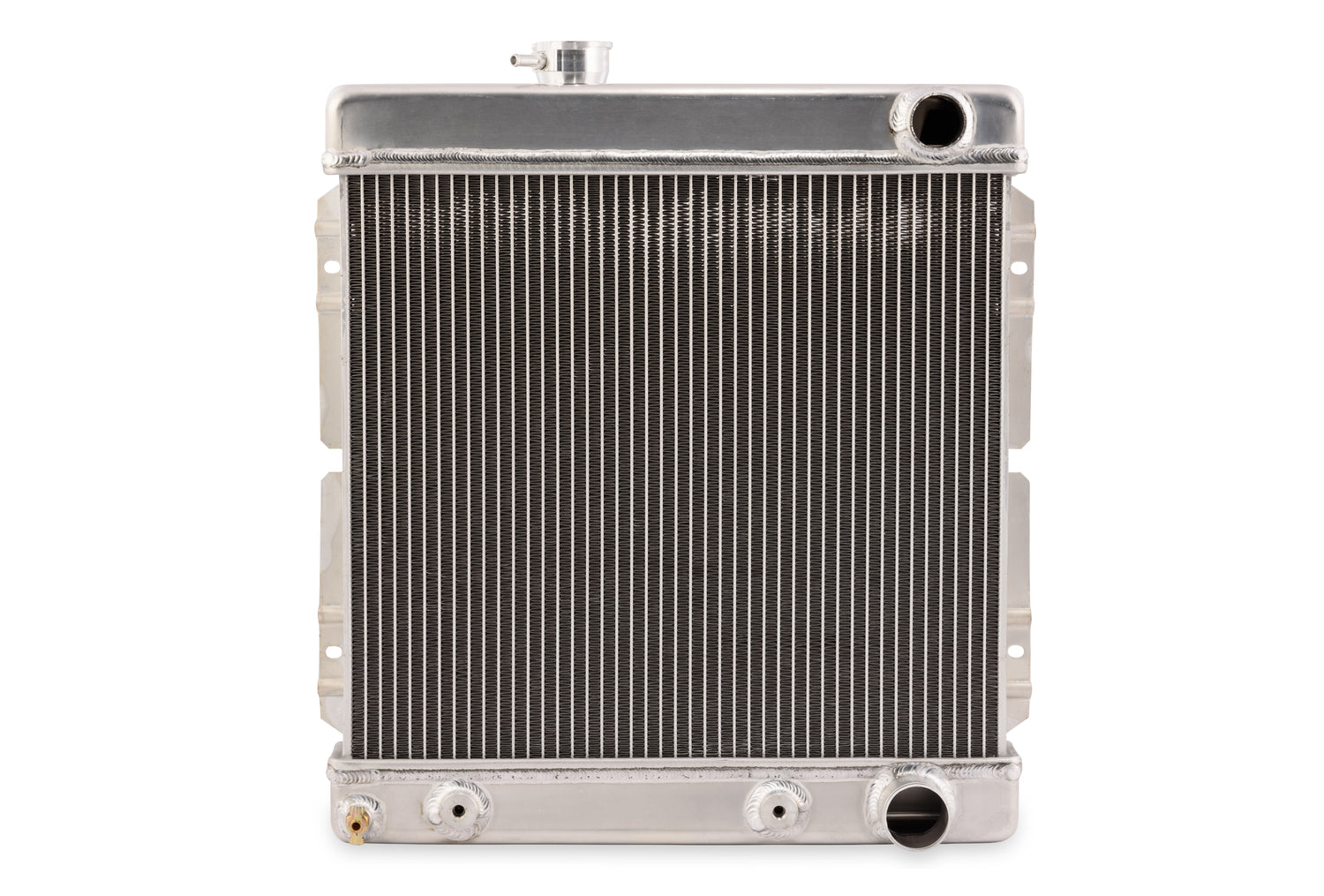

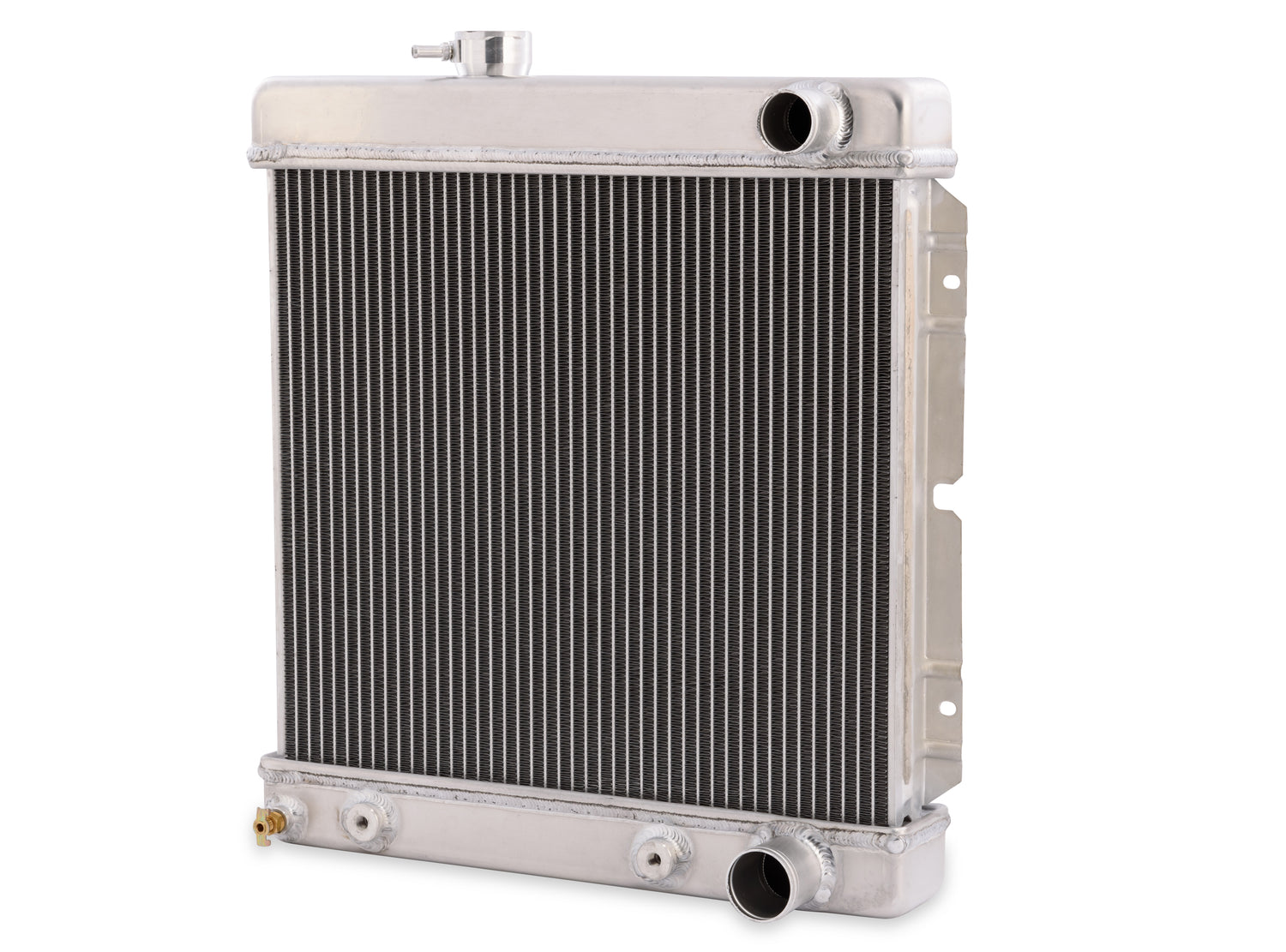

Scott Drake designed this downflow aluminum radiator with an exclusive baffle at the top to help evenly distribute the flow of hot water across the upper part of the radiator. This aluminum radiator is 100% fully tig welded. The inlet and outlet on the radiator are located on the same side and also include a built-in petcock on the lower driver side of the radiator. This aluminum 2-row radiator features extra-large 1" tubes for 4-row efficiency, but with 5-7 lbs. less weight, while solving the original radiator's serious problem of distributing the hot water to the far-right side of the radiator. This aluminum radiator includes an automatic transmission cooler with 1/2"x20 inverted flare fittings.
Features and Benefits
ā¢ 2-Row Aluminum Radiator
ā¢ Exclusive Baffle Design
ā¢ Built in Petcock
ā¢ Automatic transmission cooler with 1/2"x20 inverted flare fittings.
This aluminum radiator includes an automatic transmission cooler with 1/2"x20 inverted flare fittings.
Part Number: 259-2AL
Scott Drake designed this downflow aluminum radiator with an exclusive baffle at the top to help evenly distribute the flow of hot water across the upper part of the radiator. This aluminum radiator is 100% fully tig welded. The inlet and outlet on the radiator are located on the same side and also include a built-in petcock on the lower driver side of the radiator. This aluminum 2-row radiator features extra-large 1" tubes for 4-row efficiency, but with 5-7 lbs. less weight, while solving the original radiator's serious problem of distributing the hot water to the far-right side of the radiator. This aluminum radiator includes an automatic transmission cooler with 1/2"x20 inverted flare fittings.
Features and Benefits
ā¢ 2-Row Aluminum Radiator
ā¢ Exclusive Baffle Design
ā¢ Built in Petcock
ā¢ Automatic transmission cooler with 1/2"x20 inverted flare fittings.
This aluminum radiator includes an automatic transmission cooler with 1/2"x20 inverted flare fittings.
Specifications
Specifications
-
Specifications
Brand Scott Drake Category Belts and Cooling Core Height 16 1/2 Core Row Quantity 2 Core Thickness 2 5/8 Core Width 17 Down Flow Or Cross Flow Type Down Flow Drain Petcock Included Yes Emission Code 6 Engine Oil Cooler Included No Fan Included No Finish Natural Hose Location Inlet Passenger Hose Location Outlet Passenger Inlet Diameter 1 1/2 Inlet Location Passenger Material Aluminum Mounting Type Bolt On Outlet Diameter 1-3/4 in. Outlet Location Passenger Outlet Size 1-3/4 in. Overall Height 21 1/2 Overall Thickness 3 Overall Width 17 3/8 part type Radiator Product Type Radiator Radiator Cap Included No Sub Category Radiators, Coolers and Related Components Transcooler Provision Yes Transmission Oil Cooler Included Yes Tube Quantity 41 Tubing Spacing 5/8 Warning California Proposition 65
