Scott Drake | SKU: 340-3HF

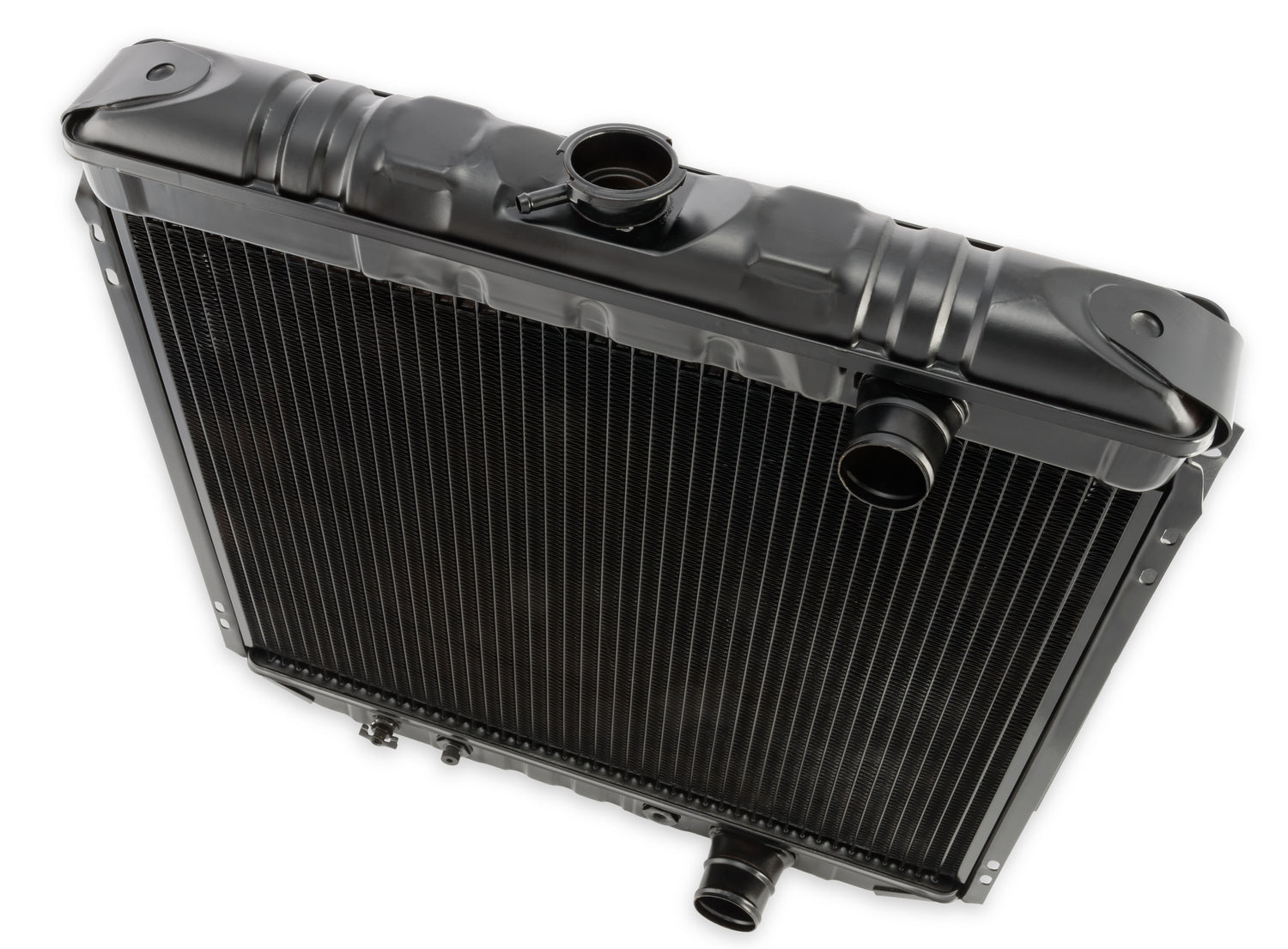

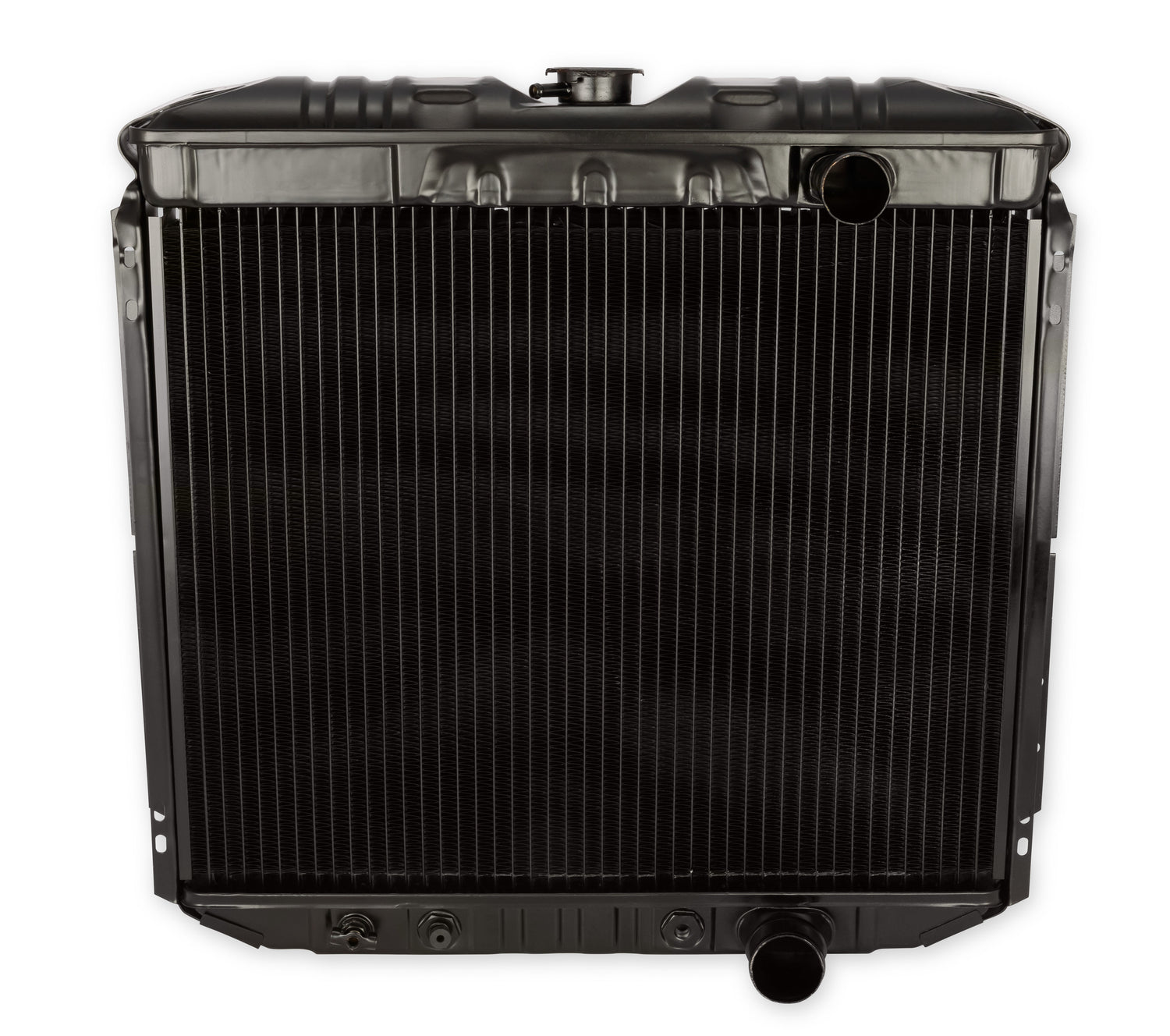

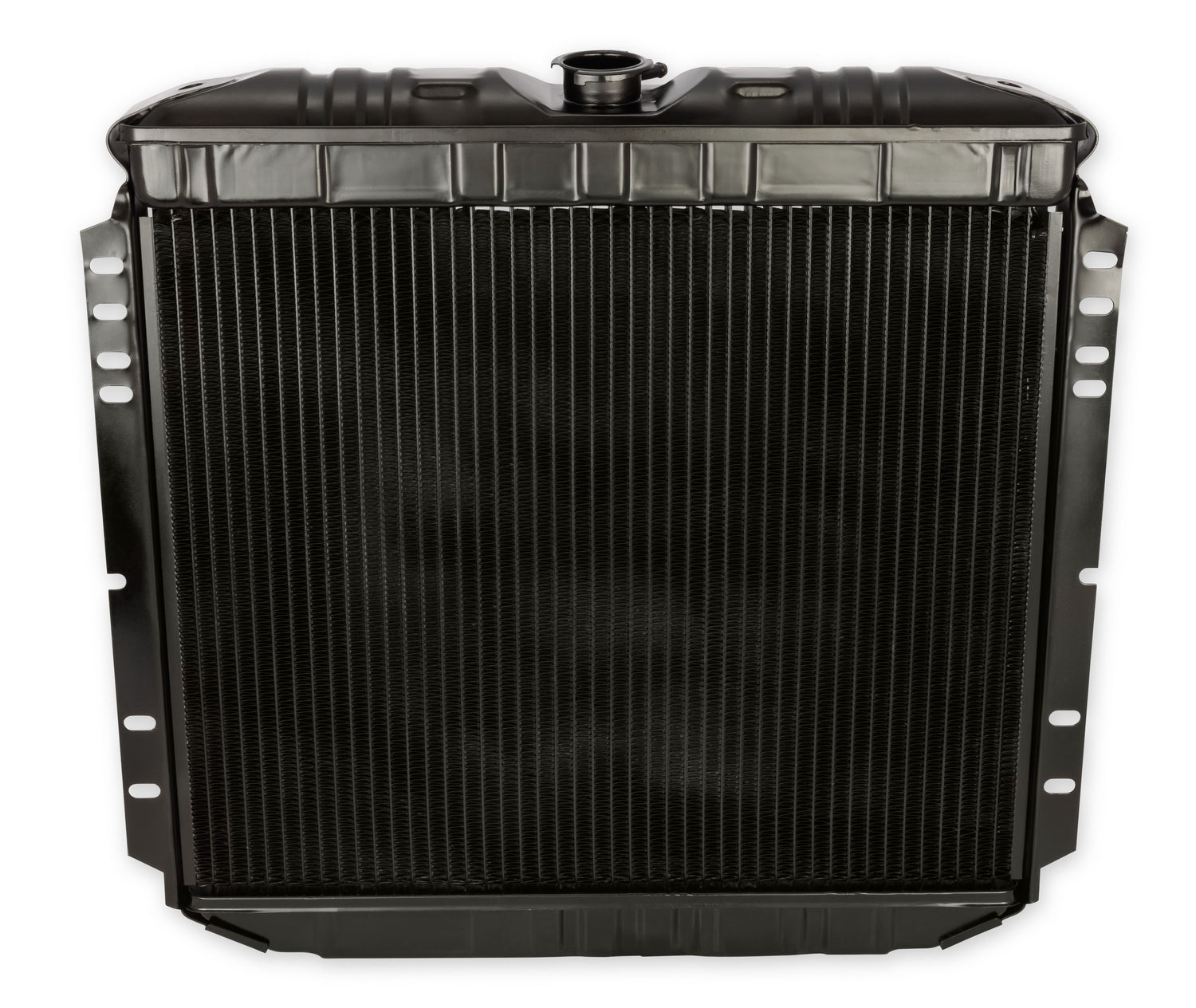

Scott Drake 3 Row Hi-Flow Radiator - 340-3HF

Name: Scott Drake 3 Row Hi-Flow Radiator - 340-3HF
Brand: Scott Drake
SKU: 340-3HF
Price: 1244.7 NZD
Availability: OutOfStock

1967-1969 Ford Mustang Small Block, automatic transmission without Air Conditioning 3 Row Hi-Flow Radiator

$1,244.70 NZD + GST

Shipping calculated at checkout.

Description

1967-1969 Ford Mustang Small Block, automatic transmission without Air Conditioning 3 Row Hi-Flow Radiator

Part Number: 340-3HF

Copper/brass construction of this downflow radiator has 3 rows of 1/2" tubing is designed for maximum cooling. The larger tubing increases coolant flow while designed to prevent plugging of coolant passages. A painted black finish provides an attractive finish under the hood and the integrated transmission cooler aids in extending transmission life. Lower mounting insulators sold separately.

Features and Benefits

• Copper brass construction
• 1/2" tubing diameter provides increased coolant flow
• Automatic transmission cooler included
• Attractive black painted finish

Specifications

Brand	Scott Drake
Category	Belts and Cooling
Color	Black
Core Dimension	16 3/8 x 20 1/4
Core Height	16 1/2
Core Row Quantity	3
Core Thickness	2 1/2
Core Width	20
Down Flow Or Cross Flow Type	Down Flow
Emission Code	6
Fan Included	No
Finish	Painted
Hose Location Inlet	Passenger
Hose Location Outlet	Passenger
Inlet Diameter	1 1/2
Inlet Location	Passenger
Material	Copper
Meets or Exceeds Original Equipment Manufacture Specifications	Yes
Mounting Hardware Included	No
Mounting Type	Flanged
Outlet Diameter	1-3/4 in.
Outlet Location	Passenger
Outlet Size	1-3/4 in.
Overall Height	21 3/8
Overall Thickness	3
Overall Width	20 1/2
part type	Radiator
Product Type	Radiator
Radiator Cap Included	No
Sub Category	Radiators, Coolers and Related Components
Transcooler Provision	Yes
Transmission Oil Cooler Included	Yes
Tube Quantity	44
Tubing Spacing	11/32
Warning	California Proposition 65
