Scott Drake | SKU: 340-2AL

Scott Drake 2 Row Down Flow Aluminum Radiator - 340-2AL

Name: Scott Drake 2 Row Down Flow Aluminum Radiator - 340-2AL
Brand: Scott Drake
SKU: 340-2AL
Price: 884.1 NZD
Availability: OutOfStock

1967-1969 Ford Mustang Small Block 2 Row Down Flow Aluminum Radiator

$884.10 NZD + GST

Shipping calculated at checkout.

Description

1967-1969 Ford Mustang Small Block 2 Row Down Flow Aluminum Radiator

Part Number: 340-2AL

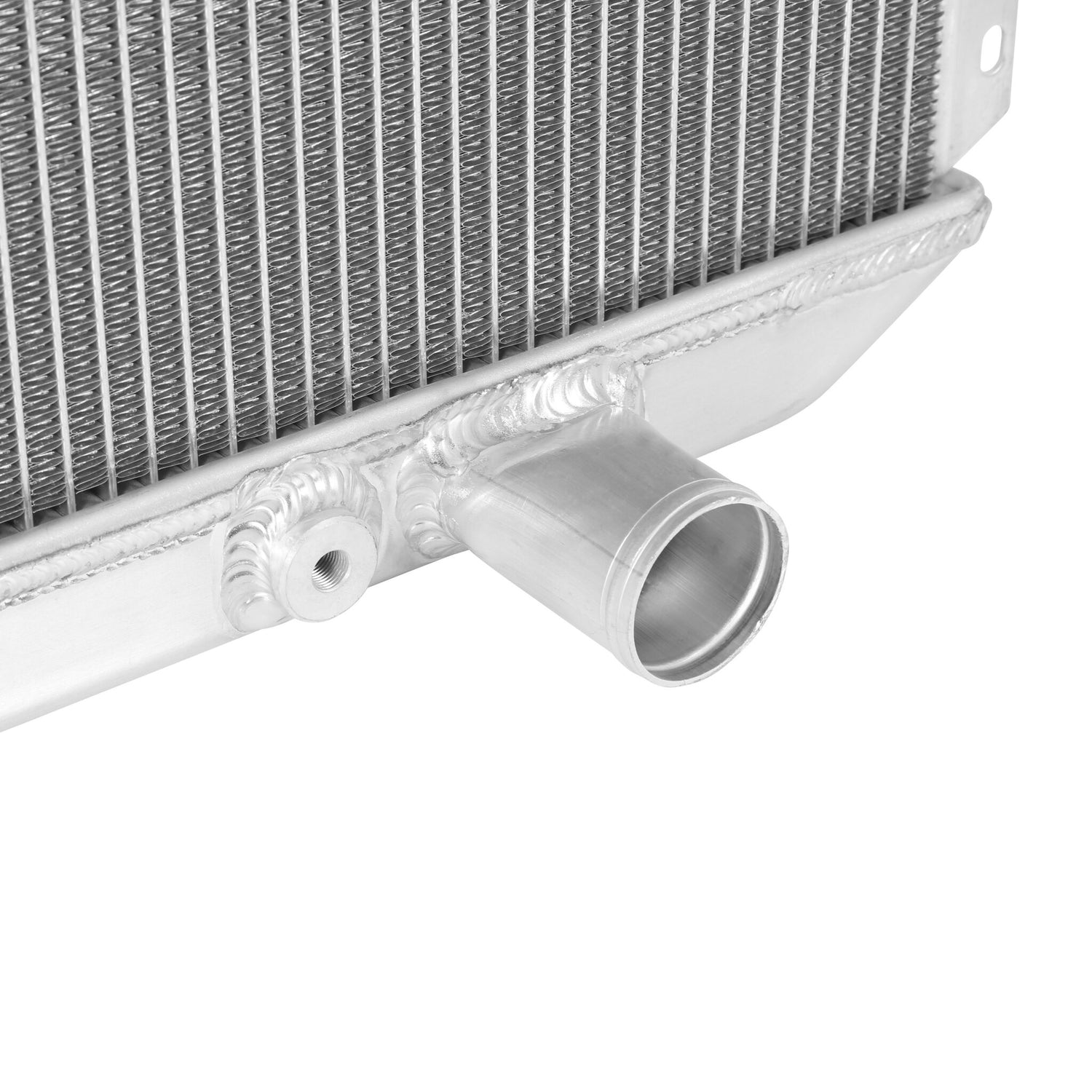

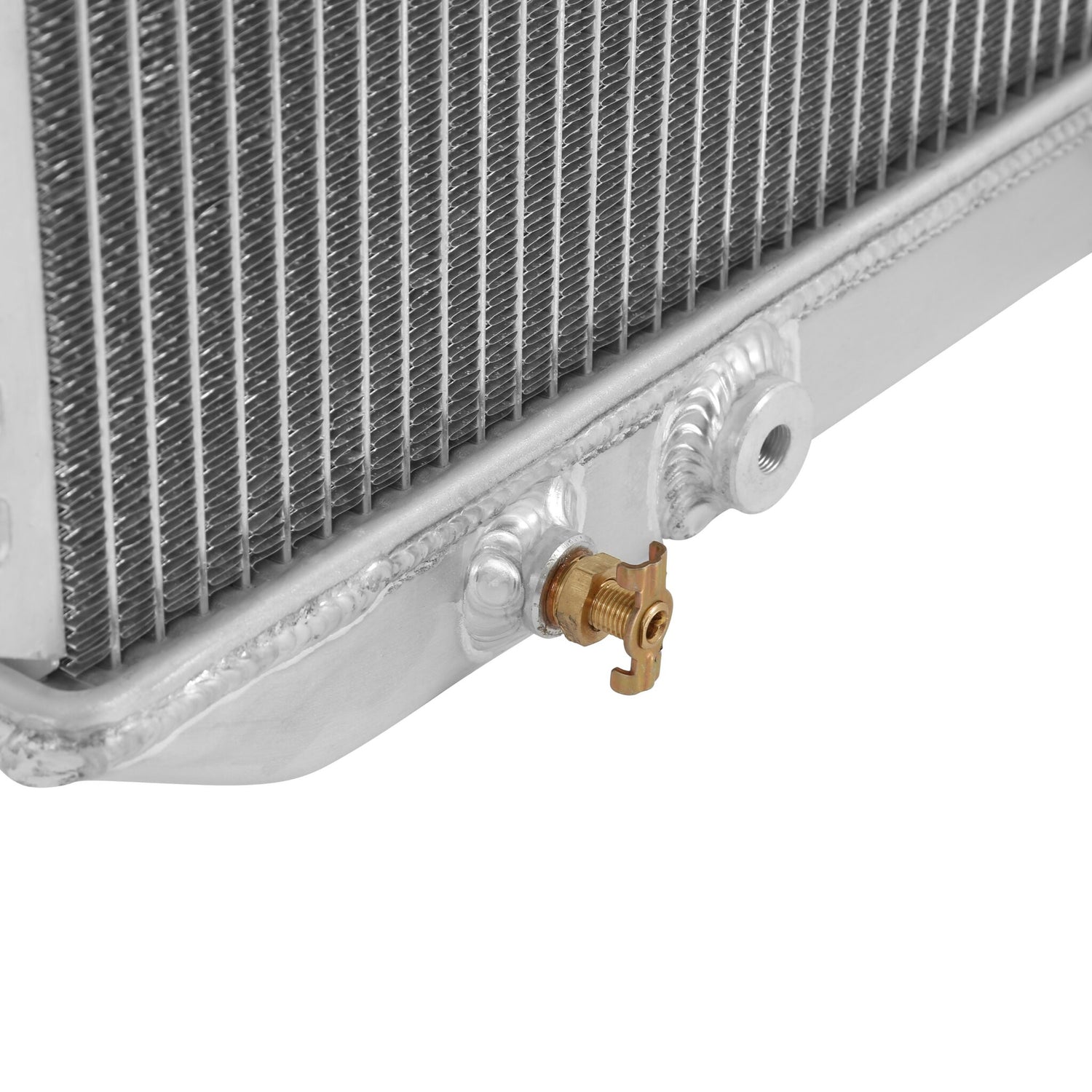

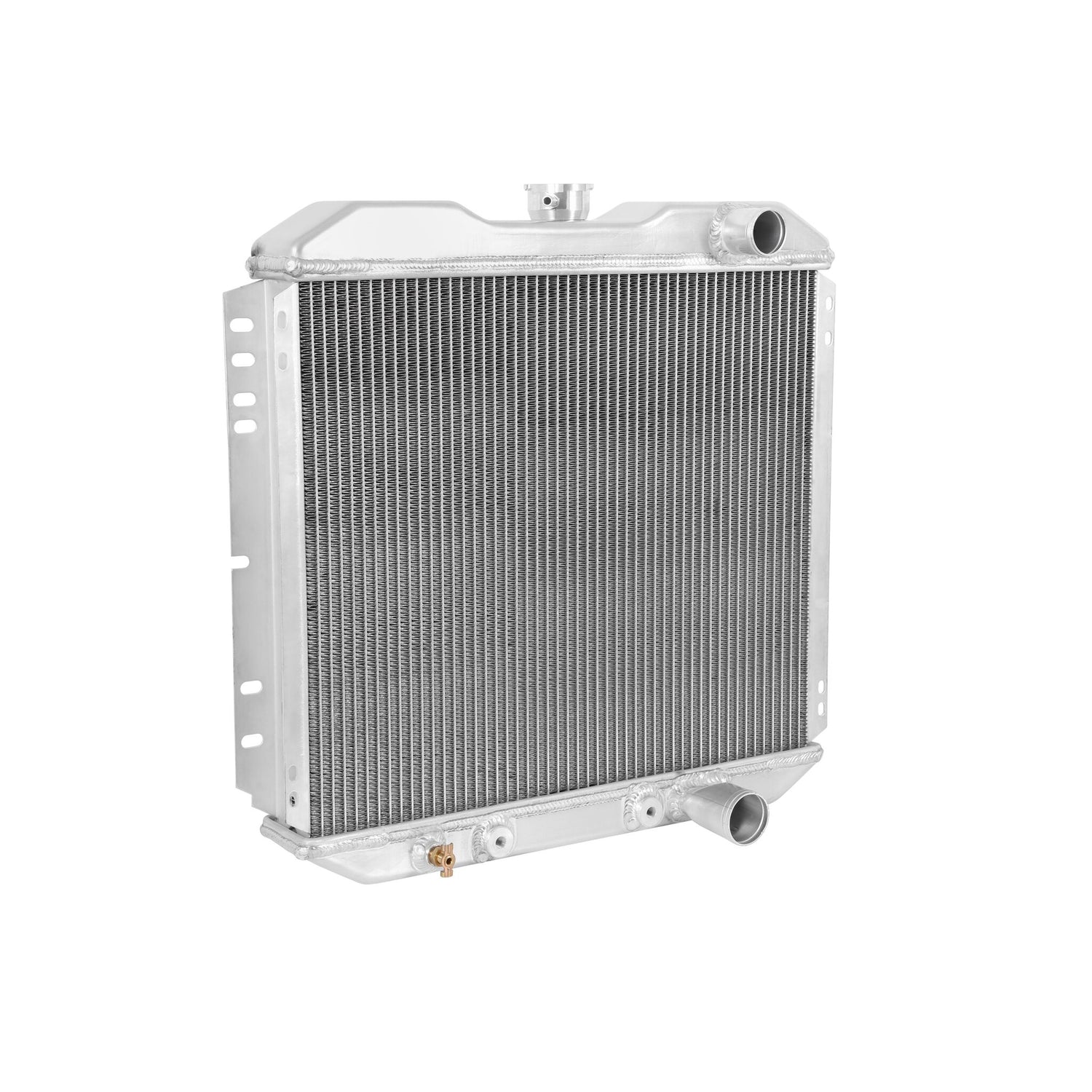

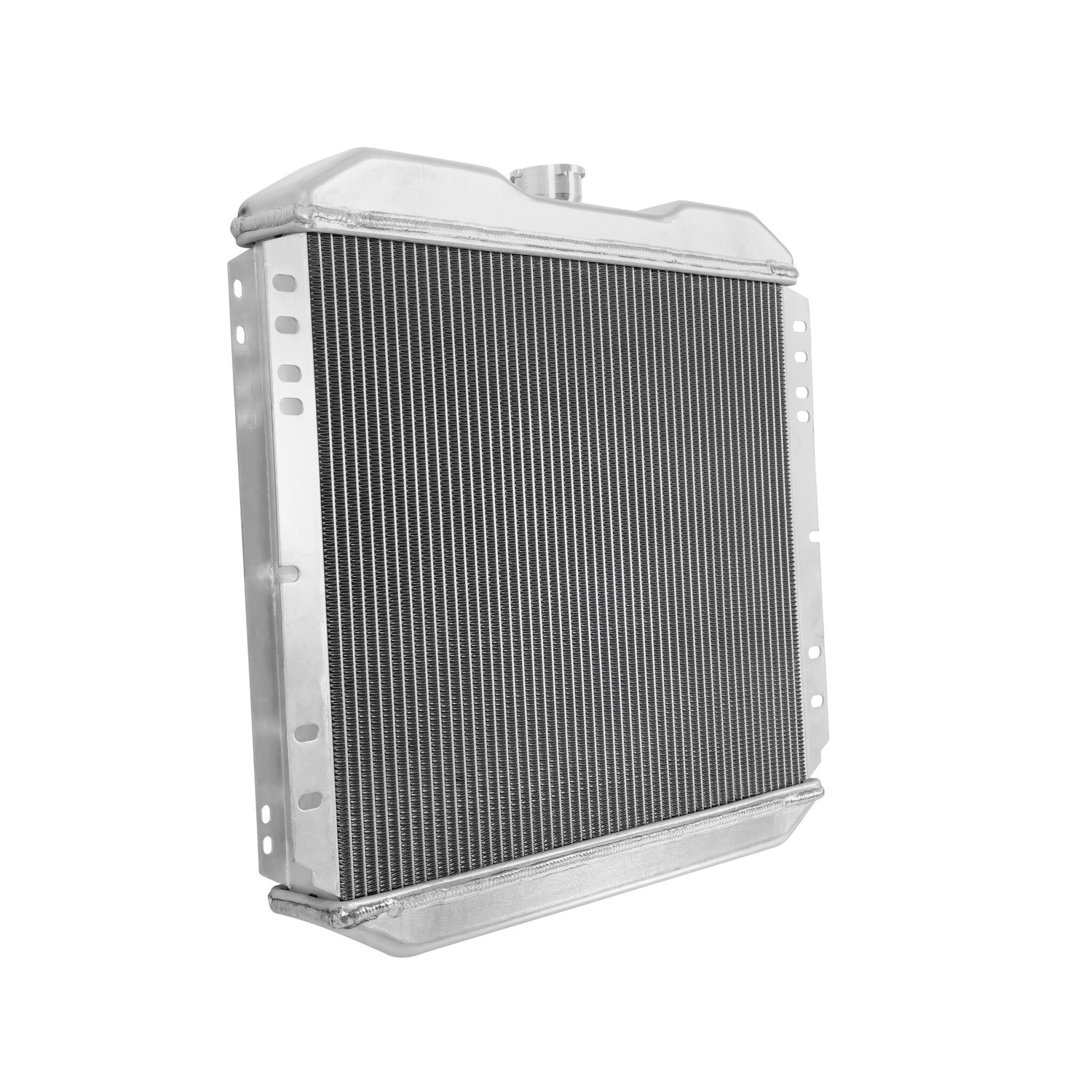

This precisely designed aluminum downflow radiator is manufactured using 2 rows of extra-large 1" tubes which is equivalent to 4-row efficiency but weighing 5-7 lbs. less. Constructed using premium aluminum this radiator is built to last while providing durability for the road ahead. An automatic transmission cooler is included in this natural finish aluminum radiator and the direct fit install uses the existing factory holes. Will not fit late model water pumps.

Features and Benefits

• Extra large 1" tubes, equals 4 row efficiency at 5-7 lbs. less weight
• Automatic transmission cooler included
• Premium aluminum construction for long lasting durability
• Direct fit install uses existing factory holes

Will not fit late model water pumps

Specifications

Brand	Scott Drake
Category	Cooling
Core Dimension	16 3/8 x 20 1/4
Core Height	16 1/2
Core Row Quantity	2
Core Thickness	2 5/8
Core Width	20
Down Flow Or Cross Flow Type	Down Flow
Emission Code	6
Fan Included	No
Finish	Bare
Hose Location Inlet	Passenger
Hose Location Outlet	Passenger
Inlet Diameter	1 1/2
Inlet Location	Passenger
Material	Aluminum
Mounting Type	Flanged
Outlet Diameter	1-3/4 in.
Outlet Location	Passenger
Outlet Size	1-3/4 in.
Overall Height	21 3/8
Overall Thickness	3
Overall Width	20 1/2
Product Type	Radiator
Radiator Cap Included	No
Transcooler Provision	Yes
Transmission Oil Cooler Included	Yes
Tube Quantity	49
Tubing Spacing	5/8
Warning	California Proposition 65
