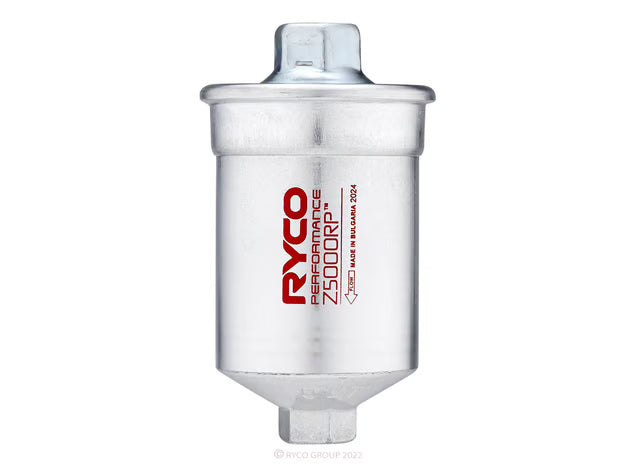

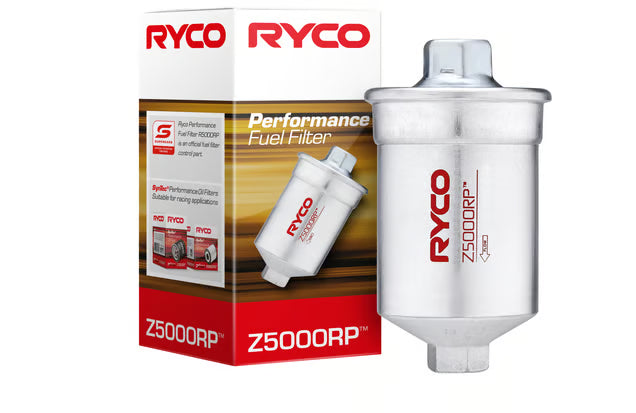

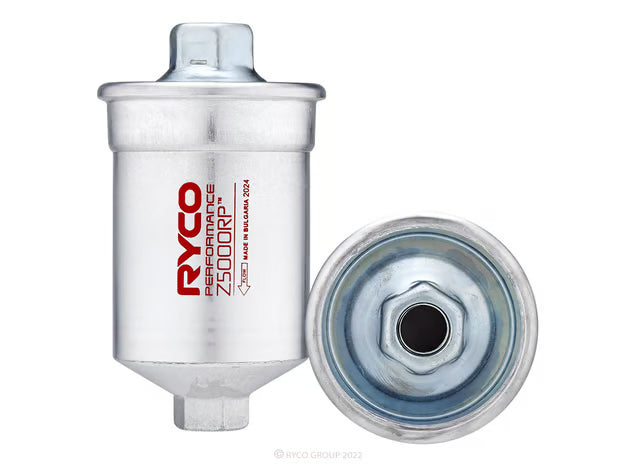

Ryco Performance EFI Fuel Filter - Z5000RP

7-Micron High-Flow EFI Fuel Filter – E85 & Methanol Compatible

The Ryco Z5000RP Performance Fuel Filter is the official control filter specified for Gen3 Chevrolet Camaro LS3 and Ford Mustang Coyote V8 Supercars. Featuring rolled 7-micron filter media instead of coarse-particle pleated metal screens, it delivers 98.67% filtration efficiency while supporting fuel flow of up to 65 kPa at 7 L/min. Its high flow capacity and compatibility with E85 and methanol make it an excellent choice for EFI fuel systems, motorsport, speedway, circuit racing, drag racing and other high-performance applications.

Features

• Official Gen3 Supercars control fuel filter
• Suitable for EFI, motorsport and speedway fuel systems
• Rolled fine-micron filter media
• 7-micron nominal filtration rating
• 98.67% filtration efficiency
• Flow rated at 65 kPa at 7 L/min (1.8 GPM)
• Compatible with E85 and methanol
• Durable aluminium housing
• M14 x 1.5 threads compatible with Dash 6 and Dash 8 fuel lines

Specifications

• Part Number: Z5000RP
• Supercar Application: Gen3 Camaro LS3 and Mustang Coyote V8
• Micron Rating: 7 micron nominal
• Efficiency Rating: 7 micron at 98.67%
• Flow Restriction: 65 kPa at 7 L/min (1.8 GPM)
• Inlet: M14 x 1.5-6H
• Outlet: M14 x 1.5-6H
• Body Diameter: 55mm
• Construction: Aluminium housing
• Fuel Compatibility: E85 and methanol
• Sleeve: No

Recommended Service Interval: Under racing conditions, replace every 2,000km.
