RTS Transmission Flexplate, Billet Steel, SFI 29.2 Certified, For Ford Barra, 4.0L BA-FG XR6 Turbo, 160T - RTS-FPBARRAB

Part Number: RTS-FPBARRAB

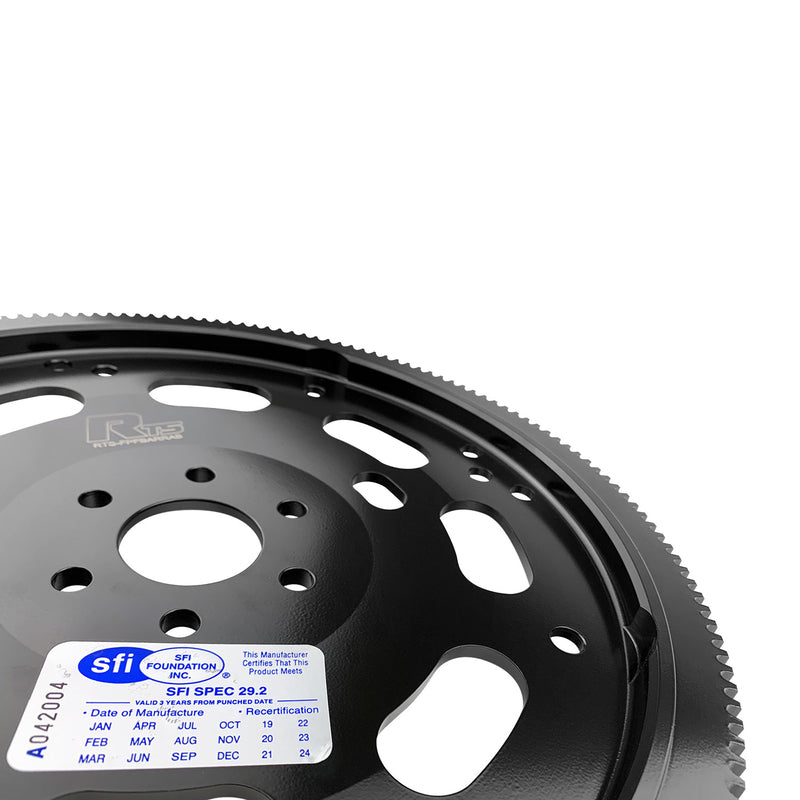

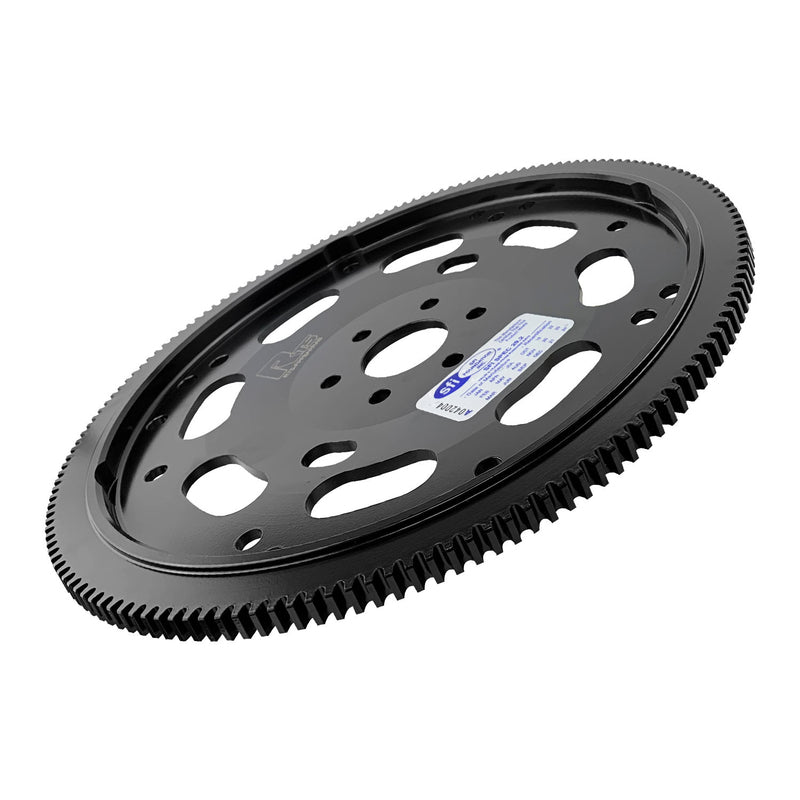

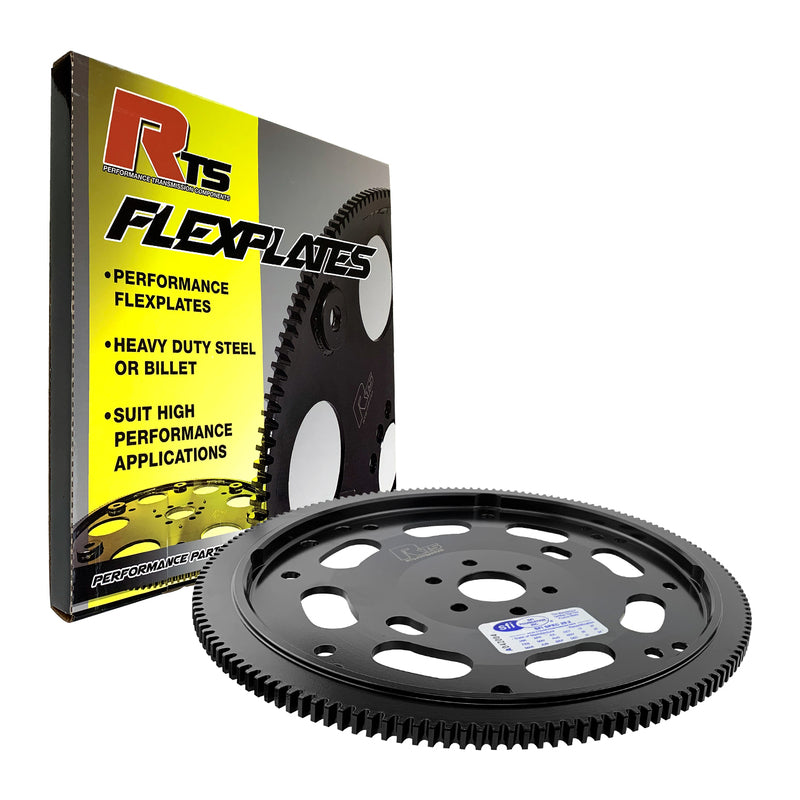

RTS's new SFI certified flexplates for the popular Ford Barra are designed to be a true upgrade for many street and race applications. These explosion proof, billet carbon steel flexplates have gone through SFI's thorough testing procedures to produce a flexplate that will exceed all expectations. With Ford Barra engines capable of producing over 1000 HP, we needed a solution to replace the factory thin sheet-metal flexplates, which were prone to failure due to the massive axial and torsional stresses applied through them. Elongated holes machined into the flexplate reduces the inertial forces produced by the flexplate when in motion.

Suits Ford Falcon DOHC Barra engines, BA-BF, FG AND FGX with the factory 4 speed, 5 speed and ZF 6 speed torque converters.

Note: this flexplate does not require any form of a flexplate bolt retainer. Please follow correct torque specifications from the manufacturer. Flexplate bolts loosening from vibration may be an indication of poor engine balance.

FEATURES

• Explosion Proof Billet Steel.
• Billet CNC machined to factory specs.
• Capable of massive horsepower .
• 10mm material thickness
• Machined Lightenin slots to reduce mass and create airflow around converter.
• SFI Certified
• Use RTS-203-2802 Bolt Kit ( Please check crank bolt head to converter to ensure edequate clearance on some converters )
