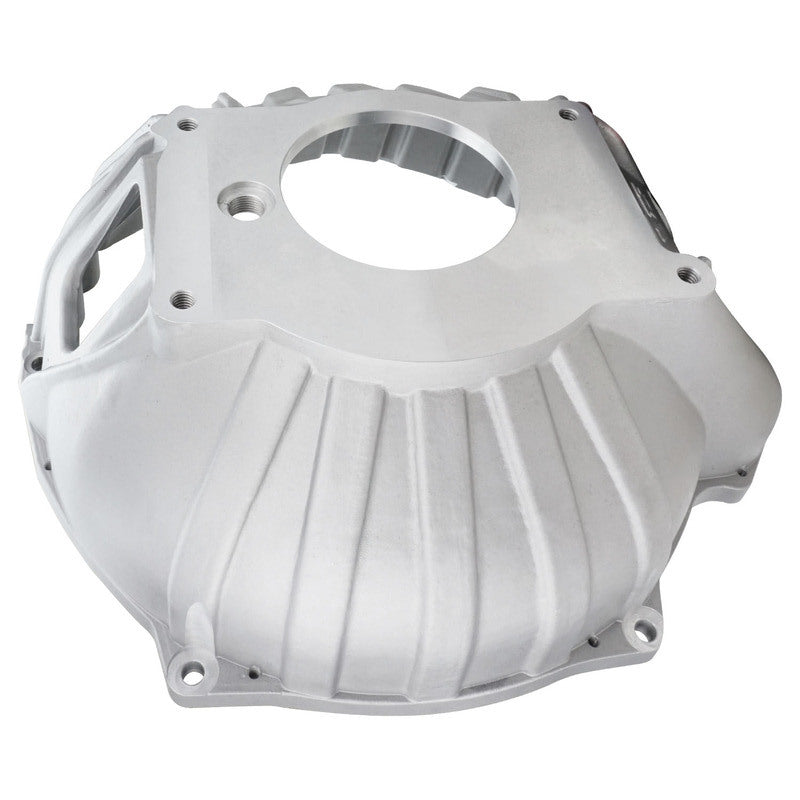

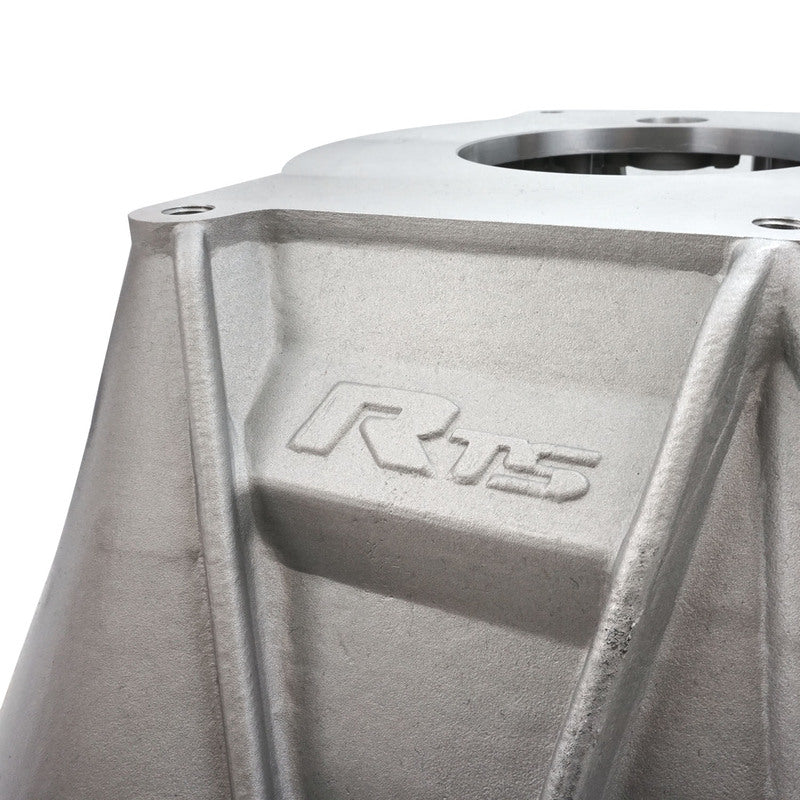

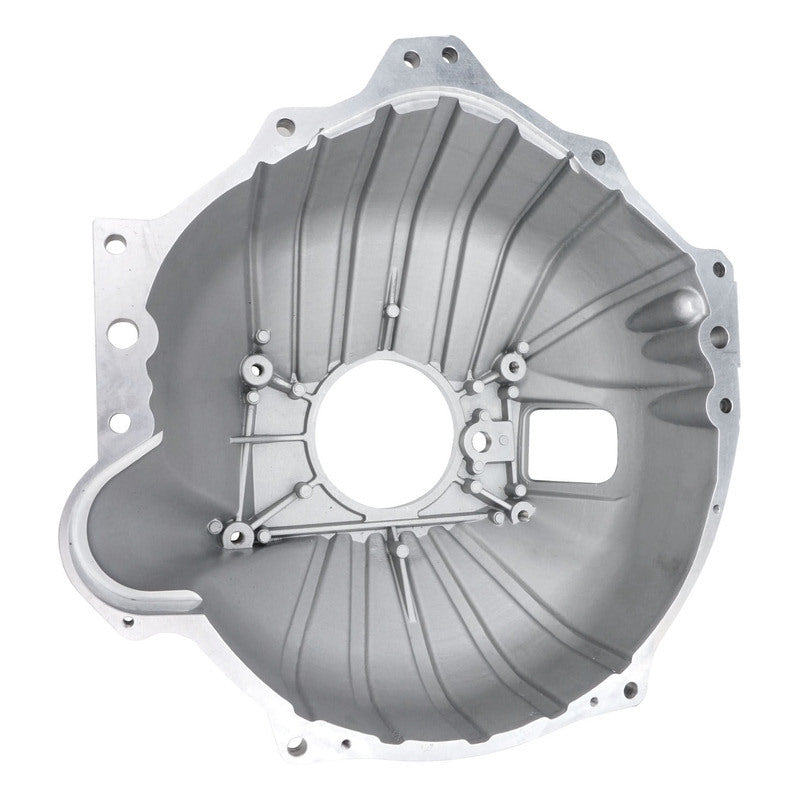

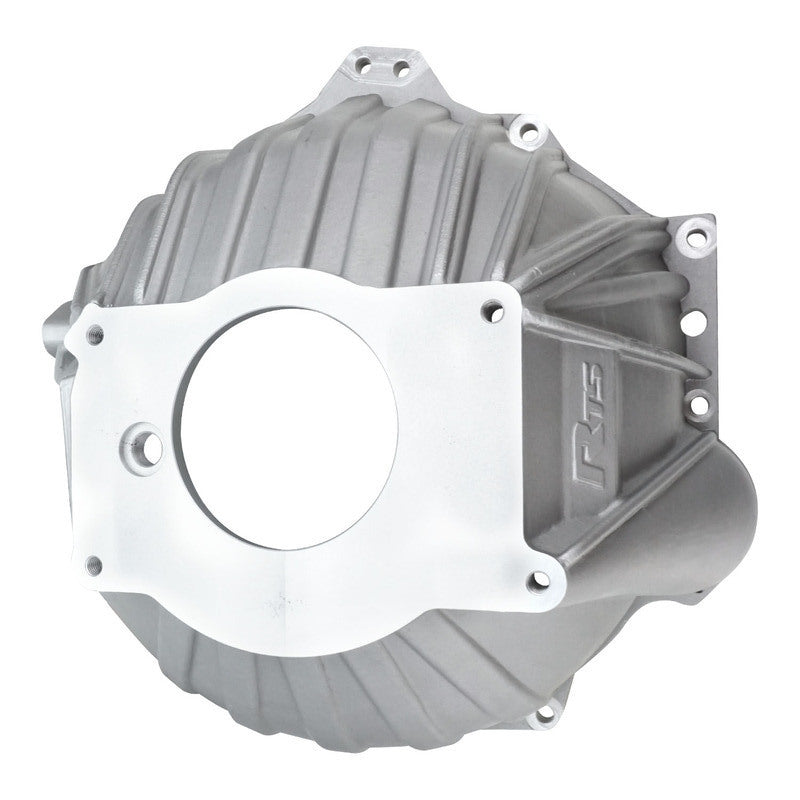

RTS OE Transmission Bellhousing, Manual, OE Style, Aluminium, LS Pattern, SB, BB, Chev Engines, Holden LS To Muncie, Saginaw, T10, Tremec TKO Trans - RTS-BH010GM

Part Number: RTS-BH010GM

RTS’ replacement bellhousings are cast aluminium production style bellhousings built to Ford and GM specifications, ensuring you of a high quality product that’s right for the job. Some applications may require minor modifications for transmission clearance and mounting.

Features:

• Lightweight cast aluminium design equivalent to the original equipment bellhousings
• non-SFI rated option for projects that do not require a steel SFI rated unit
• RTS branded premium quality
• A356-T6 cast aluminium
• Designed for hydraulic and mechanical fork throwout bearing linkage
• Bellhousing depth: 6.45 in
• Clutch fork opening: 2.125 in x 3.3 in
• Transmission bore diameter: 4.684 in
• No hardware included
• LS correct dedicated bolt pattern, but will also fit SB & BB Chevrolet

Note: will not suit Holden V8 with GM/Chev bolt pattern.
