Winters Superstock Raptor Gearbox WIN60250-10

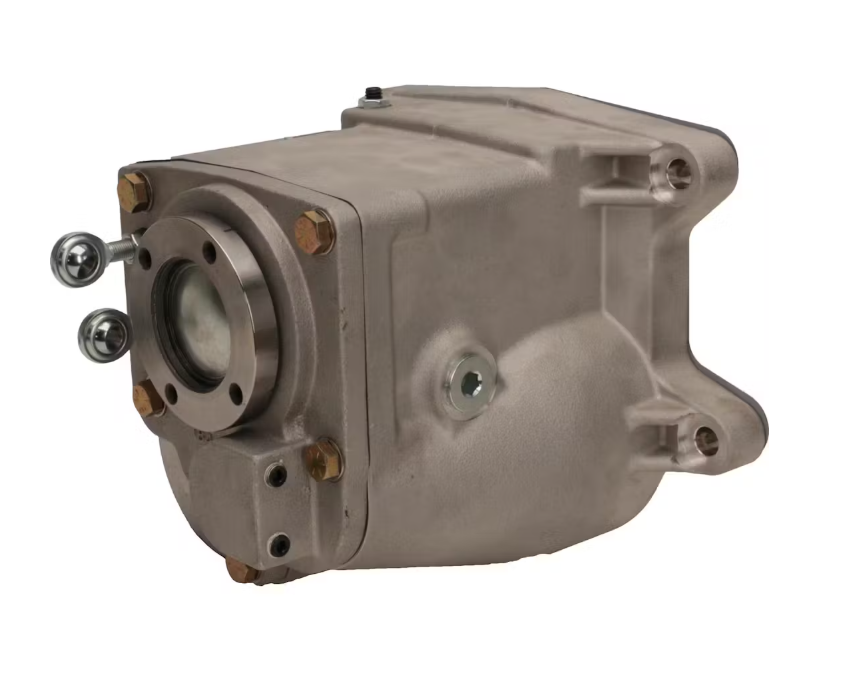

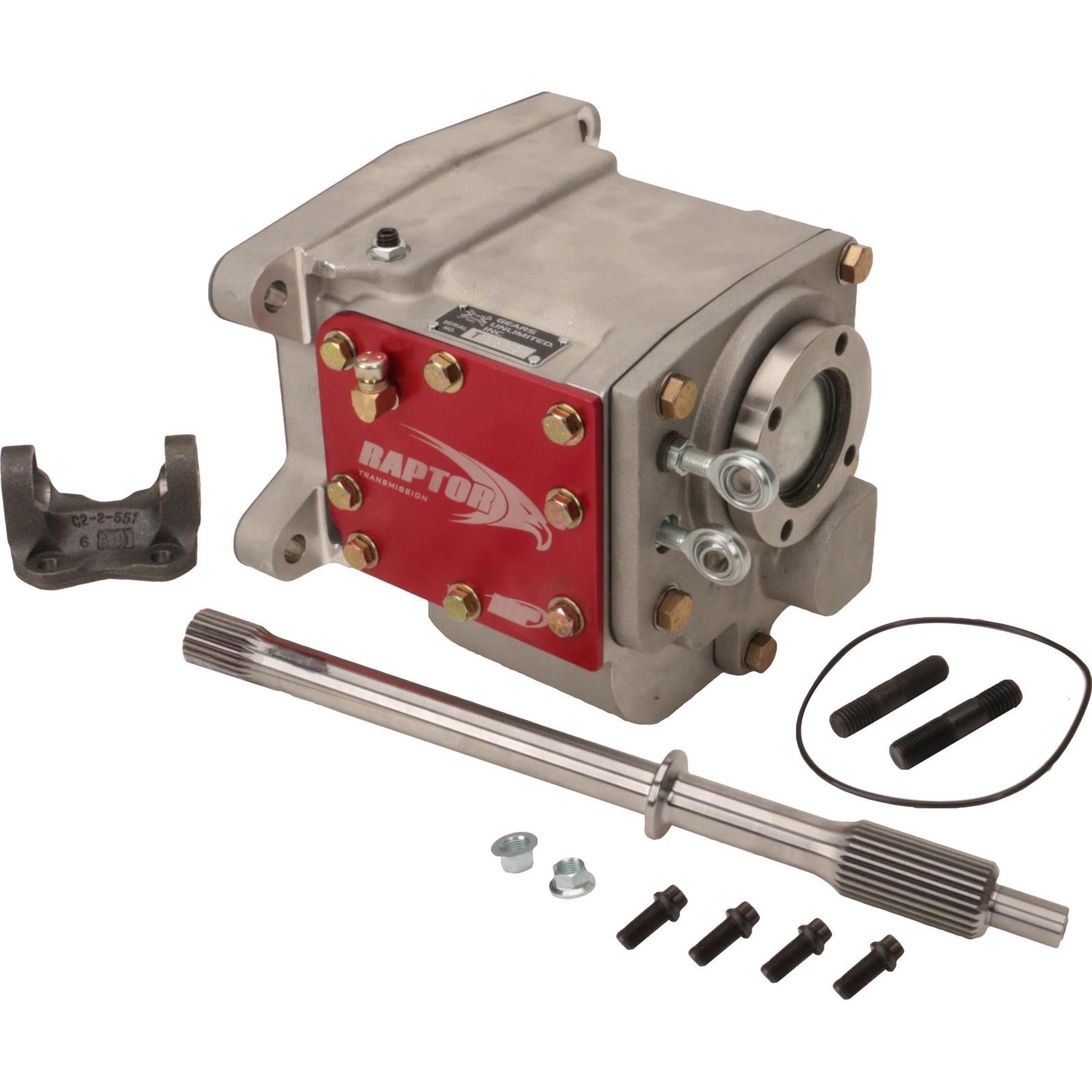

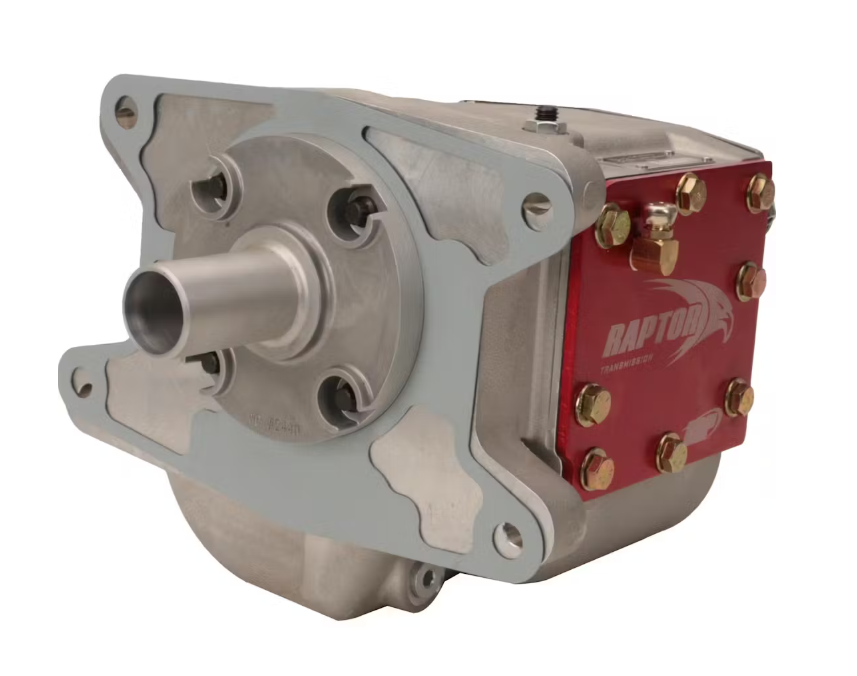

Winters Superstock Raptor Gearbox

Suit Superstock, 1.5 Ratio
SKU:
Contact for availability
$3,668.00 - $3,668.00
$3,668.00
$3,668.00 - $3,668.00
$3,668.00
+ GST
Stock Status: 🛑 Sold out — please contact for availability
Stock Status: 🛑 Sold out — please contact for availability
Choose a SPLINE
Choose a STYLE

Winters Performance Raptor Racing Transmission is arguably the lightest and fully functional transmission anywhere! Like all Raptor Transmissions, this one has two forward speeds and a reverse. This is a non-synchronized sliding gear transmission so the engine RPM must match vehicle speed for clean shifts from low to high. A floating input shaft contributes to positive high gear shifts while remaining in gear under the most competitive racing conditions.

  • 2 Forward Gears, 1 Reverse Gear
  • Measures 9-7/8" from case face to center of rear yoke
  • Uses conventional Chevy input shaft dimensions
  • Low gear can be fixed 1.504 gear rotation
  • High gear is direct drive 1 to 1 ratios
  • All gears and shafts rotate on frictionless bearings
  • Sold Individually
