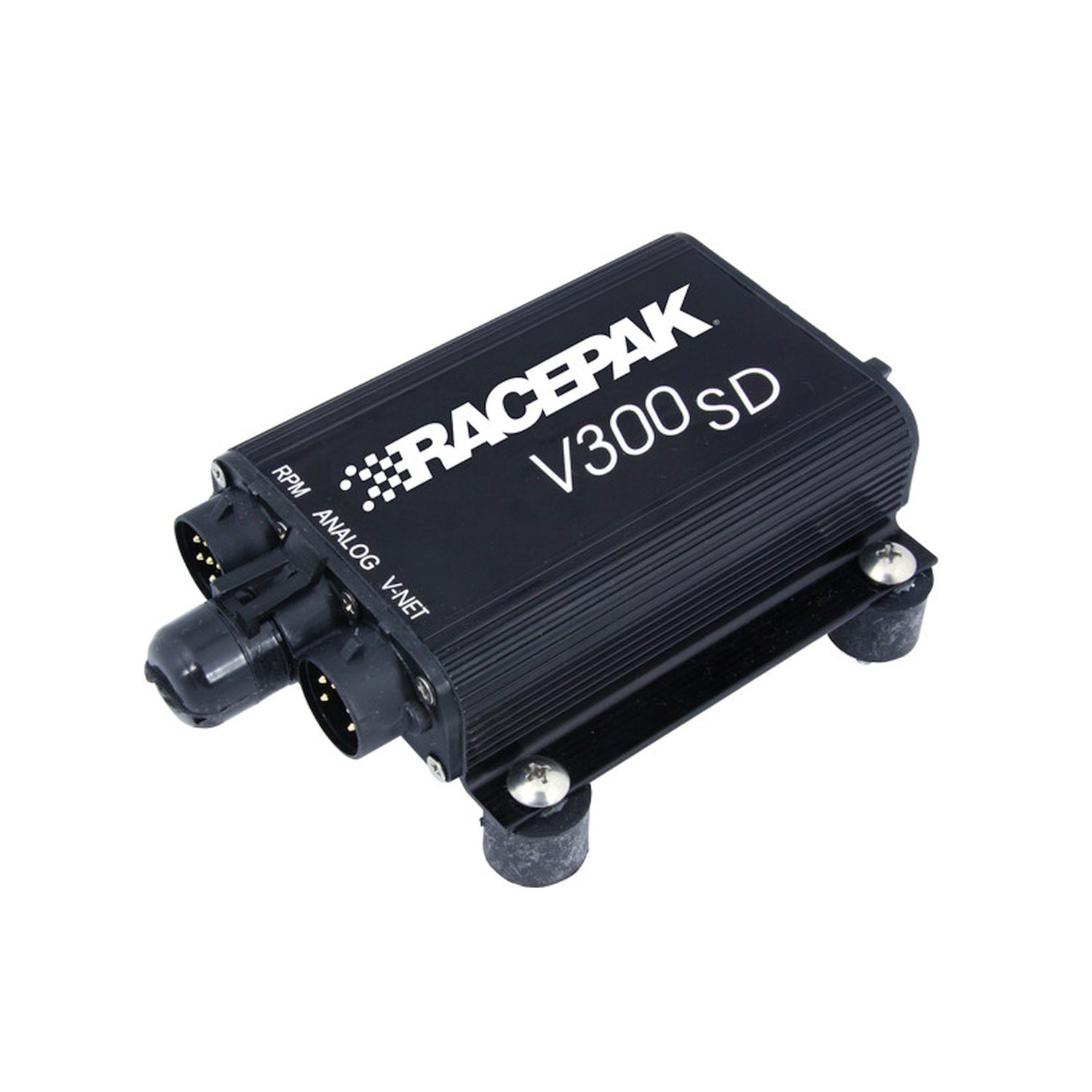

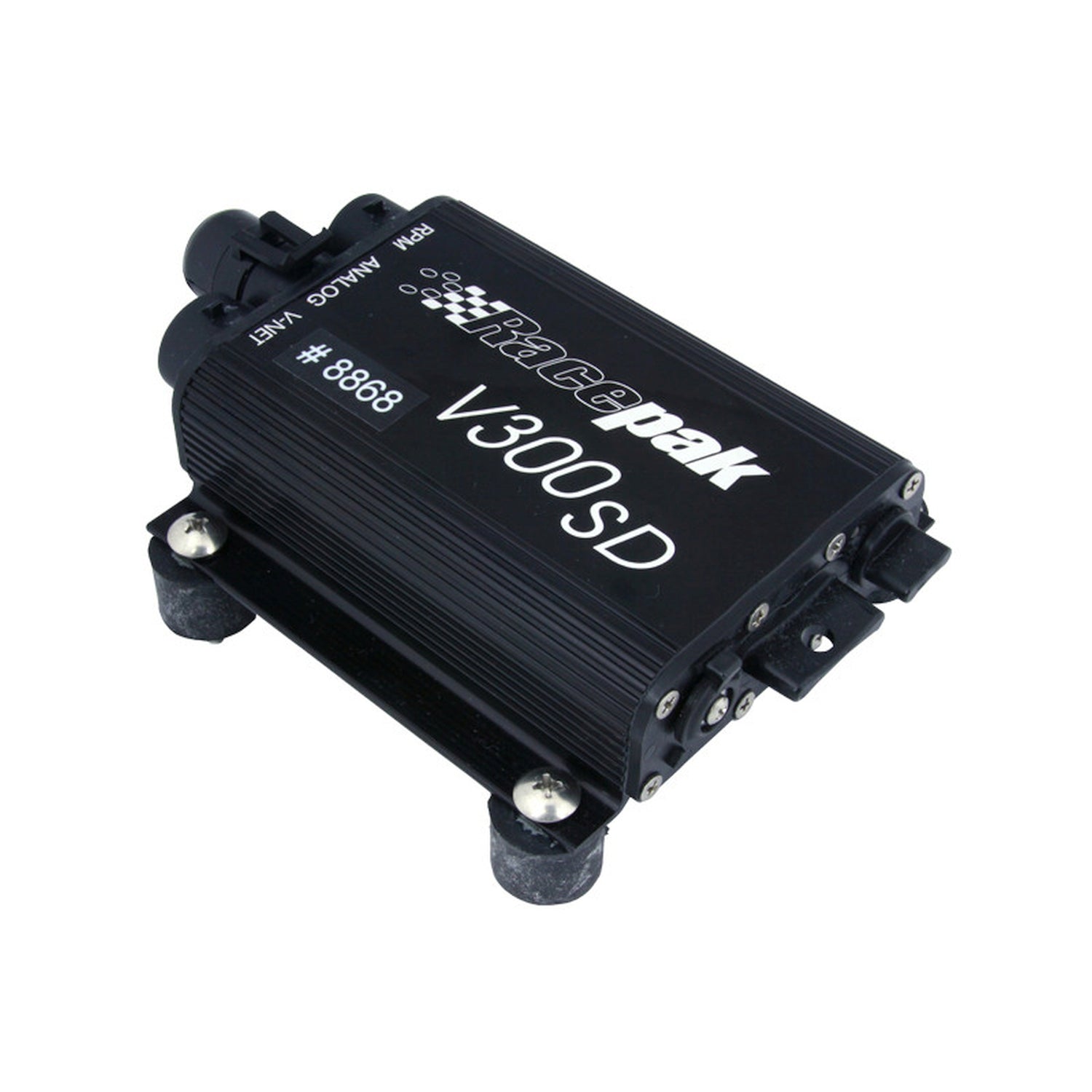

Racepak V300SD Data Logger Dragster Kit, Easy Access - 200-KT-V300SD3G

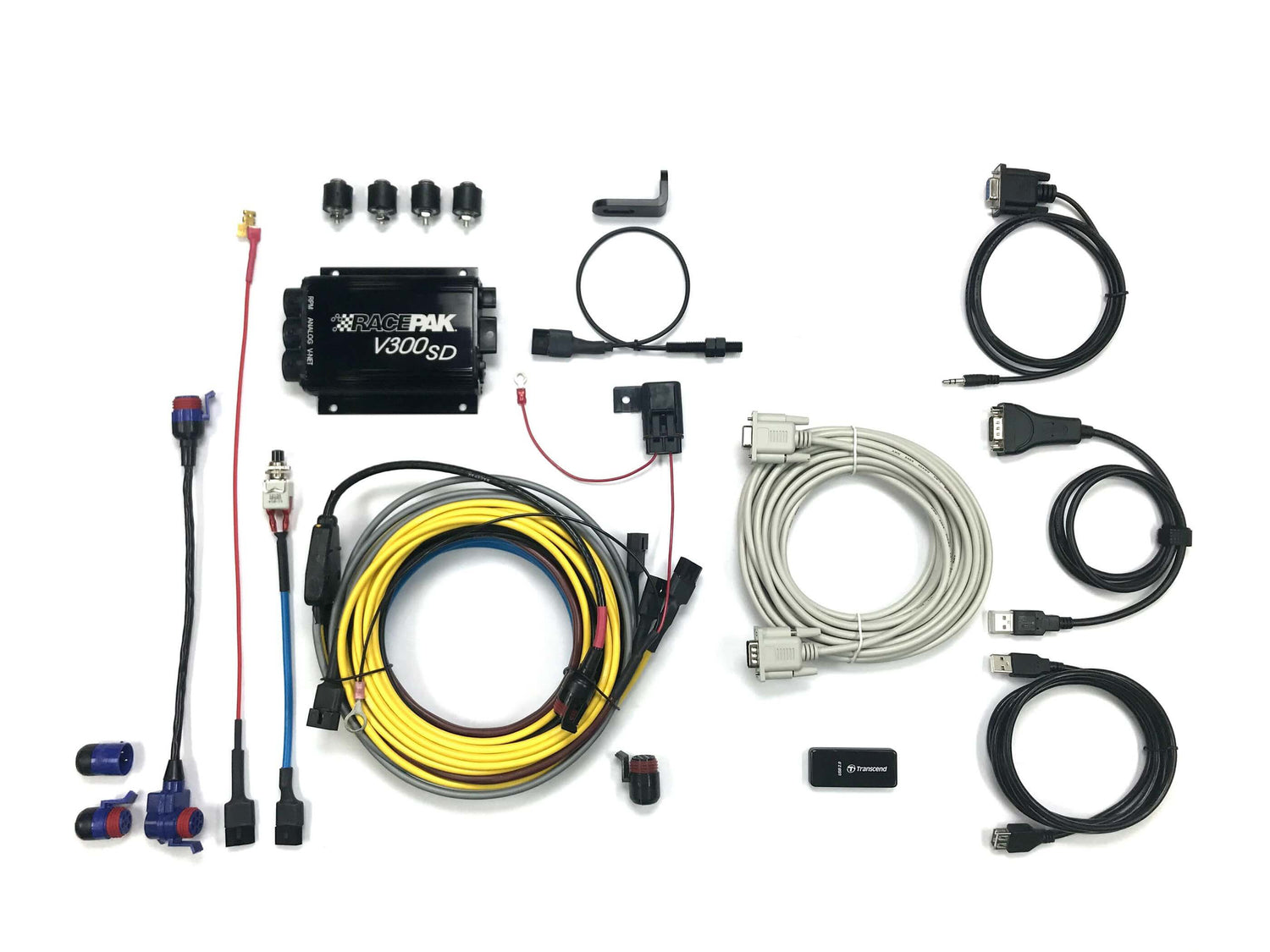

V300SD with Dragster Harness, Commonly used for Pro Stock, Pro Modified, Sportsman drag race classes. DataLink software included.

Part Number: 200-KT-V300SD3G

The new Racepak V300SD Easy Access Data Loggers include all of the features and benefits of their successors, but now also include built-in pre-configured data analysis channels allowing you to make quick decisions based on real data between rounds at the track._x000D_ _x000D_ The new Easy Access loggers no longer require the use of a security key, allowing you to look at your data with any laptop that has the latest version of Datalink V5 installed._x000D_ _x000D_ Out-of-the-Box, this system will data log:_x000D_ _x000D_ Engine RPM_x000D_ _x000D_ Drive Shaft RPM (Requires Driveshaft Collar Sold Separately)_x000D_ _x000D_ Accelerometer G-Meter_x000D_ _x000D_ Lateral G-Meter_x000D_ _x000D_ Battery Voltage_x000D_ _x000D_ List of Pre-configured data analysis math channels are included in the DataLink V5 software:_x000D_ _x000D_ Engine vs. Driveshaft Ratio_x000D_ _x000D_ Clutch % Slip_x000D_ _x000D_ Clutch Slip Ratio_x000D_ _x000D_ Trans Ratio_x000D_ _x000D_ RR, LR, RF, LF Shock Velocity_x000D_ _x000D_ Average Air/Fuel Ratio_x000D_ _x000D_ Average Exhaust Gas Temperatures_x000D_ _x000D_ CC's Per Turn (for Fuel Flow)_x000D_ _x000D_ Track Time_x000D_ _x000D_ G-Meter MPH, G-Meter Distance (Feet)_x000D_ _x000D_ 60 ft, 330 ft, 660 ft, 1000 ft, 1320 ft Clock Markers The new Easy Access loggers no longer require the use of a security key, allowing you to look at your data with any laptop that has the latest version of Datalink V5 installed. Out-of-the-Box, this system will data log: Engine RPM Drive Shaft RPM (Requires Driveshaft Collar Sold Separately) Accelerometer G-Meter Lateral G-Meter Battery Voltage List of Pre-configured data analysis math channels are included in the DataLink V5 software: Engine vs. Driveshaft Ratio Clutch % Slip Clutch Slip Ratio Trans Ratio RR, LR, RF, LF Shock Velocity Average Air/Fuel Ratio Average Exhaust Gas Temperatures CC's Per Turn (for Fuel Flow) Track Time G-Meter MPH, G-Meter Distance (Feet) 60 ft, 330 ft, 660 ft, 1000 ft, 1320 ft Clock Markers

Features and Benefits

• With sampling rates of up to 1000 frames per second, the V300SD series of data recorders allow you to monitor up to 83 channels of sensor information.
• Unlocked math channels for the following calculations: Clutch % Slip, Trans Ratio, Shock Velocity, Average AFR (Air/Fuel Ratio), Average EGT (Exhaust Gas Temperature), G-Meter MPH – and many More.
• The included SD memory card allows you to transfer your vital sensor information to your laptop quickly, getting you back in the lanes without fumbling with cables.
• The 83 total channels break down as follows: 56 V-Net; 4 Hard-wired Analog; 4 Hard-wired Digital; and 3 Internal Sensors (Battery Voltage, Accel/Decel G-Meter, and Lateral G-Meter)

***Driveshaft Collar Sold Separately***
